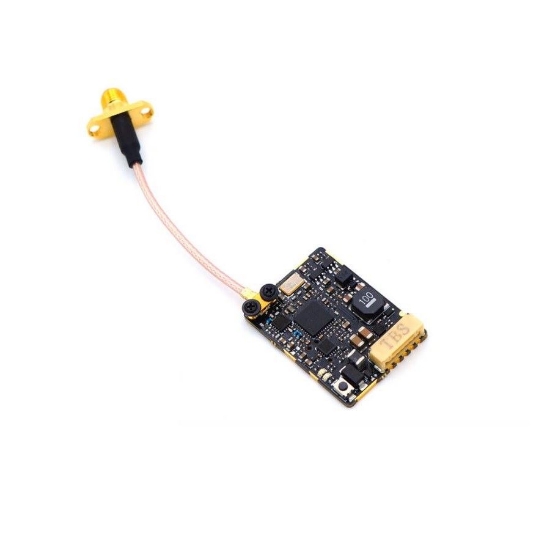

TBS Unify Pro HV VTX 5.8GHz (SMA)

The smallest, lightest 40ch video transmitter on the market also happens to be the most powerful. Coincidence? Not at TBS! With only 7g and a 31x22x6mm form factor, your quad will barely notice it's there.
Manufacturer: Team Blacksheep
Availability: In stock
£48.74 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

** Please note this is the high voltage version - we also sell the low voltage version, see related items **
** Current stock is the new version with screws holding down the pigtail and solder pads on the underside of the board **

Overview:

The smallest, lightest 40ch video transmitter on the market also happens to be the most powerful. Coincidence? Not at TBS!

With only 7g and a 31x22x6mm form factor, your quad will barely notice it's there. The 25mW - 800mW adjustable output power allows you to race with friends and penetrate serious concrete with just a few pushes of a button (or using the CORE PRO OSD menu). The 40CH coverage gives you the freedom to fly at any race without having to resort to video transmitter swapping practices.

Powercube & Core Pro Ready:

A recent hardware revision on the CORE PRO enables direct communication between OSD and video transmitter. Take advantage of changing bands, channels, output power right through your remote control. Other cool stuff such as custom LED colors on your quad depending on the frequency you selected makes it easy to detect possible interference between two quads just by judging the LED color similarity. Together, the setup becomes better than the sum of its parts.

Say No! To Dip Switches:

Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.

Specifications:

- Operating Voltage: 2S - 6S
- Supply current: 600mA
- Operating Temperature: watch for normal airflow
- Audio carrier Frequency: 6.5 MHz
- Video Input Impedance: 75 Ohm
- Weight: 7g (with SMA, without antenna)
- Antenna Connector: SMA Female Socket with screw mounting holes
- Video Format: NTSC/PAL
- Output Power: 13dBm (25mW), 23dBm (200mW*), 27dBm (500mW*), 29dBm (800mW*)

Included:

- TBS UNIFY 5G8 Video transmitter
- 5V Video Transmitter pigtail cable

IMPORTANT:

Never turn on your transmitter without an antenna connected! Doing so can cause irreparable damage and as such we cannot accept returns on any transmitter damaged in this way.



LEGAL NOTICE:

We strongly advise you to make yourself aware of any laws in your own country related to the maximum radio transmission power on this 5.8Ghz module as usage of this transmitter may not be legal. You may need to use an attenuator to lower the transmission power of your module to conform with these laws.
