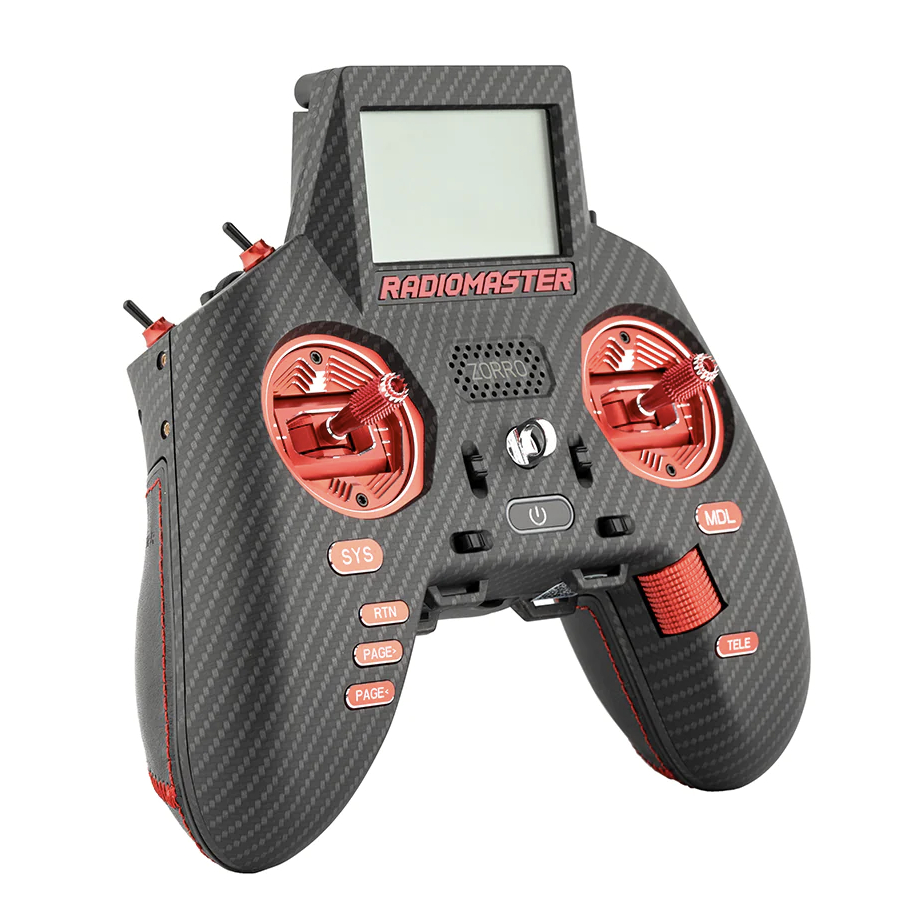

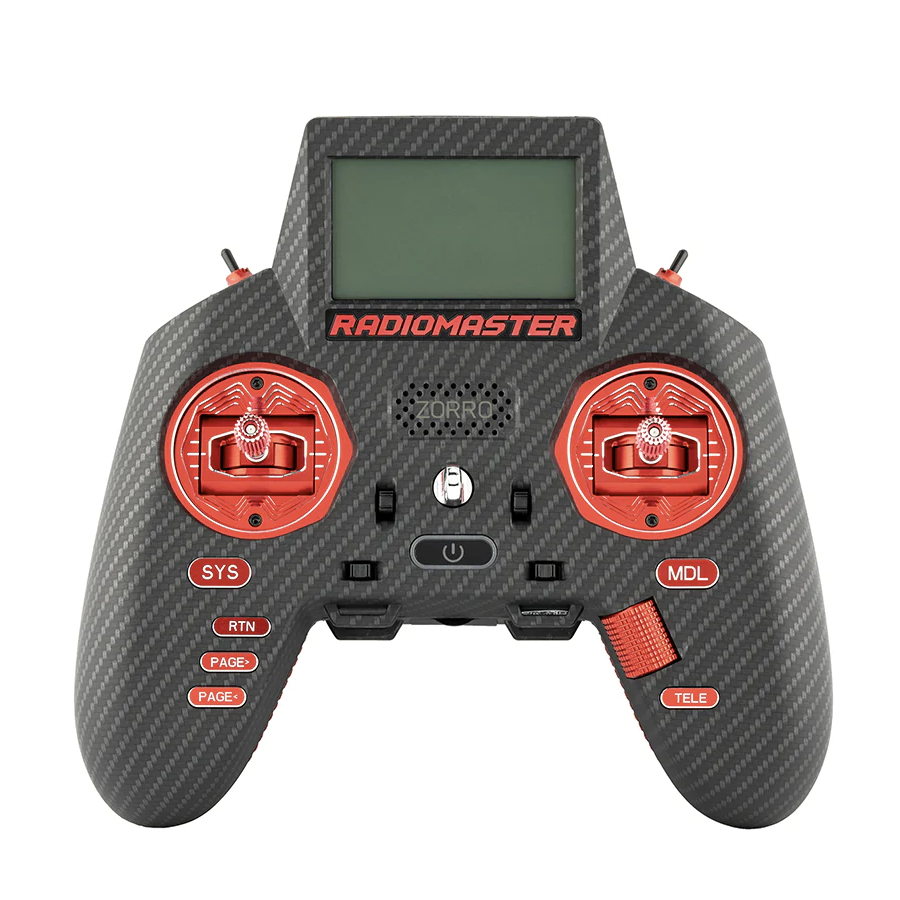

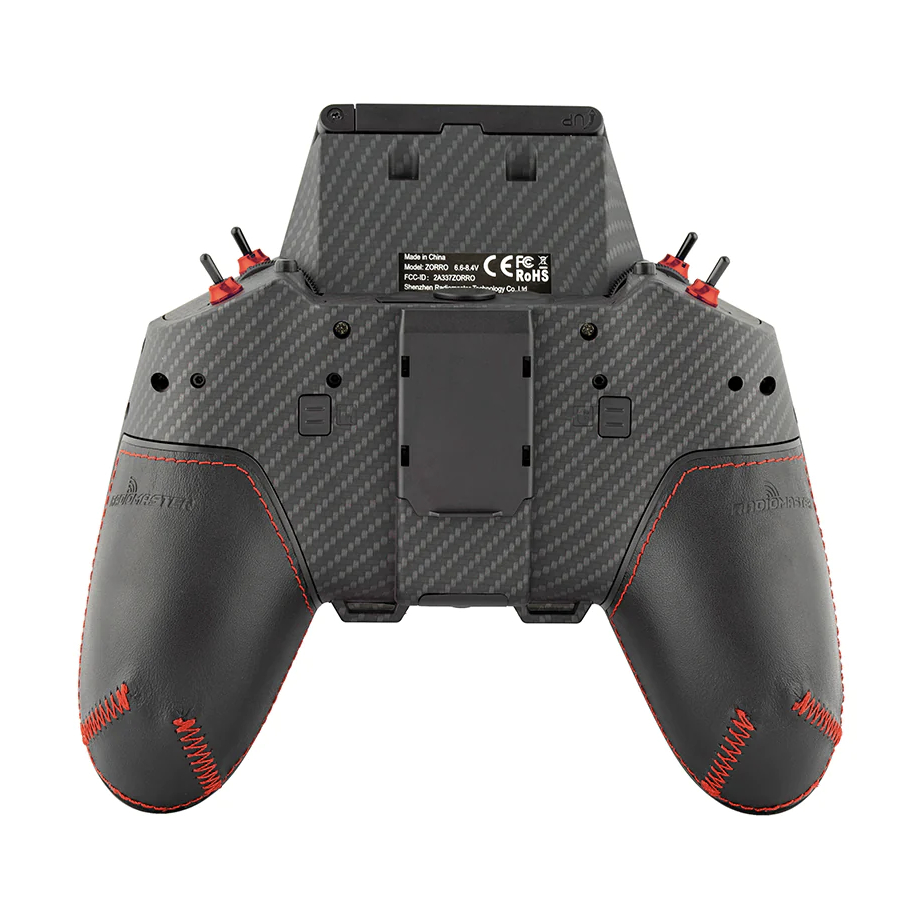

Radiomaster Zorro MAX (Red) (ELRS)

Overview:
The Radiomaster Zorro MAX features upgraded AG01 mini metal hall sensor gimbals, CNC parts, stylish carbon fibre effect body and leather grips. All the original features are retained including ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

This version is the MAX edition with black carbon fibre effect fascia, Red CNC upgrade parts, leather grips, Red AG01 Mini Hall Gimbals and ELRS module. Check you are ordering the right one, ELRS or 4in1.

** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **

** Requires 2x 18350 button top cells (not included - see related items) **

Radiomaster Zorro MAX Features:
- Adjustable AG01 Mini Metal Hall Gimbals
- Leather rear grips
- CNC Parts
- Carbon Fibre effect case
- Switchable between Mode 1 and Mode 2 without disassembly.
- External Module Bay - Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
- ELRS module, compatible with ELRS receivers only (firmware needs to match)
- 18350 Battery Compartments
- Battery Charging - Supports USB-C Directing Charging
- Supports External 2S Battery Power Supply
- Oversized LCD & Foldable Antenna
- Ergonomically Designed

Zorro Max Specifications:
- Physical Dimensions 170*159*108mm
- Weight: 350g
- Operating Frequency:2.400GHz-2.480GHz
- Antenna Gain: Folding 2db
- Operational Current: 160mA @  8.4V
- Operational Voltage: 6.6-8.4v DC
- Control Distance: > 2km @ 20dbm
- Operating system: OpenTX / EdgeTX Compatible
- Control channels: Maximum 16 (Rx dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2 x 18350 (Not included)
- Charging: Built in USB-C Charging
- Gimbal: AG01 Mini Hall-effect
- Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
- Firmware Upgrade Method: Via USB or SD card

Included:

- 1x Radiomaster Zorro Max Transmitter (ELRS) (MODE 2) in Red
