Overview:

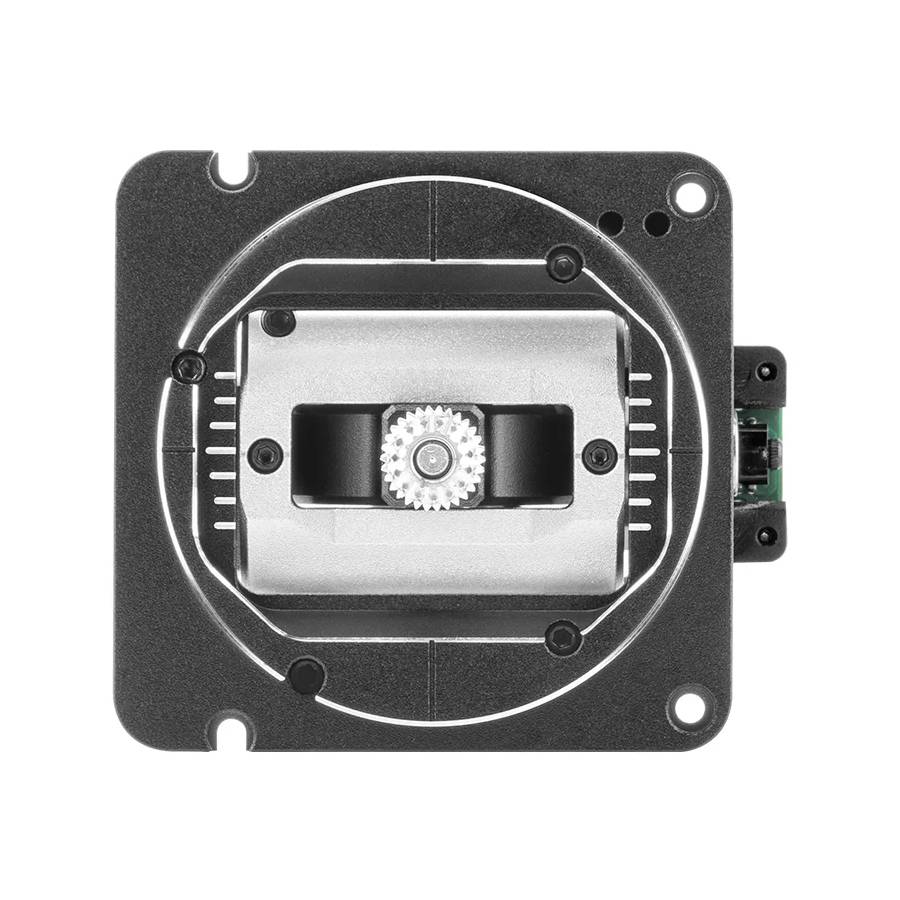

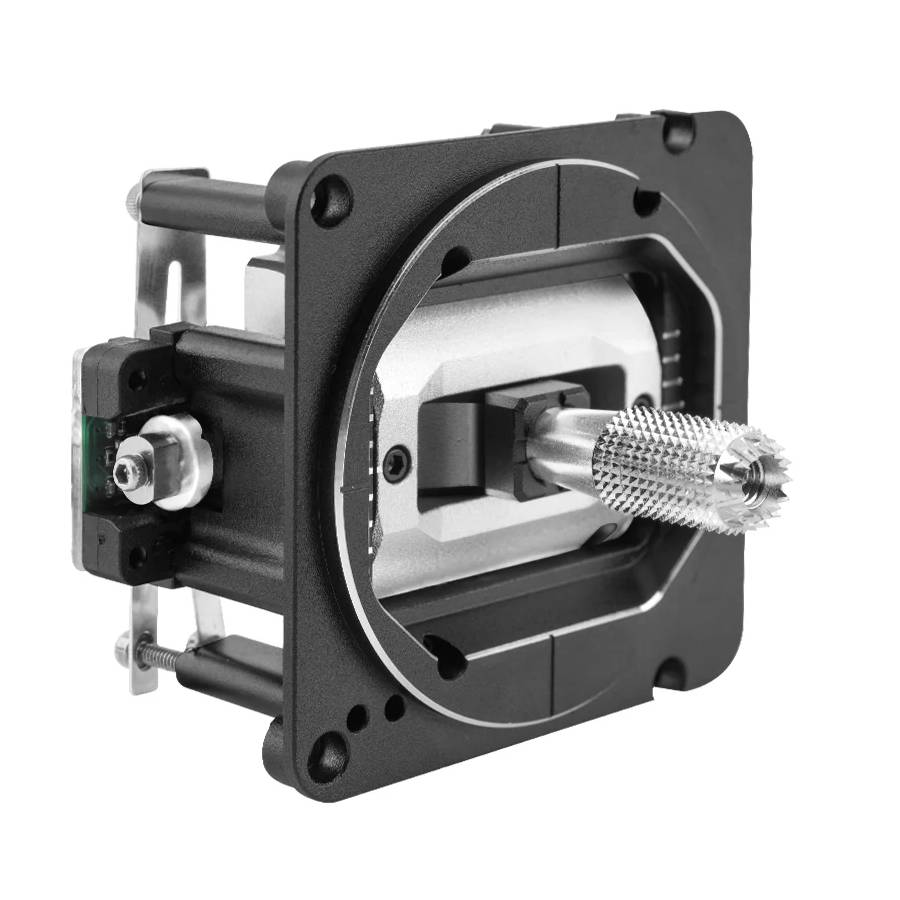

The AG02 gimbals are precision-engineered from machined aluminium, offering adjustable travel on both vertical and horizontal axes for highly responsive, customisable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.
Equipped with advanced Hall effect sensors, the AG02 provides low noise, rapid response, and exceptional accuracy. The anodised aluminium finish offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade.
Features:
- Full Aluminium Construction: Key structural areas are optimised to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.
- Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.

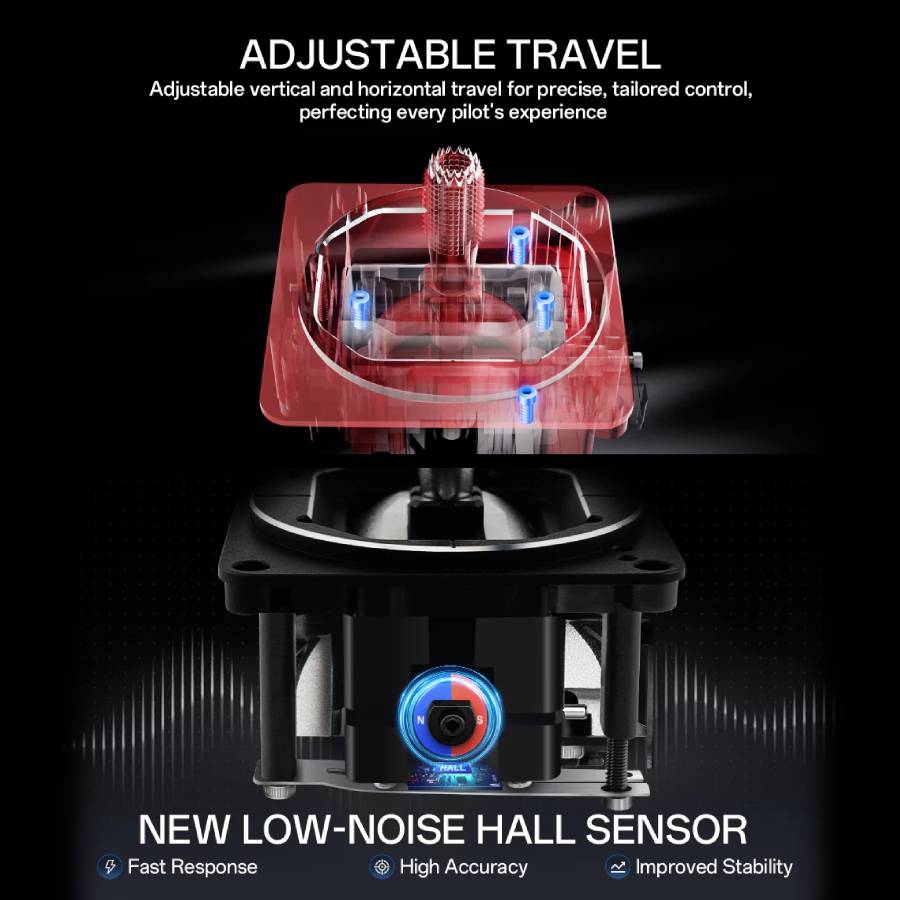

- Adjustable Travel: Vertical and horizontal travel adjustment for the perfect feel for any pilot.

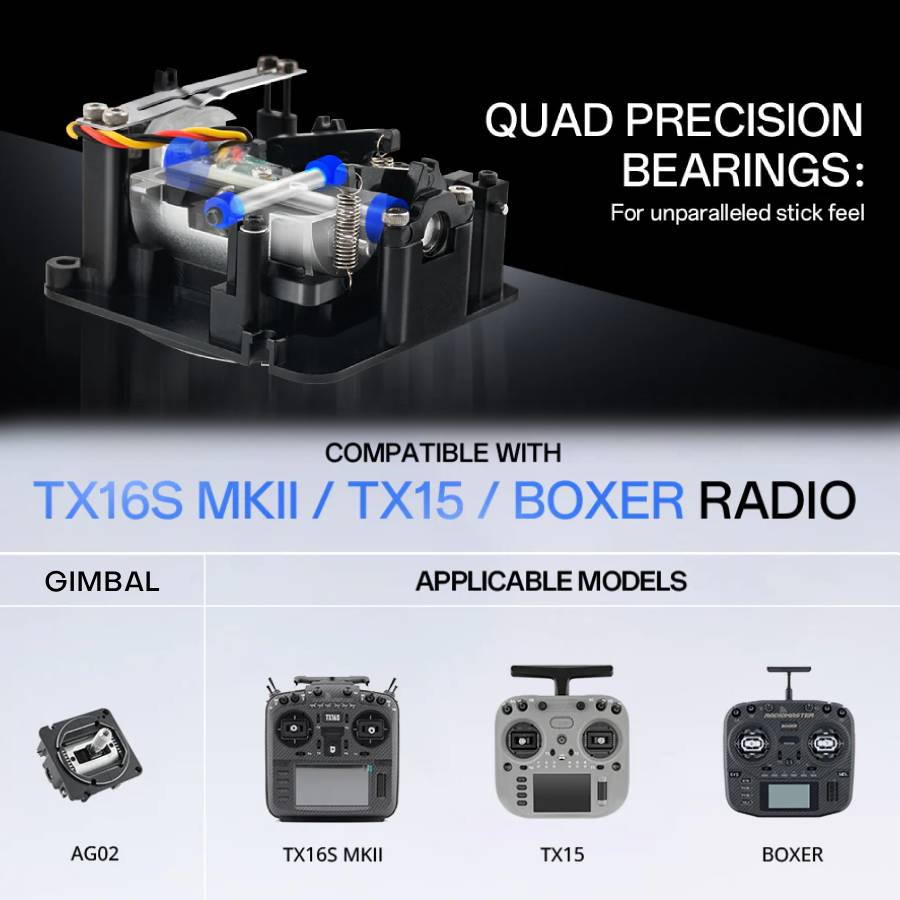

- Quad precision bearings: For unparalleled stick feel.
- 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.
- Designed for Radiomaster TX16, TX15 & Boxer Radios
Specification:
- Model: AG02 CNC Hall Gimbal (Centering)
- Sensor type: Hall analogue
- Operating voltage: DC 3.3V
- X-Axis travel adjustment range: 30°–56°
- Y-Axis travel adjustment range: 38°–54°
- Throttle mode switch (Mode 1/2) without disassembly
- Spring tension adjustment without disassembly
- Quad ball bearings
- Operating temperature range: -20°C to +85°C
- Dimensions (excluding stick ends): 53×53×33.3mm
- Weight: 73g ± 1g (per unit)

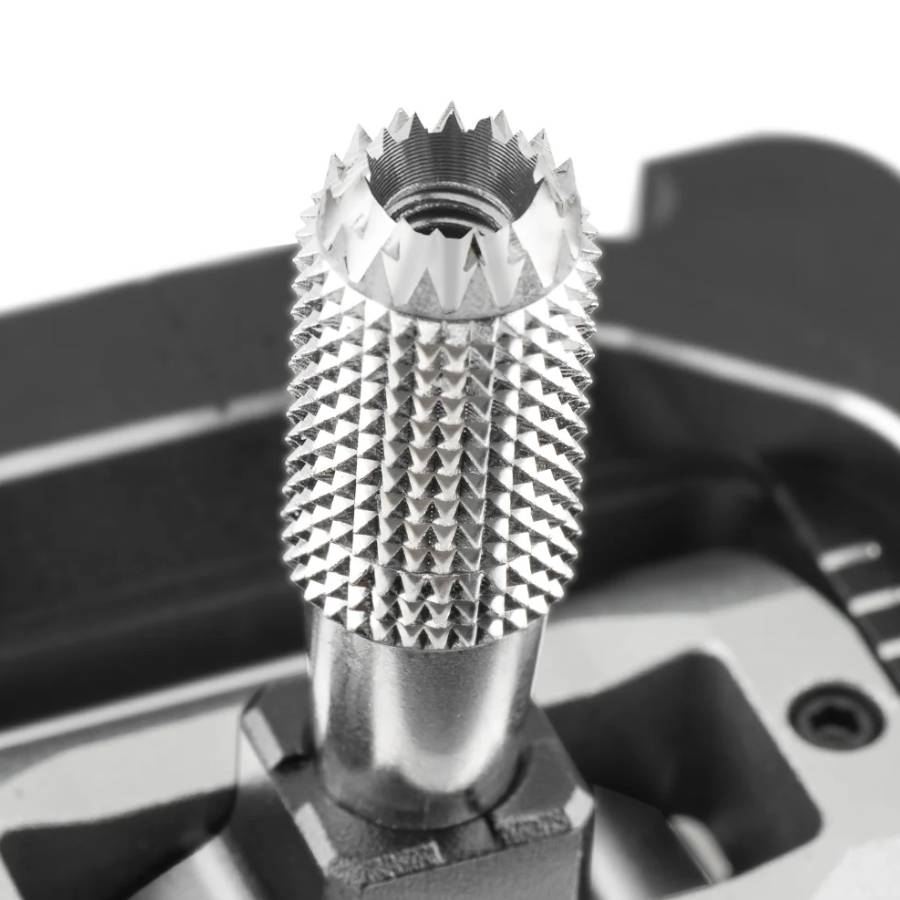

- Gimbal sticks: M4

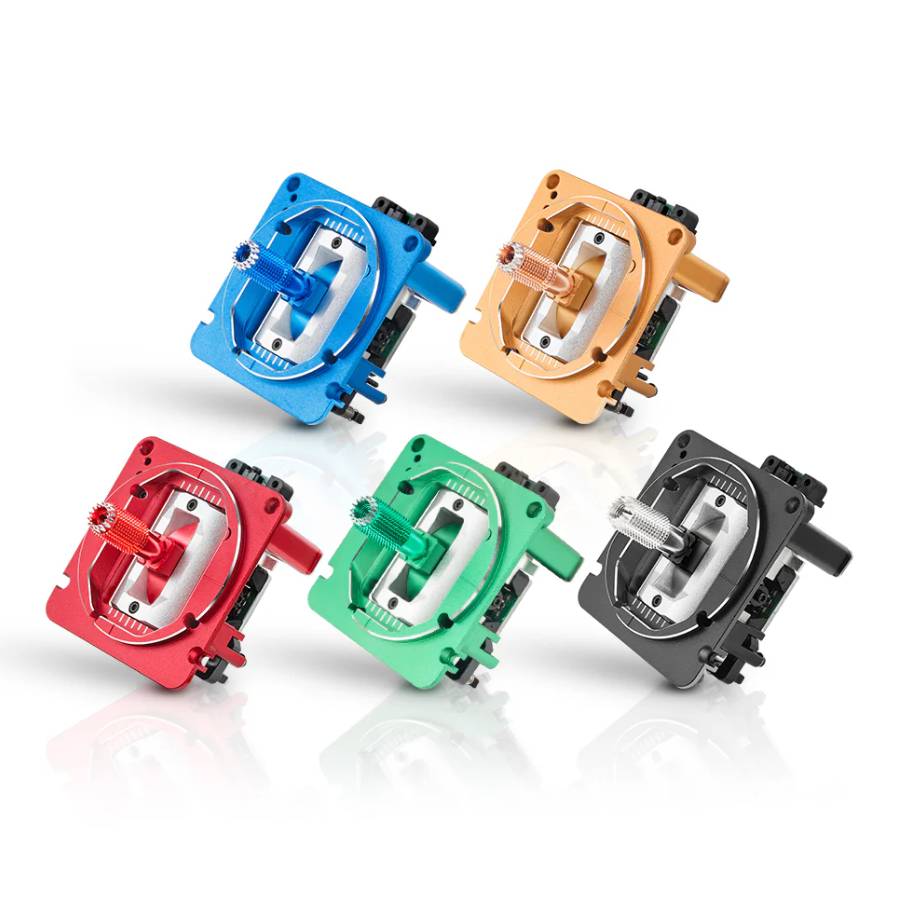

Available versions (see below for purchase options):
- AG02 CNC Hall Black Gimbal (Centering)

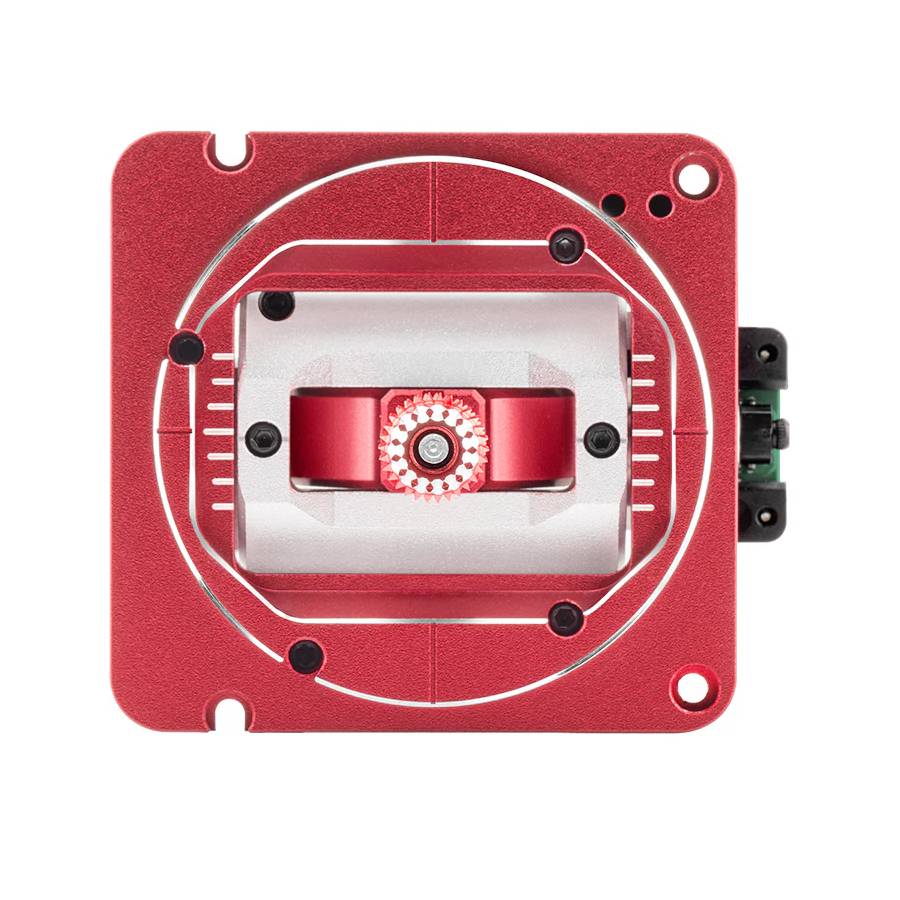

- AG02 CNC Hall Red Gimbal (Centering)

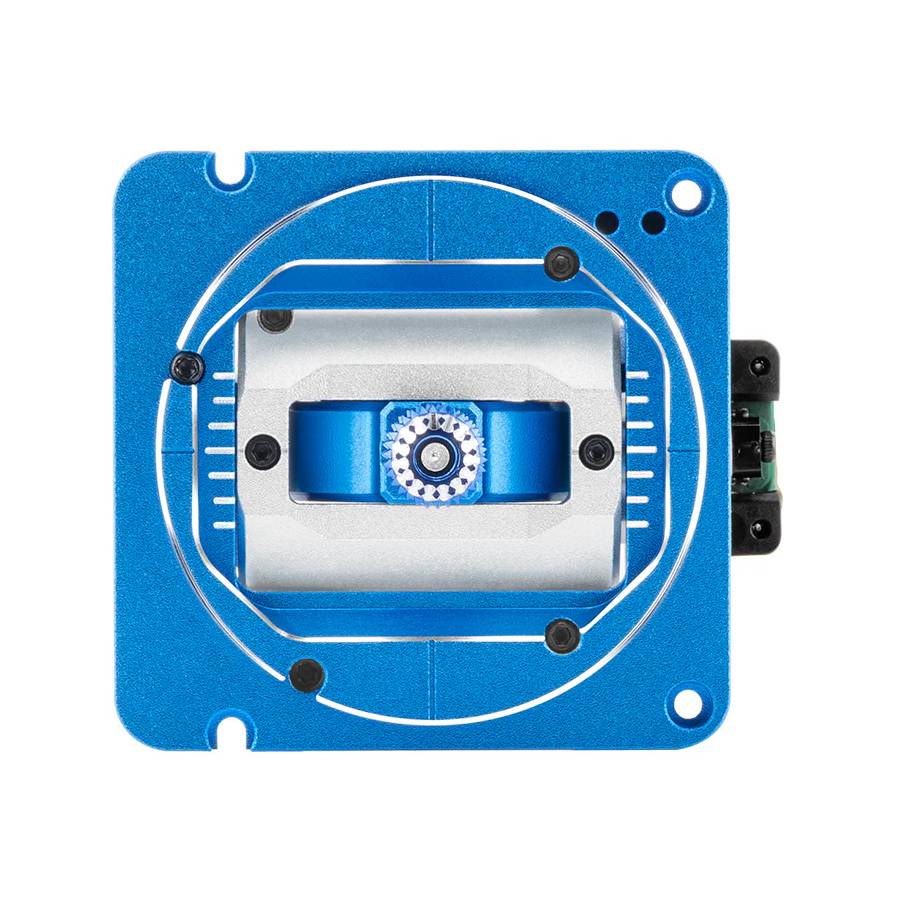

- AG02 CNC Hall Blue Gimbal (Centering)

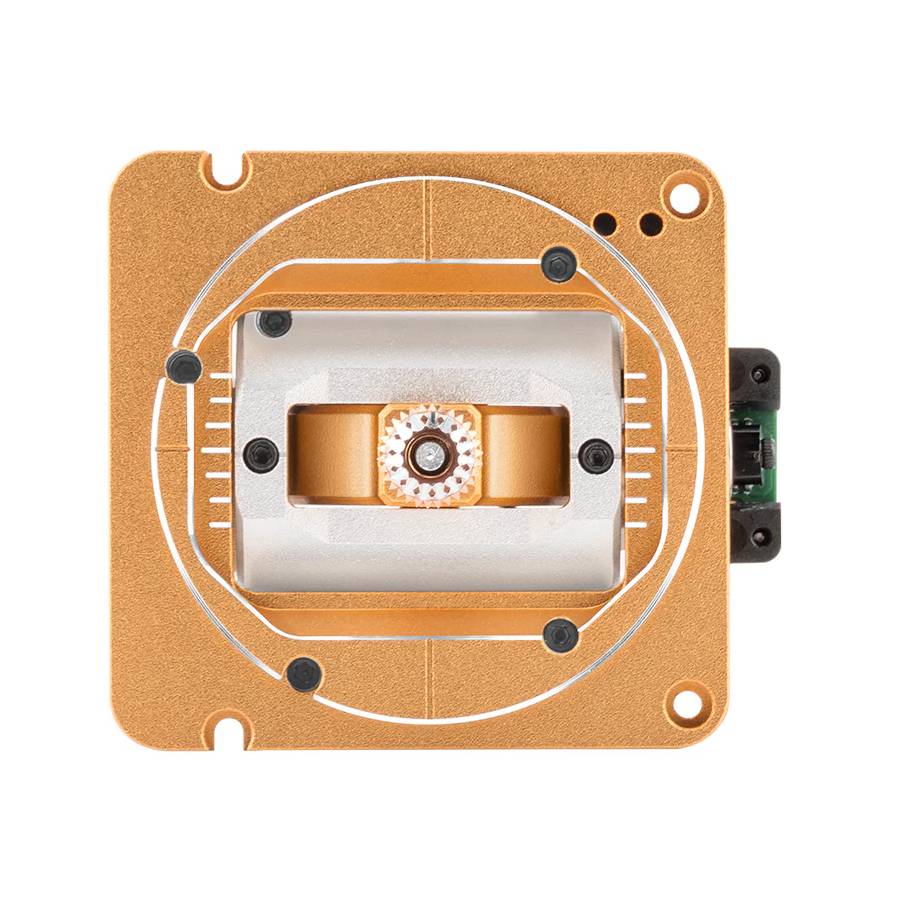

- AG02 CNC Hall Gold Gimbal (Centering)

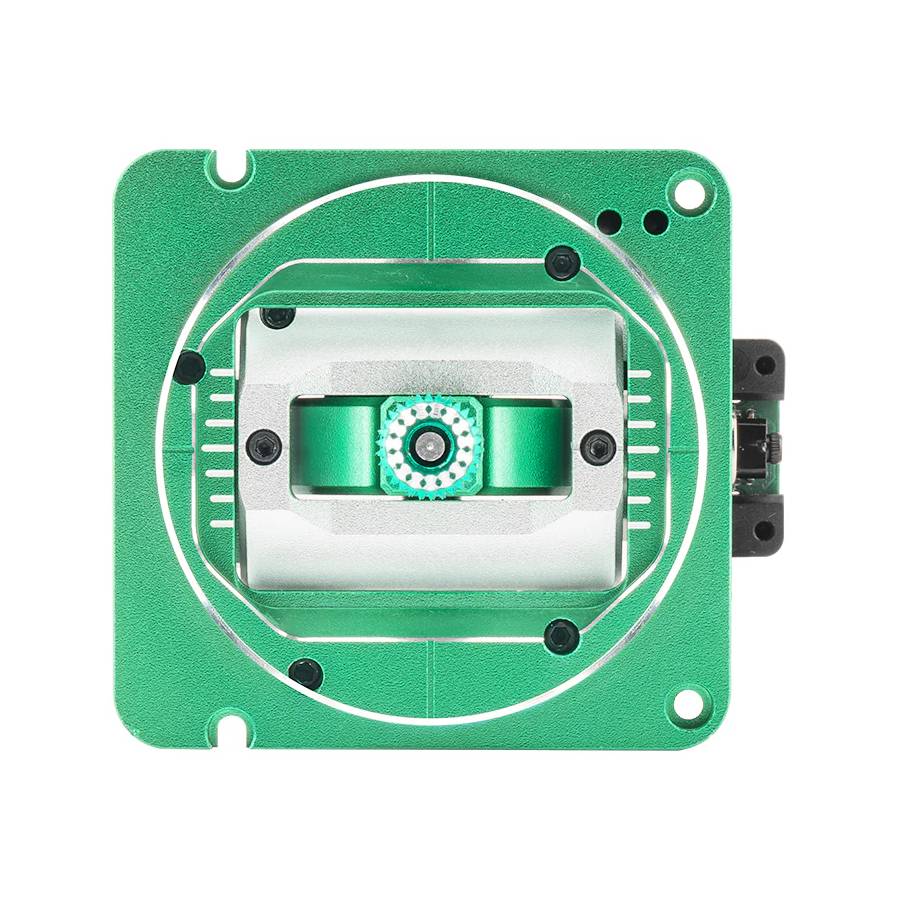

- AG02 CNC Hall Green Gimbal (Centering)
Included:
- 1x AG02 CNC Hall Gimbal (Centering)
