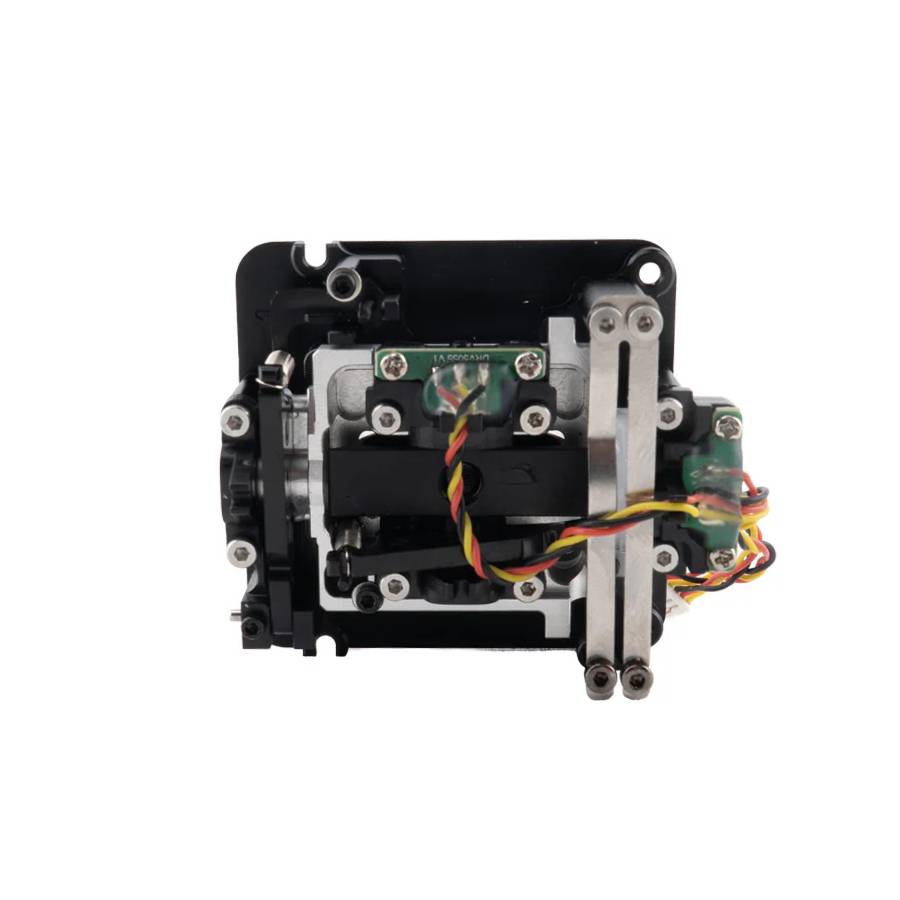

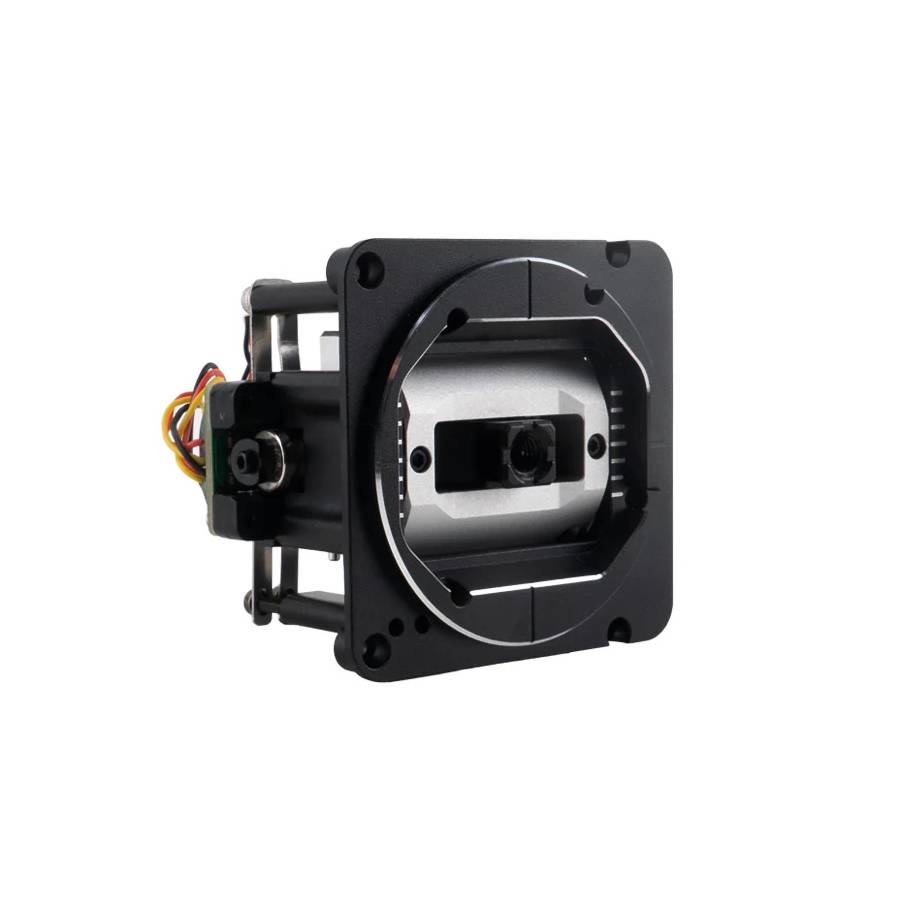

Radiomaster AG02 M5 CNC Hall Gimbal (for custom sticks)

Overview:
The Radiomaster AG02 M5 CNC Hall Gimbal is a precision-engineered upgrade gimbal set for custom radio sticks that enhances stick control and response for compatible RC transmitters. Machined from high-grade aluminium and fitted with low-noise Hall effect sensors, it delivers a smooth, accurate and durable control interface with adjustable travel and tension. Designed for pilots who want improved stick feel and performance over stock gimbals, the AG02 M5 is ideal for custom builds and personalised radio setups. It retains the proven mechanical design while adding M5 stick threading to broaden compatibility with third-party and custom stick end options. They are compatible with TX15, TX16S and Boxer Radios.

Features:
- Fully CNC-machined aluminium construction for strength, durability and a premium feel.
- Reduces rotational inertia by approximately 21.6 % for faster, smoother stick response.
- Low-noise Hall effect sensors deliver high-resolution, contactless stick input with consistent accuracy.
- Adjustable travel range on both horizontal and vertical axes allows fine-tuning of stick throw to match pilot preference.
- Independent travel and tension adjustments without radio disassembly – including throw and spring tension setup.
- Quad precision bearings ensure smooth stick movement with minimal friction.
- M5 threaded stick ends support a wide range of third-party custom stick options for tailored ergonomics.
- Finished in black anodised aluminium for a durable, professional appearance.

Specification:
- Sensor type: Hall analogue for contactless stick sensing
- Compatibilty: TX15, TX16S and Boxer Transmitters
- Operating voltage: DC 3.3V
- X-axis travel adjustment: 30°–56°
- Y-axis travel adjustment: 38°–54°
- Throttle mode switch: Supported without needing disassembly
- Spring tension adjustment: Supported without disassembly
- Bearings: Quad ball bearing setup for consistent movement
- Operating temperature: -20°C to +85°C
- Dimensions: 54.6×53×33.3mm
- Weight: ~67.9 g ±1 g per gimbal
- Stick thread: M5 for compatibility with custom stick options

Included:

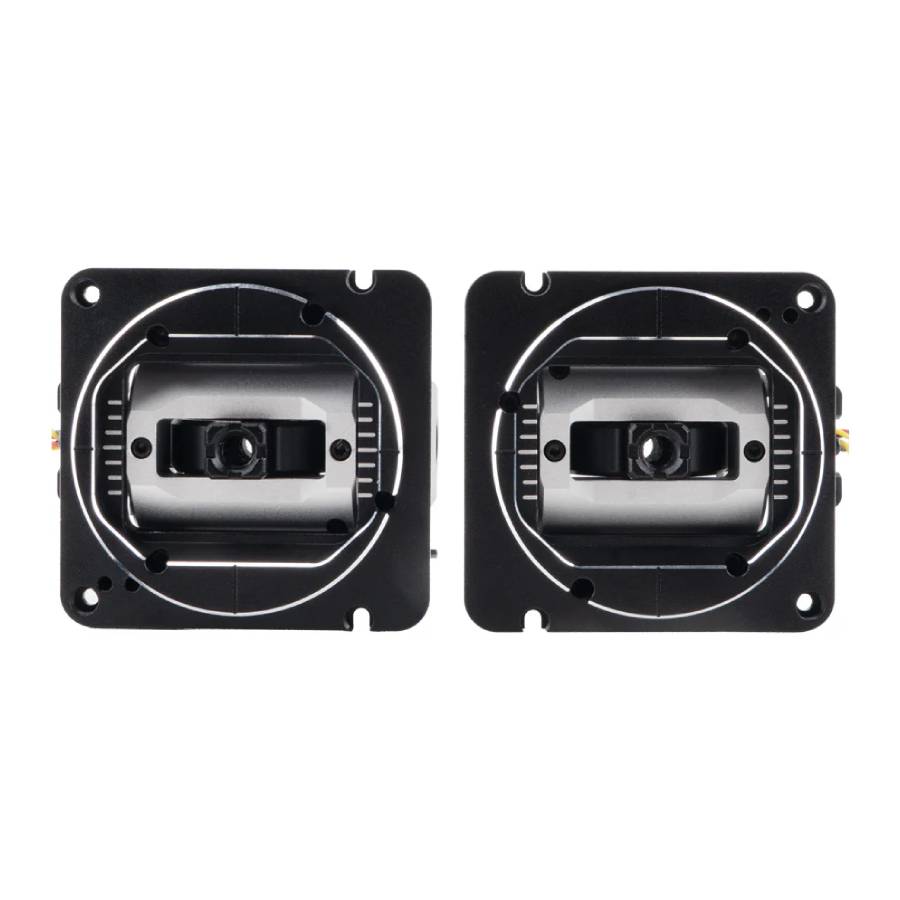

- 2x Radiomaster AG02 M5 CNC Hall Gimbal (For custom sticks)
