Overview:

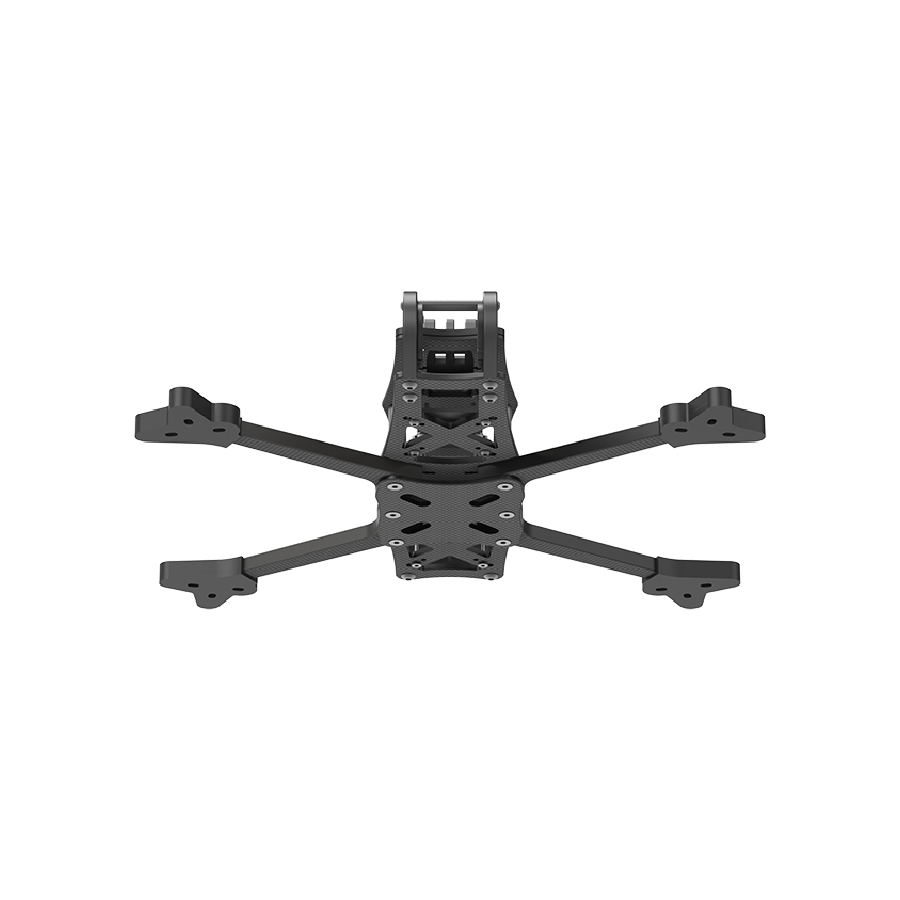

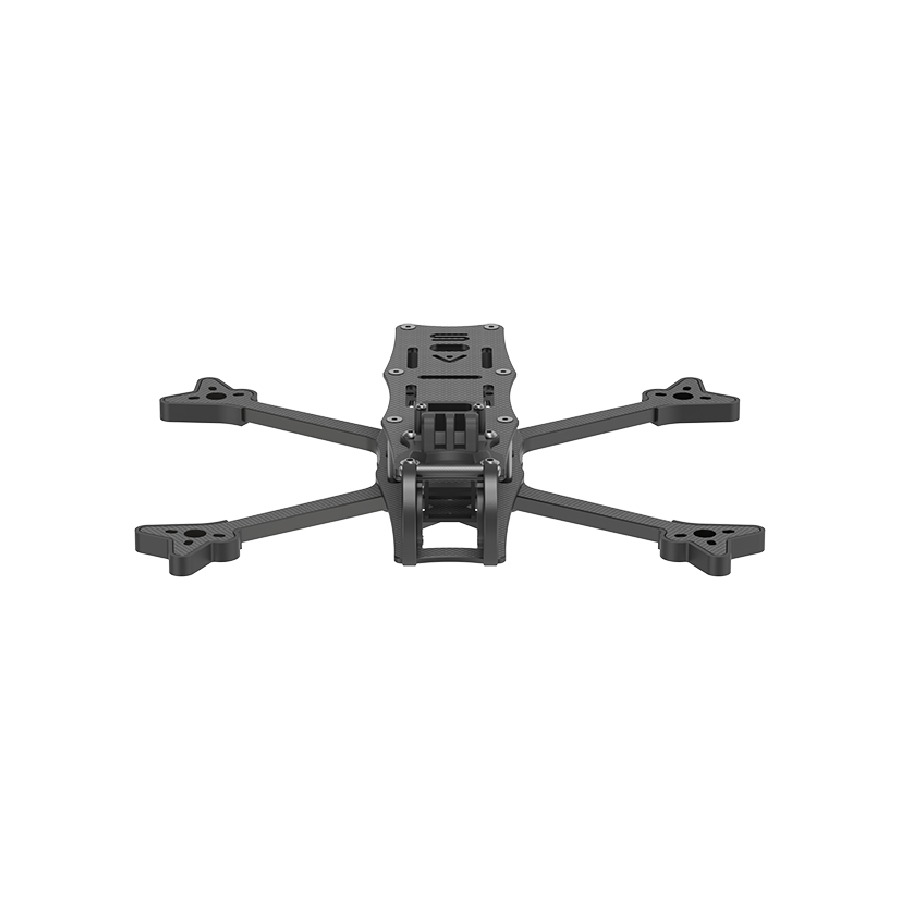

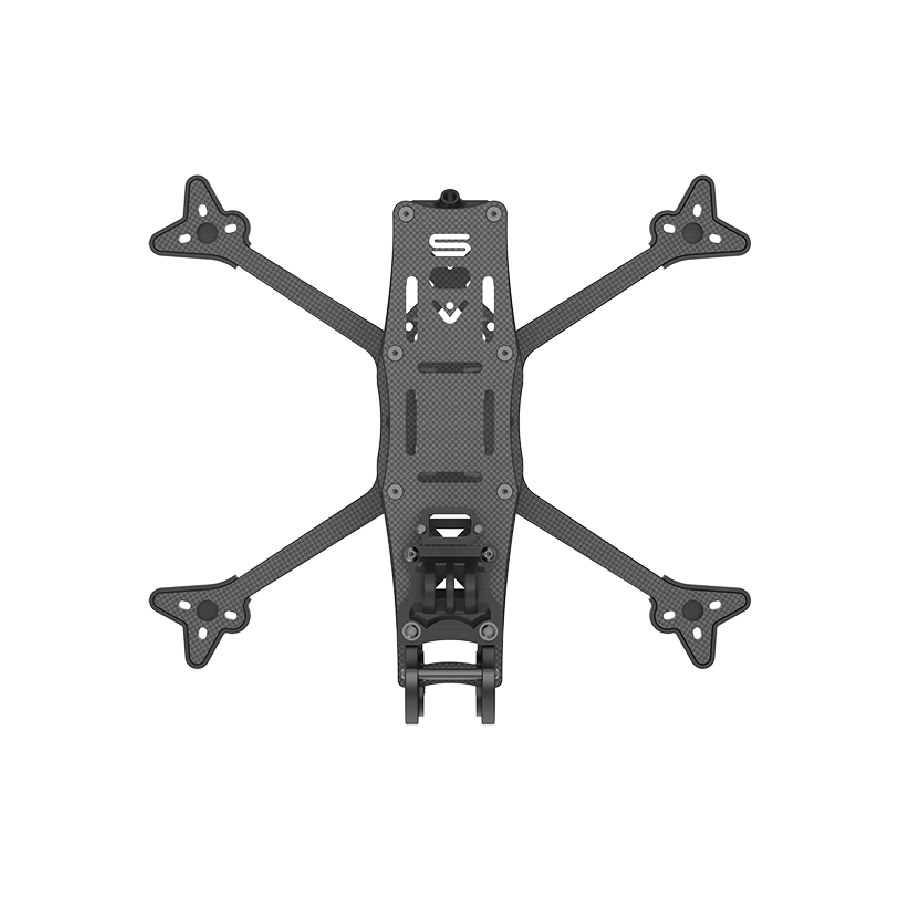

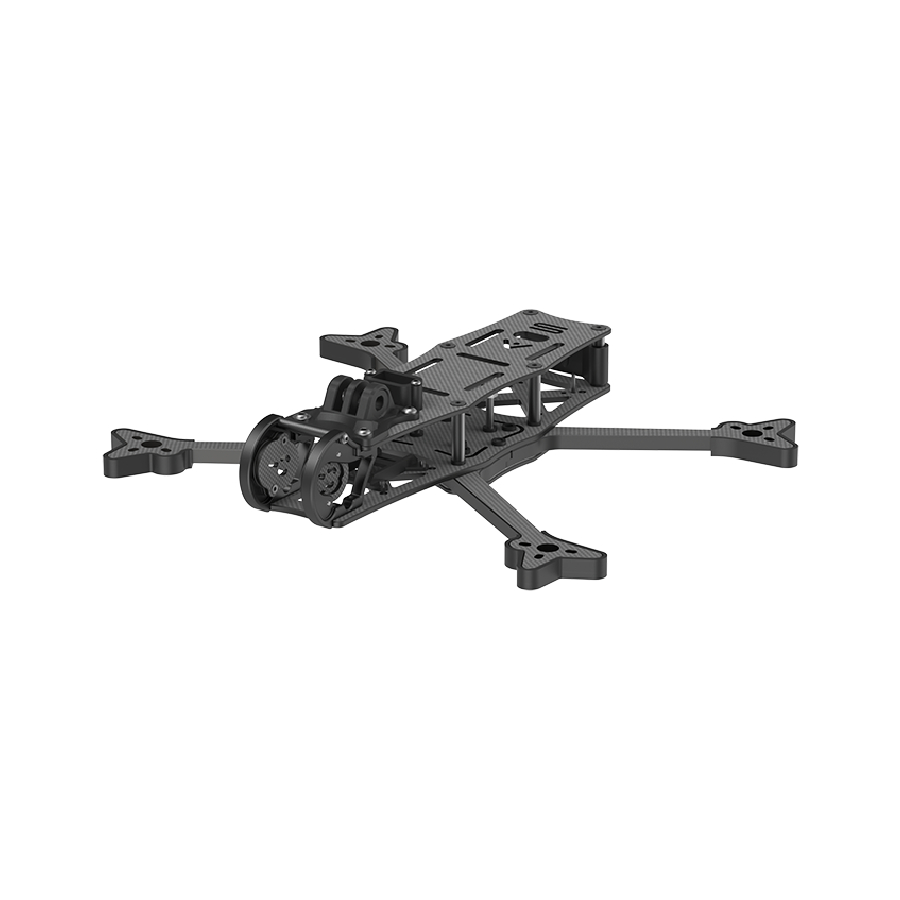

The latest iFlight AOS 5 V5 is a high-performance 5‑inch freestyle FPV frame carefully engineered to deliver agility, stability and flight without props in view. Constructed from premium materials and refined across multiple iterations, this frame balances responsiveness with durability, offering pilots a confident foundation for both freestyle flights and high-speed dives.
Its camera cage, made from reinforced 7075‑aluminium, provides solid protection while maintaining optimal Field of View. With support for DJI O3 and O4 air units, flexible stack mounting options and anti‑vibration technology, the AOS 5 V5 caters to a wide range of builds and battery layouts.
Features:
- Compact 228mm wheelbase tuned for freestyle agility
- AOS X‑Cell anti-vibration system reduces camera shake
- Fully camera-forward design with 155° Field of View and no visible props
- Reinforced 7075‑aluminium camera cage includes ND filter mounts
- Compatible with DJI O3 and O4 air units, as well as Vista HD and Blitz Whoop VTX
- Supports multiple stack heights (20mm) and motor mounting patterns (16-19mm)
- Includes mounting provisions for GoPro 28x28mm modules
- Rear standoff spacing allows easy antenna placement (32mm)
Specification:
- Model: AOS 5 V5 Frame Kit
- Frame wheelbase: 228mm
- Overall dimensions: 180x140x34mm
- Frame weight: 150g
- Arm thickness: 6mm
- Plate thicknesses: top 2mm, bottom 2mm, upper plate 2.5mm
- Maximum stack height: 20mm
- Maximum VTX height: 20mm
- Motor mounting options: 19x19mm (φ 3mm bolts), 16x16mm (φ 3mm bolts)
- Flight controller stack mounting: 20x20mm (φ 3mm), 25.5x25.5mm (φ 2mm), 30.5x30.5mm (φ 3mm)
- VTX mounting pads match flight stack layout
- Rear standoff spacing: 32mm
- Propeller compatibility: up to 5.2 inch
- Compatible camera formats: 19-20 mm (hard or soft mount)
- Compatibility: DJI O3/O4, Vista HD and Blitz Whoop 1.6 W supported

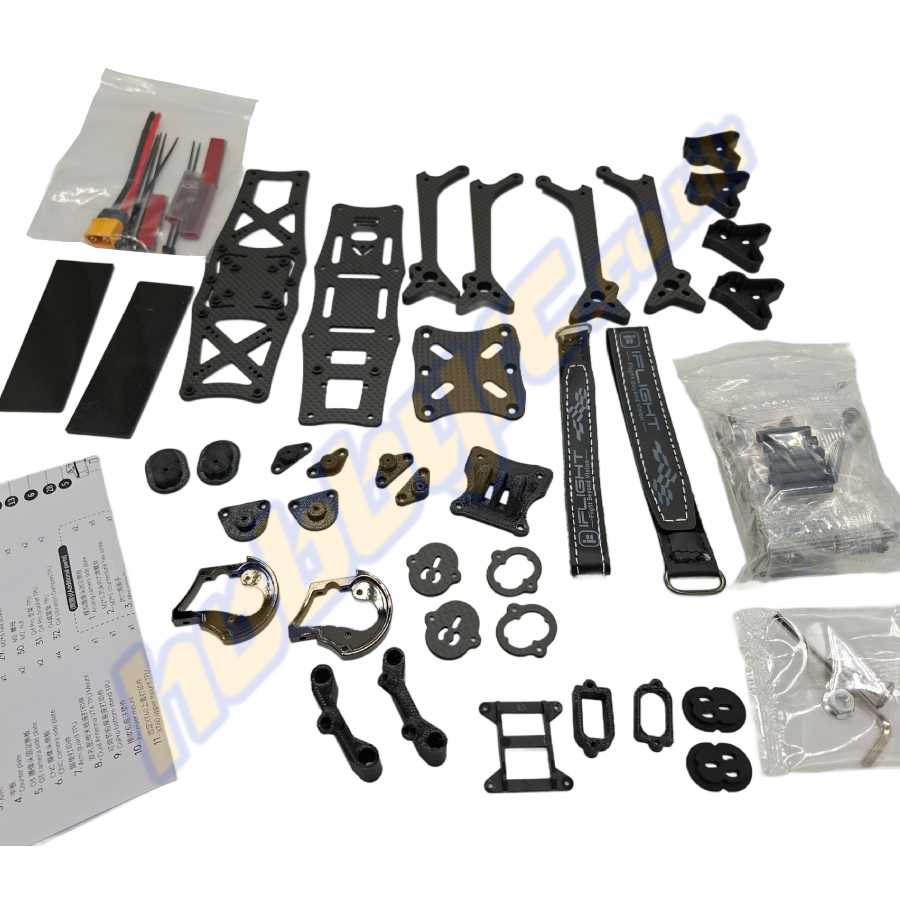

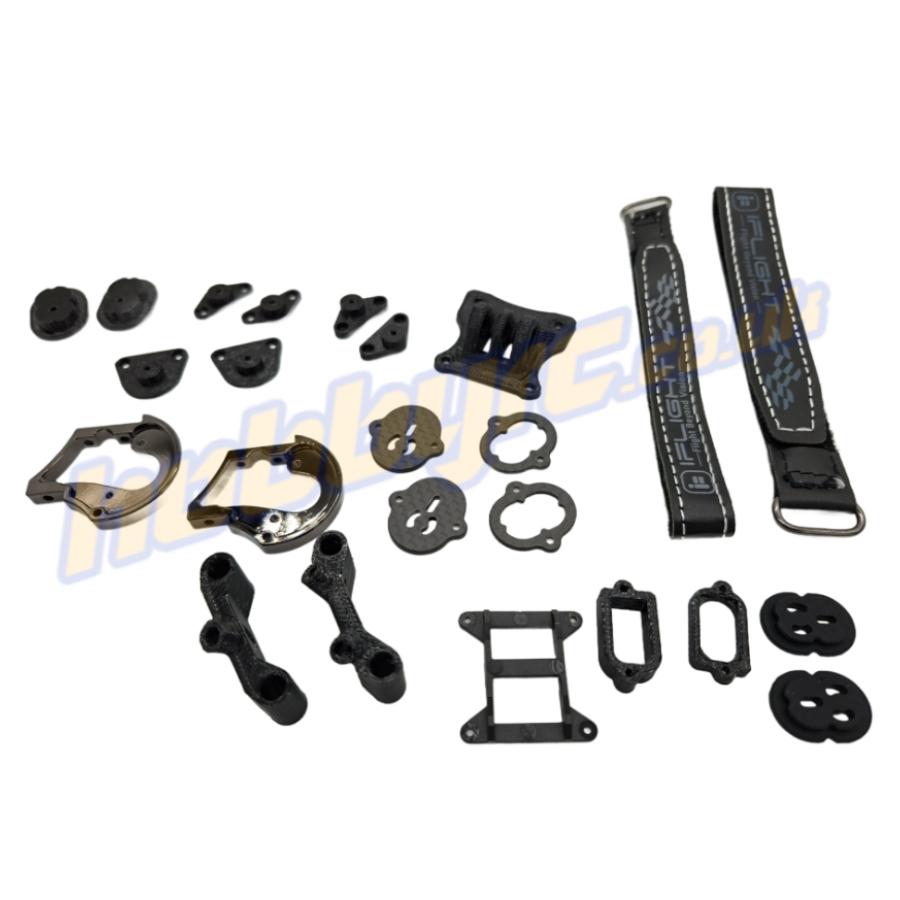

Included:
- 1x AOS 5 V5 Frame Kit
- Accessories
