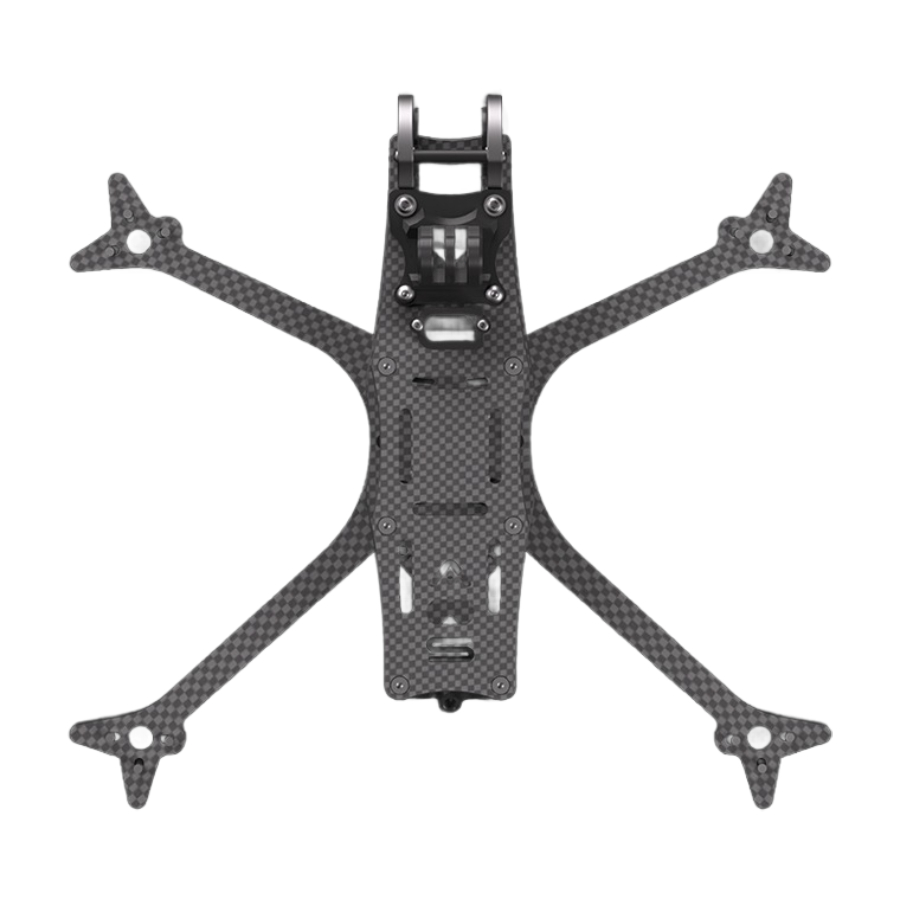

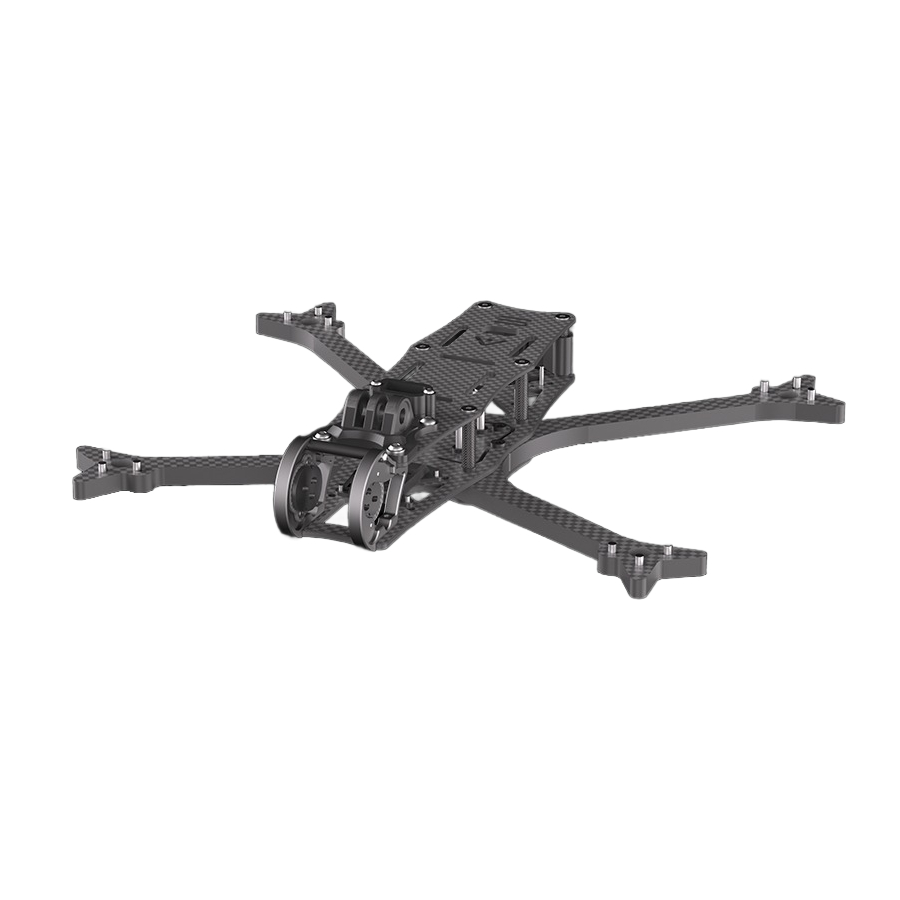

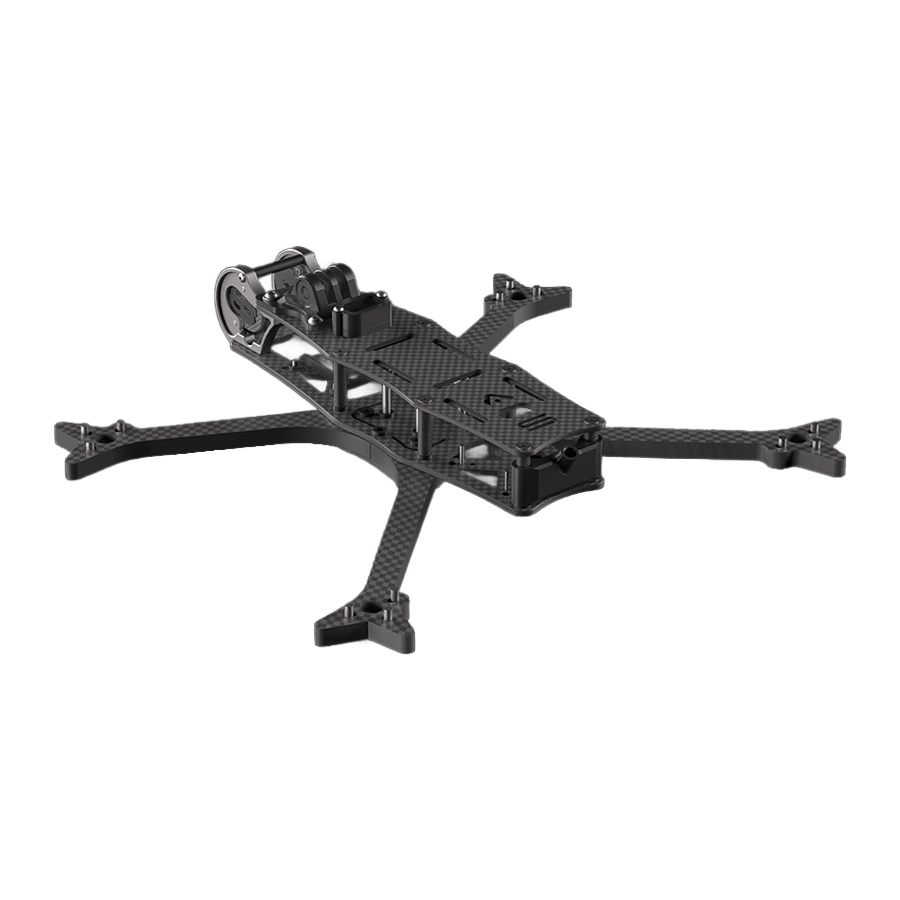

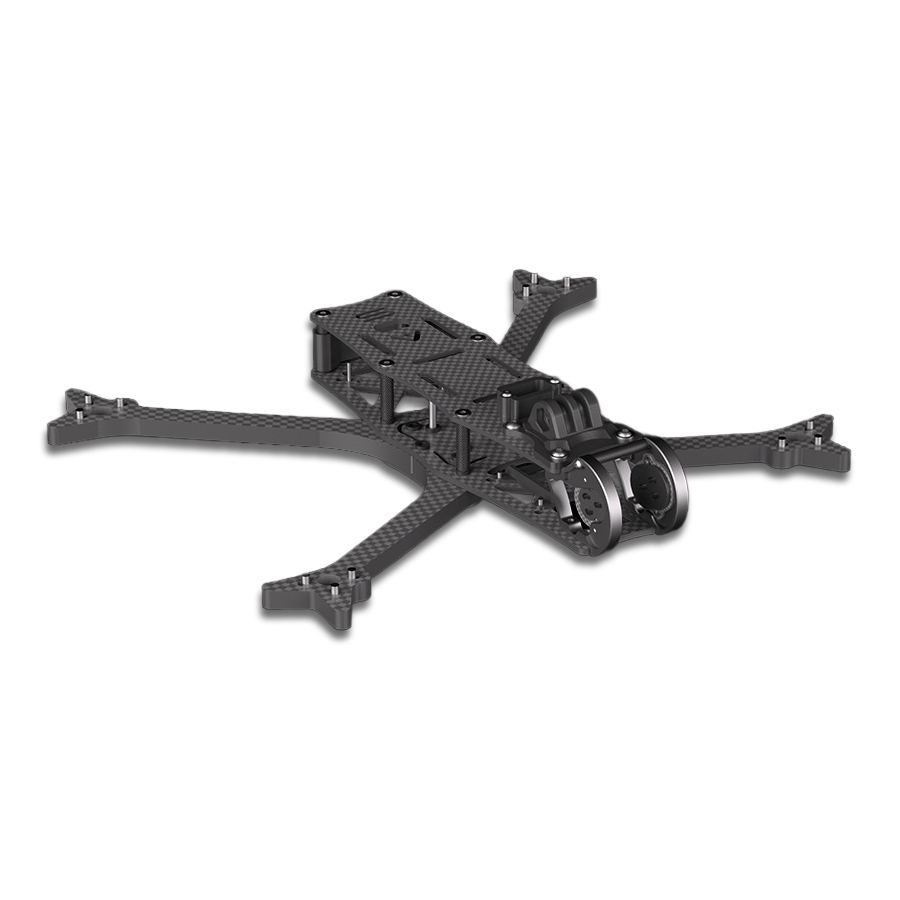

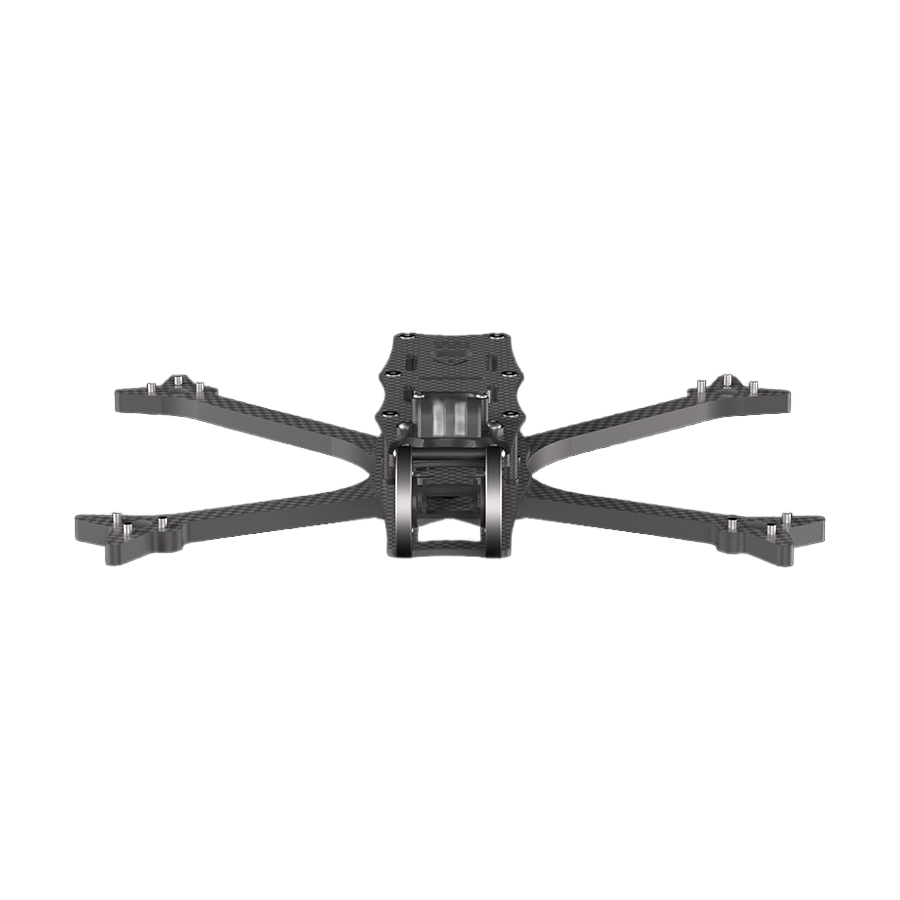

iFlight AOS 6 V5.1 Frame Kit

Overview:
The iFlight AOS 6 V5.1 is a premium 6" FPV frame developed in collaboration with Chris Rosser to deliver precise flight characteristics and exceptional durability. Designed for freestyle, long-range and cinematic builds, the frame combines a lightweight carbon fibre structure with carefully engineered vibration control to help produce cleaner gyro data and smoother HD footage.

The AOS 6 V5.1 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 cameras, with full support for ND filters.

The V5.1 revision retains the proven AOS geometry while incorporating refinements to improve compatibility, simplify maintenance and enhance overall strength. Wide arms provide excellent resistance to twisting during aggressive manoeuvres, while the deadcat layout keeps the props out of the camera's field of view when paired with wide-angle HD systems.

With support for both 30.5x30.5mm and 20x20mm electronics, generous internal space and multiple camera mounting options, the AOS 6 V5.1 provides a versatile platform for pilots building anything from a lightweight long-range cruiser to a powerful freestyle quad.

Features:
- Deadcat geometry keeps propellers out of view of wide-angle FPV cameras
- Optimised frame design helps reduce vibration reaching the flight controller
- Suitable for freestyle, long-range and cinematic FPV builds
- Wide carbon fibre arms provide excellent rigidity and crash resistance
- Supports both 30.5x30.5mm and 20x20mm flight stacks
- Compatible with DJI O3 Air Unit, DJI O4 Air Unit Pro, Walksnail and HDZero VTX
- Spacious electronics layout simplifies installation and maintenance
- Multiple camera mounting positions for greater build flexibility
- High-quality CNC-machined carbon fibre construction

Specification:
- Model: AOS 6 V5.1 (FQ20155)
- Frame type: Deadcat
- Propeller size: 6inch
- Frame Material: T700 carbon fibre
- Frame wheelbase: 228mm
- Frame Dimension: L180xW140xH34mm
- Arm Thickness: 6mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Upper Plate Thickness: 2.5mm
- Side Plate: 1.5mm(O3 Ver.)/2mm(Analog Ver.)
- Max Flight Stack Height: 20mm
- Max VTX Height: 20mm
- Flight Stack Mounting: 20x20/3mm 30.5x30.5/3mm
- VTX Mounting: 20x20/2mm 25.5x25.5/2mm 30.5x30.5/3mm
- Motor Mounting: 16x16/19x19 Diam:3mm
- Weight: 259g
- Compatibility: DJI O4 Pro Air Unit/DJI O3 Air Unit/Vista HD system/BLITZ mini 1.6W VTX

Included:
- 1x iFlight AOS 6 V5.1 Frame Kit
