iFlight AOS HS5 Frame Kit

Overview:
The iFlight AOS HS5 is a purpose-built high-speed FPV frame designed by Chris Rosser. Developed for pilots chasing maximum speed by utilising an advanced aerodynamic design via a rigid carbon fibre structure to deliver stable handling during high-speed passes and record-attempt flights.

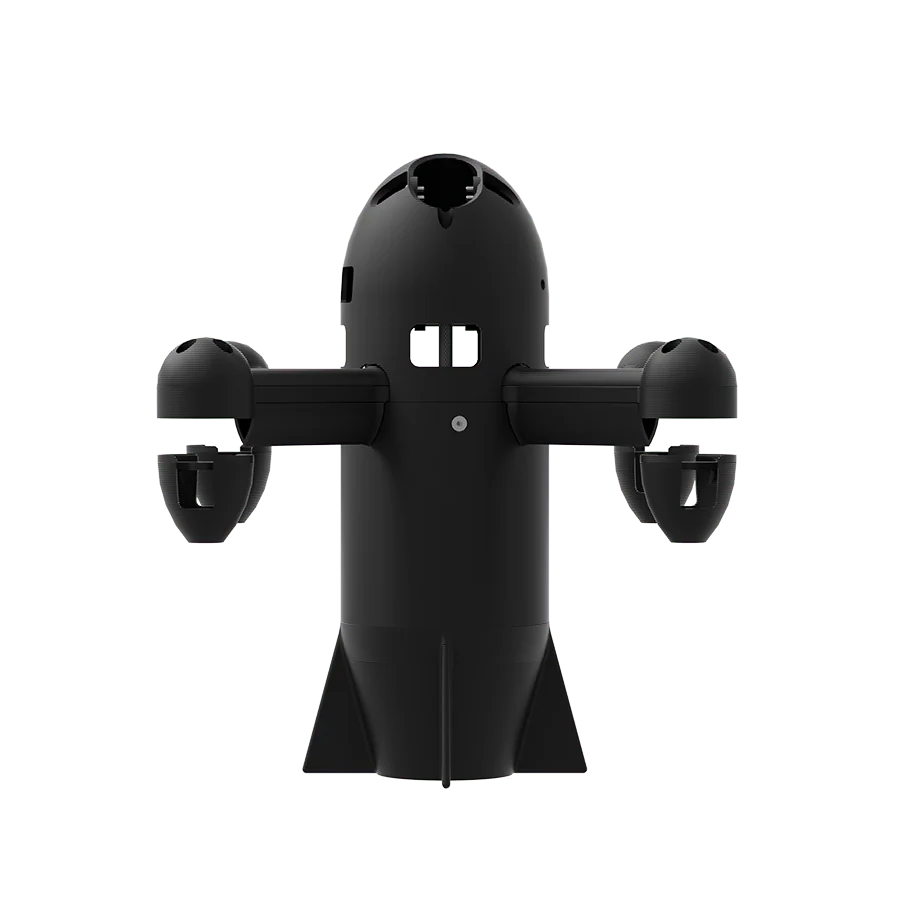

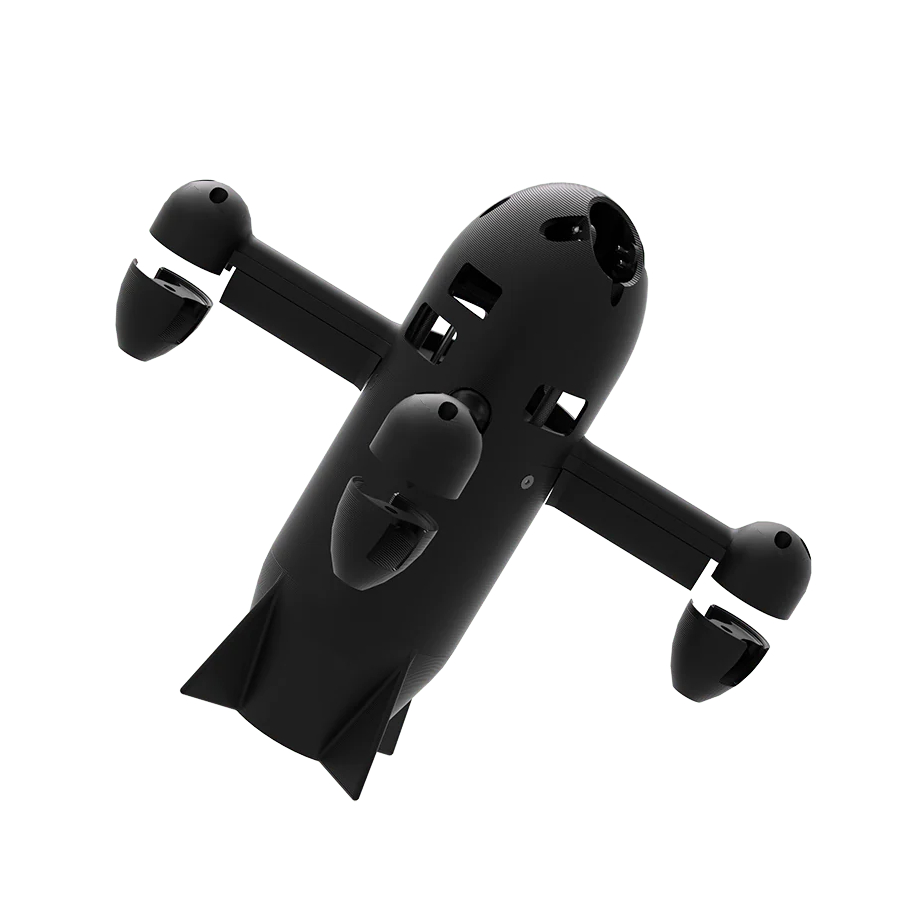

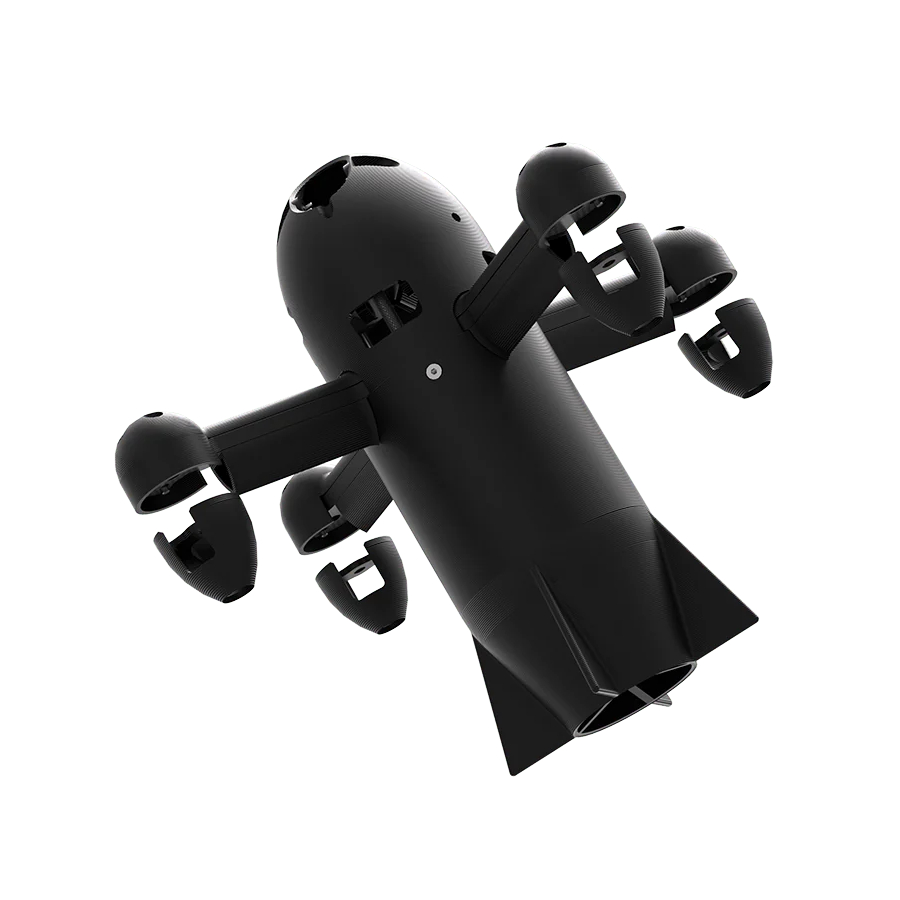

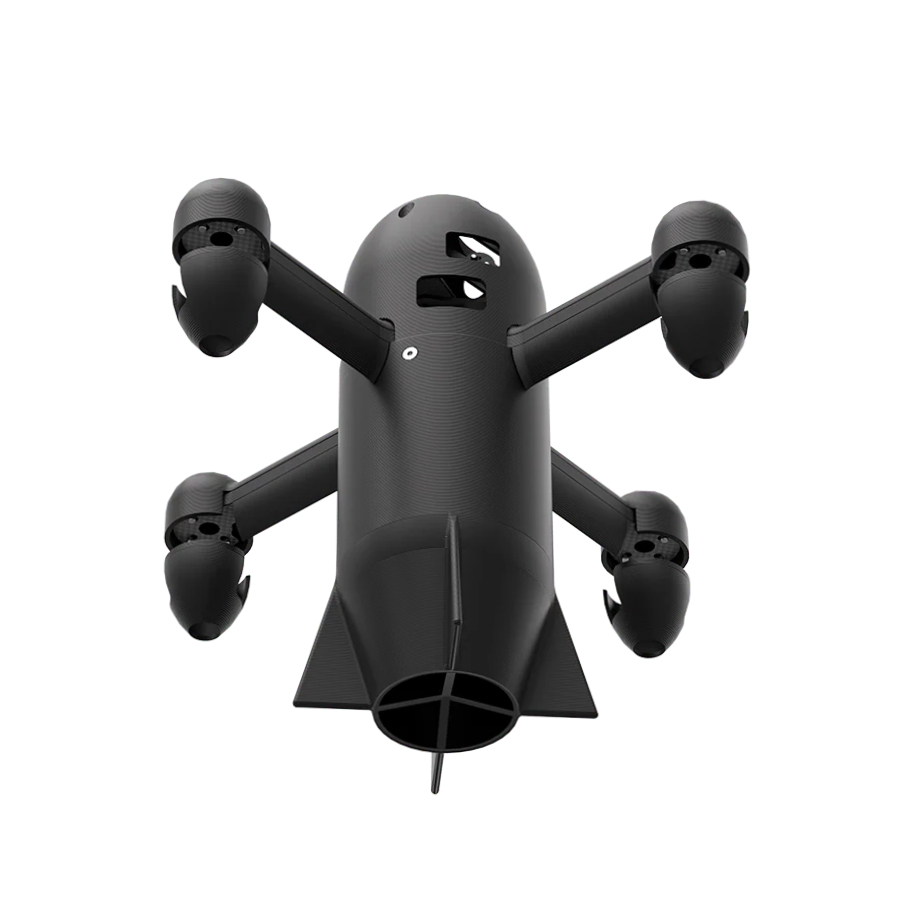

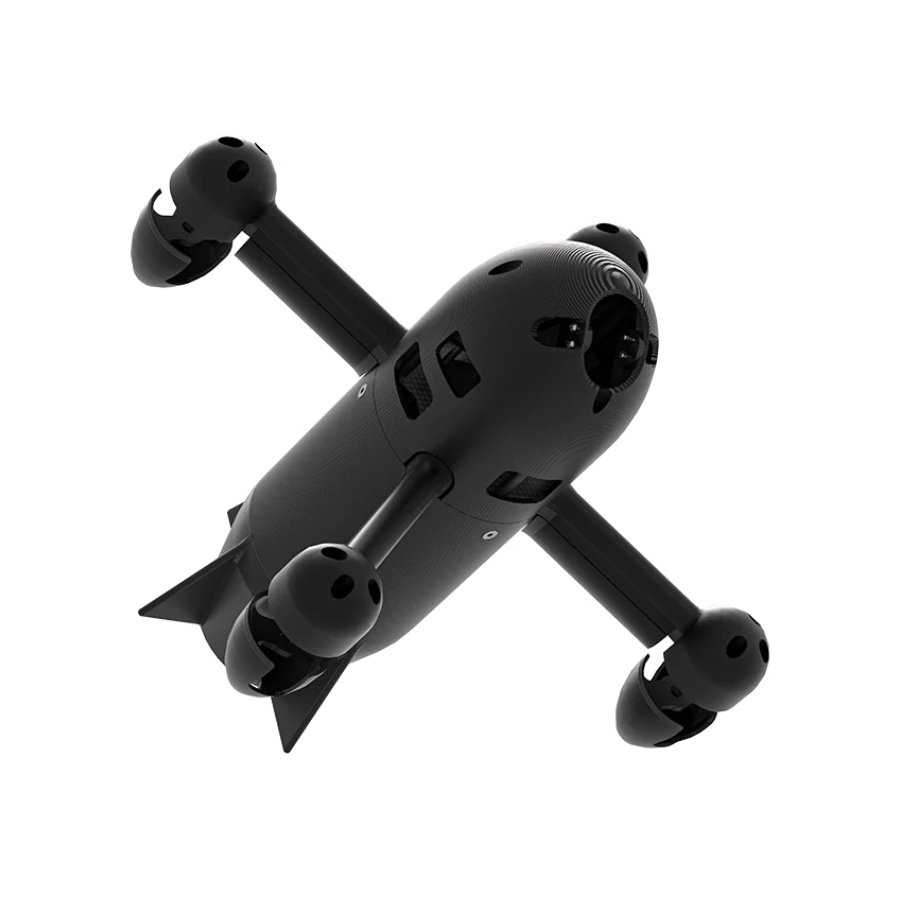

The aerodynamic rocket-shaped shell has been optimised using computational fluid dynamics (CFD) to reduce drag, while integrated tail fins improve directional stability at speed. A 155° unobstructed camera field of view keeps propellers out of the image when using compatible wide-angle FPV cameras, making the frame equally suited to high-speed HD recording and immersive FPV flights. The enclosed front section provides dedicated mounting locations for the camera and all onboard electronics, resulting in a clean build that is easy to maintain.

The AOS HS5 provides a solid foundation for pilots building the ultimate high-speed quad with blistering acceleration.

Features:
- Aerodynamic shell optimised using CFD analysis to reduce drag
- Tail fin design creates added stability at high speeds
- 155° unobstructed camera field of view with compatible FPV cameras
- Supports DJI O4 Air Unit Pro, DJI O3 Air Unit, HDZero, Walksnail and analogue FPV systems
- Enclosed front section provides dedicated mounting positions for flight electronics
- Twist-lock rear battery compartment allows quick battery changes
- Ventilation openings provide cooling for the flight controller and ESC
- A simple twist locks and unlocks the rear shell for easy battery swaps.
- Cutouts allow access to the USB ports of the VTX and flight controller.

Specification:
- Model: AOS HS5 Frame Kit
- Wheelbase: 233mm
- Frame dimensions: 165x165x226mm
- Weight: 226g
- Supported propeller size: Up to 6inch (5.25inch recommended)
- Recommended motor size: 2808 1950KV
- Recommended battery: Up to 1800mAh 6S (maximum battery size 90x40x55mm)
- Flight controller mounting: 30x30mm
- VTX mounting: 30x30mm
- Motor mounting: 16x16mm/19x19mm
- Camera compatibility: 19-20mm micro FPV cameras
- Maximum flight stack height: 30mm
- Maximum VTX height: 30mm

Included:
- 1x AOS HS5 Frame Kit (R017389)
- Accessories
