Overview:

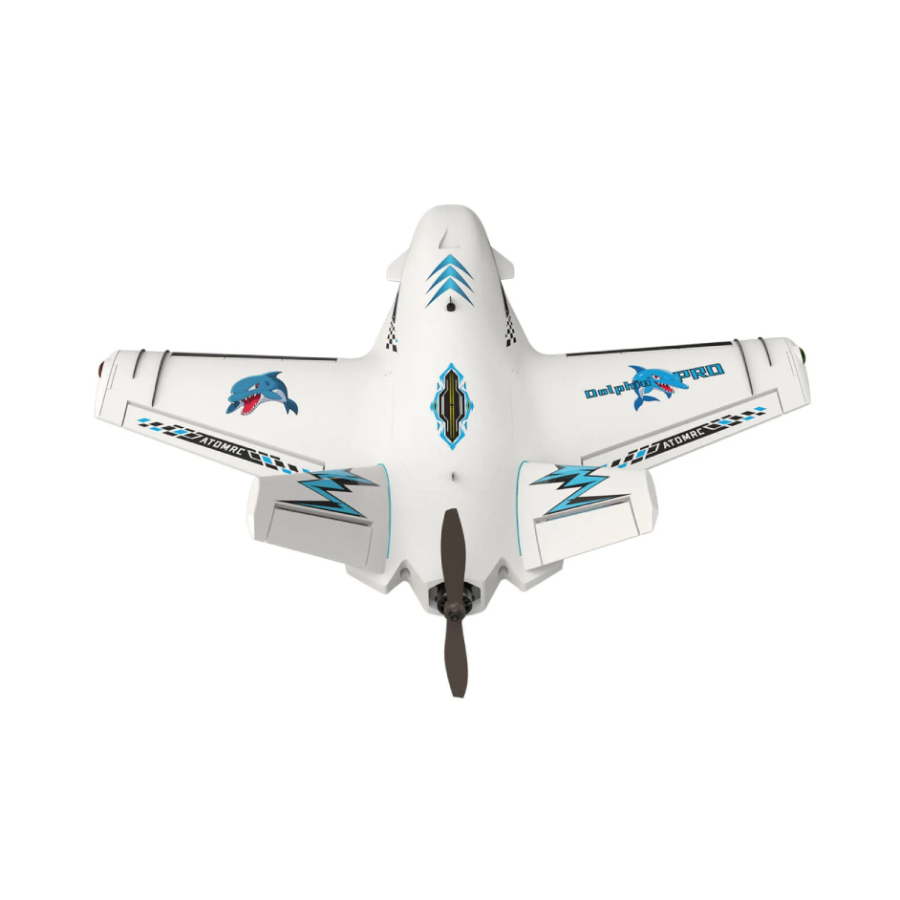

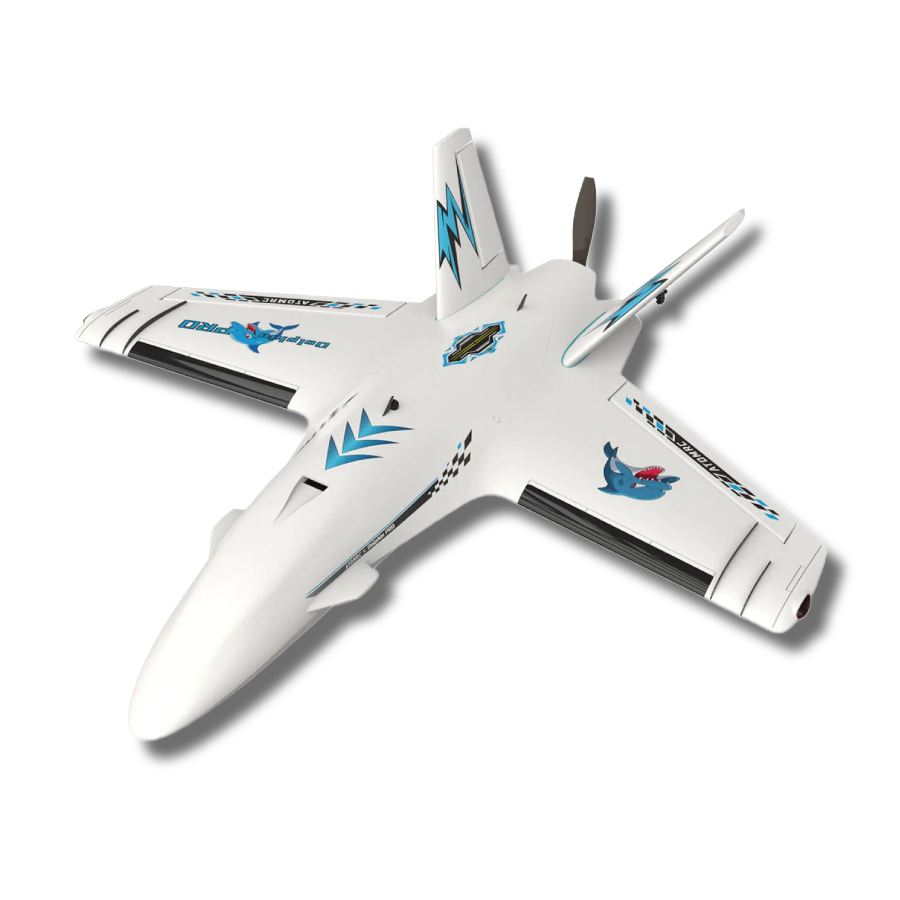

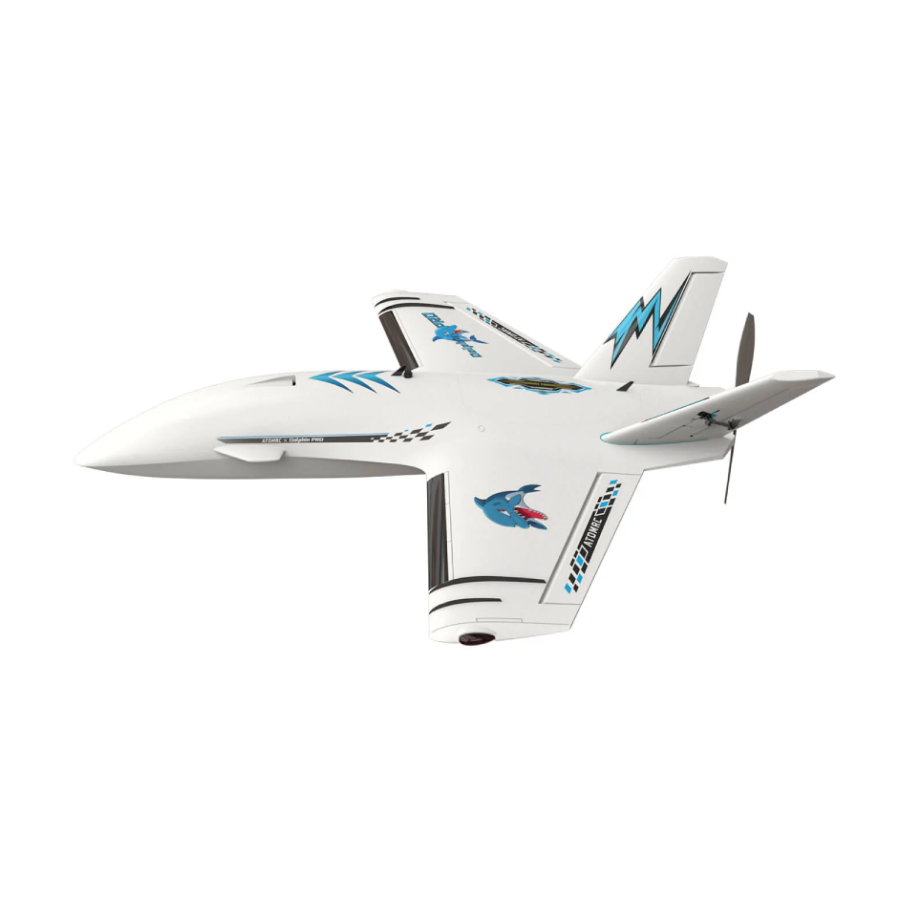

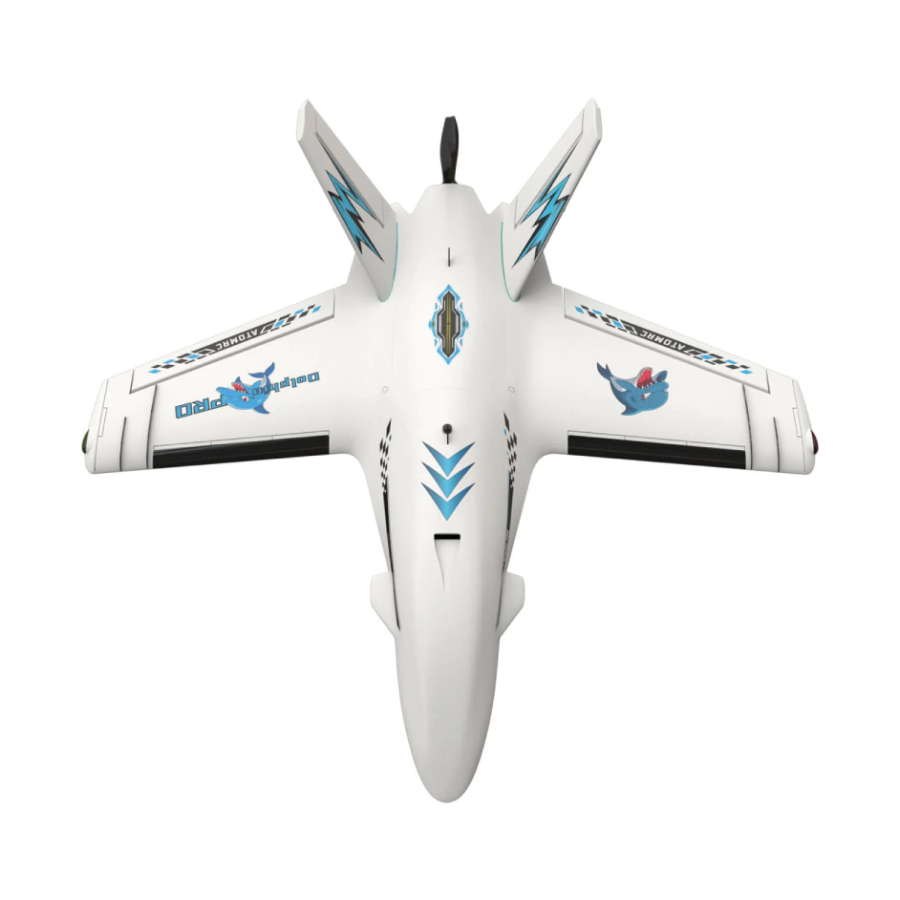

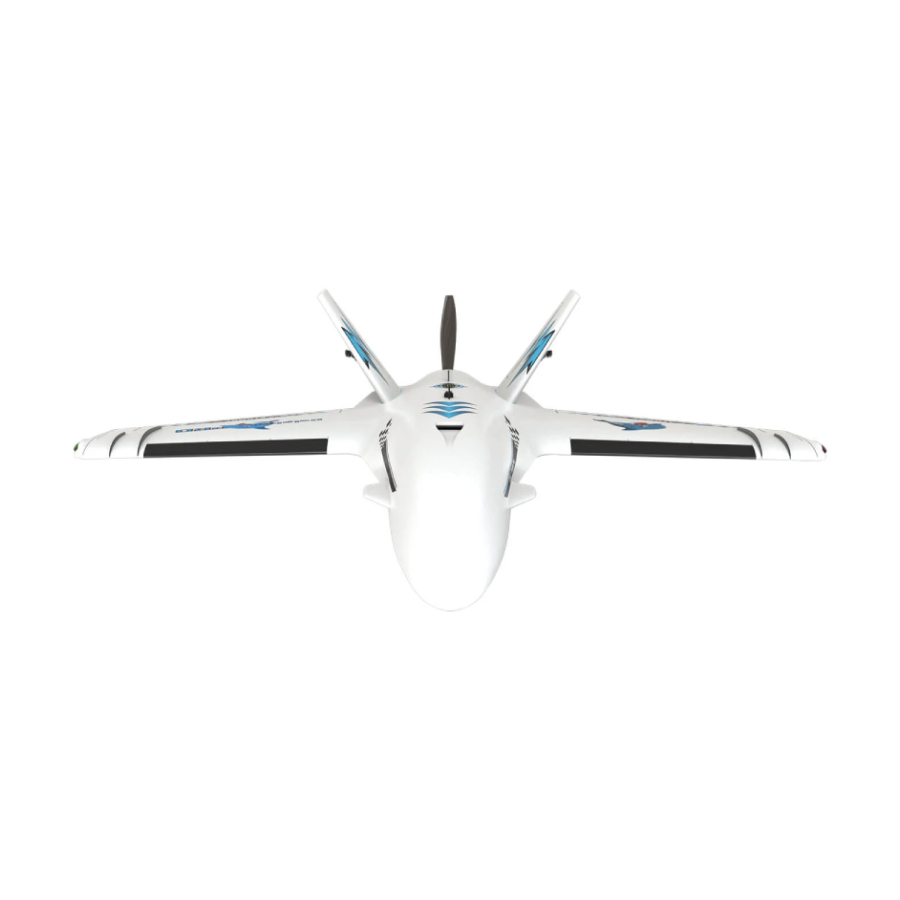

The ATOMRC Dolphin PRO is a compact 800mm flying wing designed for FPV cruising, long-range exploration and autonomous flight. Its EPP foam airframe combines low weight with excellent durability, while the streamlined design delivers efficient performance and stable handling across a wide speed range.
Designed around a rear-mounted pusher power system, the Dolphin PRO offers generous internal space for FPV equipment and flight electronics. Quick-release connectors for the VTX hatch and battery tray simplify assembly and maintenance, while integrated navigation lights improve visibility when flying in low-light conditions.
The Dolphin PRO is available in three configurations to suit different pilots. The Kit version includes the pre-built airframe for those wanting to install their own electronics. The PNP+S version adds the complete power system and servos, making it ready for your preferred receiver and FPV equipment. The RTH version is supplied with an F405 NAVI flight controller, BE220 GPS and INAV 7.0 pre-installed, providing a complete Return-to-Home capable platform straight out of the box.
Features:
- Compact 800mm wingspan flying wing for FPV and recreational flying
- Efficient pusher configuration for improved propeller clearance

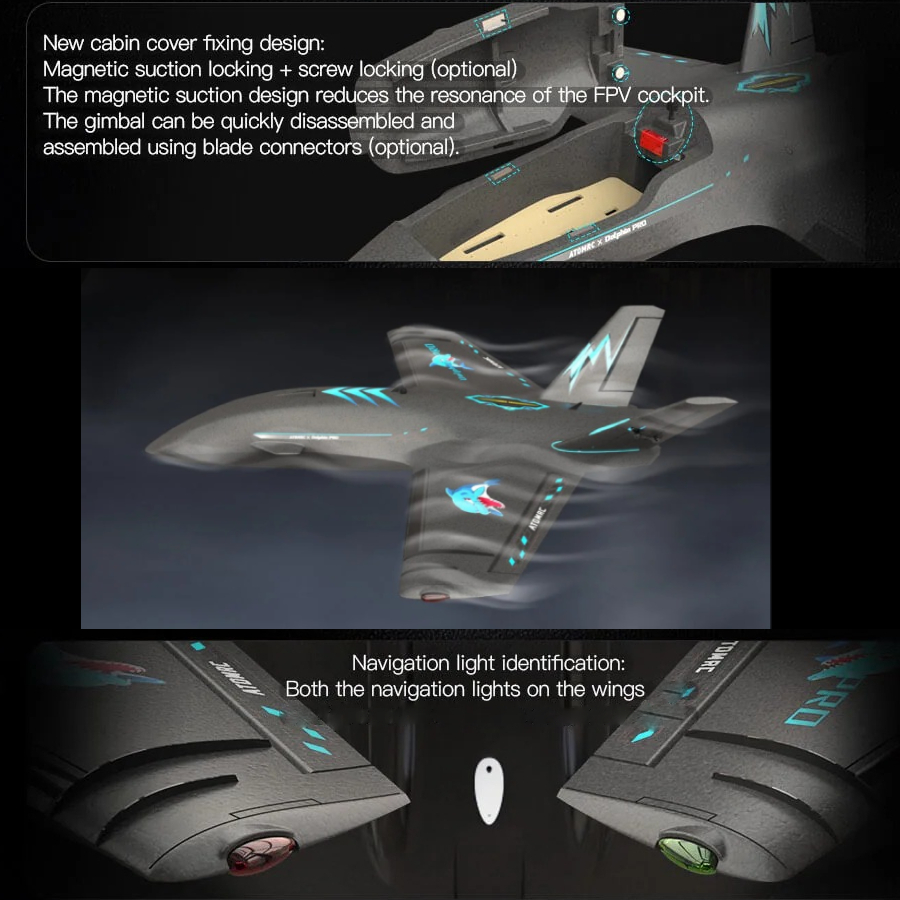

- Integrated navigation lights

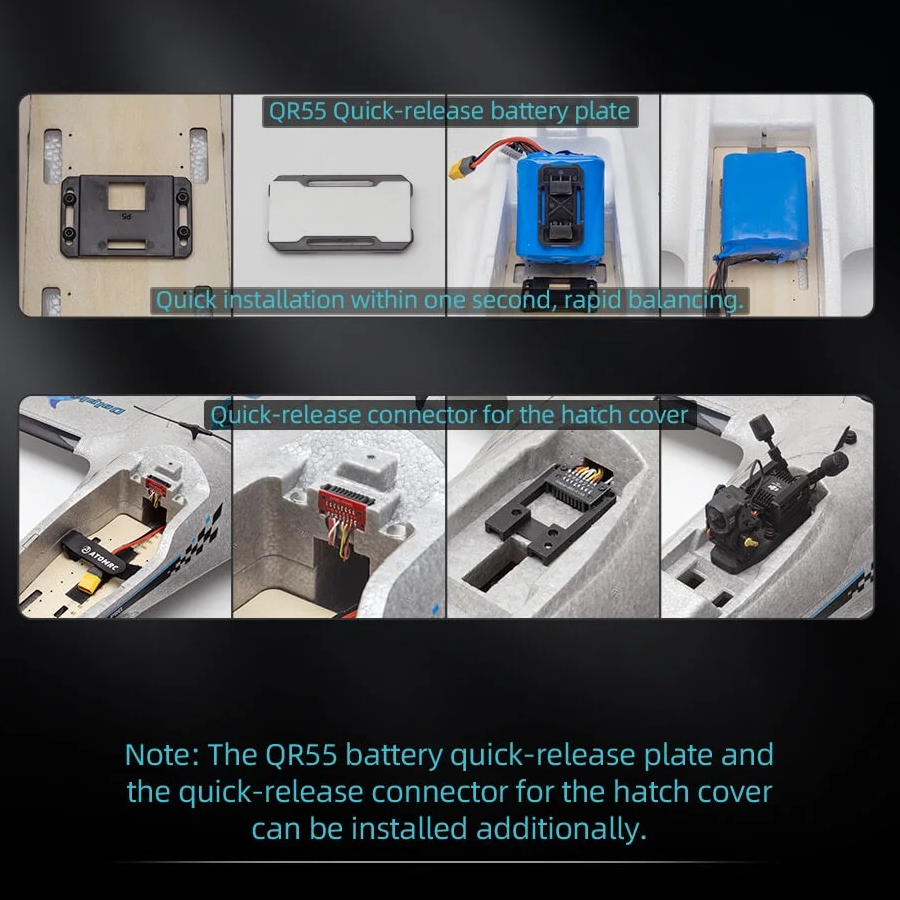

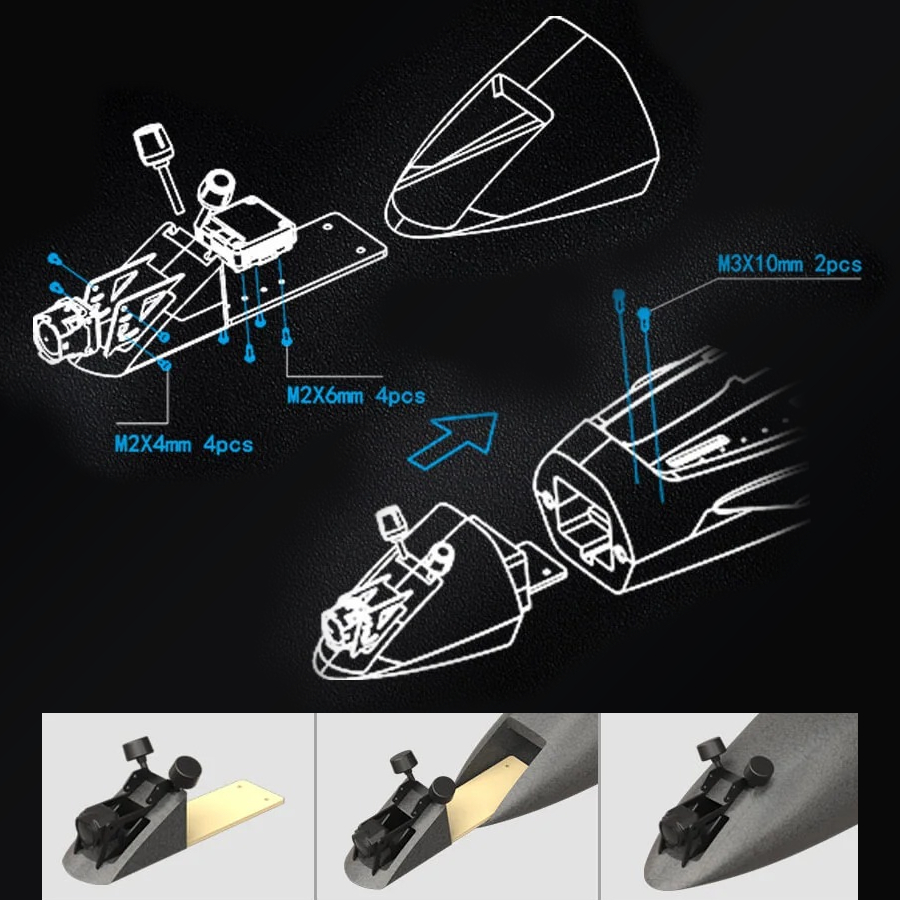

- Quick-release VTX hatch connector for easier equipment installation
- OR55 quick-release battery board

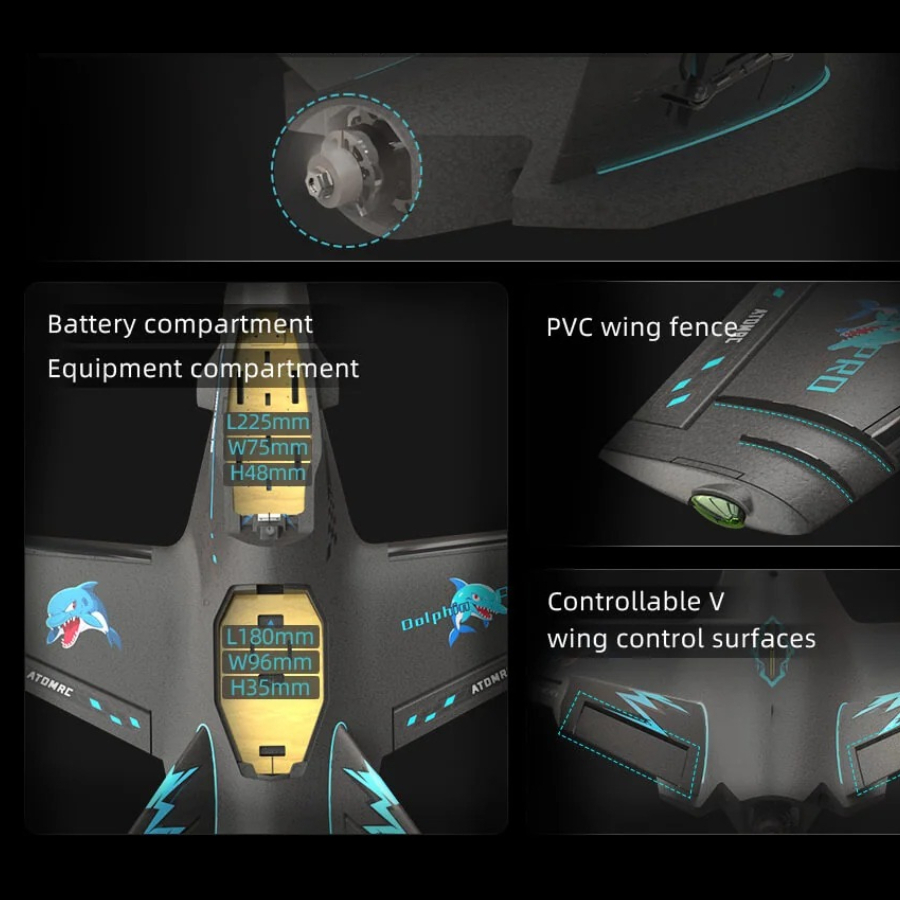

- Spacious electronics bay for FPV equipment and accessories
- Stable flight characteristics with a recommended cruising speed of around 60km/h
Typical Cruise Current (RTH Configuration):
- 60km/h: 3.8A
- 80km/h: 8.5A
- 100km/h: 15.2A
Recommended parts:
- Battery: 6S1P 21700 Li-Ion pack
- ESC rating: ≥50A 6S
- Motor: 2807 1100KV
Specification:
- Wingspan: 800mm
- Length: 826mm
- Recommended cruising speed: 60km/h
- Maximum recommended take-off weight: ≤1500g
- Typical take-off weight (RTH configuration): 1380g
Version Specification:
Kit Version:
- Pre-assembled EPP foam airframe
- Navigation lights
- Hardware pack (wood parts, pushrods and screws)
- VTX quick-release connector
- OR55 quick-release battery board
PNP+S Version:
Includes everything from the Kit version, plus:

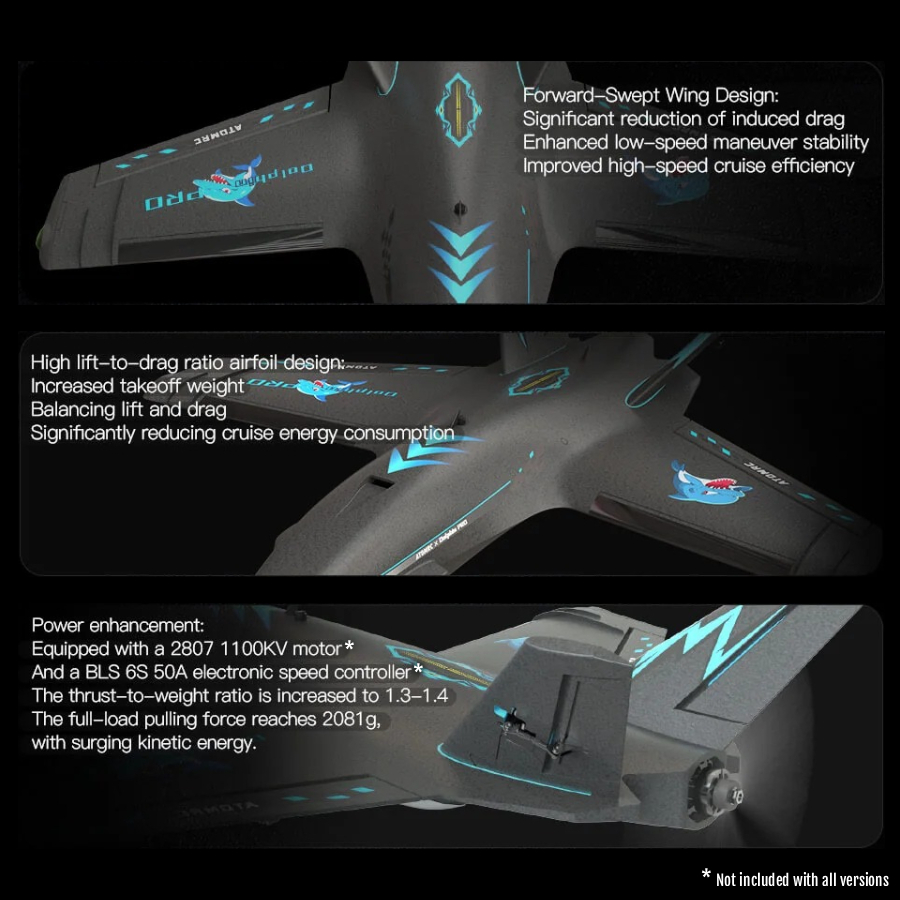

- 2807 1100KV brushless motor
- 50A BLHeli_S ESC
- Four S09M 9g metal gear servos
- Two 8040-2 propellers
RTH Version:
Includes everything from the PNP+S version, plus:
- F405 NAVI Duplex flight controller with Bluetooth
- BE220 GPS module
- INAV 7.0 firmware pre-installed for Return-to-Home functionality
Included:
- 1x ATOMRC Dolphin PRO Fixed Wing FPV Aircraft
- Accessories
