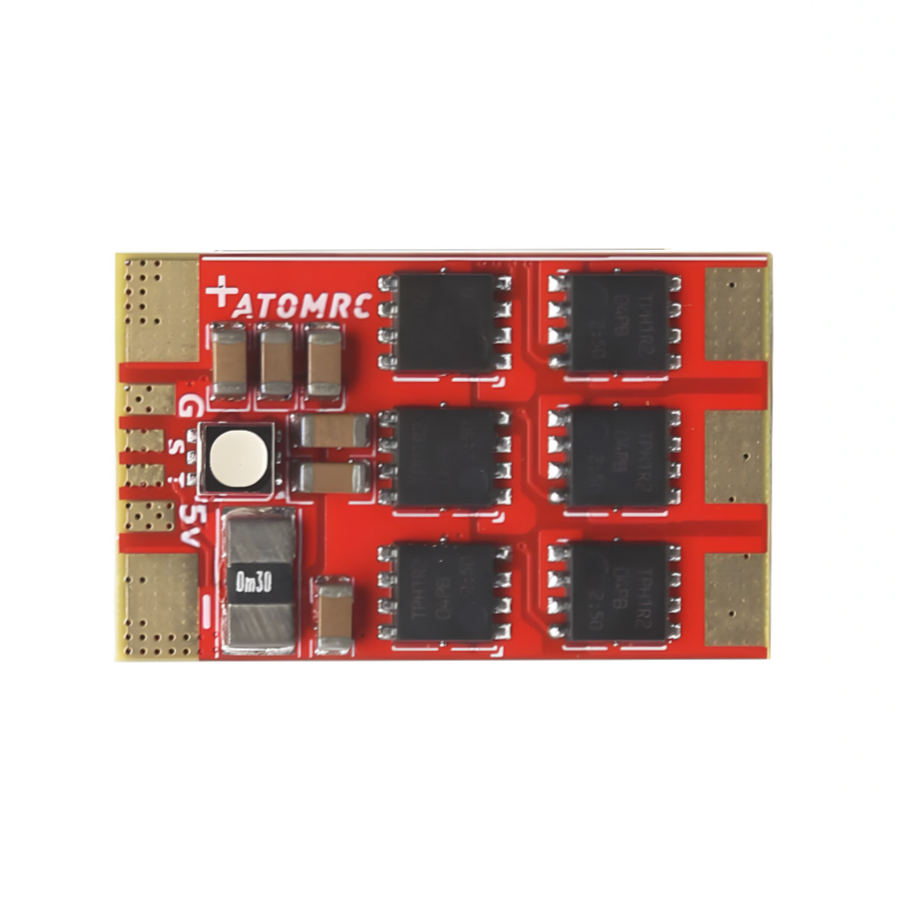

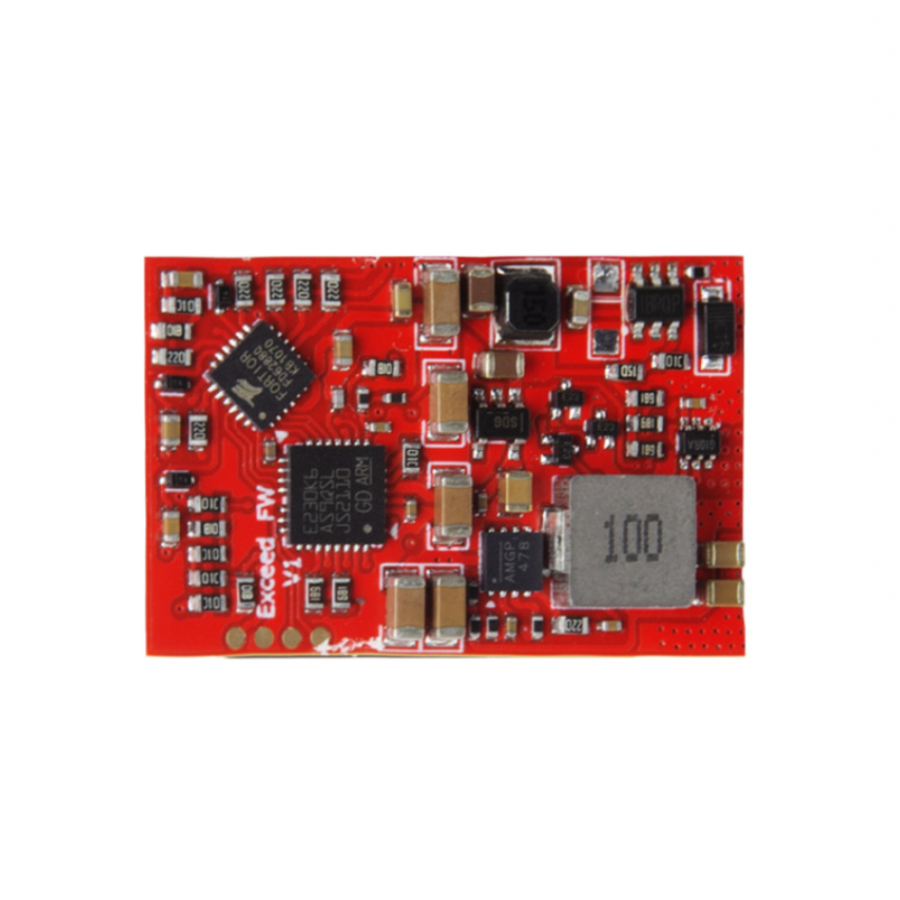

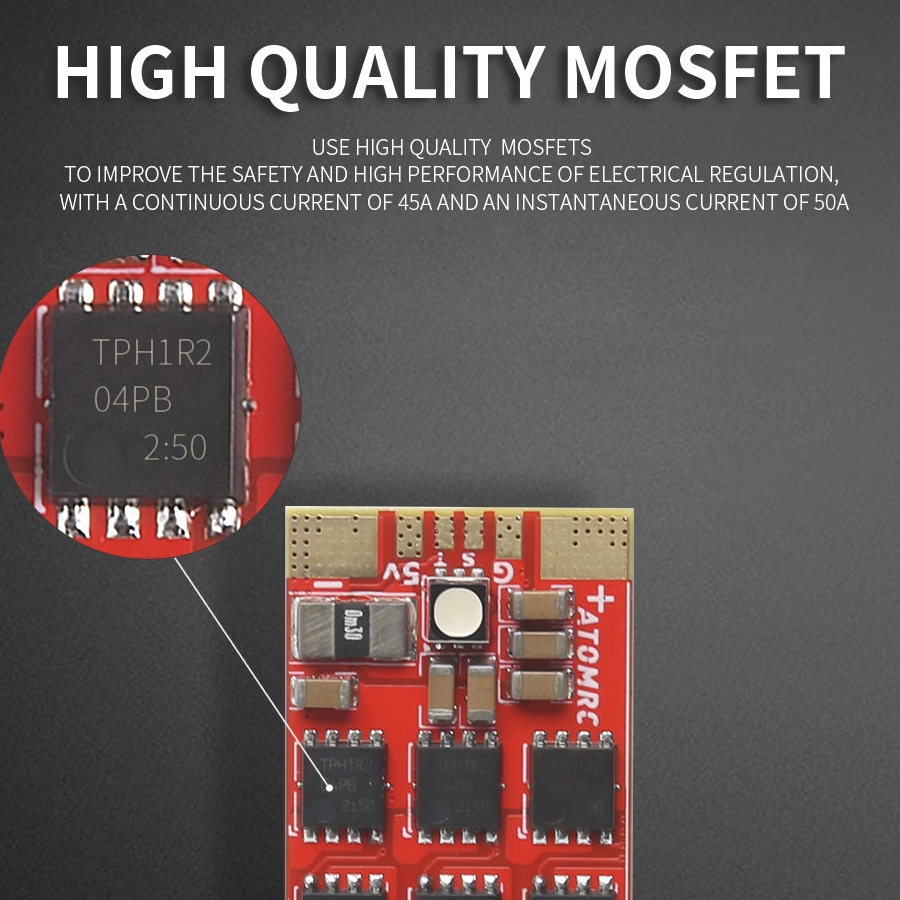

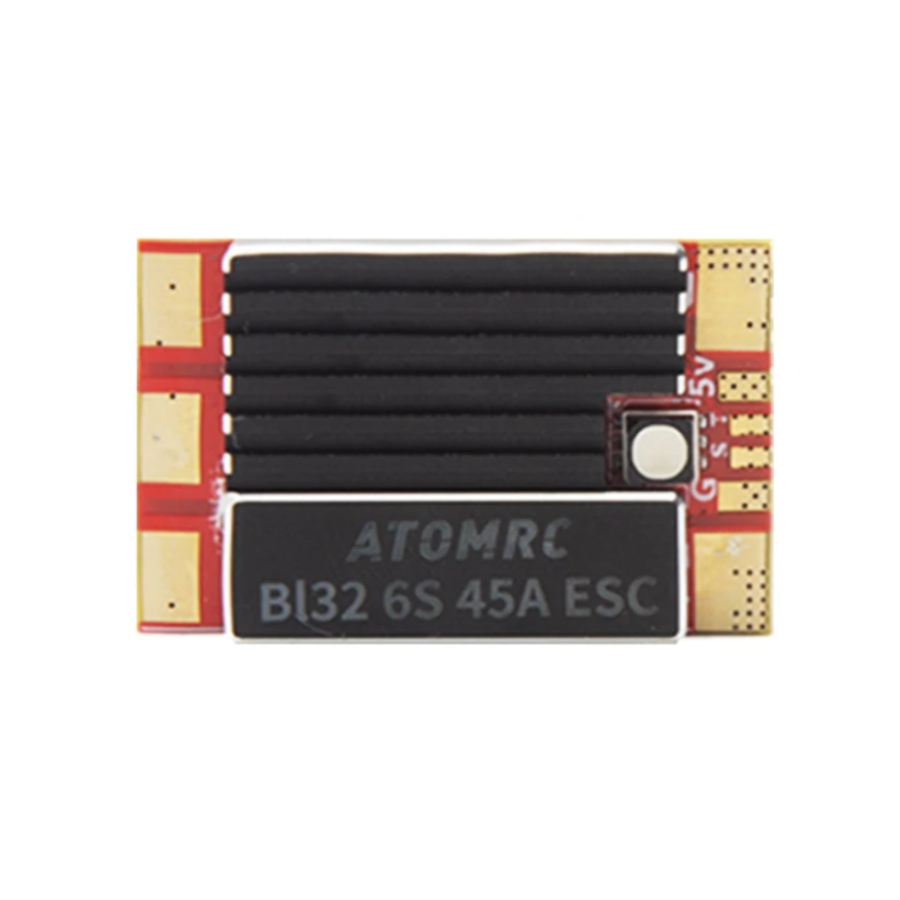

ATOMRC Exceed 45A BL32 6S ESC

Overview:
Designed for fixed-wing pilots looking for a compact, high-performance electronic speed controller, the ATOMRC Exceed BL32 45A ESC delivers smooth, reliable power for a wide range of sport, aerobatic and FPV aircraft. Supporting 2-6S LiPo batteries and built around BLHeli_32 firmware, it offers responsive throttle control with compatibility for modern and traditional control protocols, making it suitable for both conventional receivers and flight controller-based aircraft.

An integrated 5V/3A BEC provides a stable power supply for receivers and servos, helping to simplify wiring while reducing the need for an external regulator. Telemetry support allows compatible systems to monitor key ESC data including voltage, current, temperature and motor RPM, giving pilots valuable real-time feedback during flight. A programmable RGB status LED and extensive BLHeli_32 configuration options make it easy to tailor performance to your aircraft and flying style.

Whether you're building a lightweight sport model, an FPV fixed-wing platform or a high-performance aerobatic aircraft, the ATOMRC Exceed BL32 45A ESC combines compact dimensions, low weight and dependable 45A continuous output to provide efficient and consistent motor control.

Features:
- BLHeli_32 firmware for smooth, responsive throttle control.
- Supports PWM, OneShot, MultiShot and DShot control protocols.
- Integrated 5V/3A switching BEC powers receivers and servos.
- Telemetry output for ESC voltage, current, temperature and motor RPM.
- Programmable RGB status LED configurable through BLHeliSuite32.
- Suitable for both conventional receiver installations and flight controller-equipped fixed-wing aircraft.
- Extensive programmable settings to fine-tune ESC performance.
- Supplied with power and signal leads ready for installation.

Specification:
- Input voltage: 2-6S LiPo
- Continuous current: 45A
- BEC output: 5V/3A
- Firmware: BLHeli_32
- Dimensions: 20×32×5mm
- Weight: 8.4g

Included:
- 1x ATOMRC Exceed BL32 6S 45A ESC
- 1x Capacitor
- 1x Wiring pack
