ATOMRC FPV Plane Servo Gimbal V2

Overview:

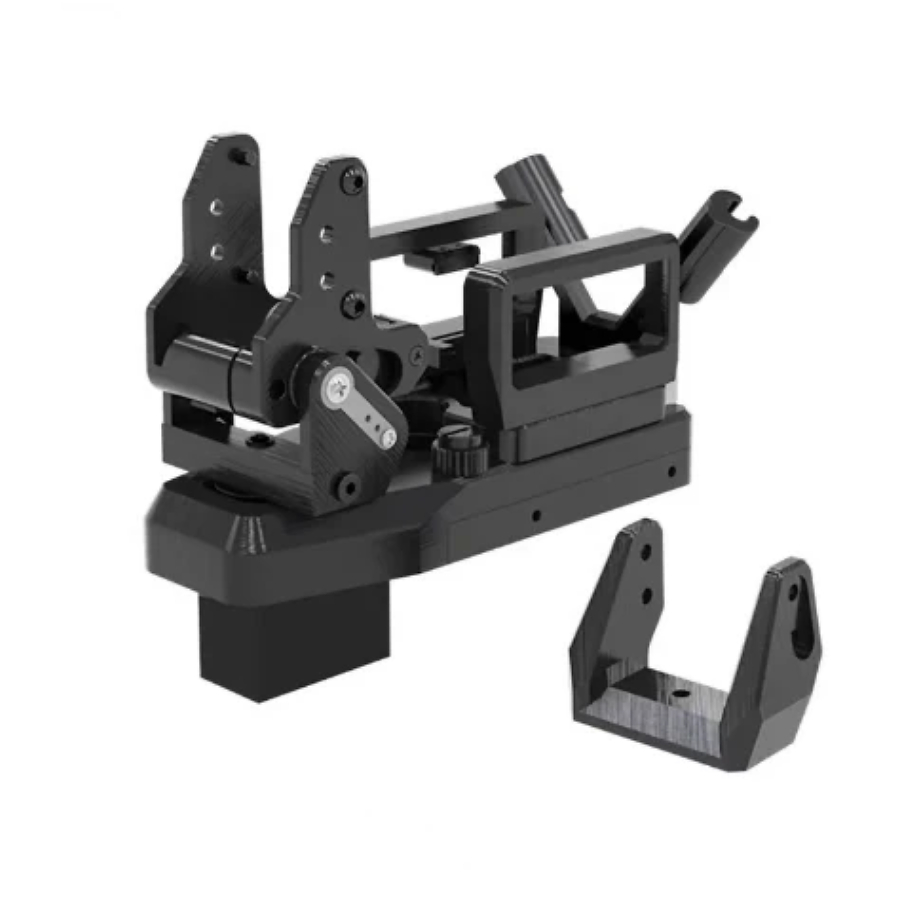

The ATOMRC Quick Release Servo Gimbal V2 is a lightweight two-axis camera gimbal designed for FPV fixed-wing aircraft. Featuring a quick-release mounting system and head tracking support, it allows pilots to pan and tilt their FPV camera in flight, delivering a more immersive flying experience and improved situational awareness.

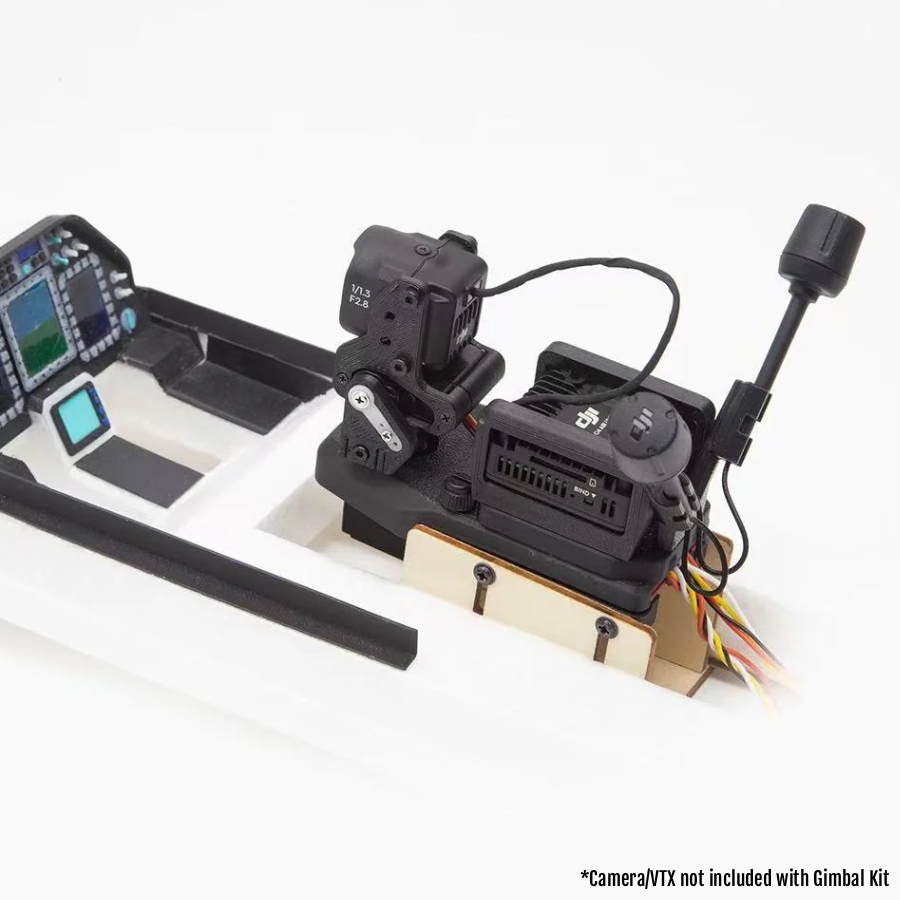

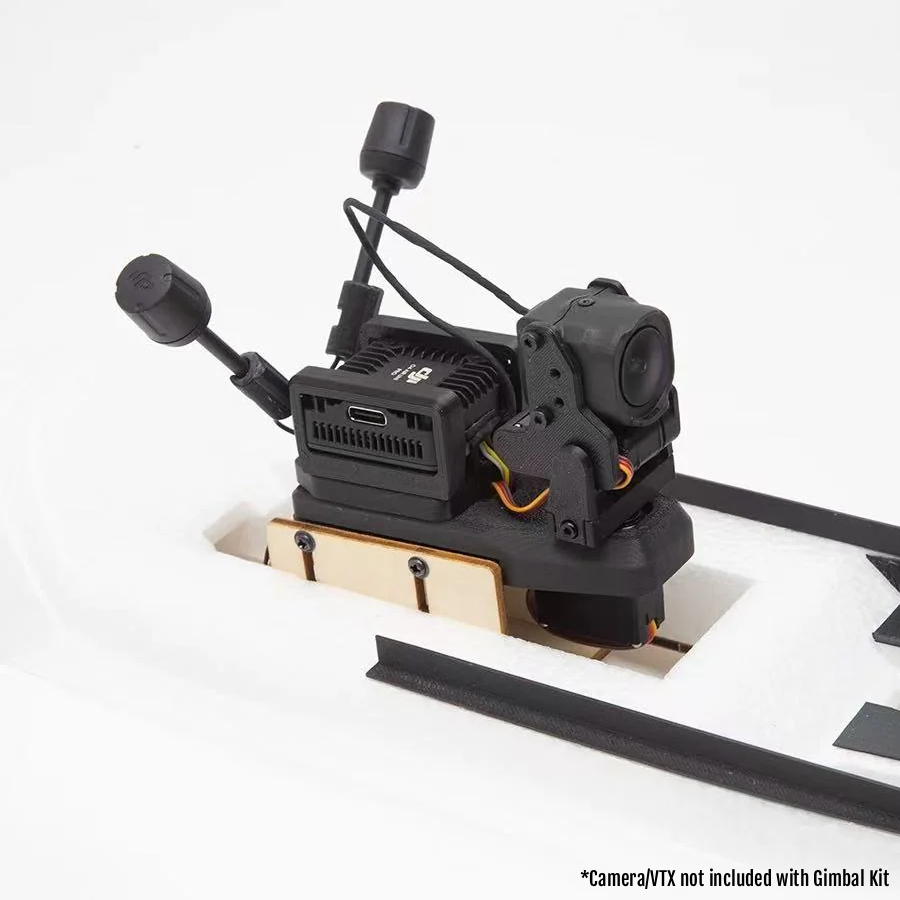

The second-generation design refines the original gimbal with smoother servo movement, reduced camera shake and improved rotation geometry. The rotating assembly carries both the FPV camera and video transmitter, allowing the complete FPV system to be transferred quickly between compatible aircraft using the supplied quick-release base.

Compatible with analogue and digital FPV systems, including DJI O3 Air Unit, DJI O4 Air Unit, Caddx Vista and Walksnail Avatar, the Servo Gimbal V2 supports standard 19-20mm FPV cameras. An additional single-axis assembly is also included, allowing the gimbal to be configured to suit different aircraft and flying styles.

Features:
- Designed for fixed-wing FPV aircraft
- Compatible with both analogue and digital FPV systems (not supplied)
- Two-axis pan and tilt operation for immersive FPV flying
- Supports head tracking with compatible radios and FPV goggles
- Updated V2 design reduces camera shake and improves servo movement
- Quick-release mounting system allows the complete FPV payload to be moved between compatible aircraft
- Supports DJI O3 Air Unit, DJI O4 Air Unit, Caddx Vista and Walksnail Avatar systems (not supplied)
- Accepts standard 19-20mm FPV cameras
- Includes interchangeable single-axis assembly for greater installation flexibility

Specification:
- Model: ATOMRC Quick Release Servo Gimbal V2 Kit
- Camera compatibility: 19-20mm FPV cameras
- Pan rotation: Up to 270°
- Tilt rotation: Up to 90°
- Servo configuration: 1x ATOMRC S09P 270° 9g servo, 1x ATOMRC S09P 90° 9g servo
- Mounting system: Quick-release base

Included:

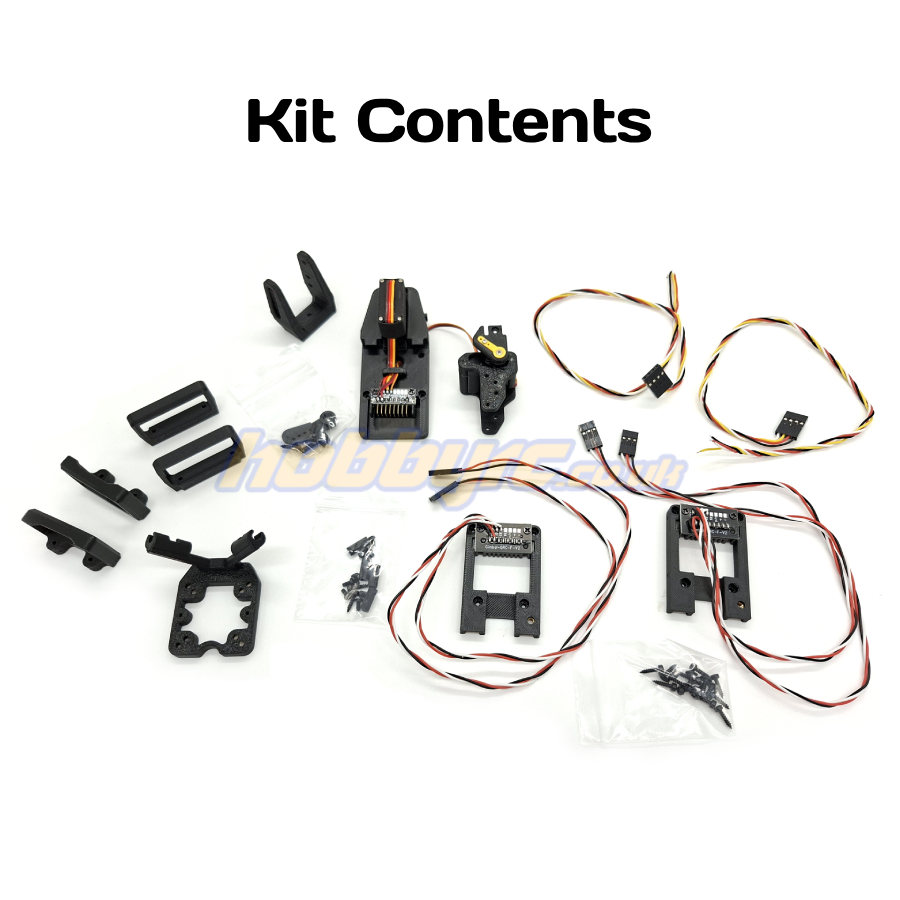

1x ATOMRC Quick Release Servo Gimbal V2 Kit (see gallery image for contents)
