Overview:
The ATOMRC FPV Pro Pack is a complete analogue FPV system designed specifically for ATOMRC fixed-wing aircraft, providing a simple and reliable way to add first-person view capability to your model. The kit combines the ATOMRC TX1200 analogue video transmitter, an analogue Caddx FPV camera and antenna, together with dedicated plug-and-play wiring looms for compatible ATOMRC flight controllers. It's an ideal upgrade for pilots looking to equip their aircraft for immersive FPV flying without sourcing individual components.

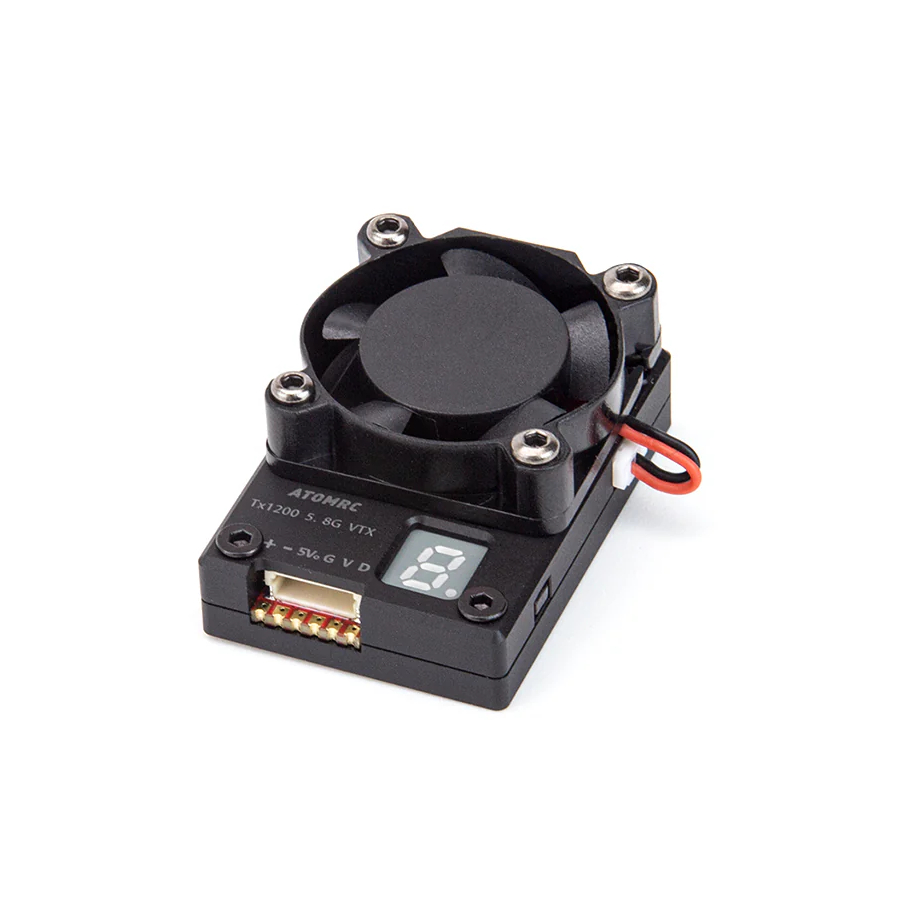

At the heart of the kit is the ATOMRC TX1200 VTX, offering adjustable output power up to 1200mW for dependable long-range analogue video transmission. Active cooling from the integrated fan helps maintain stable performance during extended flights and when the aircraft is stationary on the ground, while the built-in seven-segment display allows quick confirmation of channel and power settings. IRC Tramp protocol support enables compatible flight controllers to adjust VTX settings remotely through the OSD, eliminating the need to access the transmitter directly.
Designed for straightforward installation, the supplied camera and VTX cables connect directly to compatible ATOMRC F405 NAVI RTH flight controllers, reducing wiring complexity and speeding up installation. Whether you're building a dedicated FPV platform or upgrading an existing ATOMRC aircraft, the FPV Pro Pack provides a well-matched combination of quality components for reliable analogue video performance.
Features:
- Pack is recommended for use with these AtomRC Models: SwordFish, Dolphin, Penguin
- Complete analogue FPV package for compatible ATOMRC fixed-wing aircraft.
- High-power video transmission with adjustable output levels.

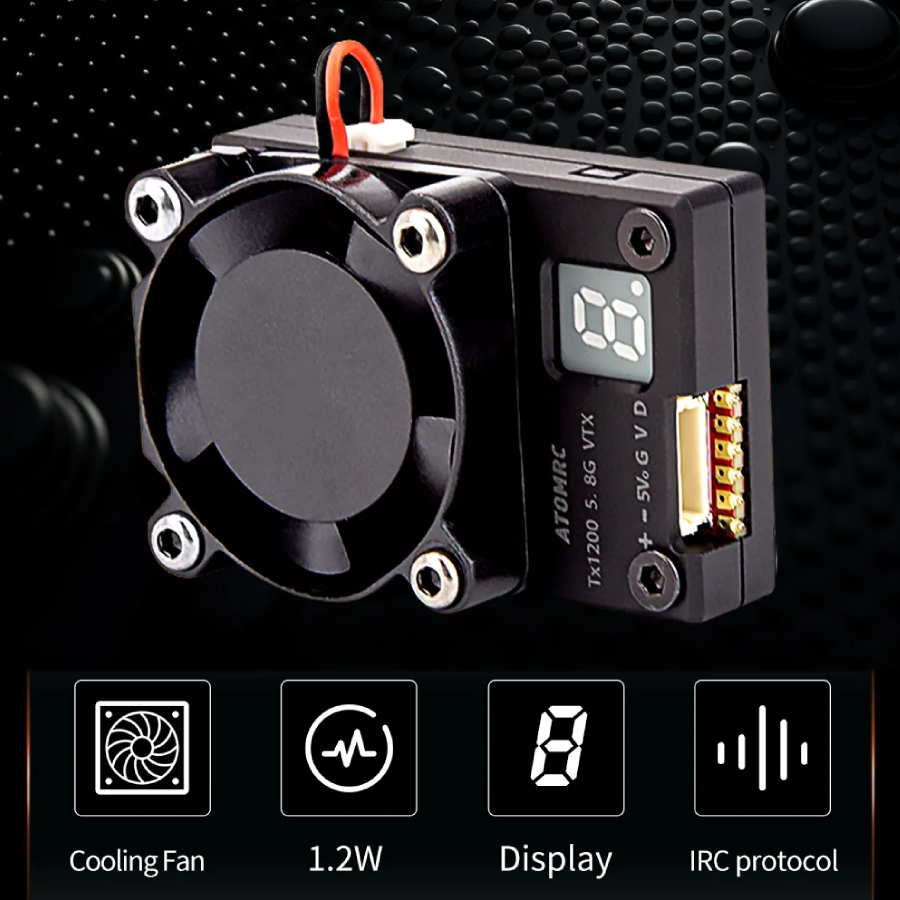

- Active cooling fan improves thermal performance during operation.
- IRC Tramp protocol support for remote VTX configuration.

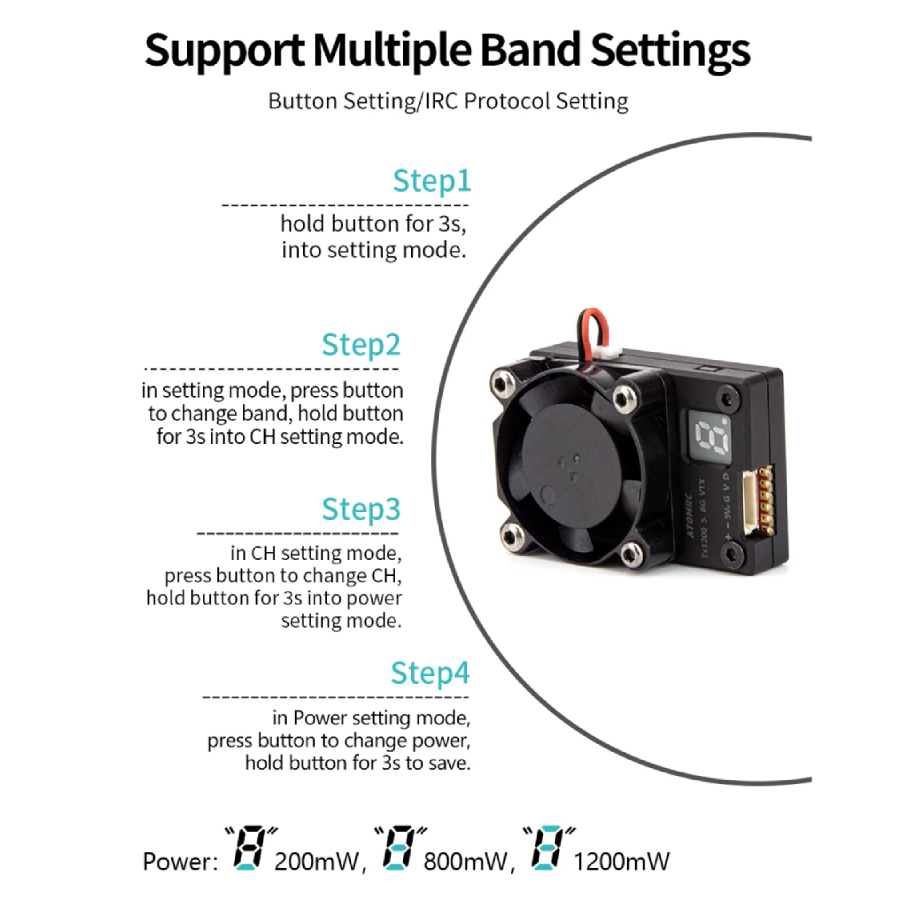

- Seven-segment display for simple channel and power selection.
- Wide input voltage allows direct connection to a range of flight batteries.

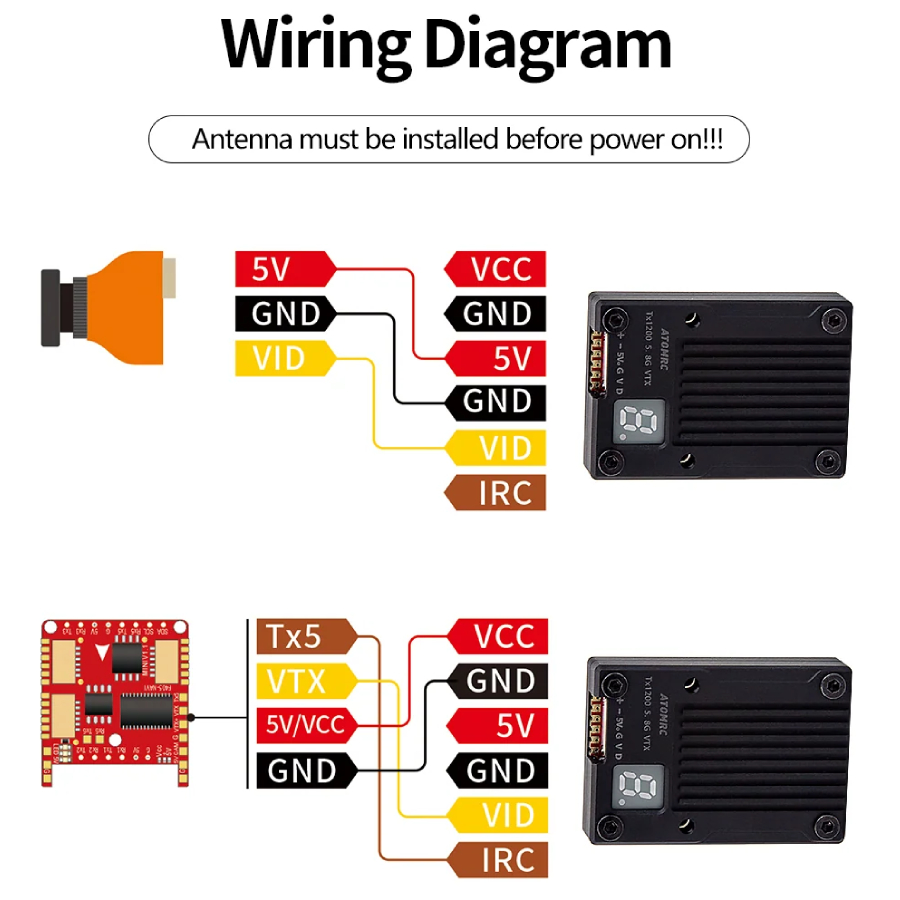

- Plug-and-play wiring for compatible ATOMRC F405 NAVI RTH flight controllers.
- Compact design suited to fixed-wing FPV installations.
Specification:
ATOMRC TX1200 Analog VTX:
- Weight: 17g
- Dimension: 25.5x36.5mm
- Power: 200/800/1200mW
- Voltage: 7-26V
- Channels: 40
- Mounting Hole: 20x30mm
- Cooling Fan
- 1.2W
- Digital Display
- Control protocol: IRC Tramp
- Antenna connector: MMCX

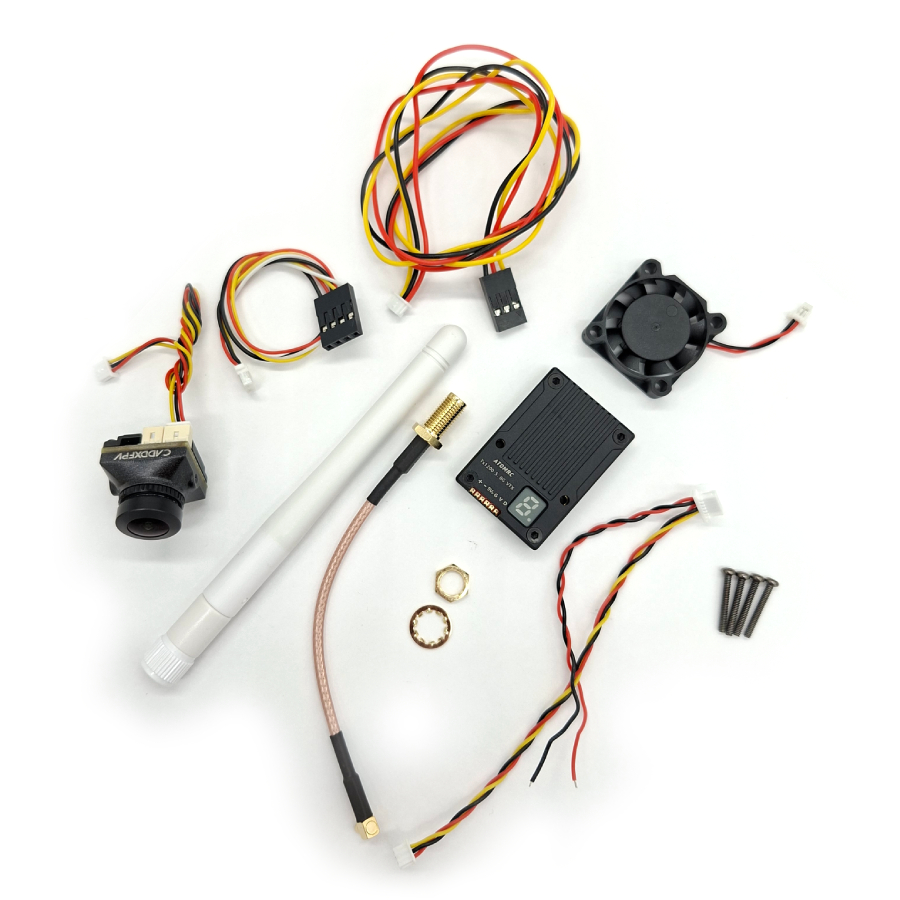

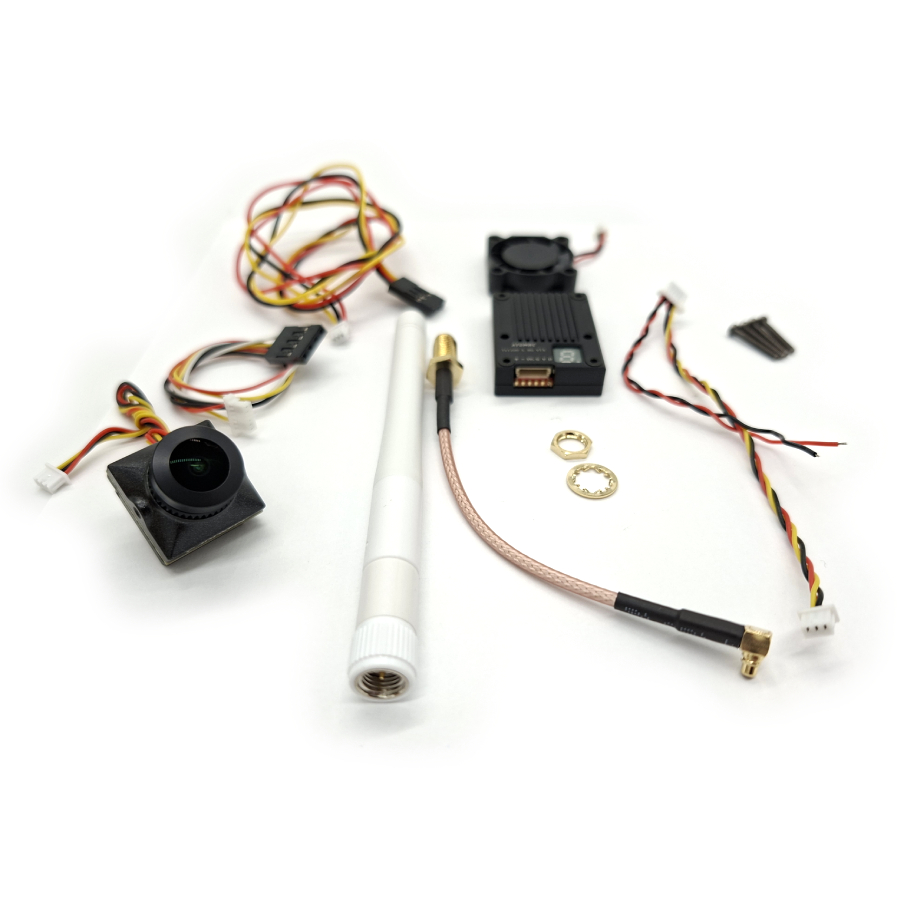

Included:
- Caddx Camera
- ATOMRC TX1200 VTX kit
- Accessory pack
