Overview:

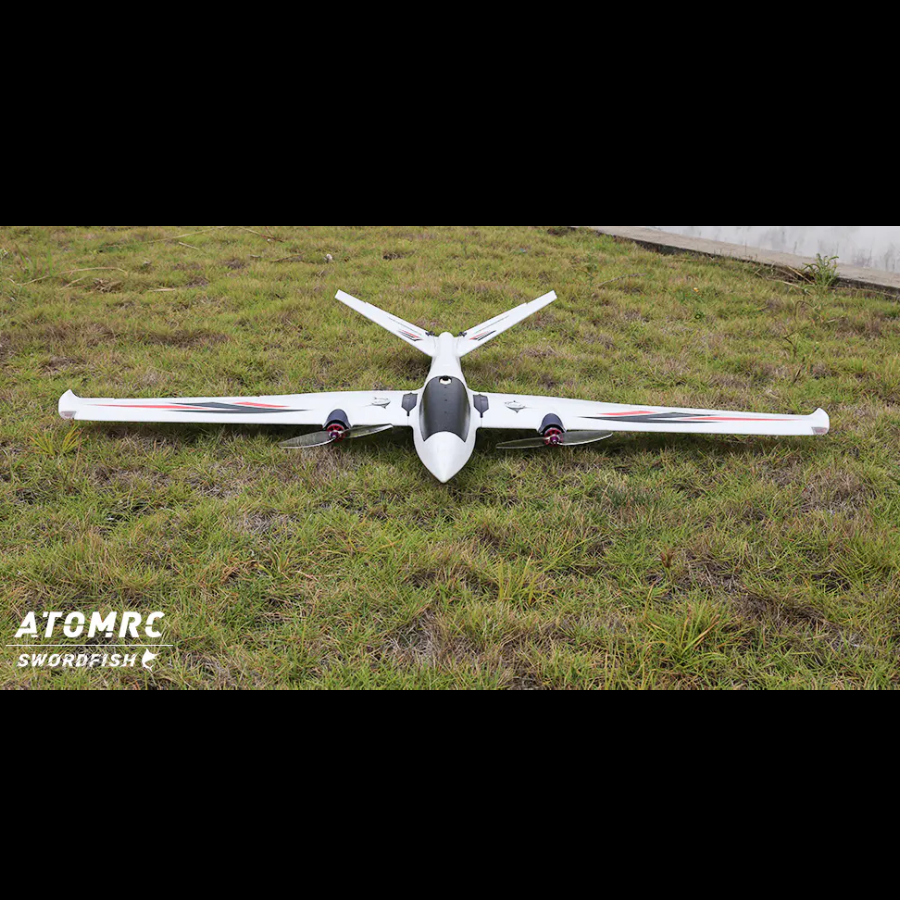

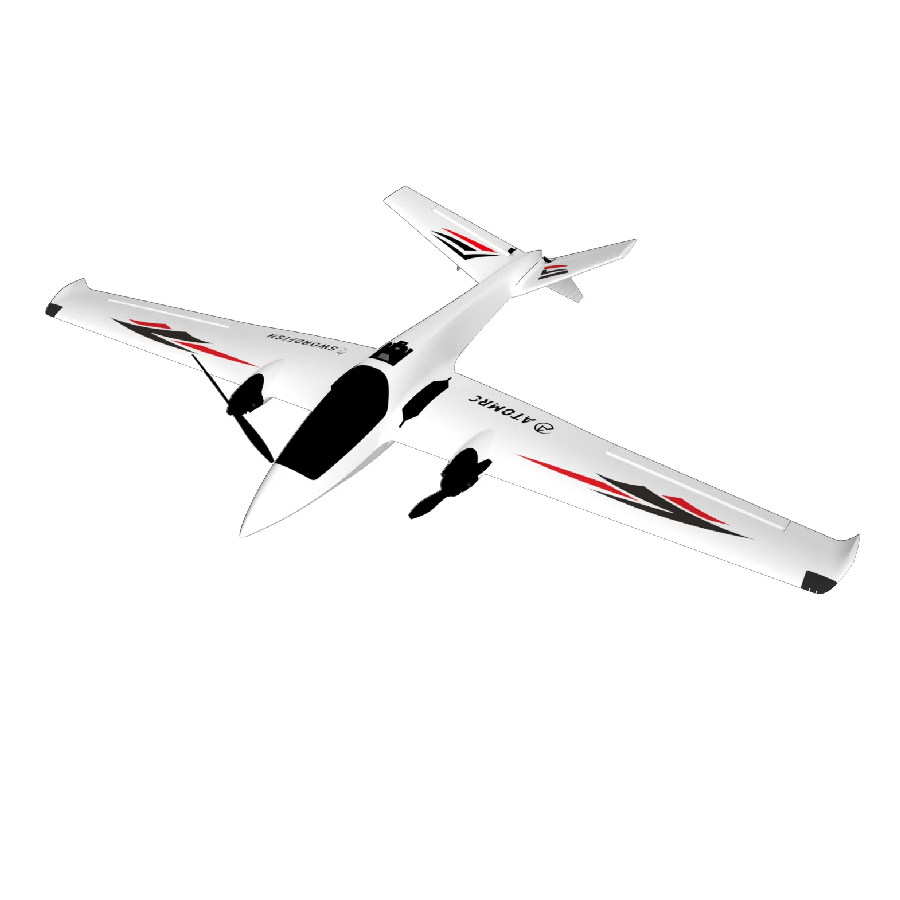

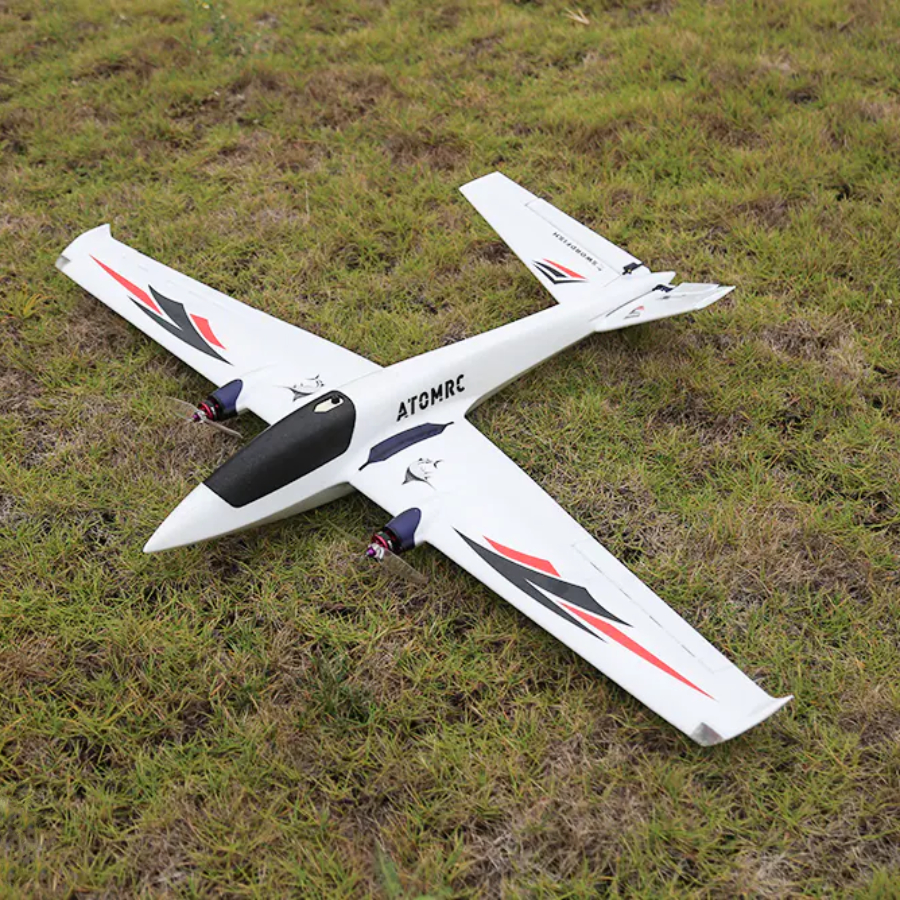

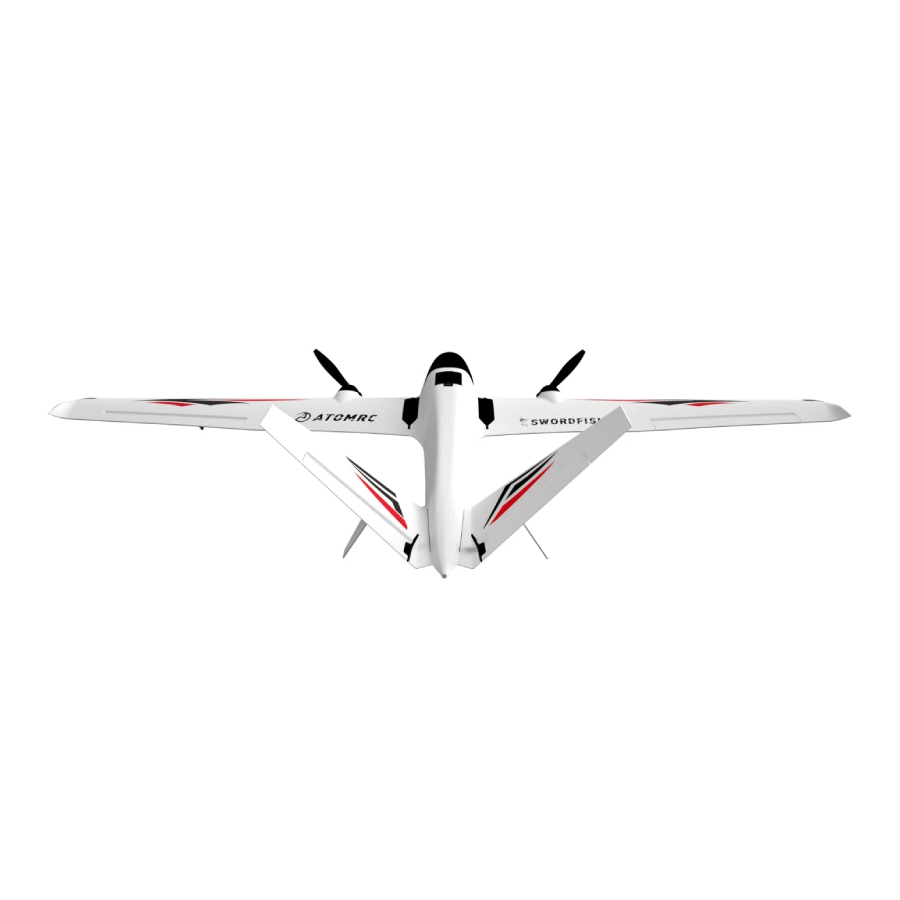

The ATOMRC Swordfish is a 1200mm V-tail FPV aircraft designed for efficient cruising, long-range exploration and autonomous flight. Its EPP foam airframe is reinforced with carbon fibre throughout the wings and fuselage, providing a lightweight yet rigid structure that delivers stable handling while remaining durable enough for regular use.

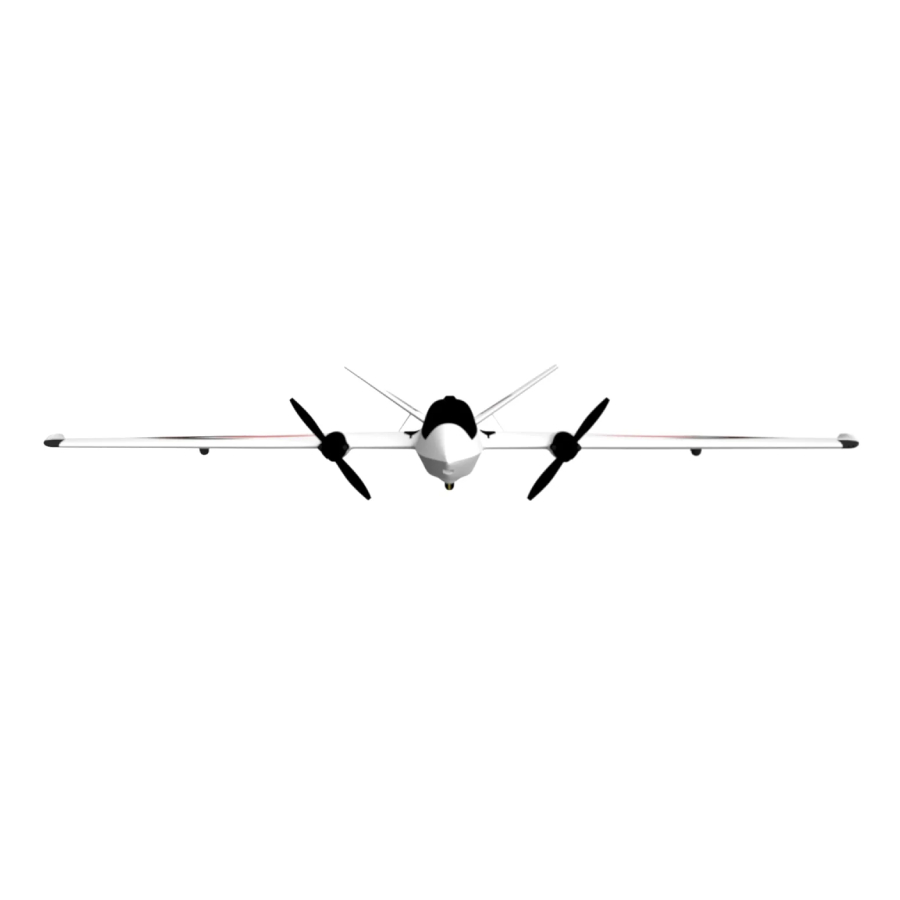

Twin wing-mounted tractor motors leave the nose unobstructed, allowing flexible FPV camera installation or the fitment of an action camera using the removable nose section. The detachable wings and V-tail simplify transport, while ATOMRC's quick-release wing connectors and secure screw-mounted equipment hatch make assembly straightforward and help prevent accidental disconnection during flight.
The Swordfish is available in 3 configurations. The Kit version is supplied as a pre-built airframe for pilots selecting their own electronics. The PNP version adds the complete propulsion system and servos. The RTH version includes a pre-configured F405 NAVI flight controller with GPS, enabling Return-to-Home and other assisted flight modes, creating a platform that's ready for the simple addition of a receiver and battery.
Features:
- 1200mm wingspan V-tail airframe designed for FPV cruising and long-range flying
- Lightweight EPP foam construction reinforced with carbon fibre
- Twin tractor motor configuration keeps the nose clear for FPV and action cameras

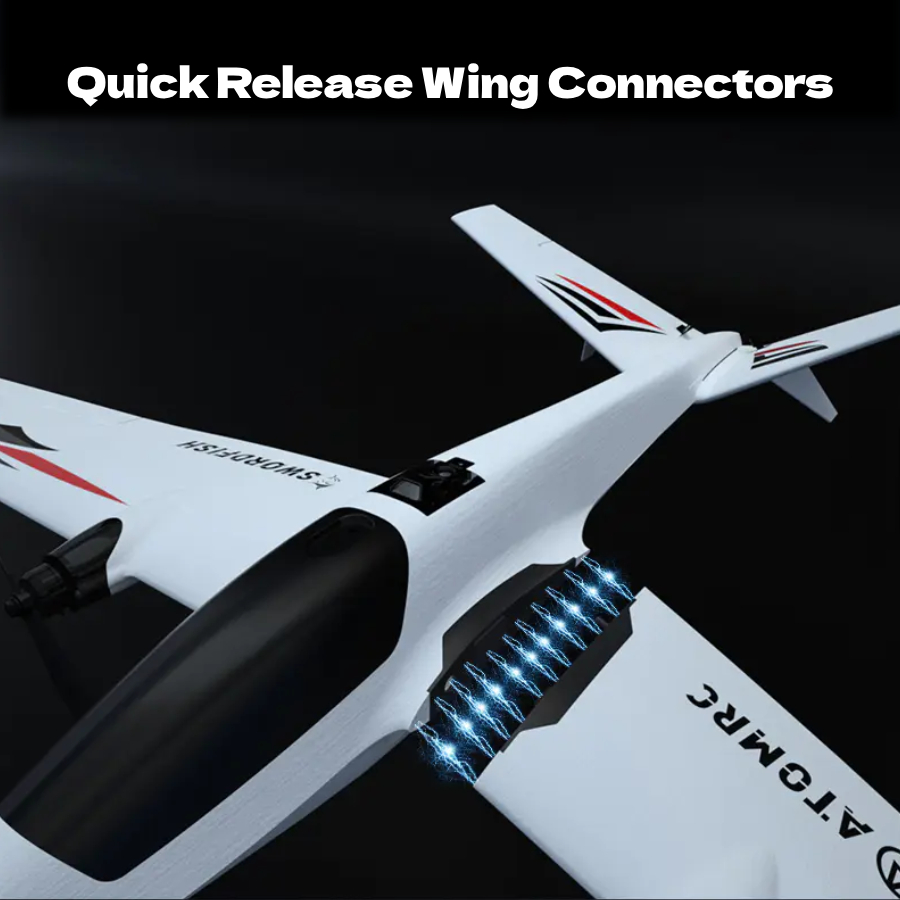

- Quick-release wing connectors simplify assembly and transport

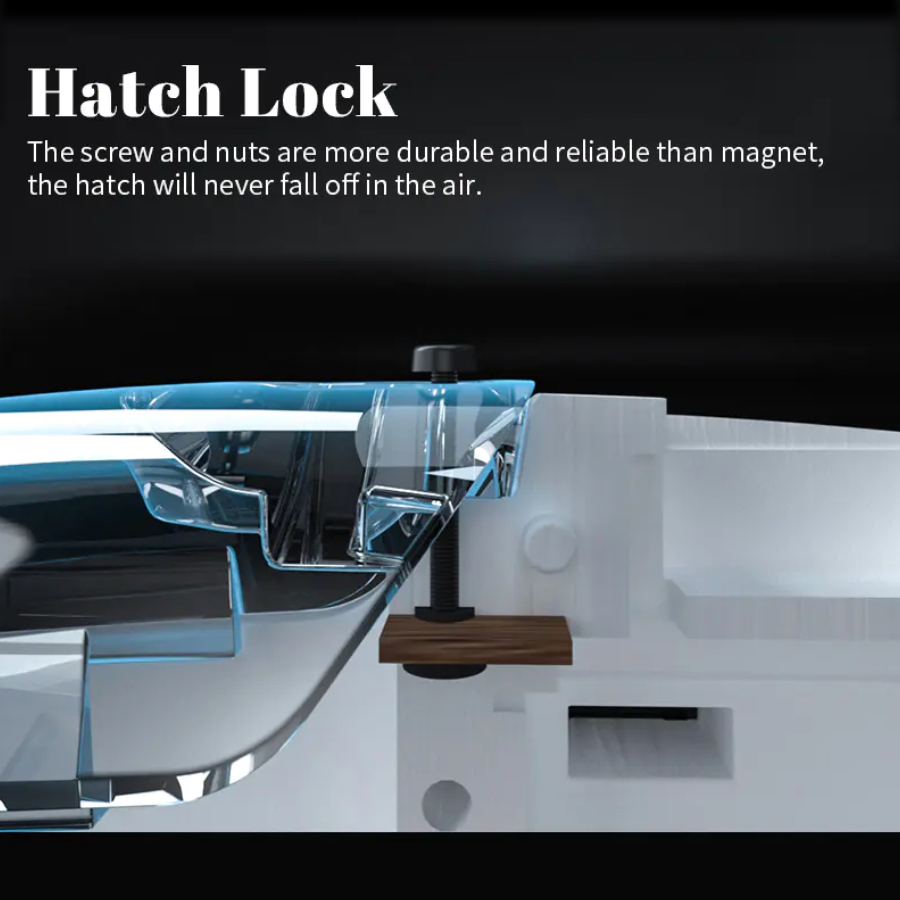

- Screw-secured equipment hatch provides a reliable fit during flight

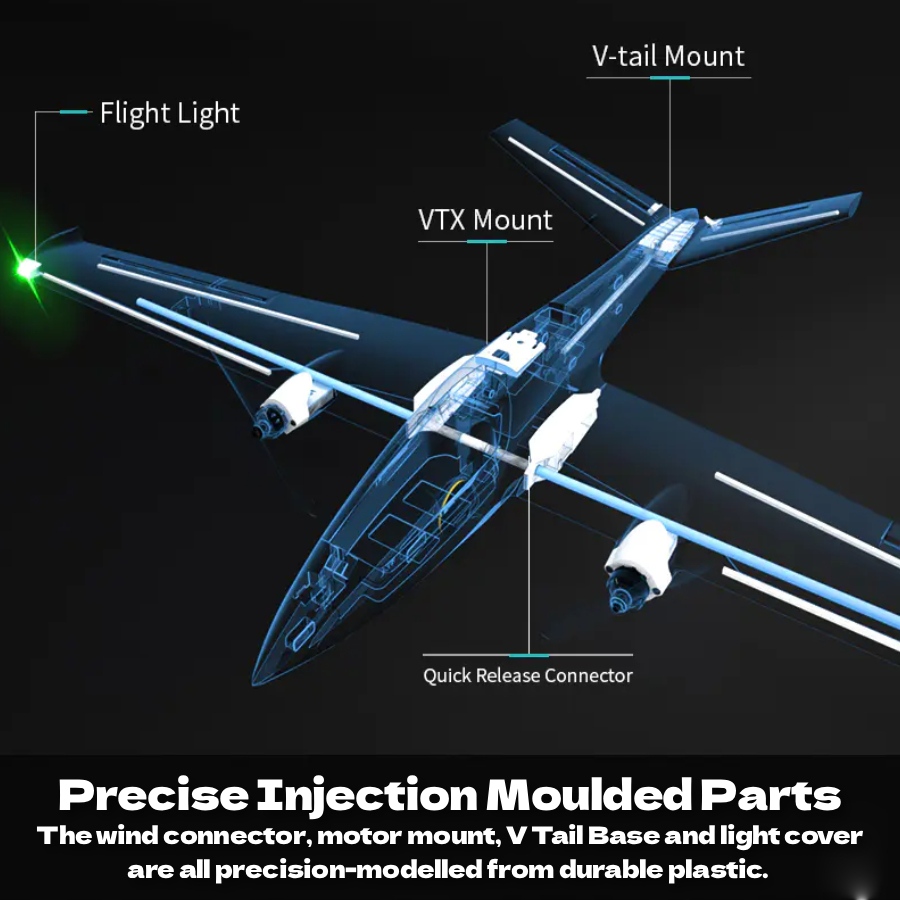

- Injection-moulded structural components improve strength while reducing weight
- Integrated cooling ducts for FPV gear and onboard electronics

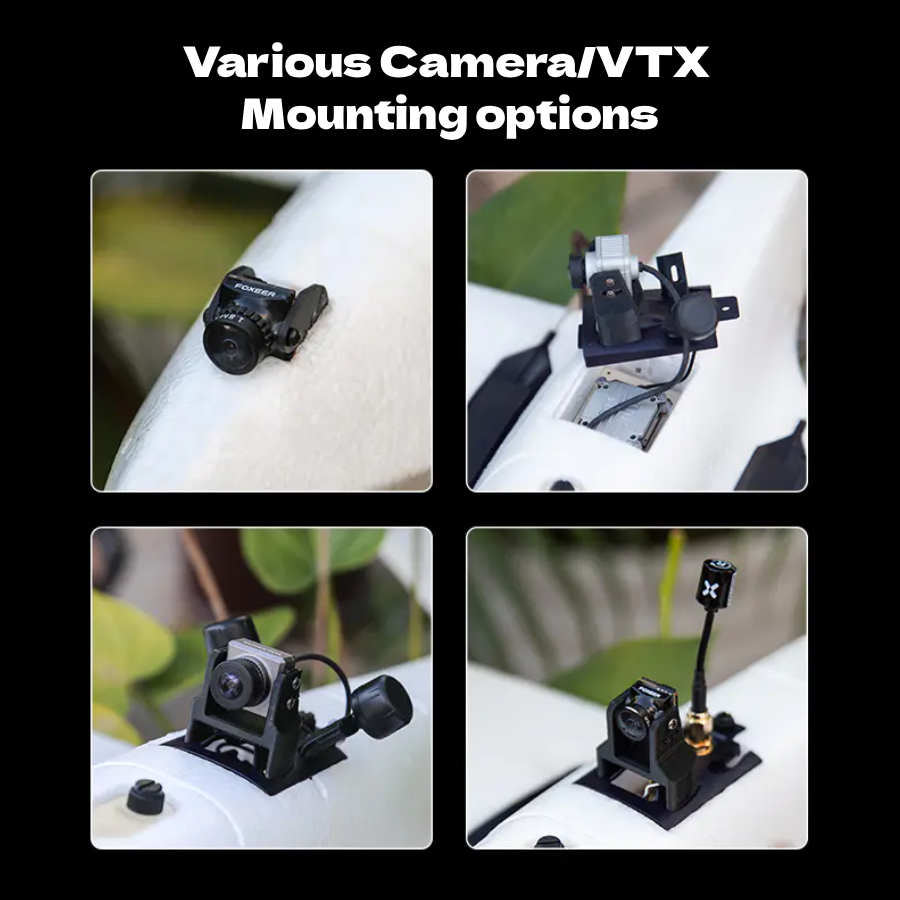

- Detachable nose section supports FPV or action camera installation
- The RTH version features pre-configured autonomous flight modes including Auto Launch, Return-to-Home and Circle Mode
Specification:
- Wingspan: 1200mm
- Length: 810mm
- Wing area: 15.35dm²
- Material: EPP foam with carbon fibre reinforcement
Recommended Parts:
- Battery: 4S1P 21700 Li-Ion 5000mAh or equivalent 4S LiPo
- Recommended motor range: 2004-2306
- Receiver: Compatible external receiver required
Power System (PNP, RTH):
- Motors: 2306 1700KV brushless motors
- ESC: 30A BLHeli_S ESCs (2-4S)
- Servos: 9g servos
- Propellers: 7042-2 props
Flight Electronics (RTH):
- Flight controller: ATOMRC F405 NAVI
- GPS module: BN220
- Flight firmware: INAV or ArduPilot (factory configured depending on version)

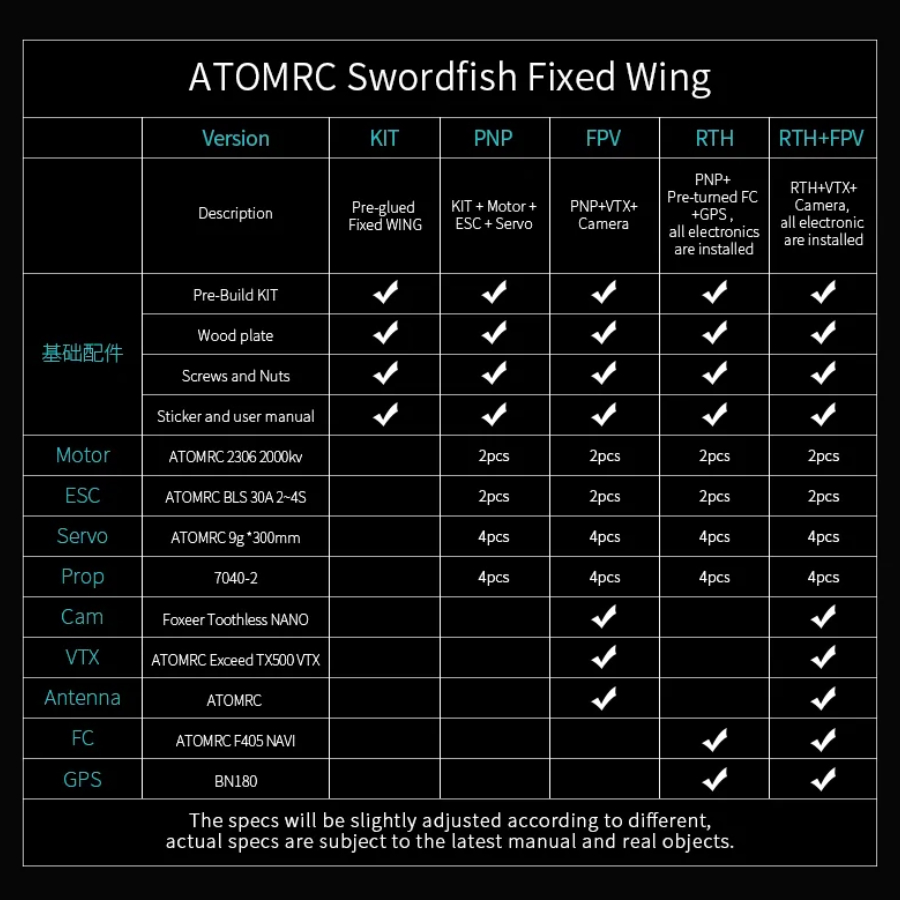

Version Comparison (all require assembly):
Kit Version:
- Pre-built EPP airframe
- Hardware pack
- Flight lights
- No motors, ESCs, servos or flight electronics installed
PNP Version:
Includes everything from the Kit version, plus:
- 2x 2306 1700KV brushless motors
- 2x 30A BLHeli_S ESCs
- 4x 9g servos
- 2x 7042-2 propellers
RTH Version:
Includes everything from the PNP version, plus:
- ATOMRC F405 NAVI flight controller
- BN220 GPS module
- Factory-configured autonomous flight functions including Auto Launch, Return-to-Home and Circle Mode
Included:
- 1x ATOMRC Swordfish V-tail FPV Plane (requires assembly)
- Accessories
