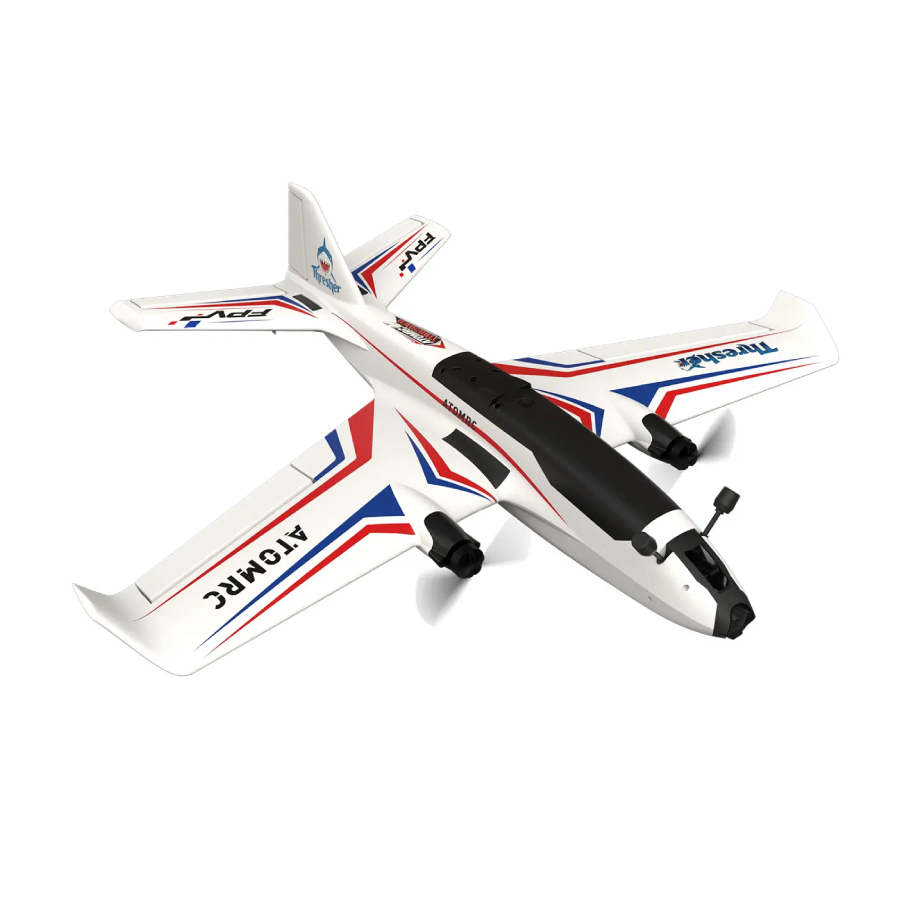

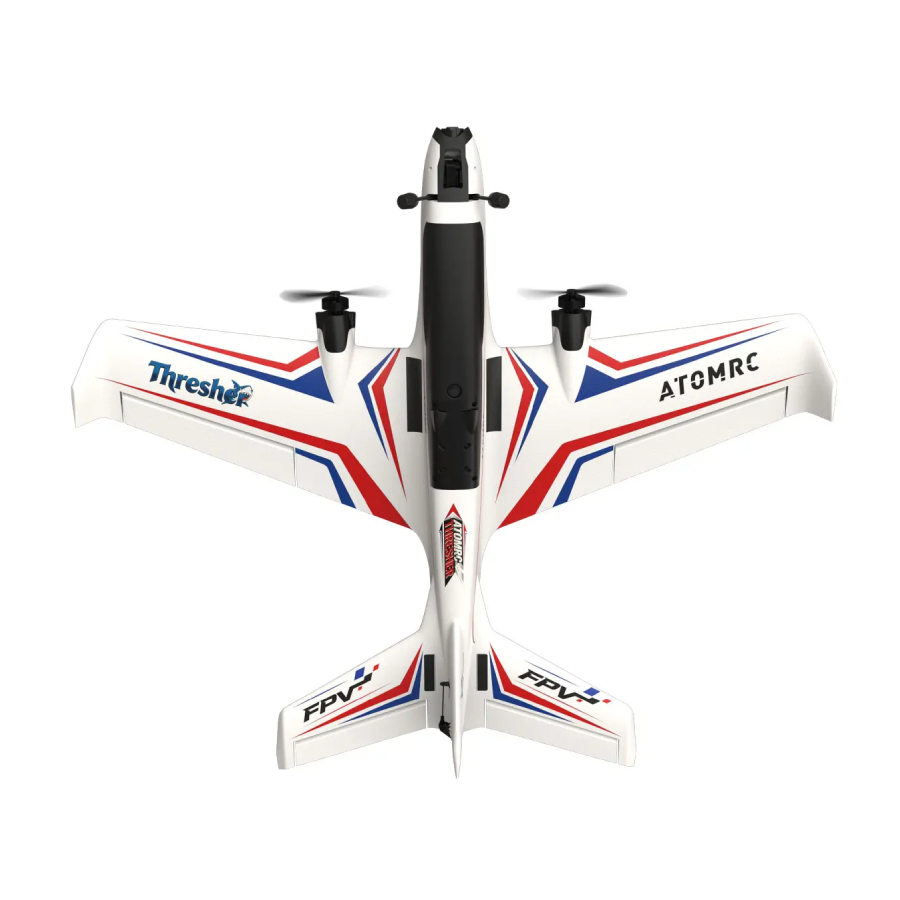

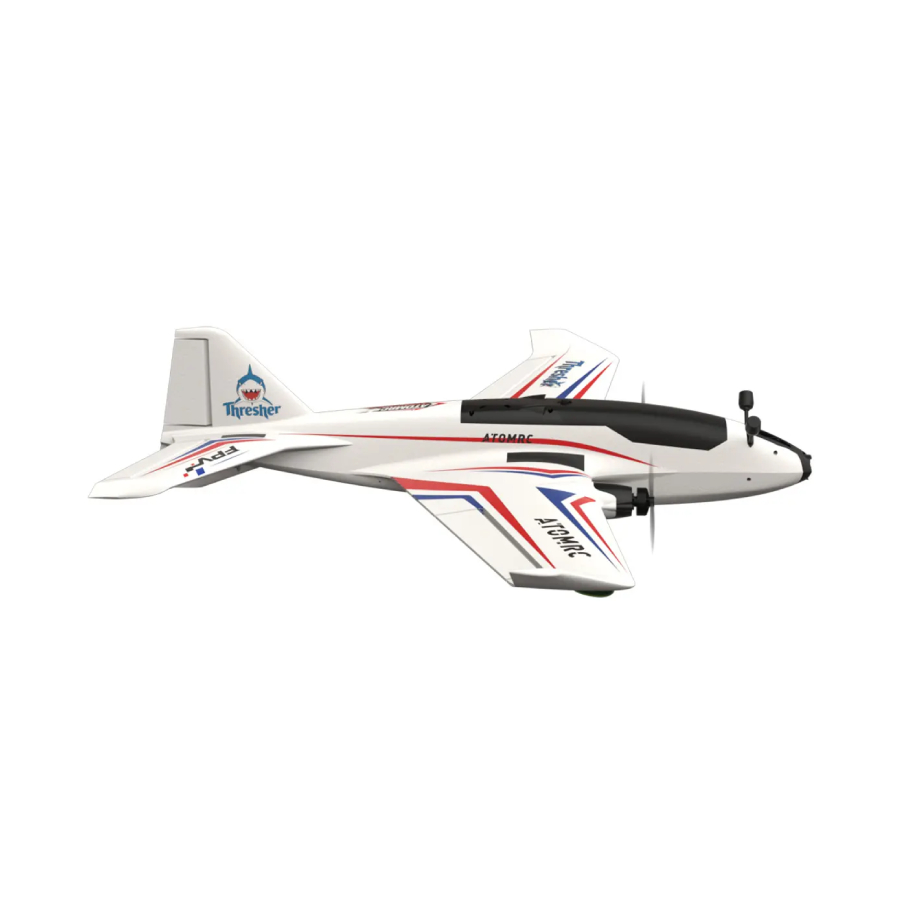

ATOMRC Thresher Shark FPV Plane

Overview:

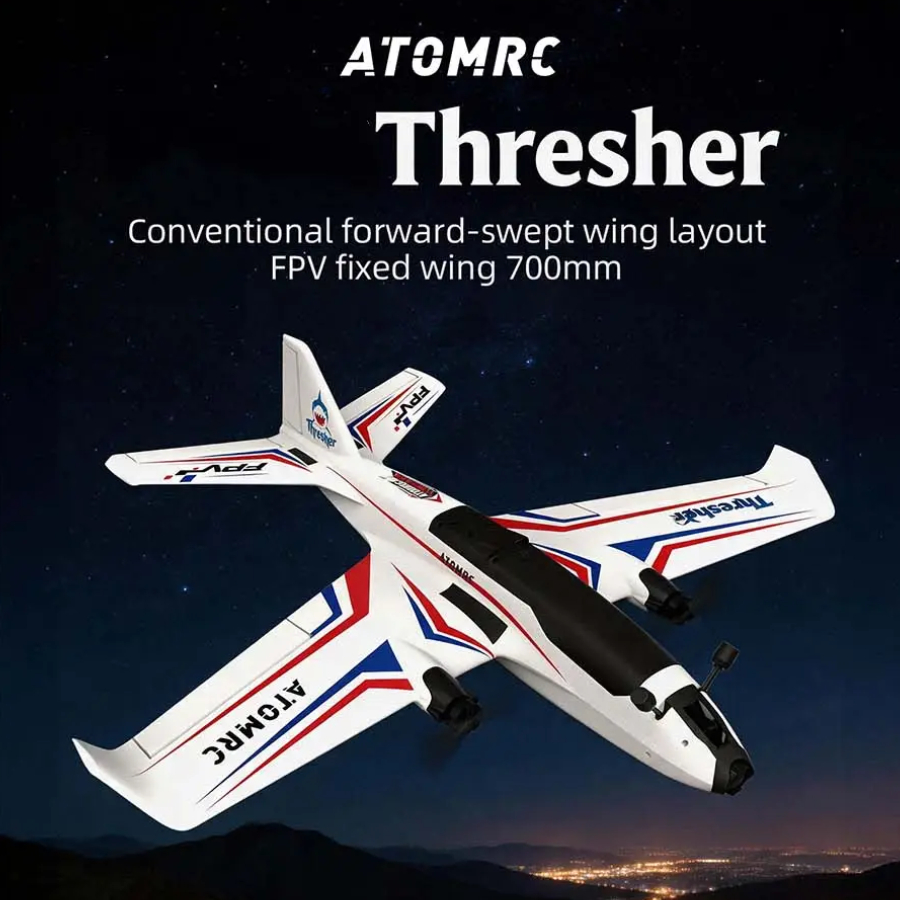

The ATOMRC Thresher Shark is a compact FPV fixed-wing combining a forward-swept wing with twin motors. Its aerodynamic design gives the aircraft agile low-speed handling while retaining stability as airspeed increases, making it suited to pilots looking for something more manoeuvrable than a conventional fixed wing.

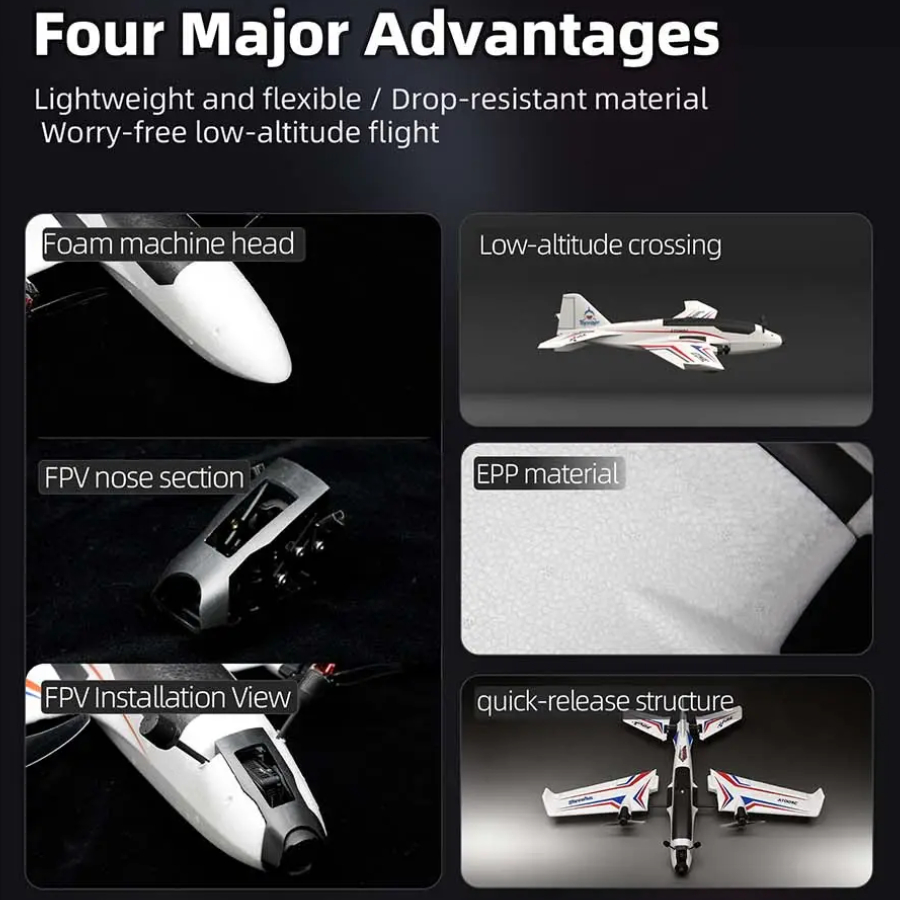

The 700mm airframe is moulded from high-density EPP foam and reinforced with carbon fibre rods in the wings. The main wings and horizontal tail use a screw-free quick-release system, making the aircraft easier to transport and assemble. Internal electronics compartments and concealed cable routing also leave space for installing an FPV system.

Both versions are supplied with the propulsion and control electronics installed. The PNP+S is the simpler option with no FC or GPS included, while the RTH version adds the ATOMRC F405 NAVI Pro flight controller and BE220 GPS, providing the hardware required for an RTH-equipped build.

Features:

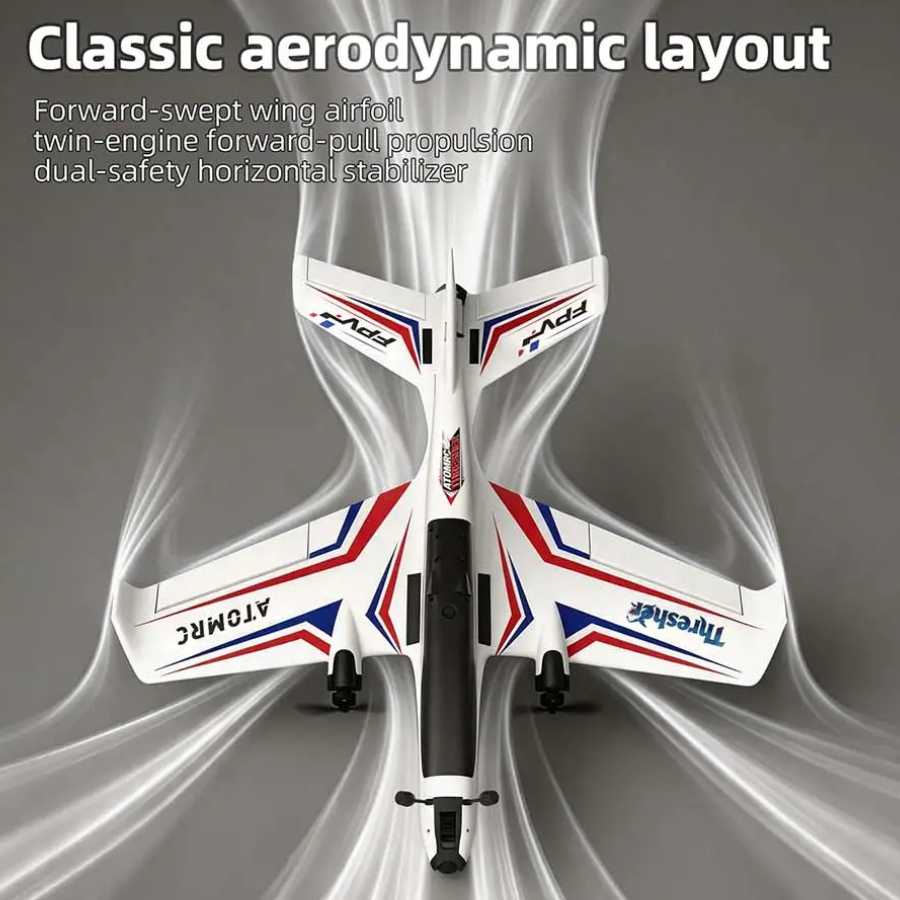

- Forward-swept wing layout combines agile handling with stable high-speed flight characteristics.
- Twin tractor propulsion places both motors at the front of the aircraft.
- High lift-to-drag airfoil is designed to improve aerodynamic efficiency.

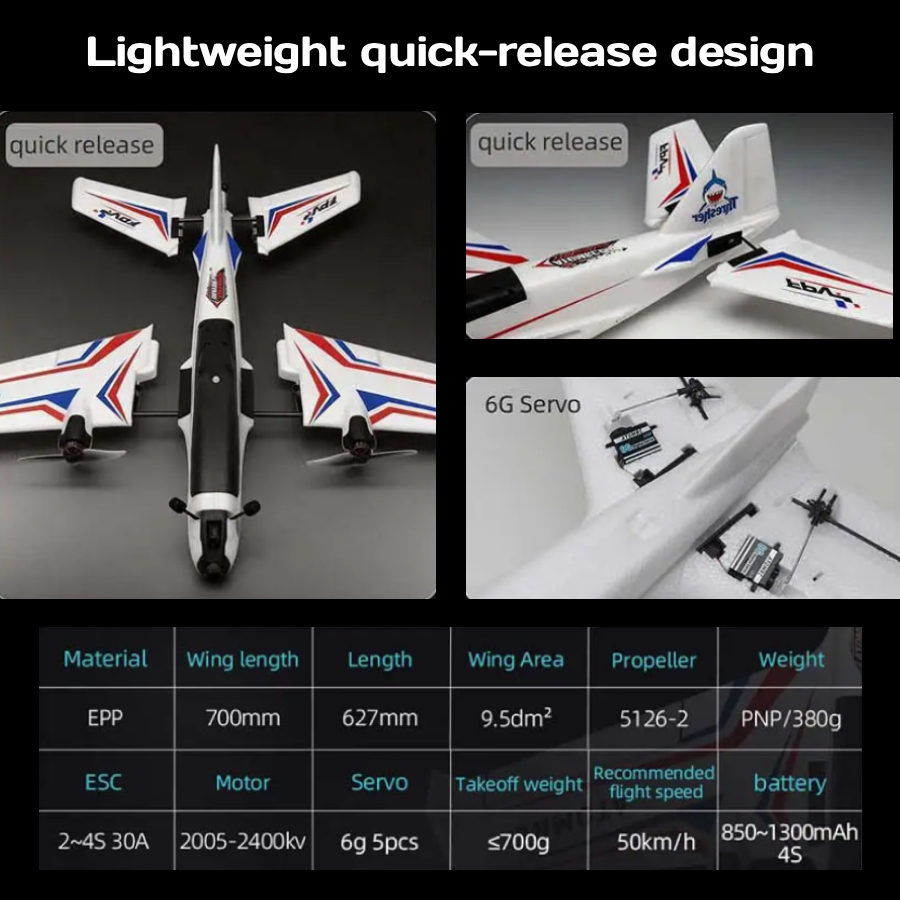

- Screw-free quick-release system for the main wings and horizontal tail.
- Carbon fibre rods are embedded in the wings for additional torsional rigidity.
- High-density EPP construction keeps the airframe lightweight.

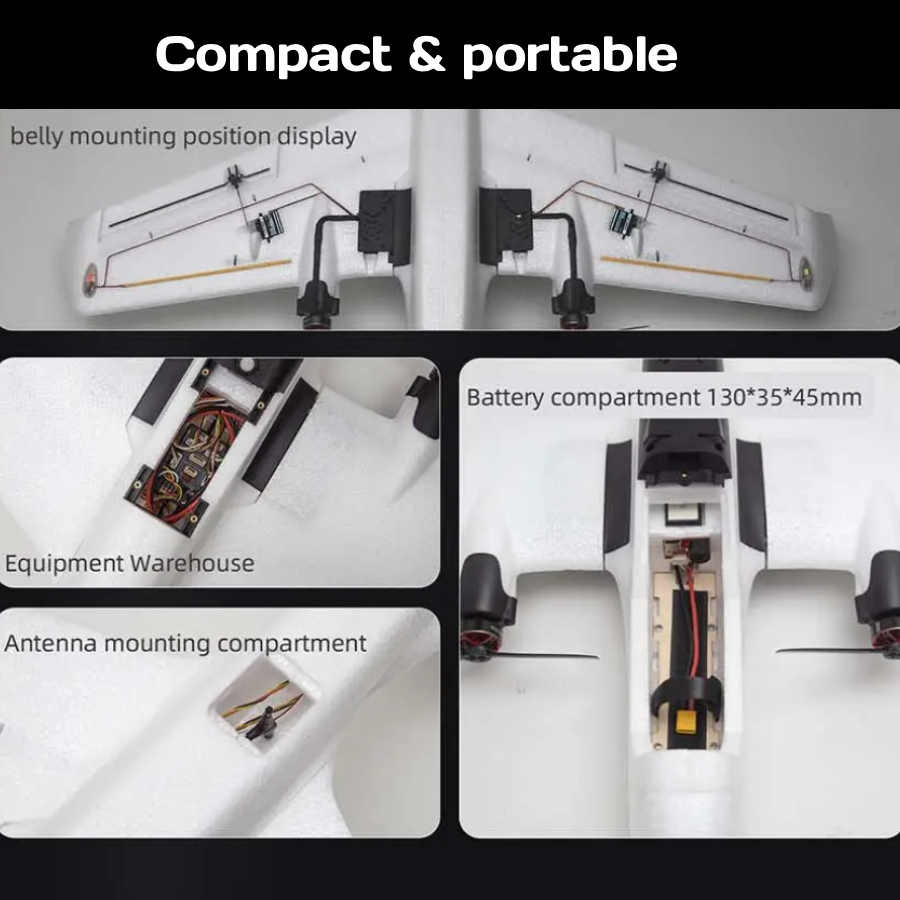

- Independent electronics compartments provide organised space for the aircraft's electronics.
- Concealed cable routing helps keep the installation tidy.
- Dedicated mounting provisions are provided for an FPV camera and video transmitter.
- Flight light is supplied with both versions.

Specification:
- Wingspan: 700mm
- Length: 627mm
- Wing area: 9.5dm²
- Airframe material: EPP foam
- Recommended battery: 4S 850-1300mAh XT30 (not included)
- Receiver: Not included
- FPV: Camera/FPV gear not included

PNP+S version:
- Motors: 2x 2004 2400KV brushless motors
- ESCs: 2x BLS 30A 4S
- Servos: 5x S06M 6g metal-gear servos
- Propellers: Gemfan Long Range 5126-2 T-Mount 1.5mm shaft (4 Pack)

RTH Version (includes everything from the PNP+S version, PLUS):
- Flight controller: 1x ATOMRC F405 NAVI Pro
- GPS: 1x BE220

Included:
- 1x ATOMRC Thresher Shark Fixed Wing Plane
