BetaFPV 0802 II Brushless Motors (2026) (4pcs)

Overview:
The BetaFPV 0802 Brushless Motors (2026) are a new generation of high-performance 1S motors developed specifically for lightweight 75mm whoops. Featuring an industry-first 0.10mm stator core, they improve magnetic efficiency and reduce heat generation, delivering greater power efficiency than previous 0802 designs while maintaining the responsive flight characteristics expected from a racing-class micro motor.

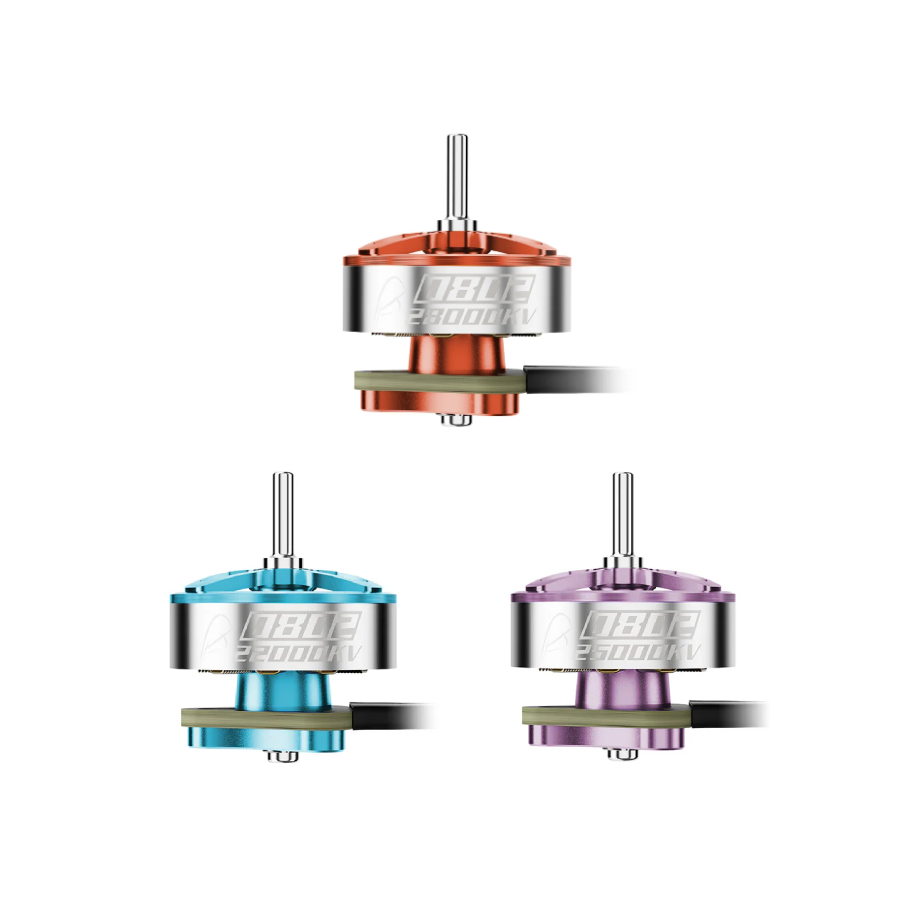

Each version has been precision-tuned for a different flying style. The Champion motor is built for maximum performance, combining a 28000KV winding with dual ball bearings for the fastest throttle response and highest power output. The Racing version uses a 25000KV winding to provide rapid acceleration and consistent performance on technical race tracks, while the Freestyle version features a 22000KV winding that prioritises smooth throttle resolution and improved low-throttle control for precise freestyle flying.

All three variants feature an upgraded rotor housing and reinforced shaft design to improve crash resistance, making them well suited to the demands of competitive whoop racing and everyday FPV flying. Compatible with 1S flight controllers using JST1.25 motor connectors, they are an ideal upgrade for the BetaFPV Air75 II and other lightweight 75mm whoop builds.

Features:
- Industry-first 0.10mm stator core improves efficiency and reduces heat generation
- Champion version features dual ball bearings for maximum performance and durability
- Racing version tuned for rapid throttle response and technical race courses
- Freestyle version optimised for smooth low-throttle control and precise handling

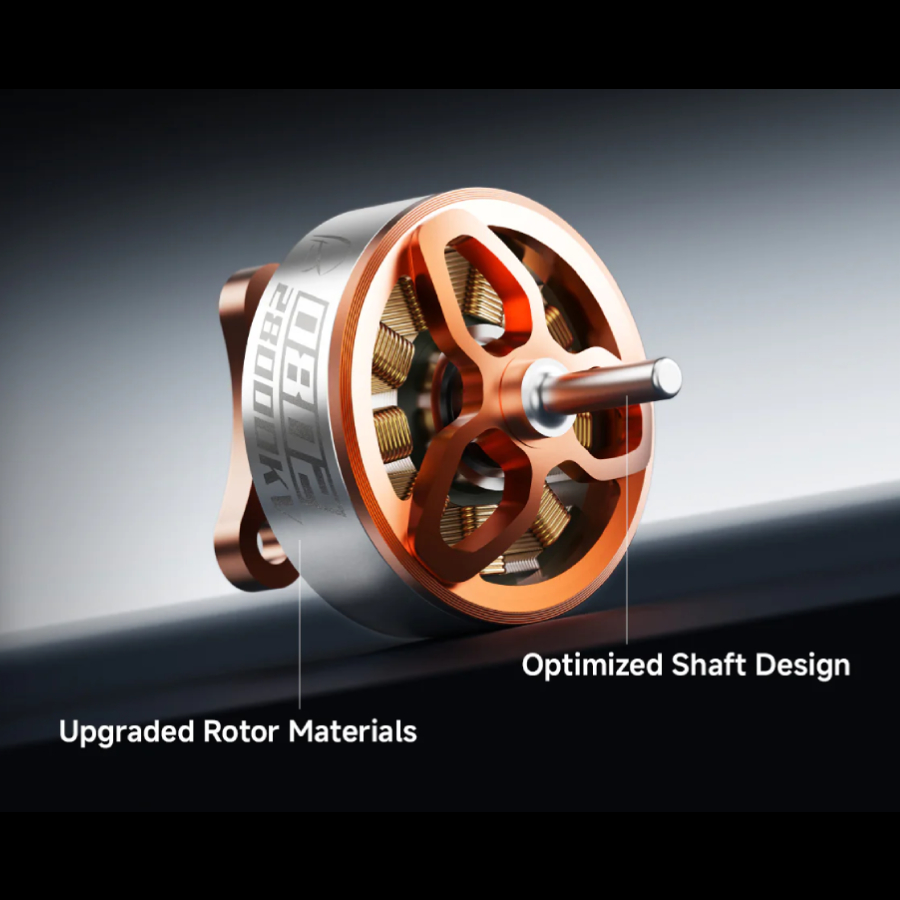

- Upgraded rotor housing improves resistance to crash damage
- JST1.25 3-pin connector for simple plug-and-play installation on compatible flight controllers
- Designed for lightweight 1S 75mm whoop builds, including the BetaFPV Air75 II

Specification:

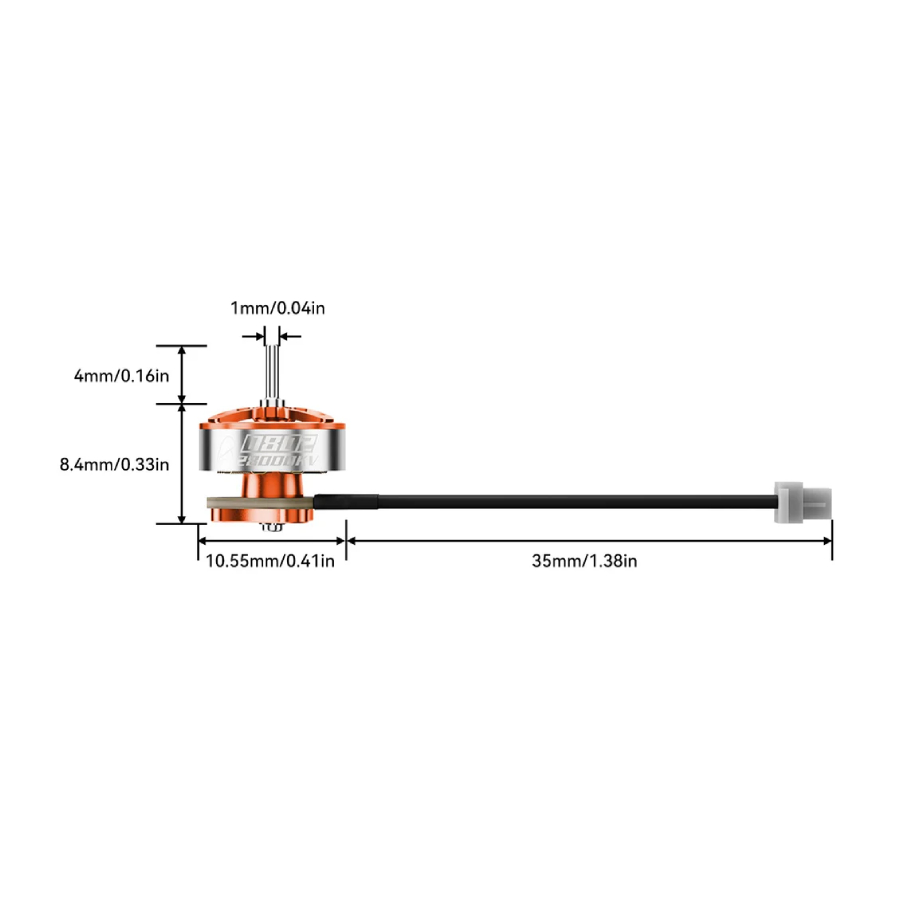

- Stator size: 0802
- Rated voltage: 1S (4.2V)
- Shaft diameter: 1.0mm
- Shaft length: 4.0mm
- Wire gauge: 30AWG
- Wire length: 35mm
- Connector: JST1.25 3-pin
- Mounting pattern: 3xM1.4 on Ø6.6mm
- Recommended propeller: Gemfan 1614 3-blade
- Recommended frame: BetaFPV Air75 II / Meteor65 Pro

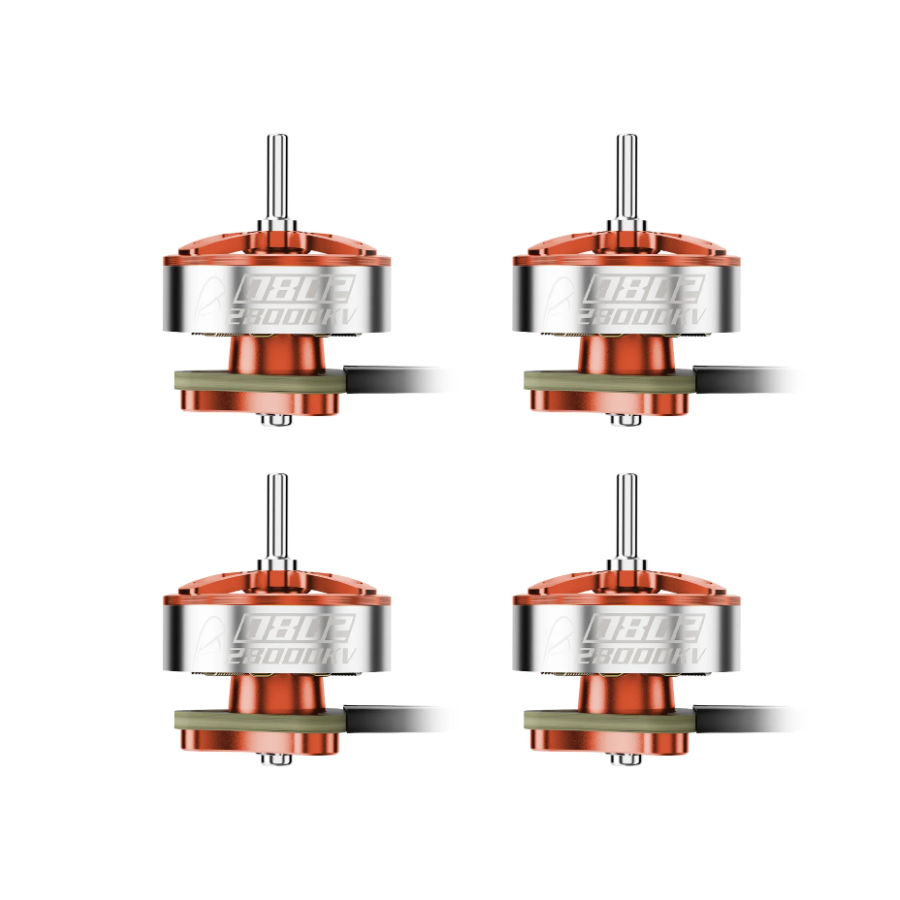

Champion Motors:
- KV Rating: 28000KV
- Maximum power: 34.3W
- Maximum current: 9A

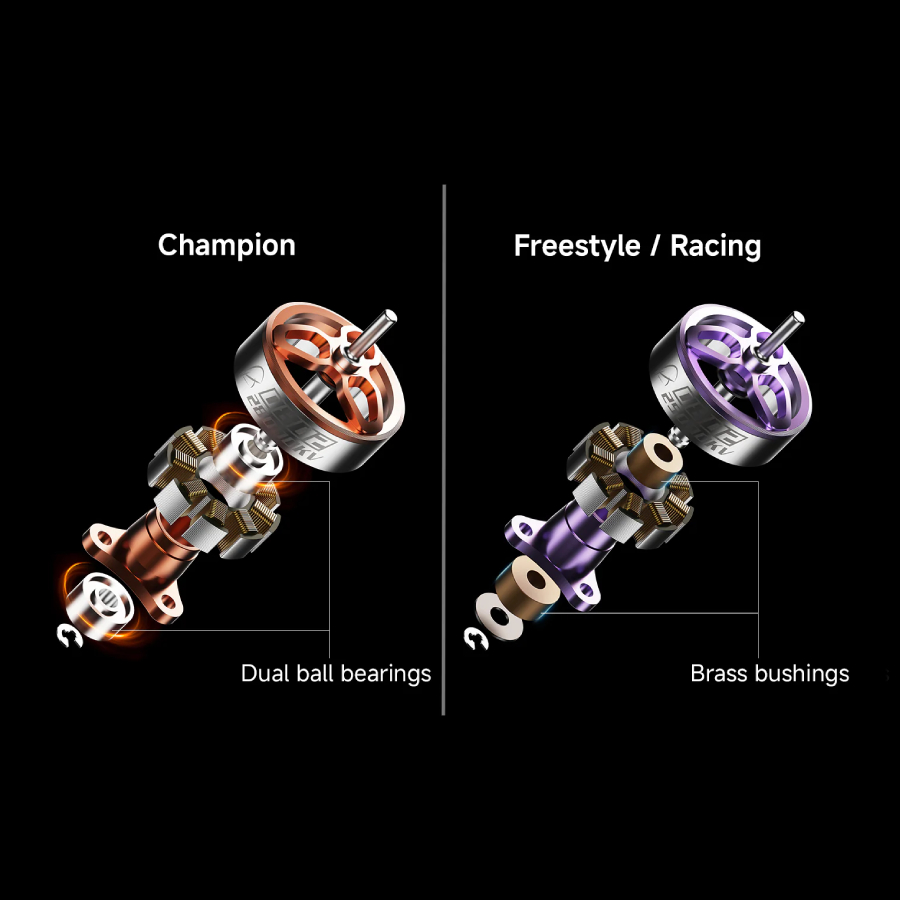

- Bearing type: Dual ball bearings
- Weight: 1.95g

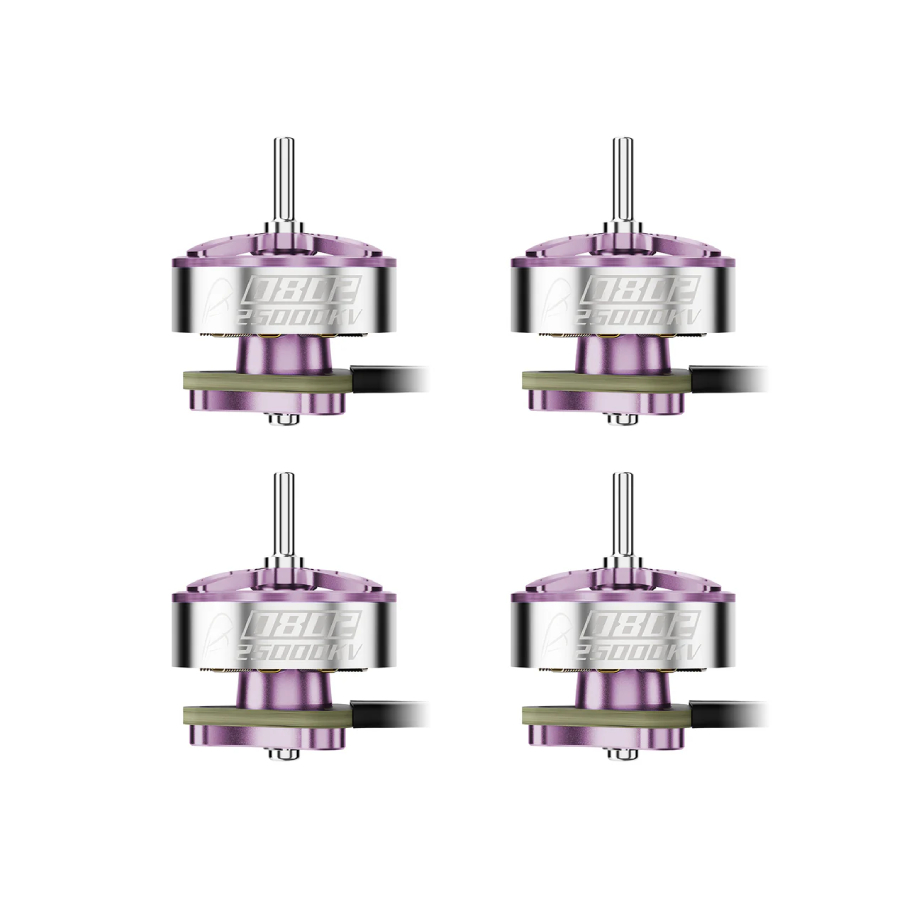

Racing Motors:
- KV Rating: 25000KV
- Maximum power: 31.15W
- Maximum current: 8.15A
- Bearing type: Brass bushings
- Weight: 1.88g

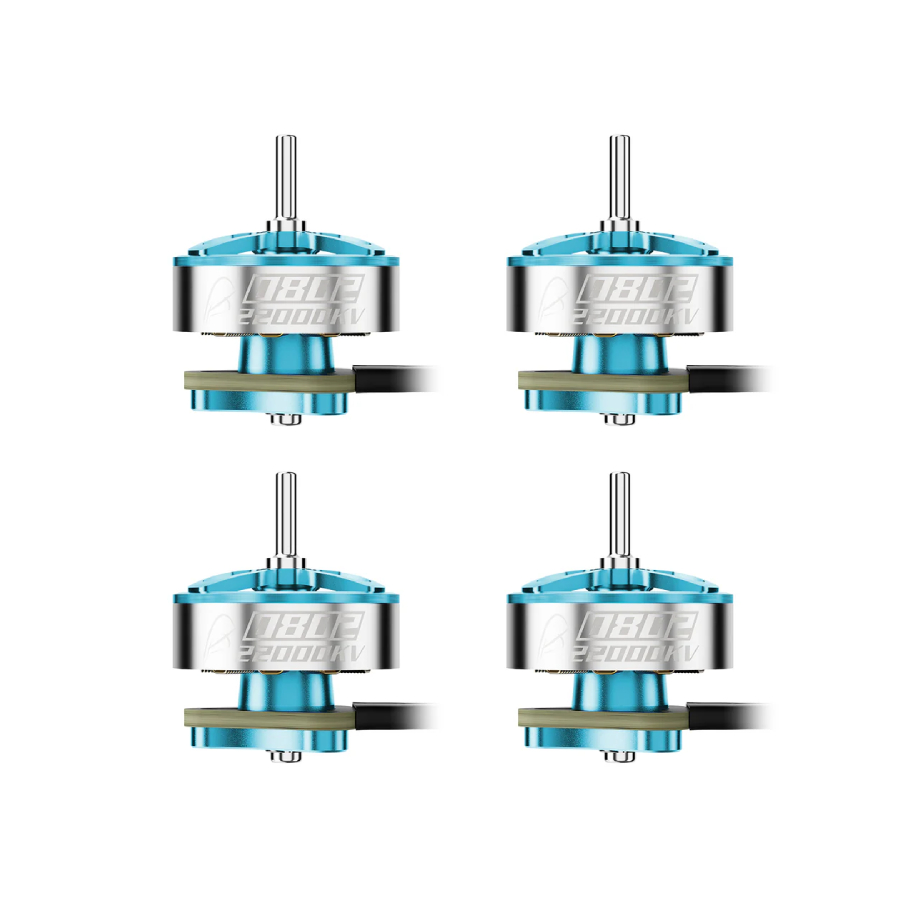

Freestyle Motors:
- KV Rating: 22000KV
- Maximum power: 22.73W
- Maximum current: 5.90A
- Bearing type: Brass bushings
- Weight: 1.88g

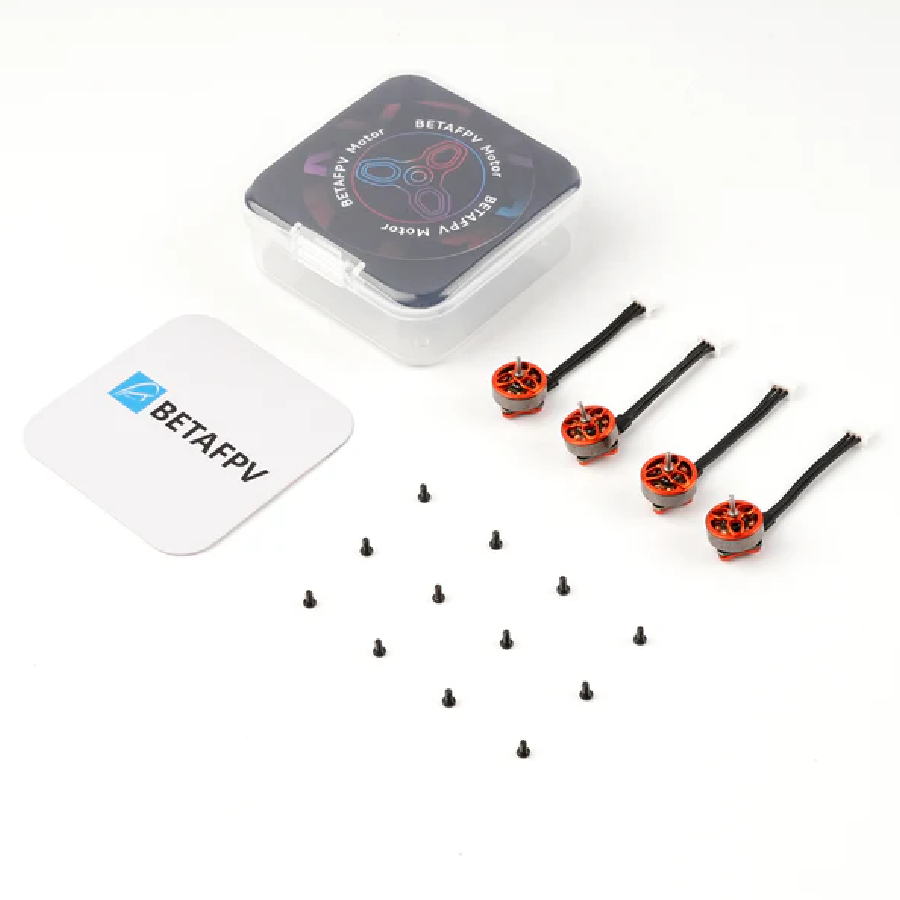

Included:
- 4x BetaFPV 0802 Brushless Motors
- Screw Pack
