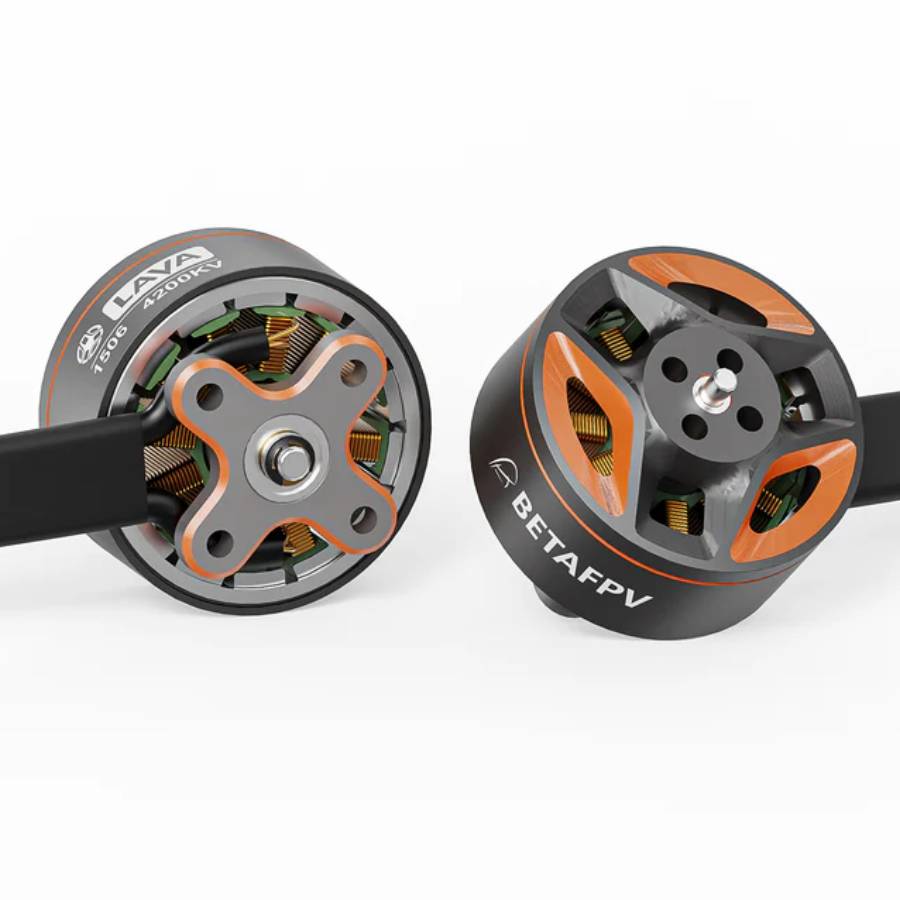

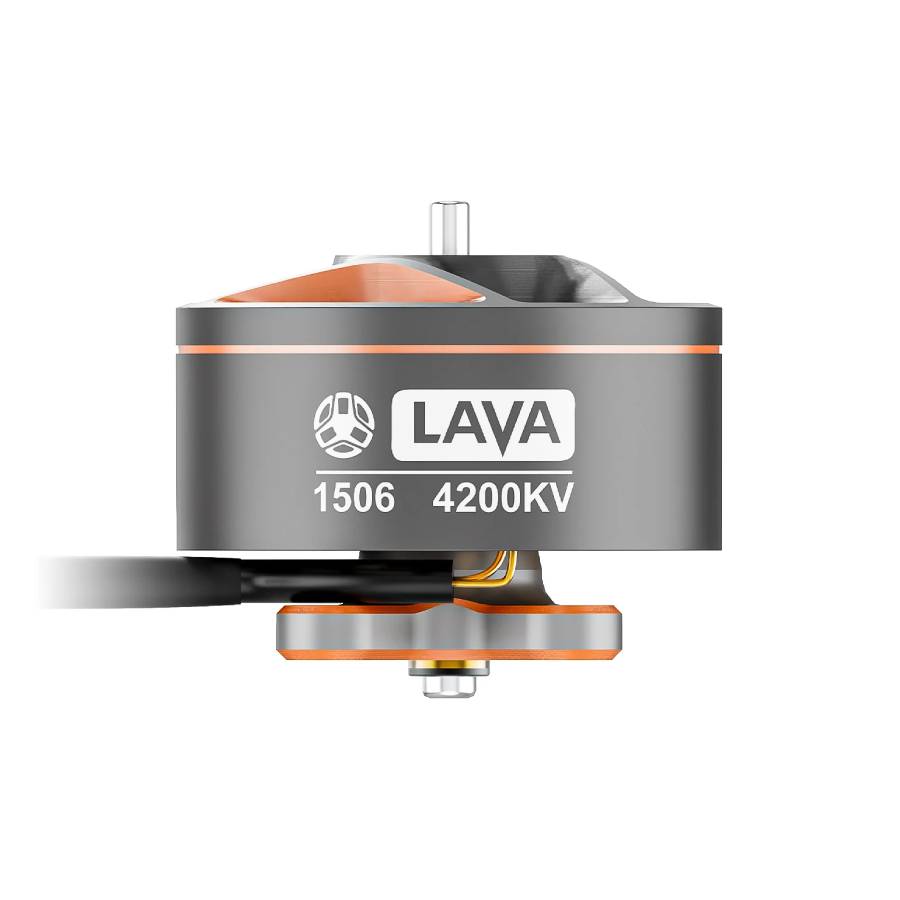

BetaFPV 1506 4200KV Brushless Motor

Overview:
The LAVA Series 1506 4200KV motor from BetaFPV is a high-performance, lightweight brushless motor tailored for 4S 2.5″ racing quads and compact freestyle builds. It gives a strong balance of thrust, efficiency and smooth power delivery - ideal for pilots looking to get responsive flight and reliable performance in both aggressive and cinematic flying styles. Designed with compatibility and ease-of-build in mind, it fits standard 1506-class frames and pairs well with 2.5″ props and 4S LiPo packs for a versatile, plug-and-fly setup.

Features:
- Optimised for 4S 2.5″ quad configurations, giving powerful thrust and responsive throttle control suited to racing or freestyle.
- Balanced design combining high-power output (313.44W max) with reasonable current draw for efficient 4S setups.
- Standard 1.5mm shaft and common 4×M2 mounting pattern offer broad frame compatibility, making installation straightforward on most 2.5″ class builds.
- Works well with 3-blade props to deliver stable performance and reduced noise compared to higher KV motors.

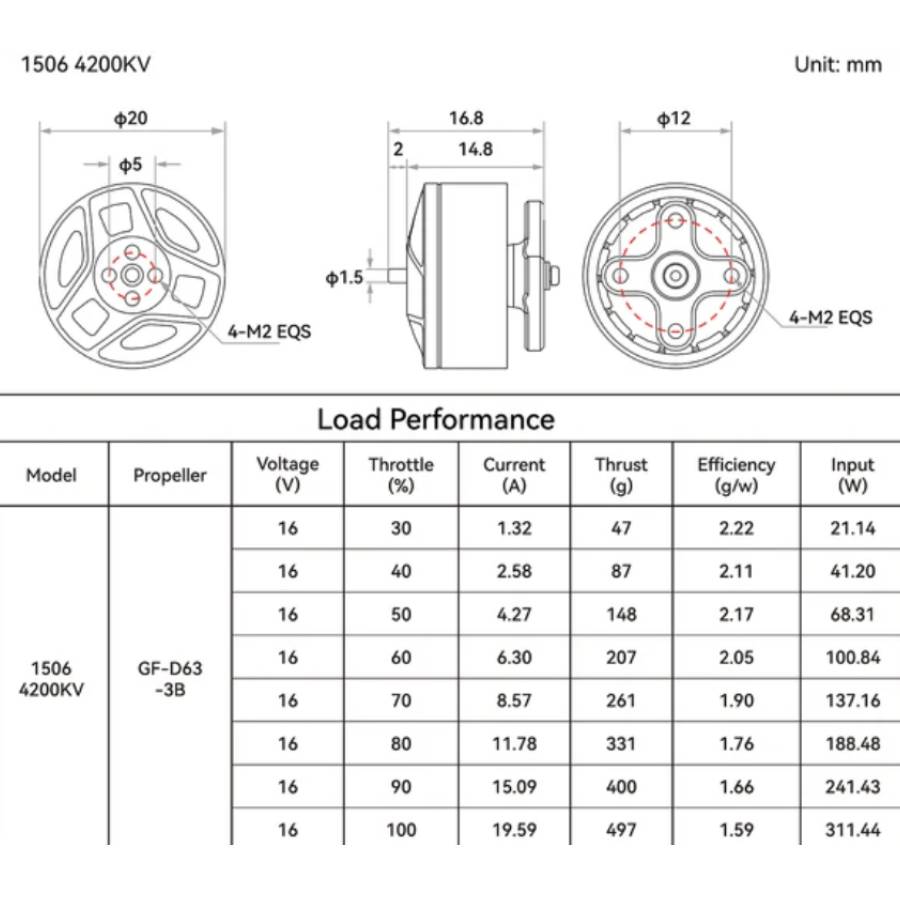

Specification:
- Model: LAVA Series 1506 4200KV Brushless Motors
- Maximum Power: 313.44W
- Maximum Current: 19.59A
- Weight: 13.6g
- Shaft Diameter: ø1.5mm
- Shaft Length: 4mm
- Wire Specification: 24AWG
- Wire Length: 80mm/34mm
- Motor Mounting Hole Size: M2 Ø12mm
- Propeller Mounting Hole Size: M2 Ø5mm

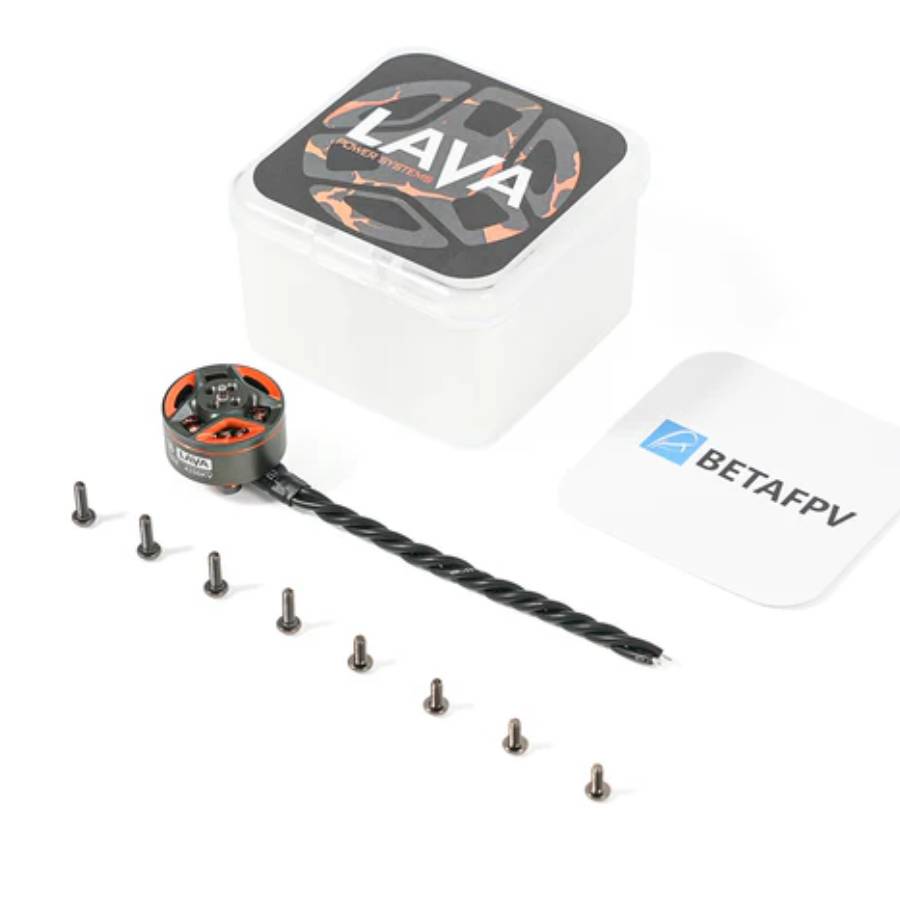

Included:
- 1x Lava Series 1506 4200KV Brushless Motors
- Accessories
