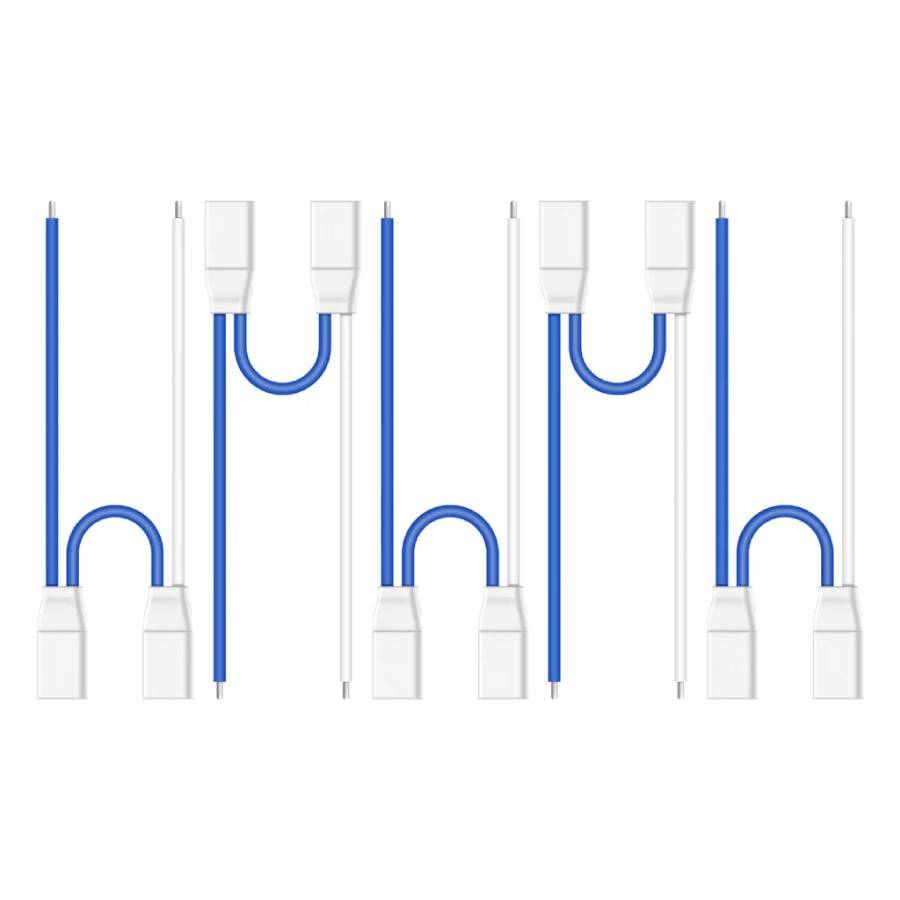

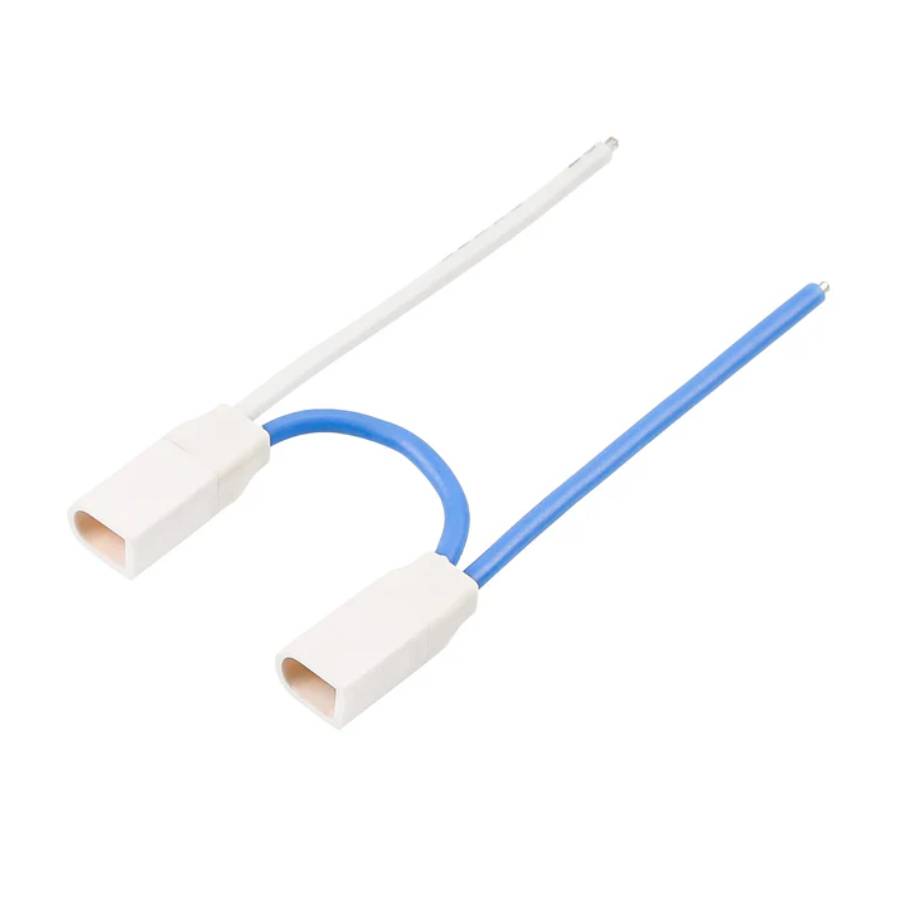

BetaFPV 2S Whoop Cable Pigtail (BT2.0)(5pcs)

Overview:
This BT2.0 Dual Connector Cable is designed specifically for larger 2S whoops. By using the BT2.0 connector, it effectively reduces voltage sag, allowing 1S LiPo batteries to discharge more efficiently. This results in longer flight times without the interruption of early low-voltage warnings.

The lightweight custom 22AWG silicone wire helps minimise overall drone weight. Built to US standard 0.08mm × 60-core specification, the wire’s 1.5mm outer diameter is 0.2mm thinner than a standard 22AWG wire, further improving efficiency and flexibility.

Exclusively developed by BETAFPV, the BT2.0 connector overcomes current limitations of the PH2.0 design. With a larger pin contact area and reduced internal resistance, it efficiently transfers current, providing stronger power output and longer flight times on 1S brushless drones. It supports 9A continuous current and 15A burst, compared to only 4.5A continuous for the older PH2.0 connector. This ensures stronger power delivery and an improved flight times.

Specifications:
Model: 2S Whoop Cable Pigtail (BT2.0)
Connector: BT2.0
Cable: 22AWG
Length: 55mm (excluding connector)
Weight: 1.5g
Polarity: Blue= Positive, White= Negative

Included:
- 5x BetaFPV 2S Pigtail Cable (BT2.0)
