BetaFPV Air Brushless FC G4 5in1 V1.0

Overview:

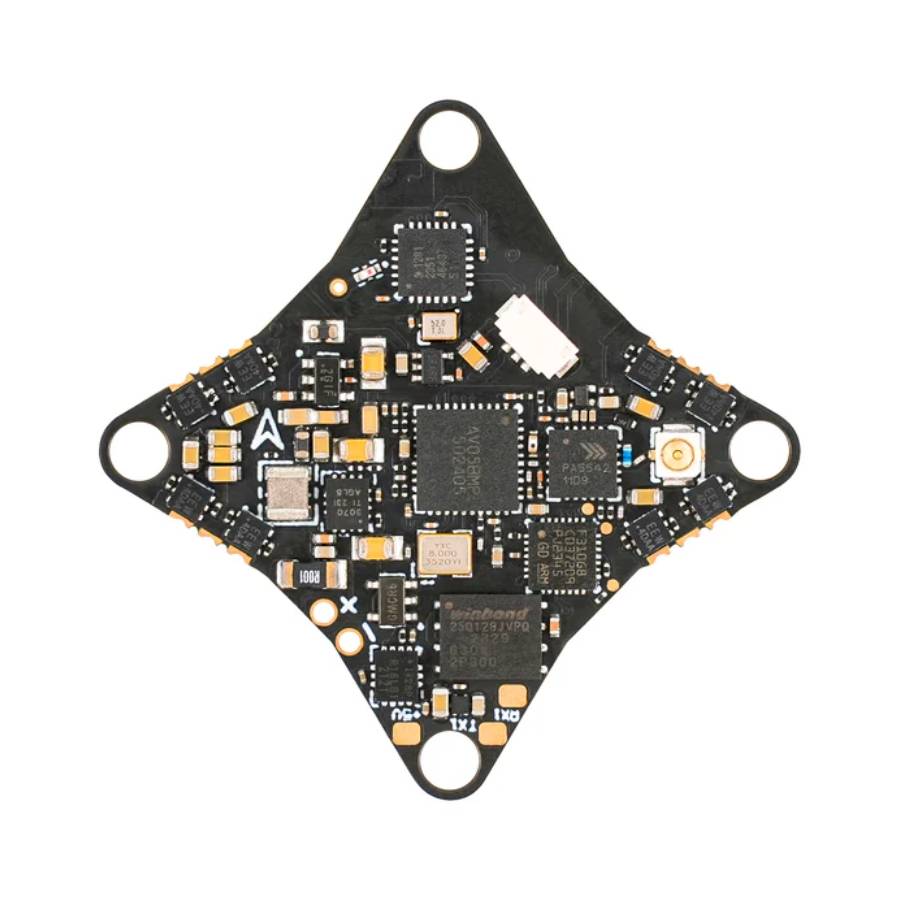

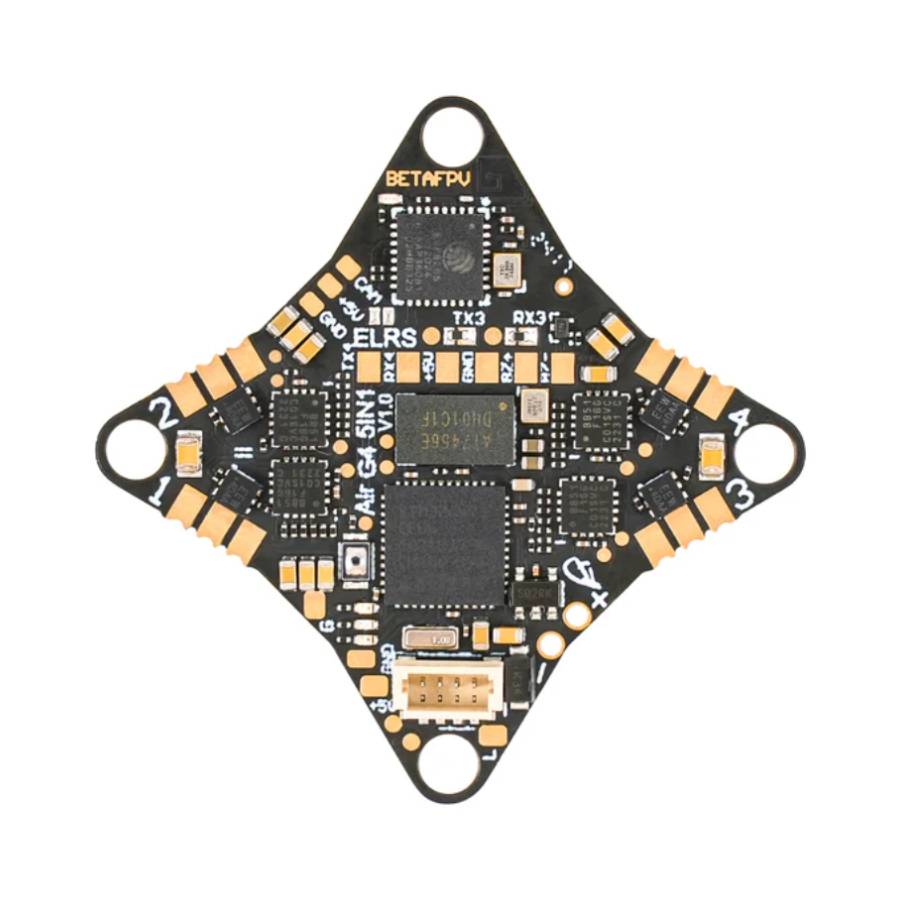

The Air G4 5-in-1 from BetaFPV integrates flight controller, ESC, OSD, VTX, and ELRS receiver into one compact board, making it ideal for ultra-light whoops like the Air65 and Air75. It's built around the STM32G473CEU6 processor for enhanced performance over F411 systems, paired with the ICM42688P gyro for precise motion sensing.

The on-board 5.8GHz VTX delivers selectable power up to 400 mW, while the integrated 2.4GHz ELRS receiver simplifies wiring and reduces added weight. Available in versions with or without the receiver, it balances high integration, low weight, and advanced features.

Features:
- All-in-one integration of FC, ESC, OSD, VTX and RX in a single board
- Onboard Betaflight OSD with voltage, current and flight data displayed
- Four independently rated 5A Bluejay ESC outputs
- Integrated ELRS 2.4 GHz receiver

Specification:
- Model: BetaFPV Air Brushless Flight Controller G4 5in1
- Processor: STM32G473CEU6 (168MHz)
- Gyroscope / IMU: ICM42688P (SPI)
- ESC rating: 5A continuous, with typical 96kHz switching
- Input voltage: 1S LiPo (3.7V nominal)
- VTX frequency range: 48 channels, 5.8GHz (Raceband 5658–5917MHz)
- Selectable VTX output power modes: PIT, 25mW, 100mW, 200mW, 400mW
- Receiver: ELRS 2.4GHz
- Blackbox memory: 16Mb
- Weight: 3.6 g (5-in-1 version)
- Mounting pattern: 26×26mm (M2 screws)
- Board thickness: 1mm

Included:
- 1x BetaFPV Air Brushless Flight Controller G4 5in1 (01040016_2)
- Accessories
