Overview:
BT2.0 connectors from BetaFPV provides a robust, compact solution for battery connections on small drones, micro-quads. They are designed for secure, low-resistance power delivery and easy installation — whether you are building a new kit, replacing inferior plugs such as PH2.0, or simply upgrading to a more compact connector.
Features
- Compact and lightweight design suitable for small-frame drones and tight-fit electronics.
- Gender-matched male and female connectors included for full plug-and-play battery wiring.
- Firm, snug contacts to ensure a stable connection and minimise voltage drop under load.
- Moulded housing offering strain relief to protect solder joints and wiring during vibration and handling.
- Widely compatible with BetaFPV batteries and many third-party 2-pin LiPo packs using BT2.0 connectors.
- Straightforward solder-on installation
- Compared with PH2.0 crimped pins, the BT2.0 connector is significantly more durable, capable of handling higher current on the same battery capacity while delivering noticeably greater power.

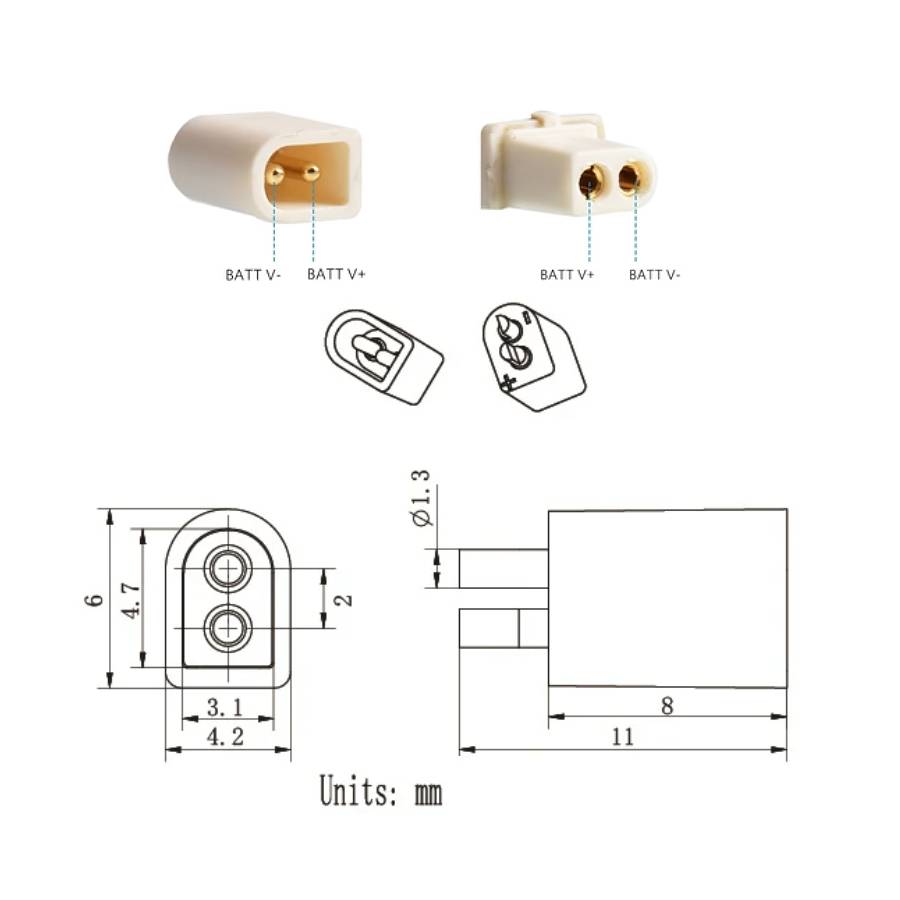

Specification:
- Model: BT2.0 Connector
- Current rating: high-current compatible (suitable for typical micro and mini-drone battery loads).
- Suitable Wire gauge: typically suitable for 14–22AWG
- Typical use case: 1S or 2S LiPo battery connections
- Connector rating: 9A continuous current and up to 15A burst
Available versions (see below for purchase options):

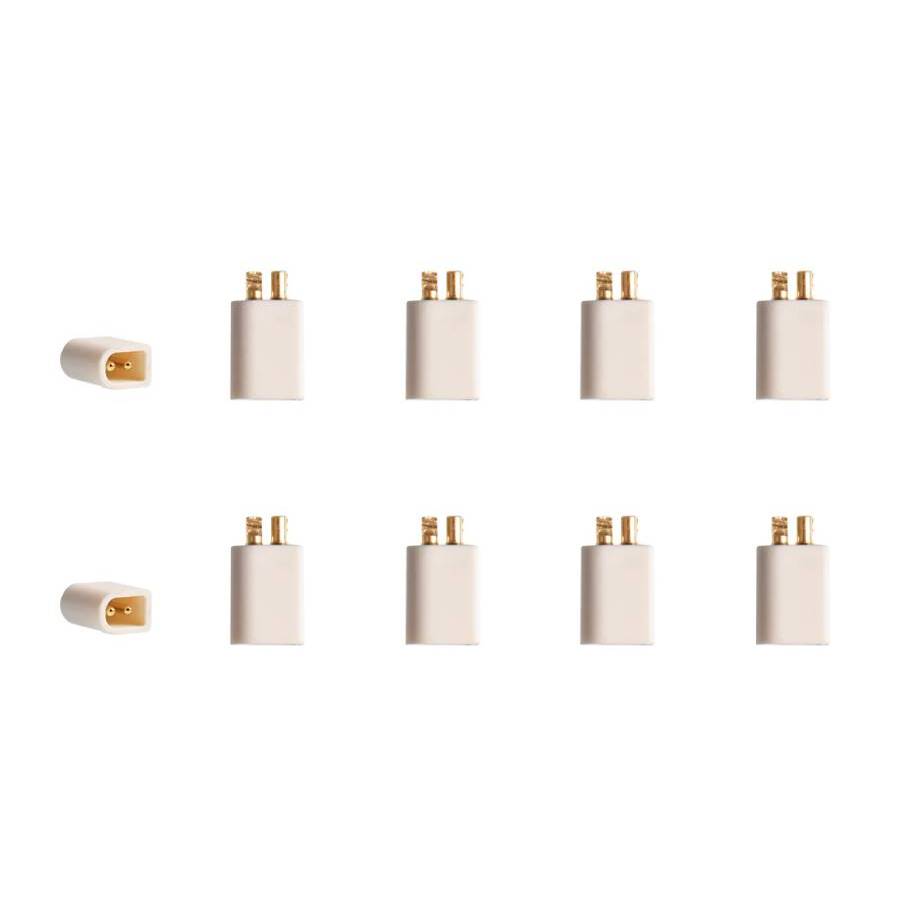

- BetaFPV BT2.0 Male Connectors

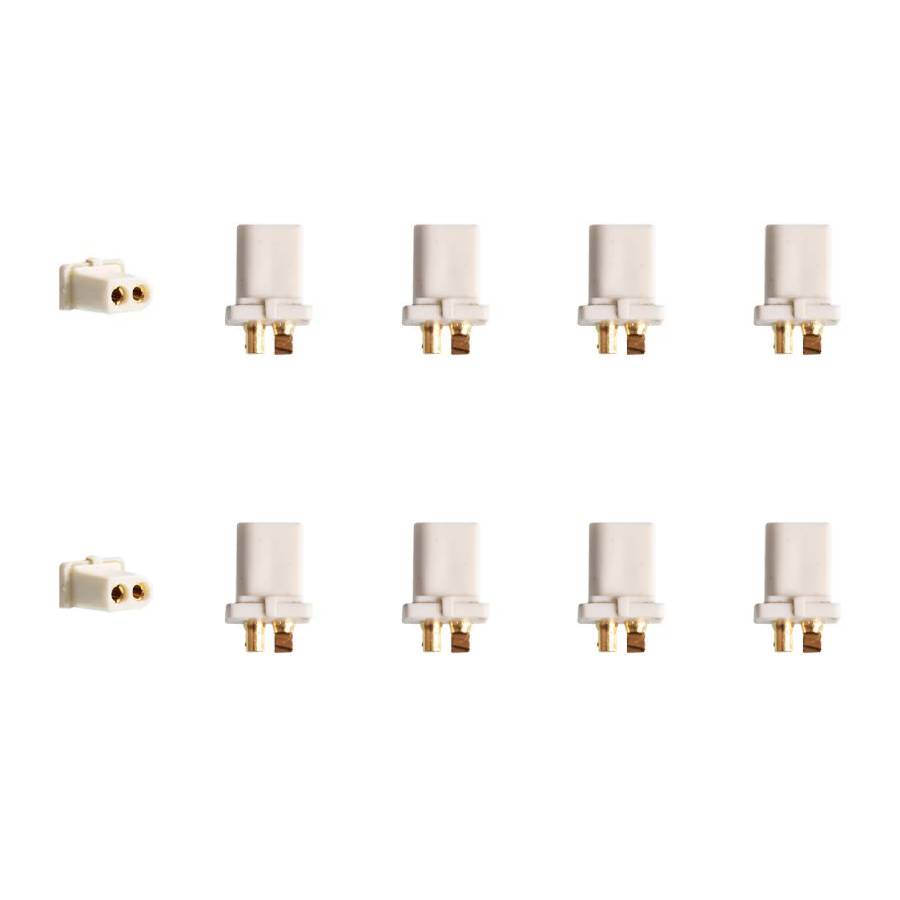

- BetaFPV BT2.0 Female Connectors

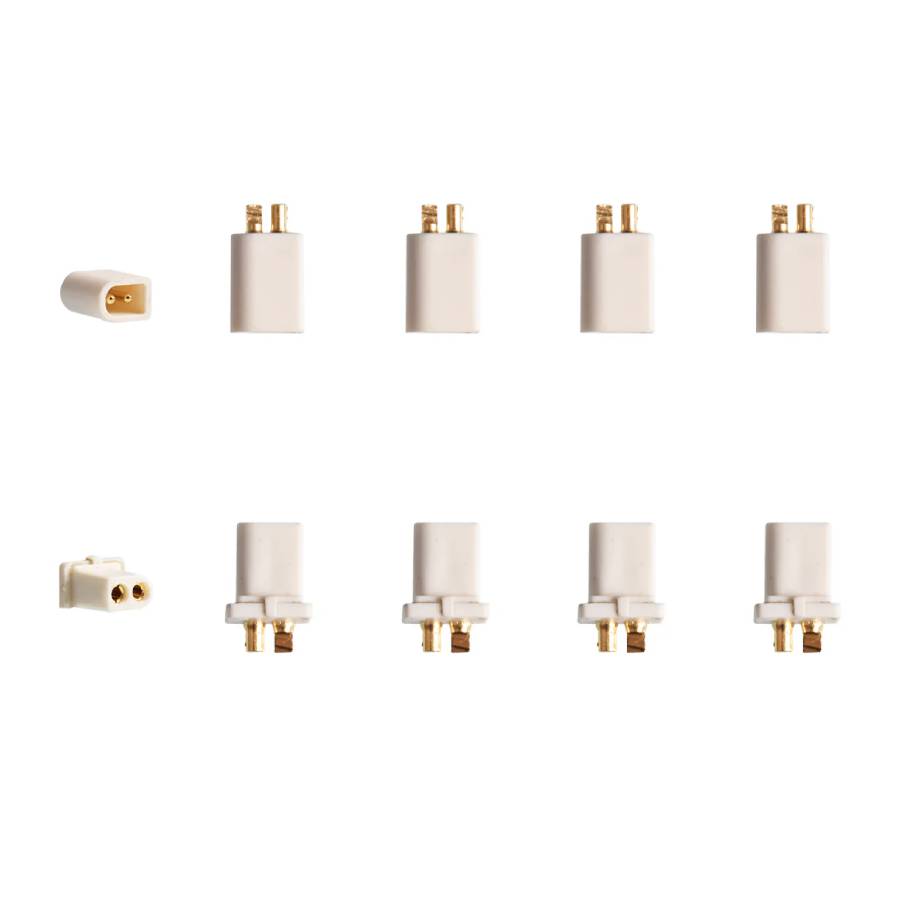

- BetaFPV BT2.0 Male & Female Connectors
Included:
- 10x BetaFPV BT2.0 Connectors
