Overview:

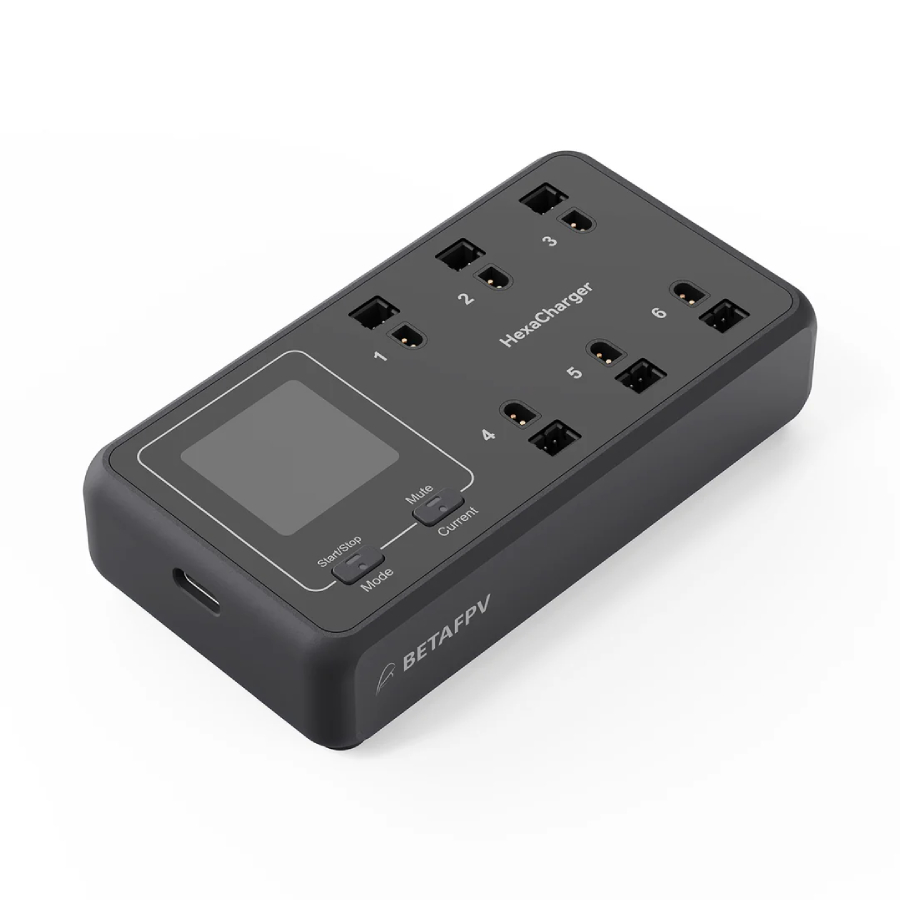

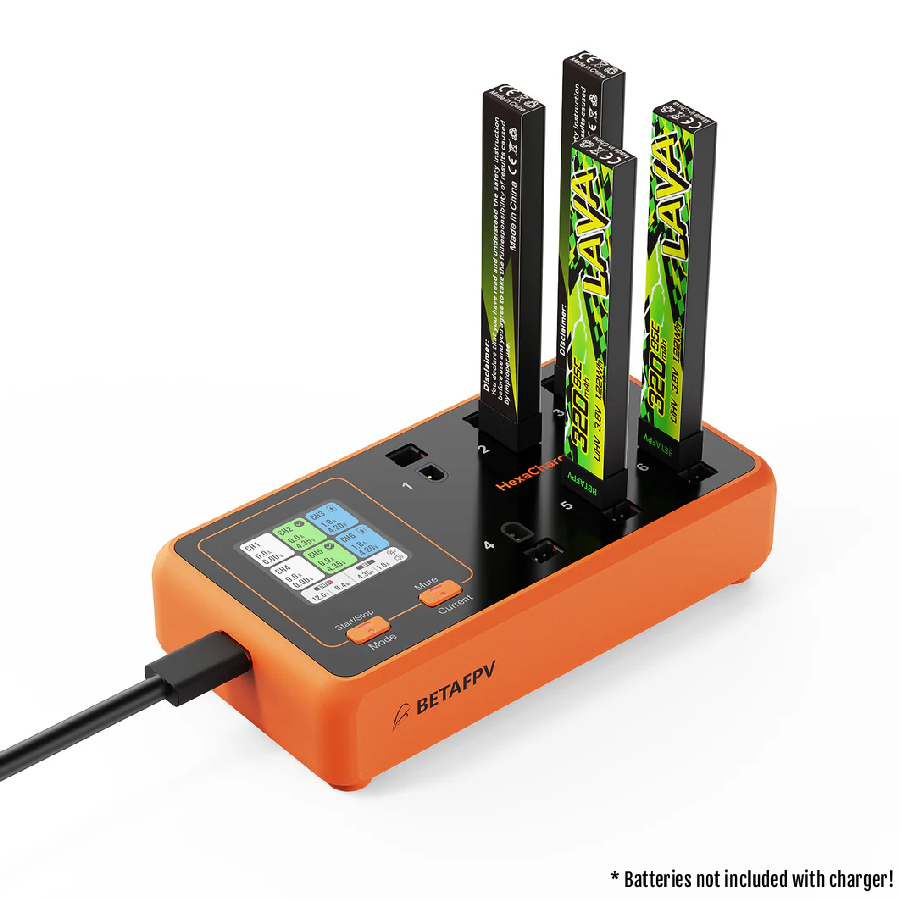

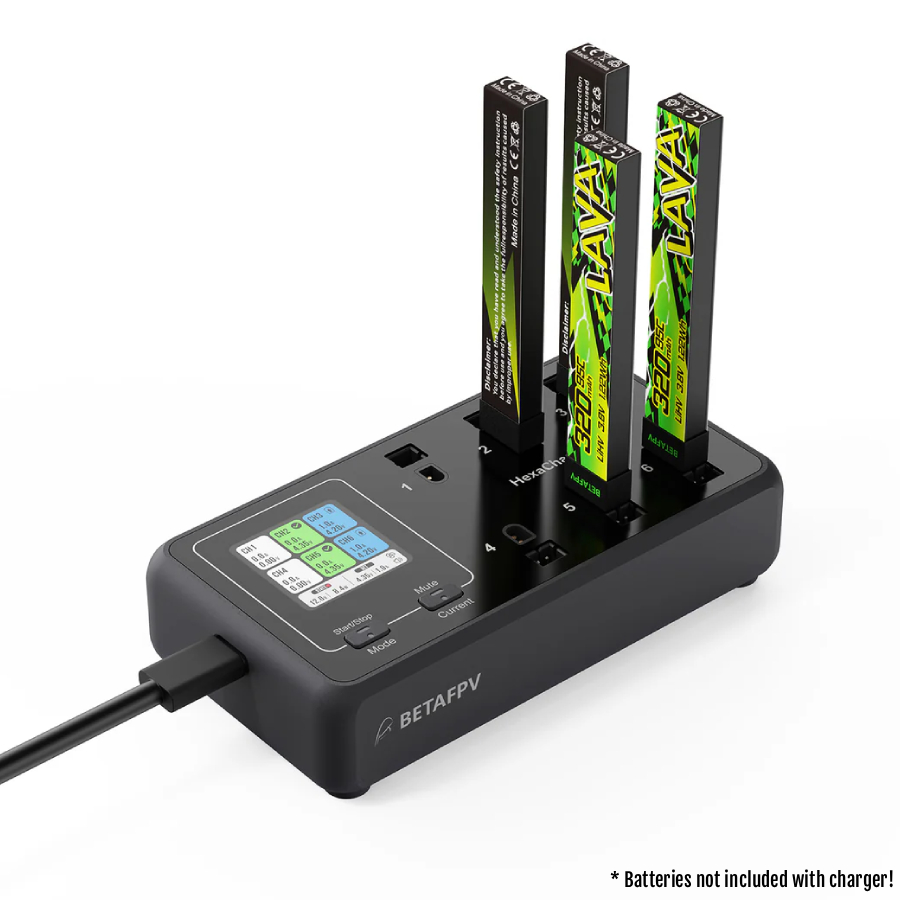

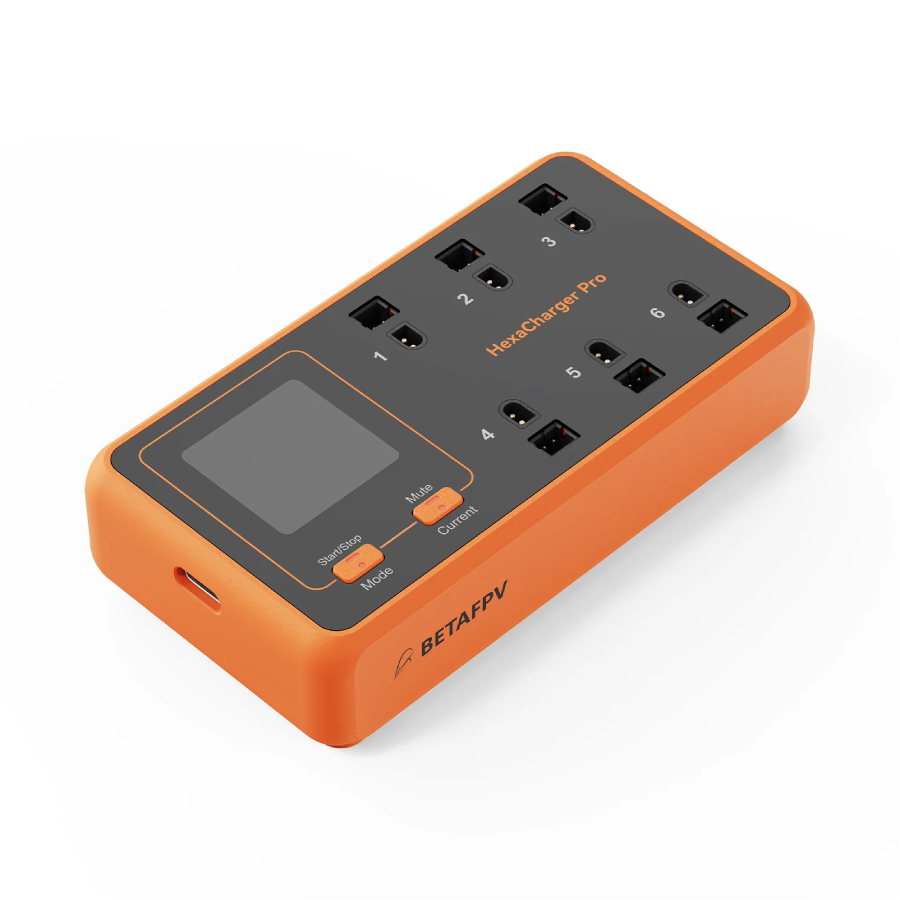

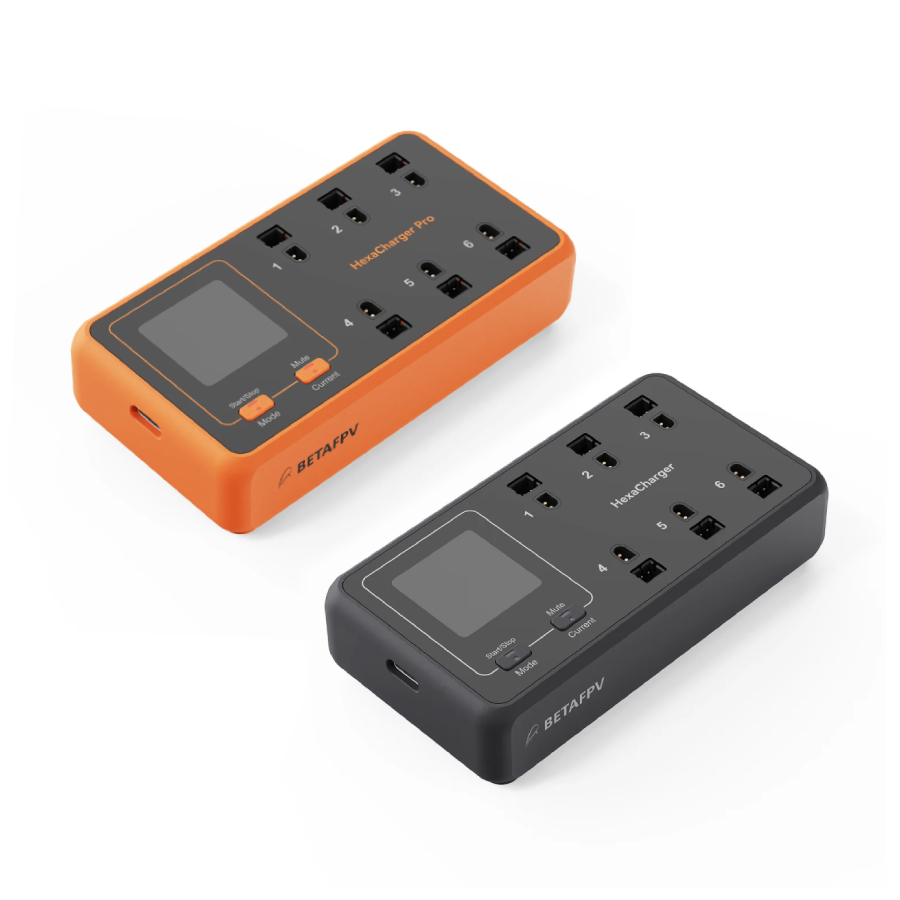

The BETAFPV HexaCharger 1S Charger is a compact multi-port charging solution designed for 1S LiPo and LiHV FPV batteries using BT2.0 and PH2.0 connectors. Available in both standard and Pro versions, it allows up to six batteries to be charged simultaneously while also supporting storage charging and battery discharge functions in a single portable unit.
Both versions feature a clear 1.3-inch TFT colour display with a simple two-button interface for monitoring voltage, charging current and channel status in real time. Designed primarily for Tiny Whoop and lightweight 1S FPV pilots, the HexaCharger combines compact size with PD3.0 USB-C input support, active cooling and integrated safety protections for straightforward everyday battery management. The Pro version increases total charging power substantially and supports higher charging current across all six ports simultaneously, making it better suited to pilots charging larger capacity 1S packs or multiple batteries at higher rates.
The HexaCharger requires an external USB-C power source, such as a high-capacity PD phone charger, to power it.
Features:
- Simultaneous charging support for up to six 1S batteries
- Compatible with both BT2.0 and PH2.0 battery connectors
- Supports LiPo and LiHV battery chemistries
- Integrated charge, discharge and storage charging functions

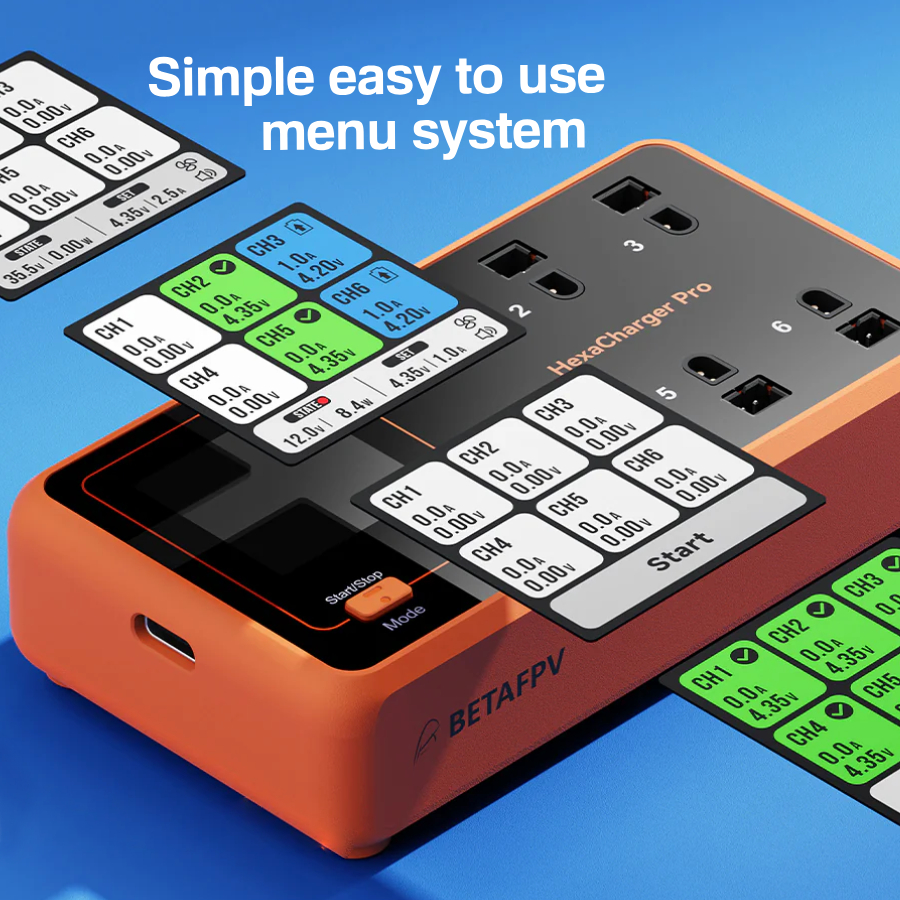

- 1.3" TFT colour display with real-time channel monitoring
- Two-button control interface for simple operation
- PD3.0 USB-C input compatibility

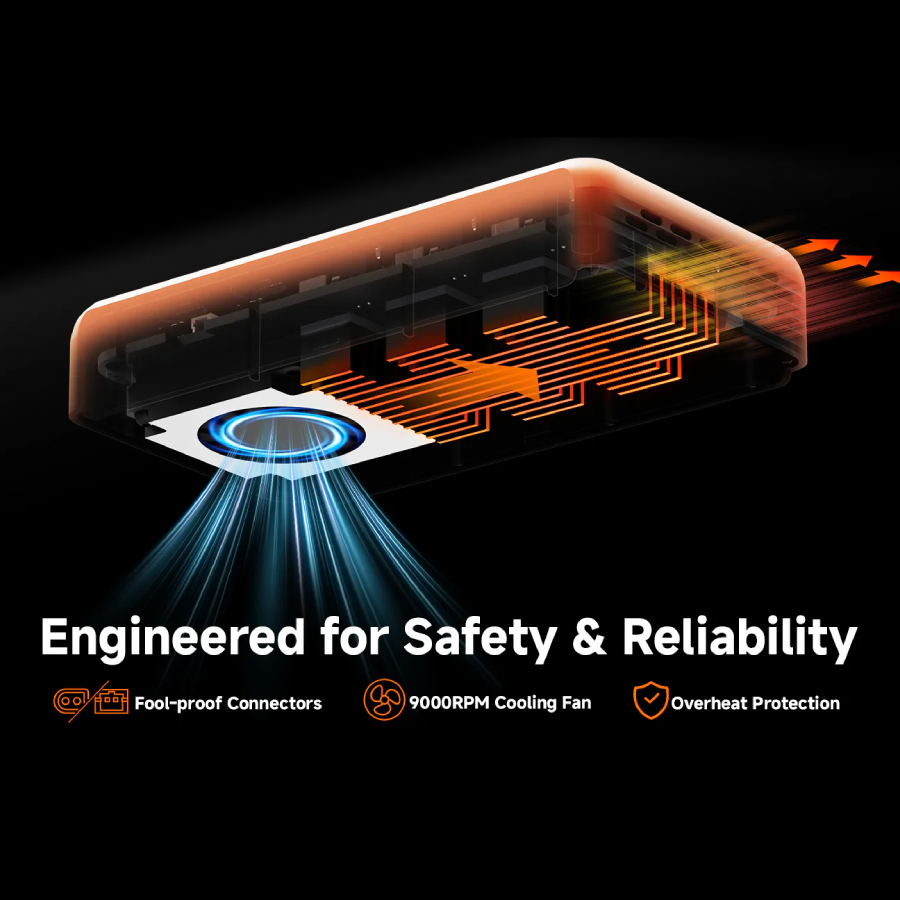

- Active cooling system with 9000RPM cooling fan
- Compact palm-sized housing designed for portable use
Advantages of the HexaCharger Pro Compared to the Standard HexaCharger:
- Significantly higher 78W maximum charging power for faster overall charging performance
- Supports up to 3A charging current on all six ports simultaneously, making it more effective for pilots charging multiple packs - back-to-back during longer flying sessions
- Better suited to charging larger capacity 1S batteries at higher charge rates
- Wider USB-C PD input support up to 20V 5A for improved power delivery
Specification:
HexaCharger:
- Input voltage: 5V 3A Max~12V 2.5A Max
- Maximum charging power: 24W
- Charging current: 1A max (all ports in use), 3A max (single port in use)
- Discharge current: 6x400mA
- Output voltage: 4.2V / 4.35V
- Storage voltage: 3.85V
- Voltage accuracy: ±0.03V
- Input connector: USB Type-C
- Charging protocol: PD3.0
- Dimensions: 106x56x25.5mm
- Weight: 109g
- Operating temperature: 0°C~40°C
HexaCharger Pro (additional advantages over the HexaCharger):
- Input voltage: 5V 3A Max~20V 5A Max
- Maximum charging power: 78W
- Charging current: 3A max (all ports in use)
- Discharge current: 6x400mA
- Weight: 115g
Included:
- 1x BETAFPV HexaCharger 1S Charger or HexaCharger Pro
- Accessories
