BetaFPV Matrix 1S 5in1 Brushless AIO

Overview:

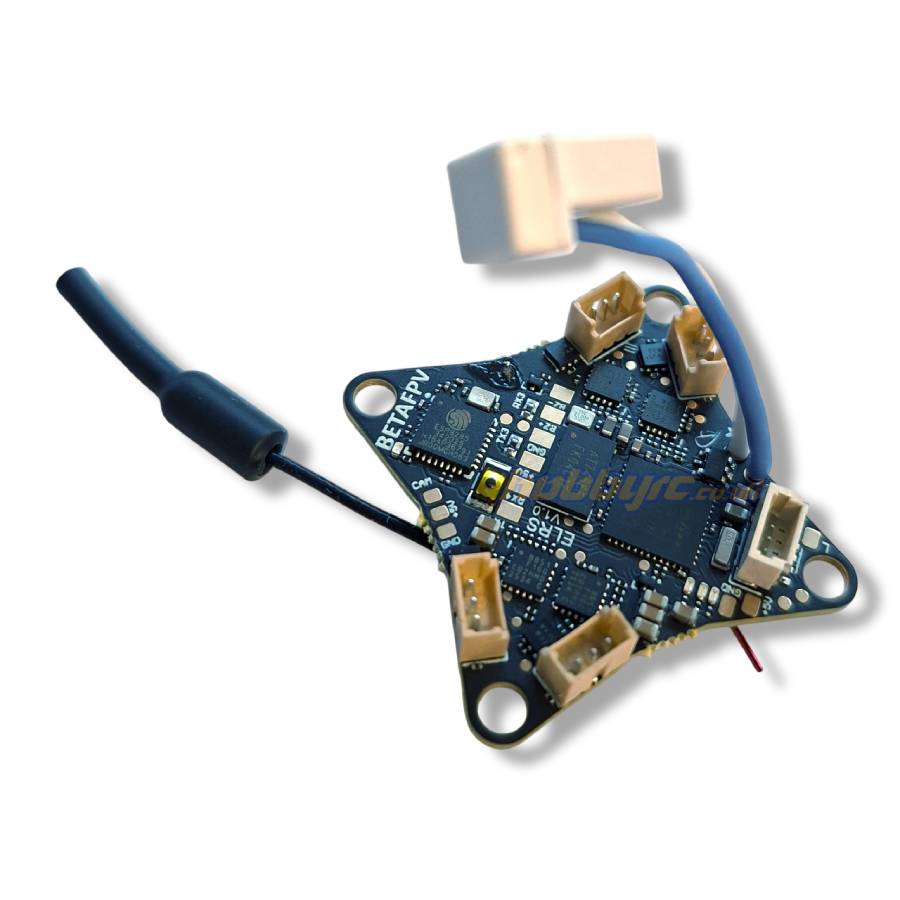

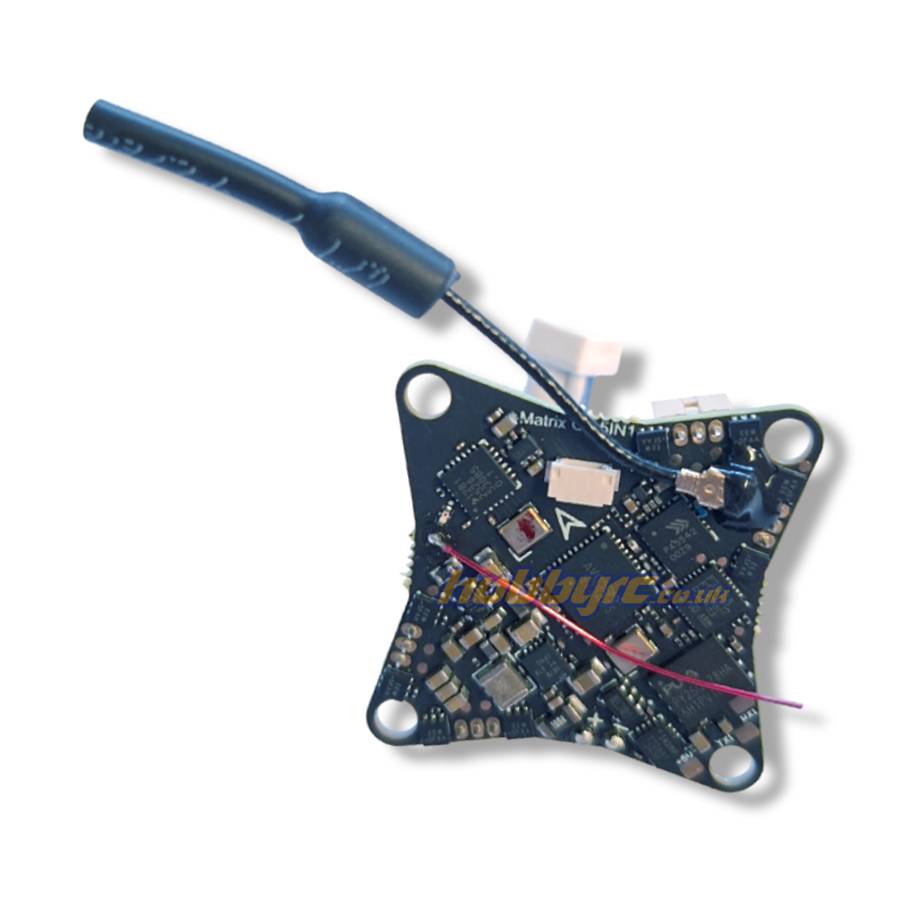

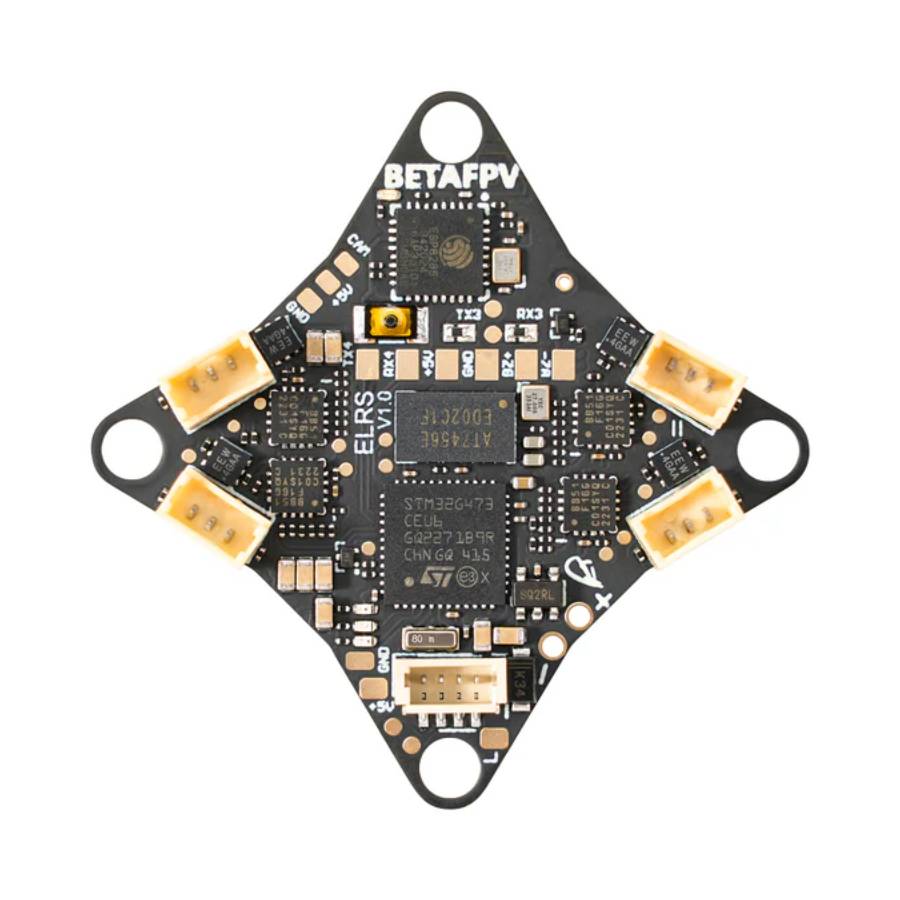

The BetaFPV Matrix 1S Brushless Flight Controller (5 in 1) is an integrated all-in-one flight controller designed for 1S brushless micro and whoop drones. It combines flight control, electronic speed controller, video transmitter, on-screen-display, and receiver in a single compact board, significantly simplifying wiring and build complexity.

The board features a rugged 1.0mm thick PCB for increased durability, a powerful G473 processor for responsive control and a high-power 5.8GHz video transmitter with adjustable output up to 400mW. Serial ExpressLRS 2.4GHz receiver support is built in, offering reliable low-latency control without the need for an external RX module, making it a strong choice for beginners and casual FPV pilots building small, agile quads like the Meteor65/75 Pro. For simplicity, the motor outputs are JST connectors, and the battery connector is pre-soldered.

Features:
- All-in-one integration of flight controller, ESC, VTX, OSD and receiver for minimal wiring.
- Durable 1.0 mm thick circuit board designed to withstand everyday use and minor training bumps.
- G473 processor delivers improved computing performance and precise control in both racing and freestyle flight.
- Built-in Serial ExpressLRS 2.4 GHz receiver (V3.4.3) for reliable, low-latency control with compatible transmitters.
- Integrated 5.8 GHz video transmitter with adjustable output up to 400mW for a clear FPV signal.
- Plug-and-play motor connectors simplify installation and reduce build complexity.
- Standardised stack footprint for easy mounting in common micro drone frames.

Specification:
- Model: BetaFPV Matrix 1S Brushless Flight Controller 5in1 (01040018_1)
- MCU: STM32G473CEU6 processor (168MHz)
- Gyroscope: ICM42688P
- Blackbox memory: 16MB
- Voltage & current sensing: Integrated sensor support
- BEC output: 5V/3A
- UART ports: Four UARTs for peripheral connections
- OSD: Betaflight OSD (AT7456E)
- ESC rating: 5A continuous, 8A peak (1S only)
- ESC protocols: DShot300, DShot600
- Receiver: Serial ELRS 2.4GHz (V3.4.3)
- VTX frequency: 5.8GHz, 48 channels with Raceband
- VTX power: 25/100/200/400mW (adjustable)
- Channel control: SmartAudio 2.0 for VTX adjustments
- Motor connector: JST1.25
- Battery connector: BT2.0
- Flight controller mounting: 26×26 mm stack pattern
- Weight: 3.92g (without VTX antenna)
- USB connection: SH1.0-4Pin
- Operating temperature: −10°C to +80°C

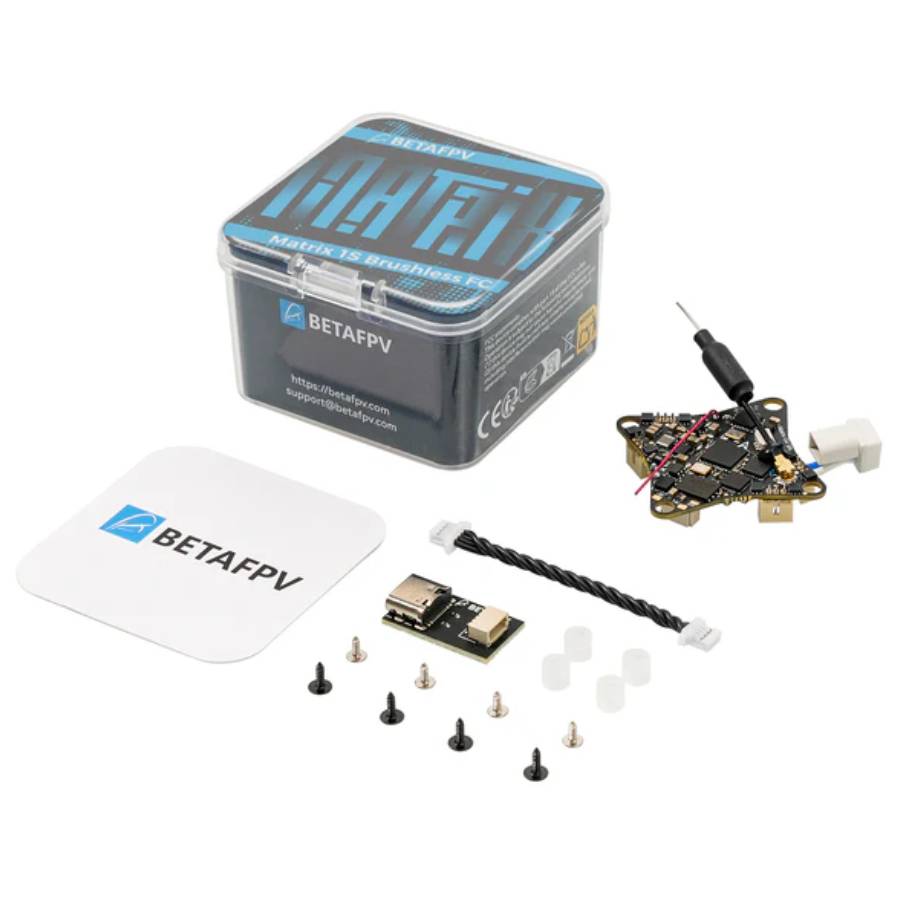

Included:
- 1x BetaFPV Matrix 1S Brushless Flight Controller (5 in 1)
- Accessories
