Overview:

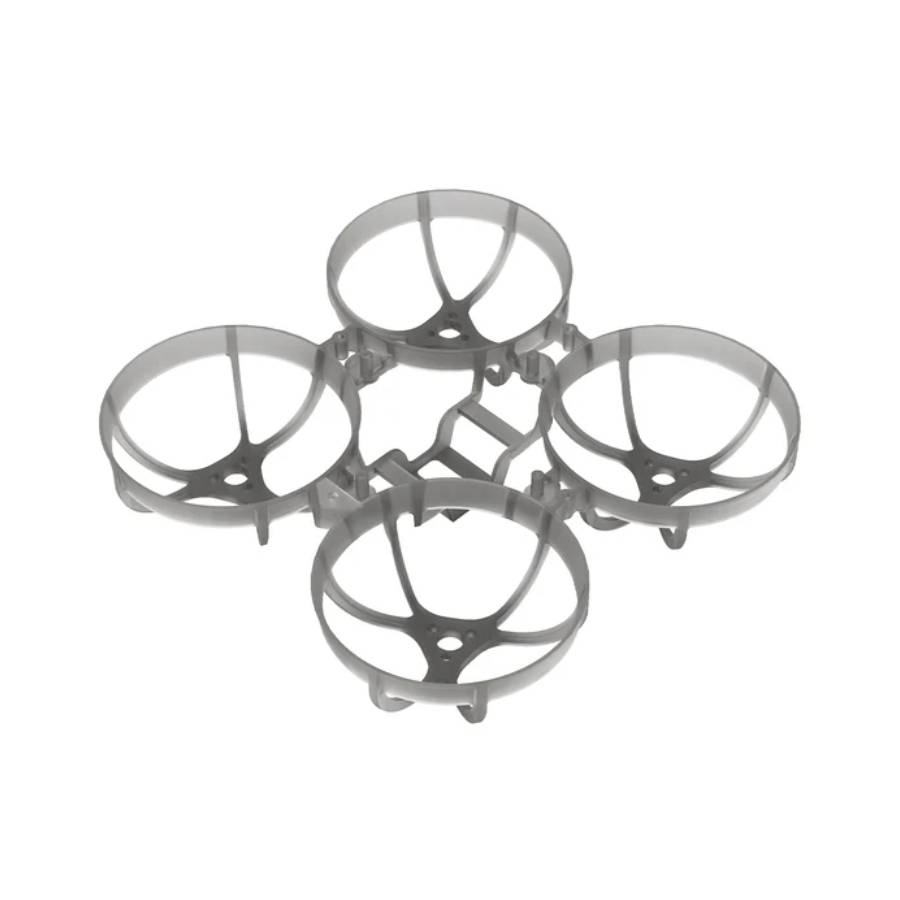

The BetaFPV Meteor65 Pro Frame is a 66mm 1S brushless frame designed for the Meteor 65 Pro, which has been carefully engineered for performance and durability. Featuring a low-profile battery slot and a triangular bilateral stretch structure for the motor mounts, this lightweight frame weighs just 3.20g.
Compared with earlier 65mm brushless frames, the reduced height of the battery slot lowers the centre of gravity, giving the drone better stability in flight. To accommodate 35mm propellers on a 66mm frame, space for the flight controller is restricted- this means only cross-shaped FC boards can be fitted.
The triangular bilateral motor mount design enhances aesthetics while improving durability and flight smoothness. Constructed from ultra-lightweight PP material, the frame is strong yet light, making it one of the best options for pairing with the F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G).
The frame is suitable for 31–35mm propellers, such as the Gemfan 35mm-3. Please note that HQ 35mm propellers are slightly larger and do not fit this frame.

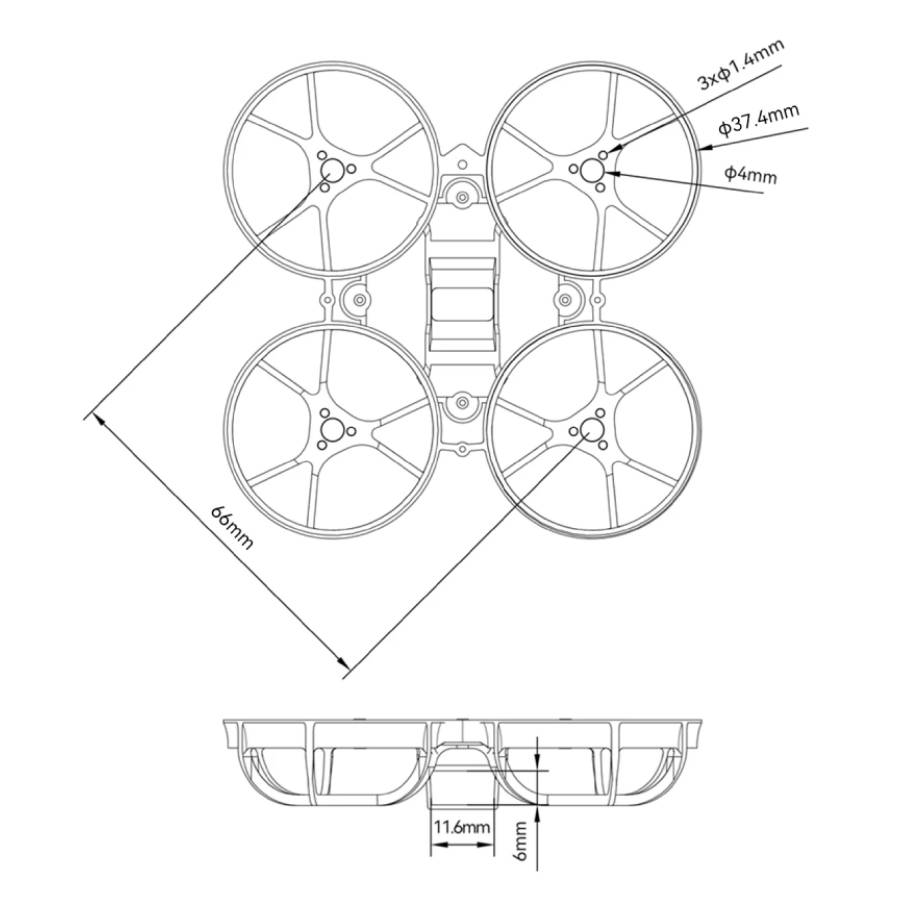

Specifications:
- Model: Meteor65 Pro Frame
- Material: PP
- Size: 66mm
- FC Mounting Holes: 26x26mm, compatible with cross-shaped whoop-style FC boards (not compatible with standard whoop FC boards)
- Motor Mounting: For 0802SE 19500KV motors
- Weight: 3.20g
- Compatible Propellers: 31–35mm (recommended: Gemfan 35mm-3)
Included:
- 1x Meteor65 Pro Brushless Whoop Frame
