Overview:

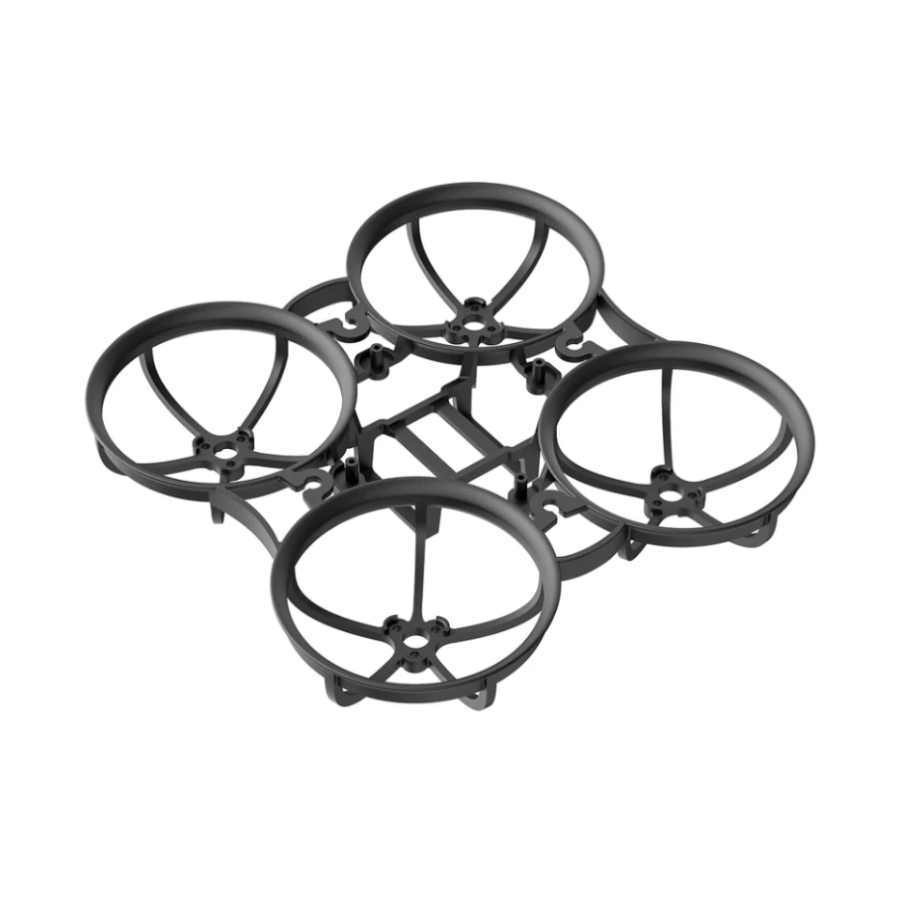

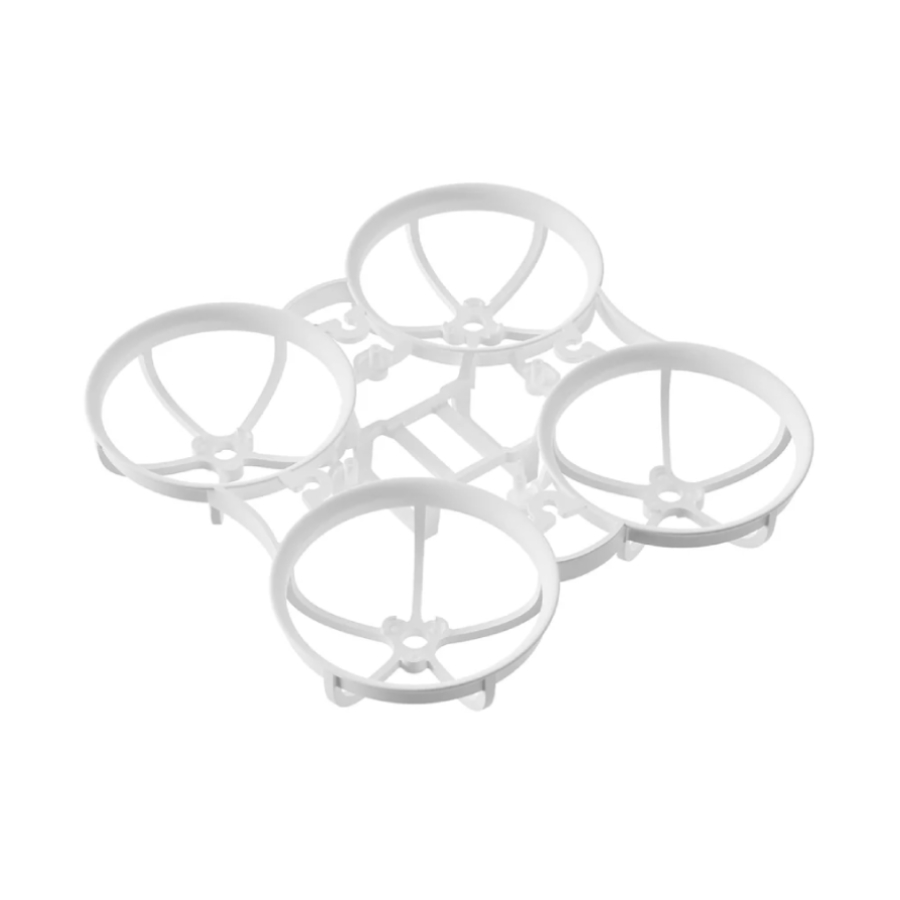

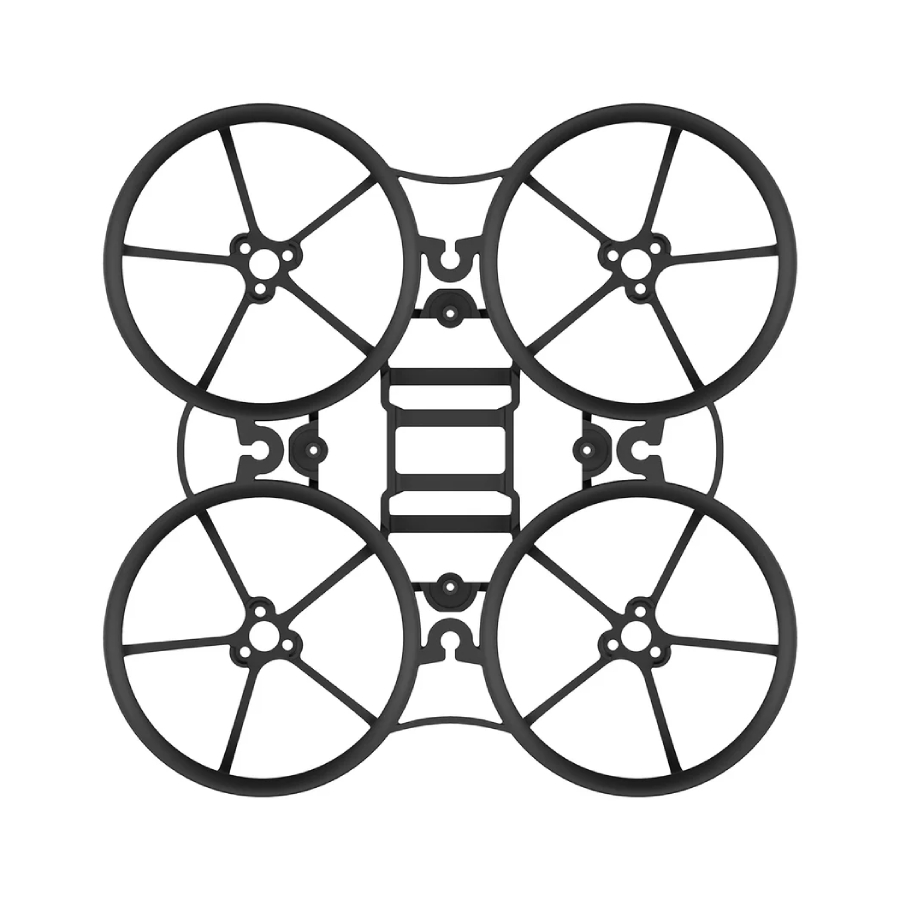

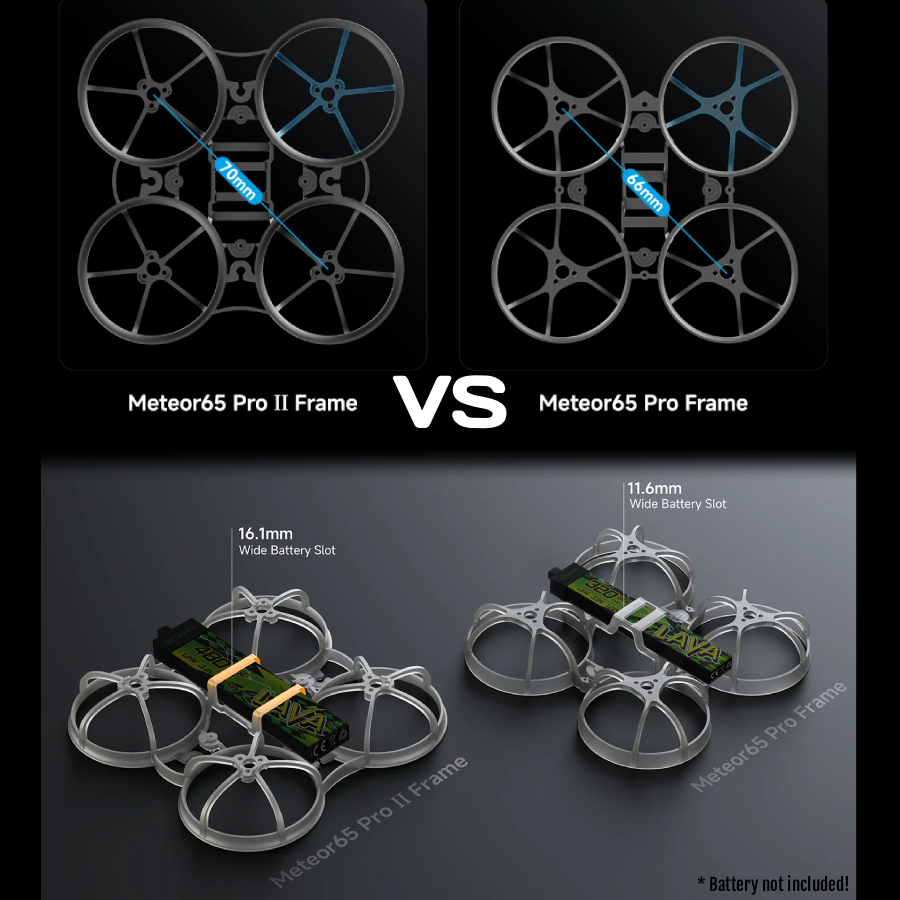

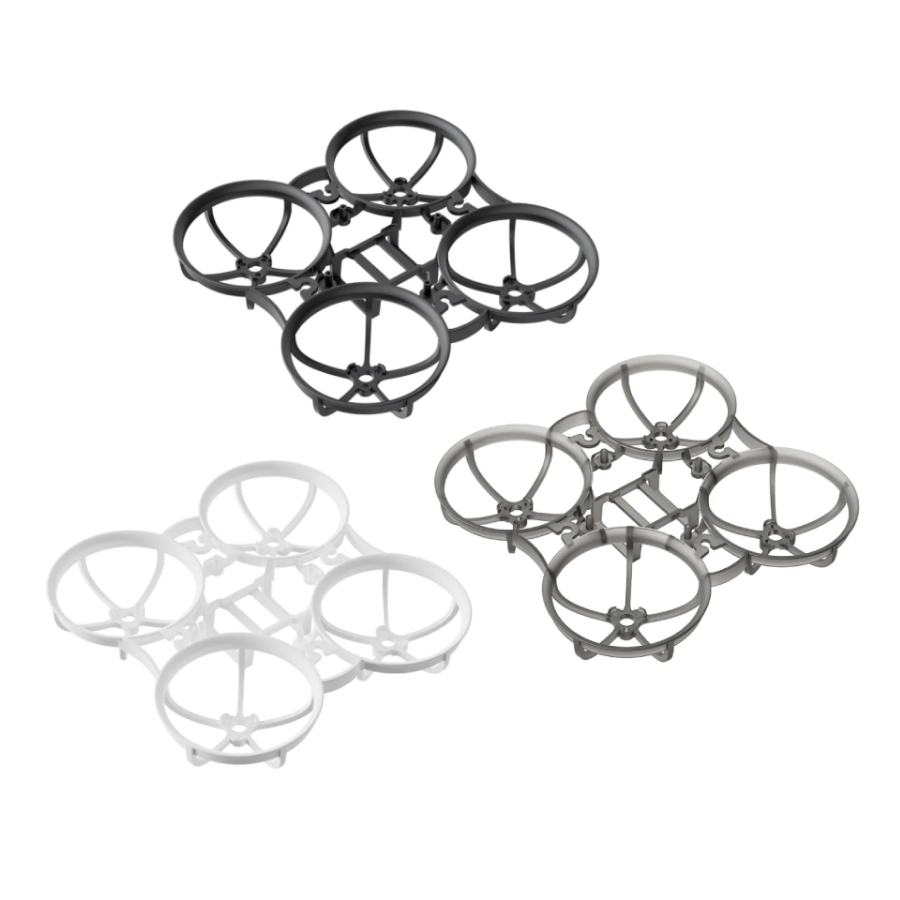

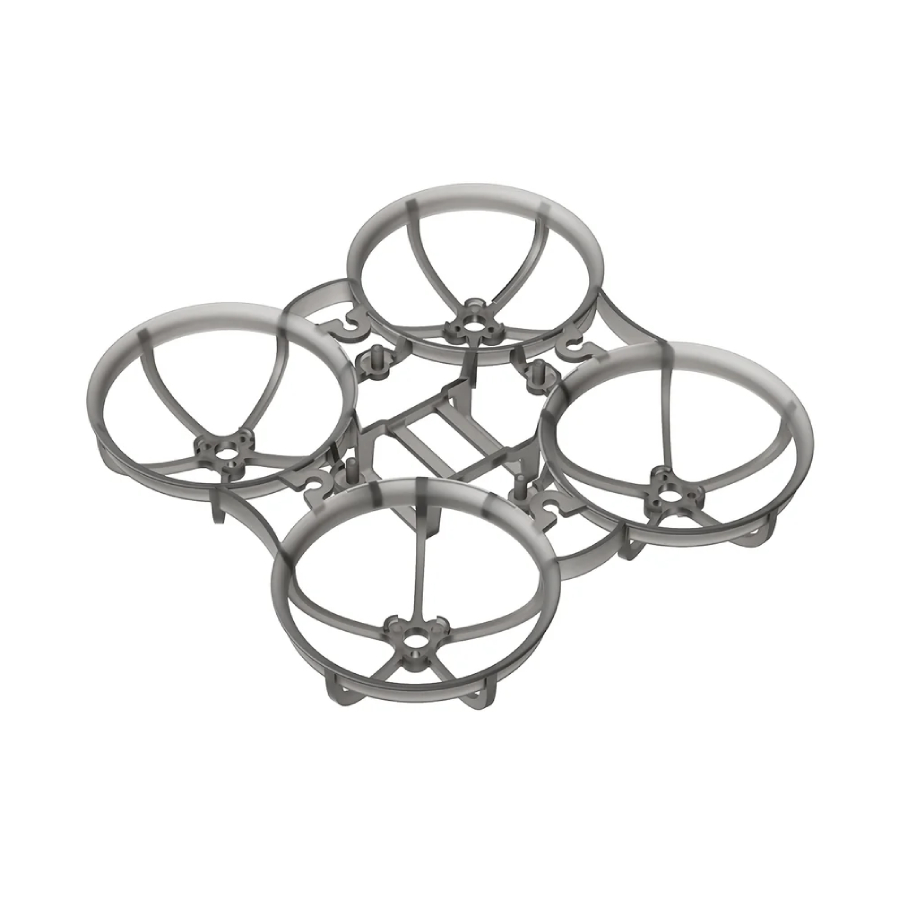

The BetaFPV Meteor65 Pro II Brushless Whoop Frame is a lightweight replacement frame designed for 1S brushless whoop builds. It increases the wheelbase from the previous Meteor65 Pro's 66mm to 70mm, providing a platform for larger batteries while retaining the compact dimensions expected from an agile micro whoop.
The frame has been redesigned with five curved arm braces instead of six, reducing material and aerodynamic resistance. The duct structure has also been refined, helping to keep the frame lightweight while providing the rigidity required for freestyle flight.
The revised 16.1×6.3mm battery slot accommodates larger 1S batteries, including BetaFPV's excellent LAVA II 1S 480mAh packs. The frame also incorporates dedicated motor fixing slots, while four mounting points are provided for the shock-absorbing balls used with the Canopy II to secure a DJI O4 Air Unit (not included).
With a weight of just 4.60g, the Meteor65 Pro II frame is suitable for lightweight 1S builds using 35mm propellers and compact 0702 or 0802 brushless motors.
Features:
- Enlarged 70mm wheelbase provides a larger and more stable platform than the previous 66mm frame.
- Aerodynamically refined duct and arm structure reduces unnecessary material and air resistance.
- Wider battery opening accommodates larger 1S batteries for longer flight times.
- Dedicated motor fixing slots simplify motor installation.
- Four mounting points accommodate the shock-absorbing balls used with Canopy II.
- Suitable for lightweight 1S brushless whoop builds using 35mm propellers.

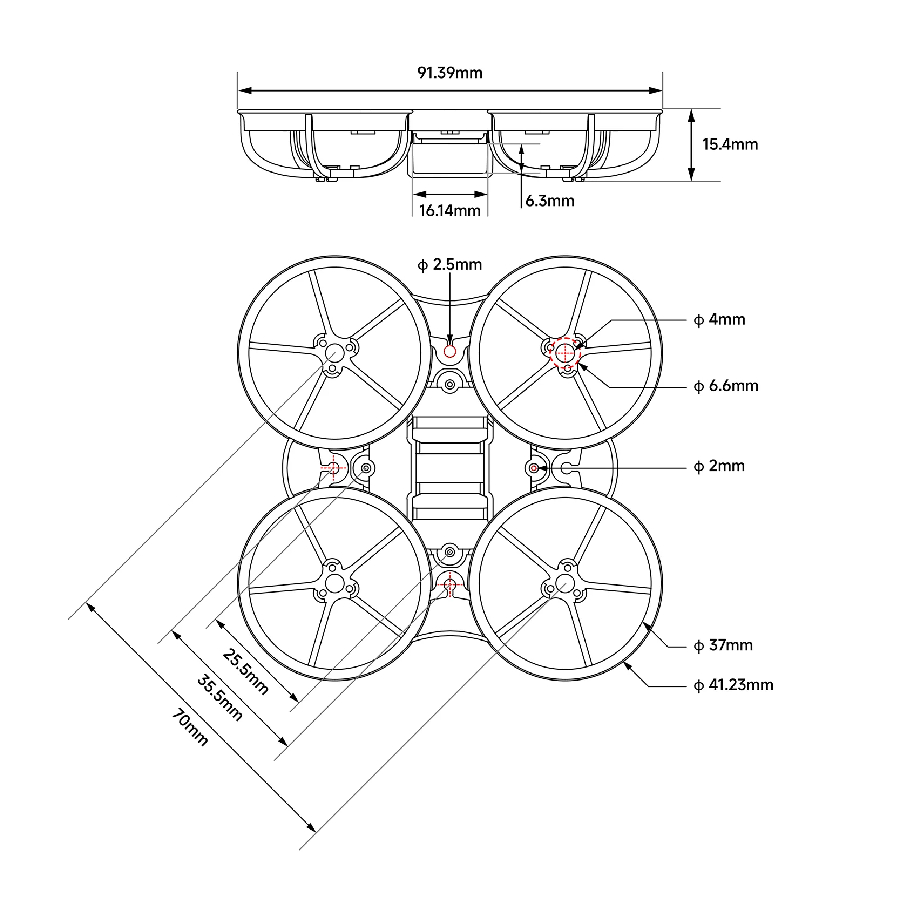

Specification:
- Model: Meteor65 Pro II Brushless Whoop Frame
- Material: PP (Polypropylene)
- Wheelbase: 70mm
- Weight: 4.60g
- Dimensions: 91.4×91.4×15.4mm
- Duct diameter: 37mm
- Duct height: 4.5mm
- Arm braces: 5
- FC mounting: 26×26mm
- Motor mounting: 3×M1.4, Ø6.6mm
- Motor screw size: M1.4×3mm
- Battery slot: 16.1×6.3mm
- Propeller size: 35mm
- Recommended motor sizes: 0702 / 0802
