BetaFPV P1 HD VRX (Standard)

Overview:

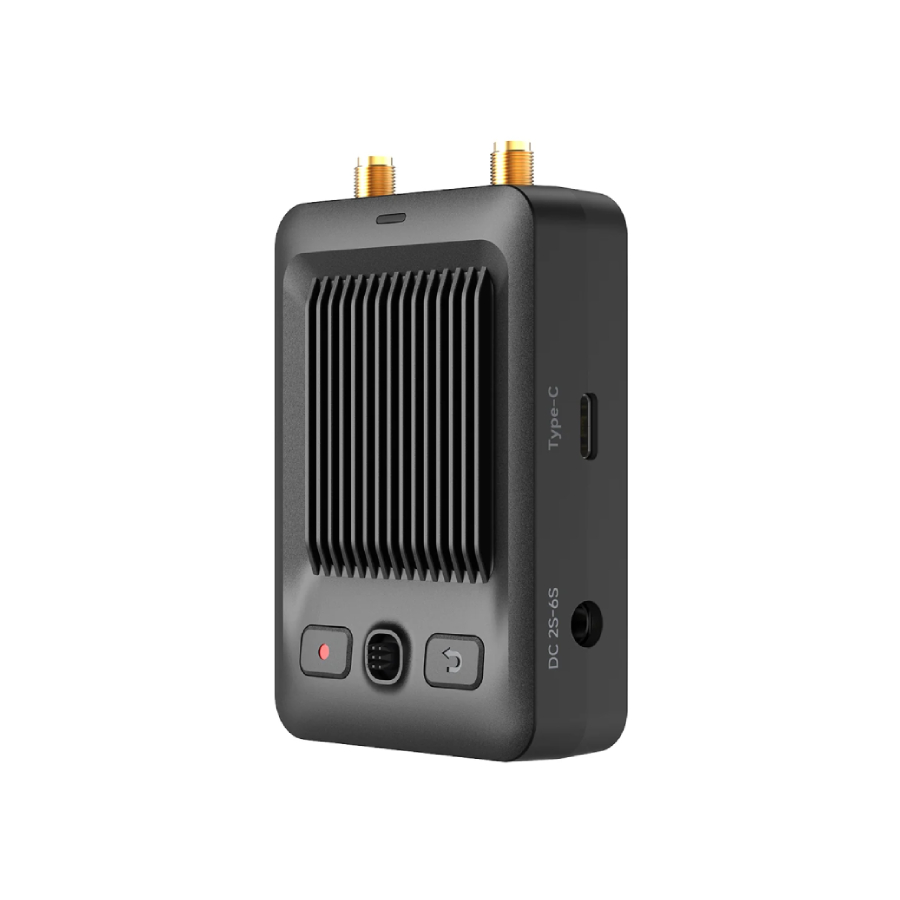

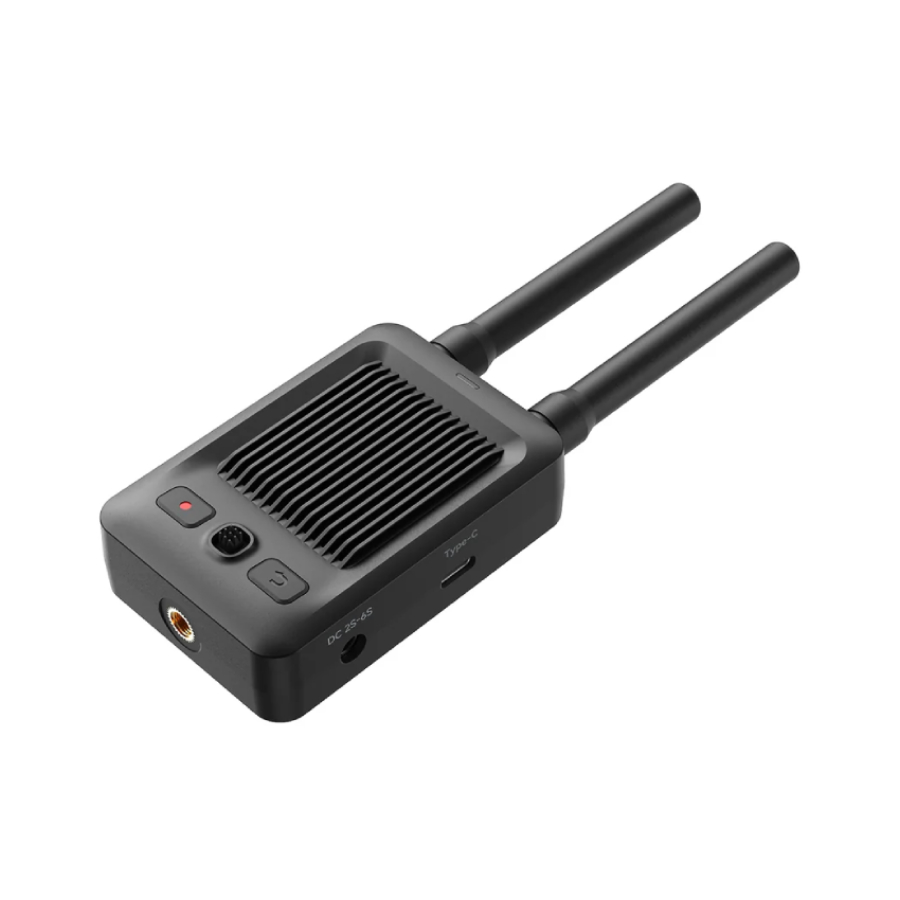

The BetaFPV P1 HD VRX (Standard) is a standalone digital FPV video receiver designed for the ArtLynk HD video transmission system. It receives live video from compatible ArtLynk transmitters and outputs the feed through mini HDMI, allowing it to be viewed on compatible FPV goggles, monitors or other HDMI displays.

Supporting 1080p video at 60fps, the P1 HD VRX delivers a clear digital image with approximately 60ms glass-to-glass latency. Its dual-antenna reception system operates across the 5.3–5.8GHz frequency range, with selectable channels to help pilots find a suitable frequency in busy RF environments. The receiver also supports microSD recording, allowing footage to be saved and reviewed directly from the unit.

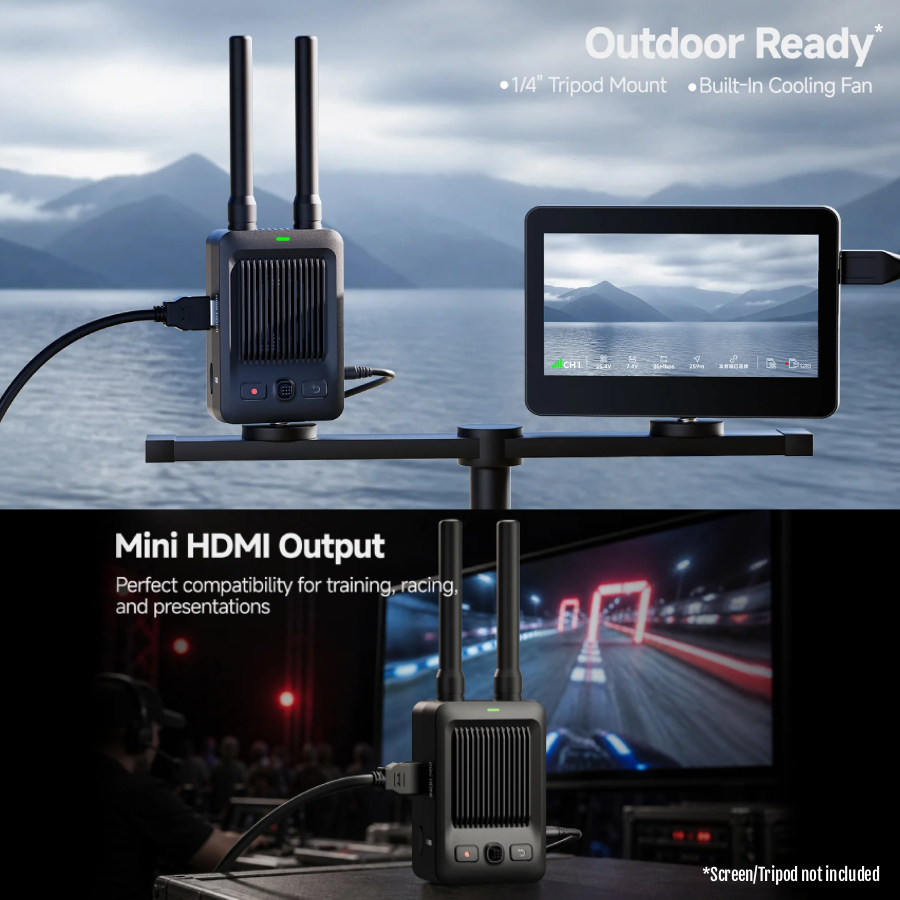

The standard version features a built-in cooling fan for extended operation, a 1/4-inch tripod mounting point and straightforward menu controls for channel selection, binding and receiver settings. It can be powered from a compatible 2–6S LiPo battery, making it suitable for portable ground stations, FPV events, training and shared video monitoring.

Features:
- ArtLynk system compatibility: Works with compatible ArtLynk digital video transmitters, including supported BetaFPV P1 flight units.
- Digital HD reception: Provides a detailed live video feed for FPV viewing, monitoring, training and event displays.
- Selectable channels: Offers standard and race modes to help find a suitable channel when flying alongside other pilots.
- On-screen telemetry: Displays useful link and flight-unit information, including channel, voltage, bitrate and link status.
- microSD recording and playback: Save video recordings to a memory card and review or delete files through the receiver's menu.
- Active cooling: An integrated fan helps manage heat during prolonged operation.
- Tripod mounting: The built-in mounting thread makes it easy to position the receiver on a compatible tripod or ground-station setup.
- Simple menu controls: A five-way joystick, Back button and Record button provide access to receiver functions.
- Low-voltage warning: An integrated buzzer alerts the pilot when the input supply voltage falls to the specified warning threshold.

Specification:
- Model: BetaFPV P1 HD VRX (Standard)
- Video system: ArtLynk digital HD
- Operating frequency: 5.3–5.8GHz
- Video output: Mini HDMI
- Maximum video resolution and frame rate: 1080p at 60fps
- Maximum video bitrate: 25Mbps
- Typical glass-to-glass latency: Approximately 60ms
- Manufacturer-stated transmission range: Over 400m
- Channel modes: 3-channel standard mode / 16-channel race mode
- Antenna connections: 2 × RP-SMA female
- Input voltage: 5.5–26.4V (2–6S LiPo)
- Power connector: DC 5.5 × 2.1mm
- Memory card support: microSD, up to 1TB; U3/V30 recommended
- Other ports: USB-C for firmware updates
- Mounting thread: 1/4-inch

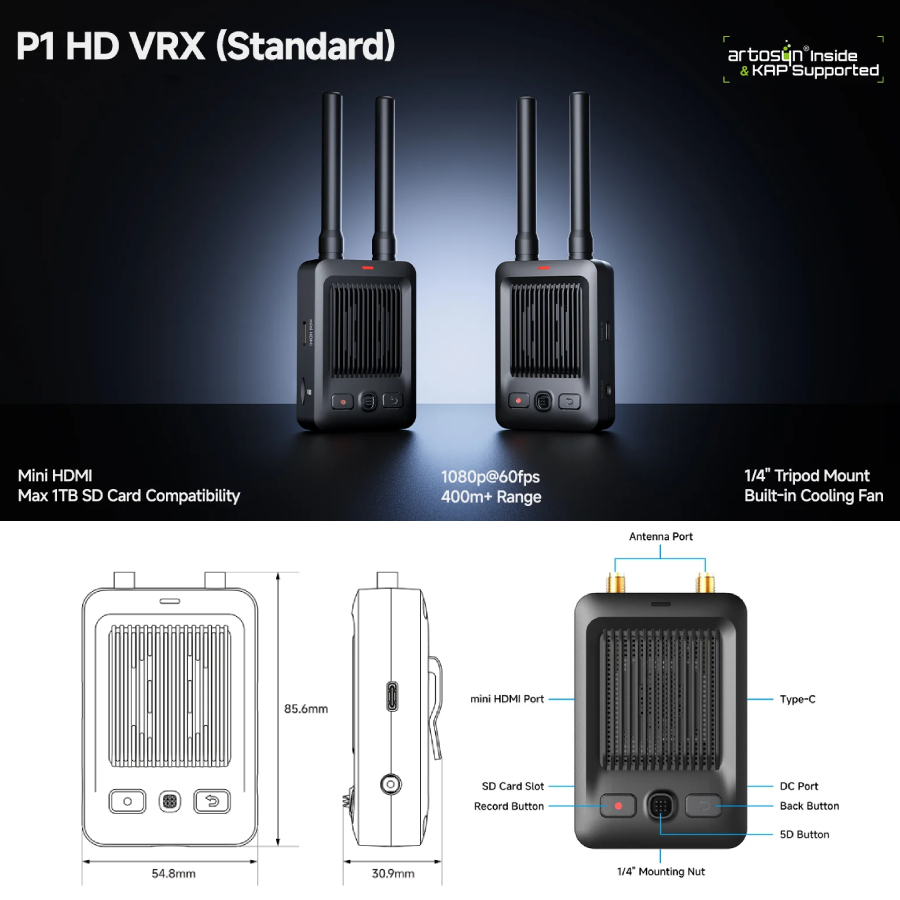

- Dimensions: 85.6 × 54.8 × 30.9mm, excluding antennas
- Weight: 70.5g, excluding antennas

Included:
- 1x BetaFPV P1 HD VRX (Standard)
- Accessories
