Overview:
The Pavo Pico is the smallest 2S sub-100g DJI O3 cinewhoop frame, designed for lightweight yet powerful performance. It is also compatible with other leading HD digital VTX systems on the market, including the Walksnail Avatar Pro Kit and Vista Kit.
The HD digital VTX bracket is manufactured from lightweight yet durable injection-moulded PP material, with an improved structure to prevent displacement or loss of the VTX after a crash.
The rubber damper vibration-reduction system minimises low-frequency vibrations and, when used alongside GyroFlow stabilisation software, ensures a stable and clear camera feed even during high-speed flight.
To support a wider range of battery sizes, the frame can be trimmed through DIY modification. Larger batteries can also be fitted with the use of straps or printed add-on components.

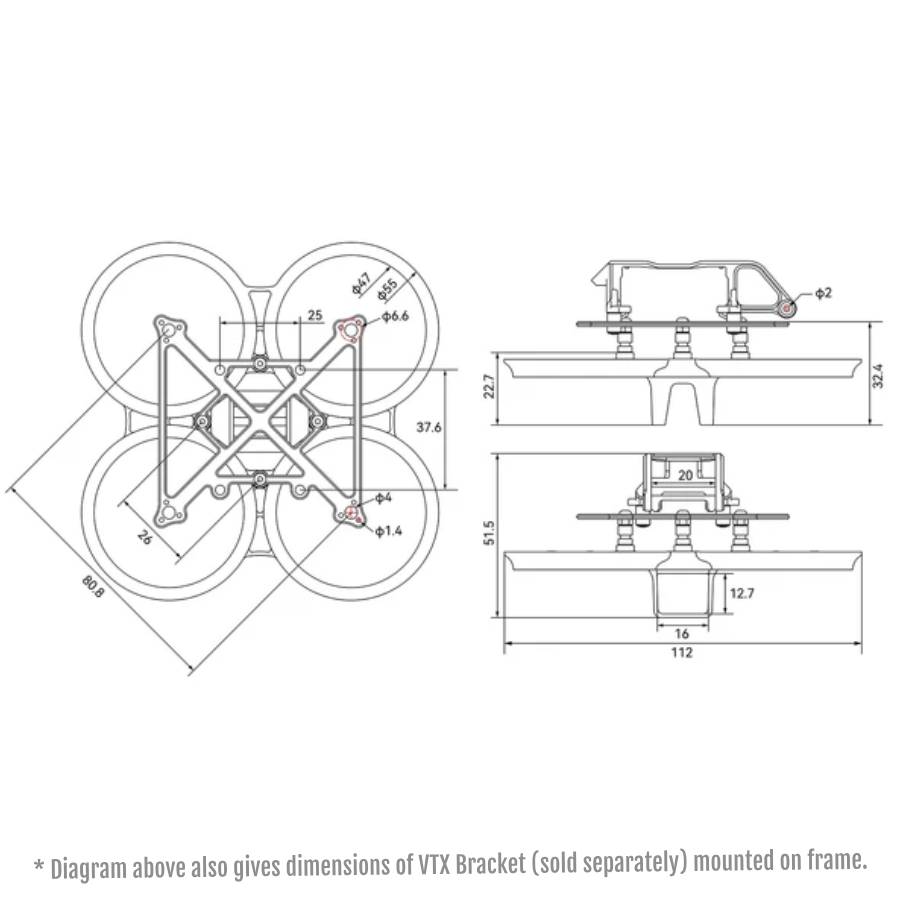

Specification:

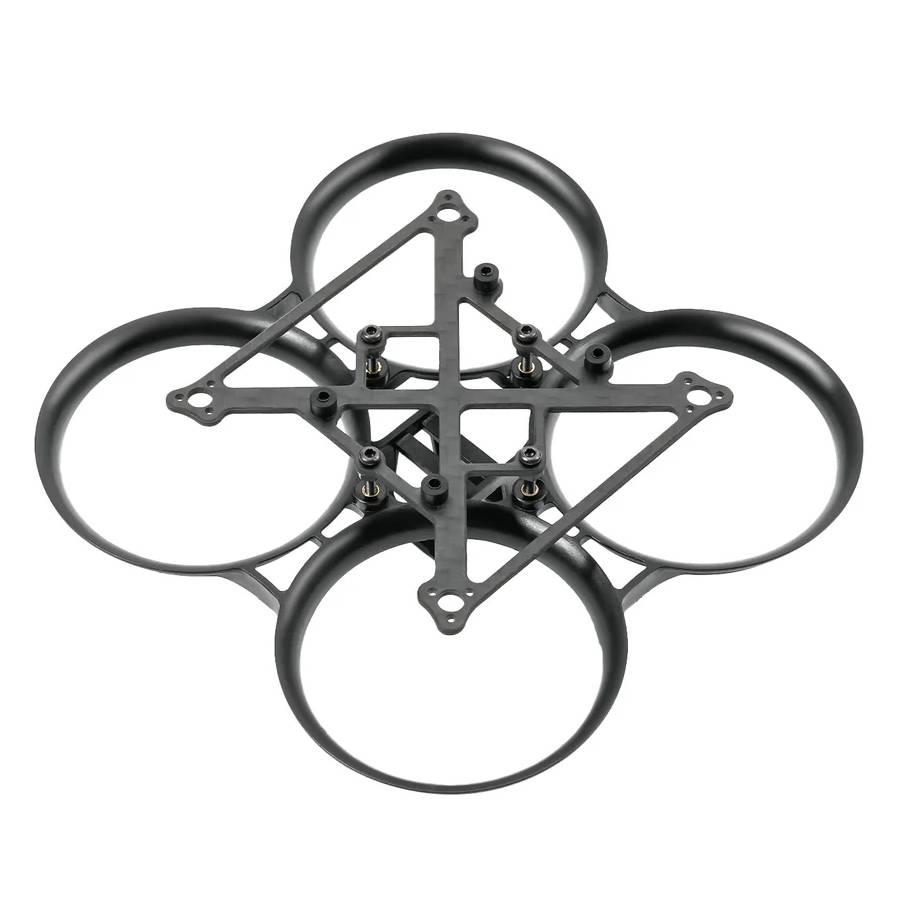

- Model: Pavo Pico Brushless Whoop Frame
- Material: PA12
- Wheelbase: 80.8mm
- Battery Slot Size: 16 x 12.7mm
- Camera Installation Spacing: 19mm/20mm
- Weight: 13.80g/11.62g
- Motor Mounting Hole Position: 3-M1.4-φ6.6mm
- FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3
Available versions (see below for purchase options):
- BetaFPV Pavo Pico Frame in Black
Included:
- 1x BetaFPV Pavo Pico Frame
- Accessories
