BetaFPV Pavo Pico II Frame for DJI O4 Air

Overview:
The BetaFPV Pavo Pico II frame is a precision-engineered platform designed to support compact cine-whoop builds. Fully compatible with the DJI O4 Air Unit, an O4 Pro will require an additional canopy sold separately. Just four screws are required to assemble the frame. Its strength relies on the guided mounting points that remove flex from the frame and simplify the build. Its injection-moulded support structure and PA12/PP components deliver strength without adding weight, making it an ideal foundation for high-performance micro HD builds.

Features:
- O4 Air Unit Bracket II support with 4 vibration-damping balls to reduce video jello.
- Lightweight but durable materials (PA12/PP) for high crash-resilience.
- Modular design allows for customisation by swapping out canopies or adaptation for larger batteries.

Specification:
- Model: BetaFPV Pavo Pico II Whoop Frame for DJI O4 Air
- Wheelbase: 80mm
- Material: PA12/PP with a 1.5mm carbon baseplate
- Camera mount spacing: 14mm
- FC mounting pattern: 25.5×25.5mm
- Motor mount: 3×M1.4 holes, Ø6.6mm
- Battery slot size: 16×12.7mm
- Weight: ~19g

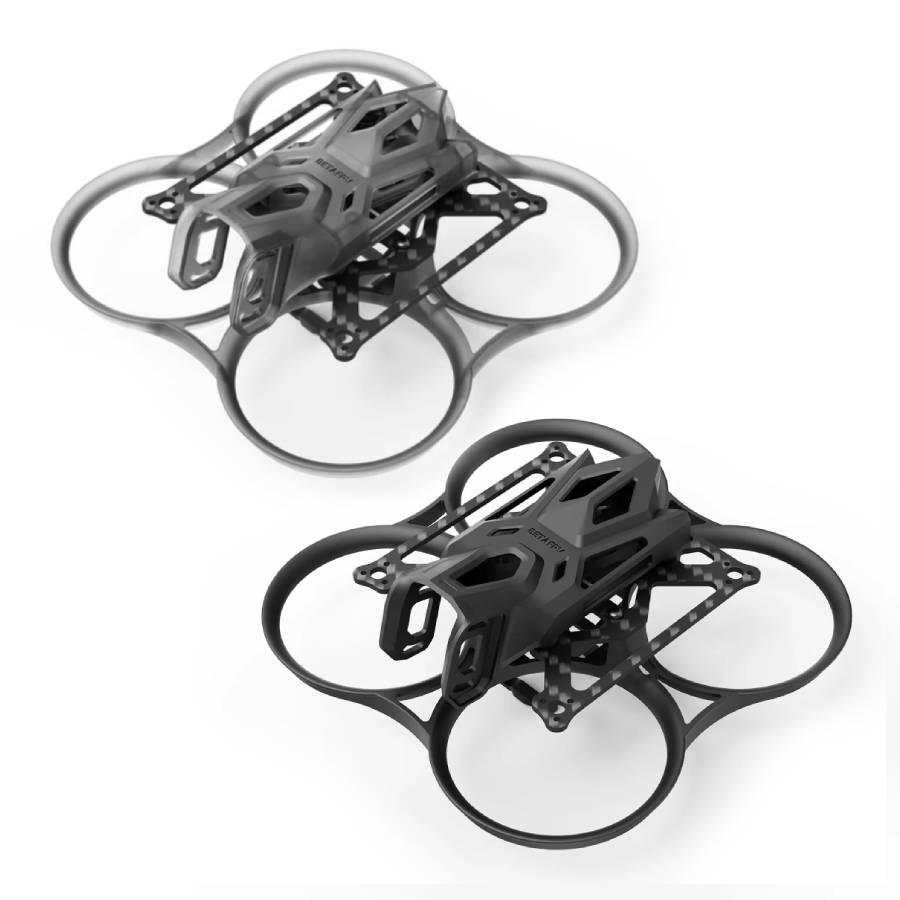

Available versions (see below for purchase options):

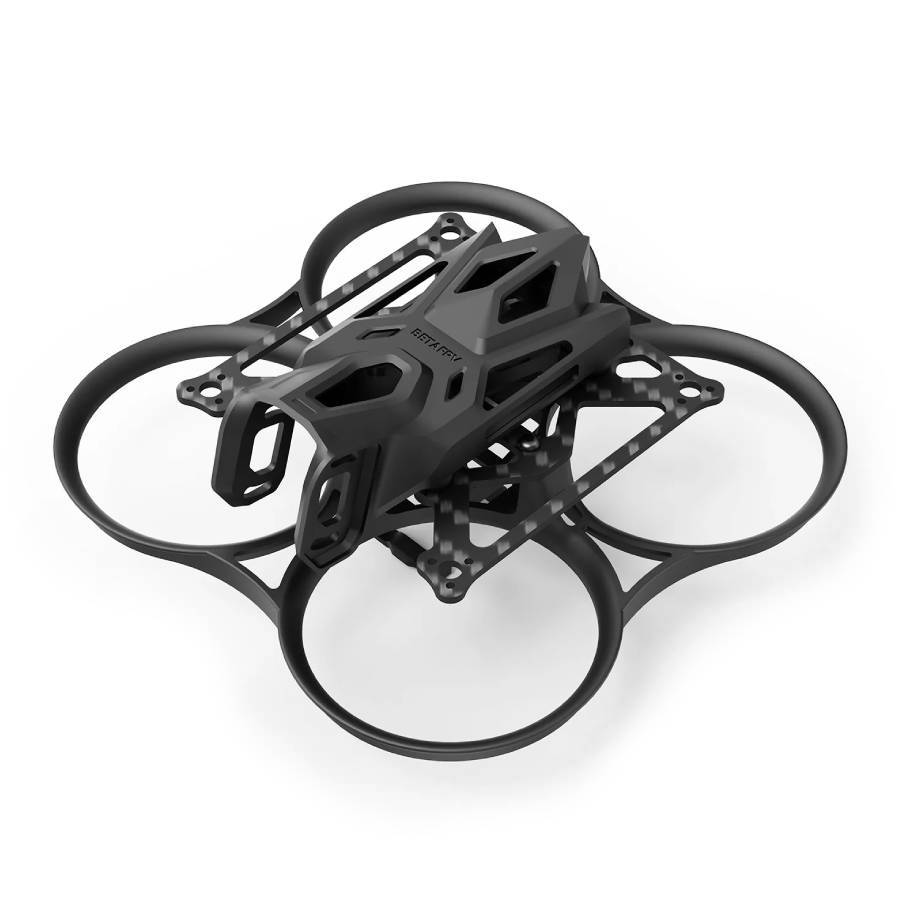

- BetaFPV Pavo Pico II Whoop Frame in Black (01090033_1)

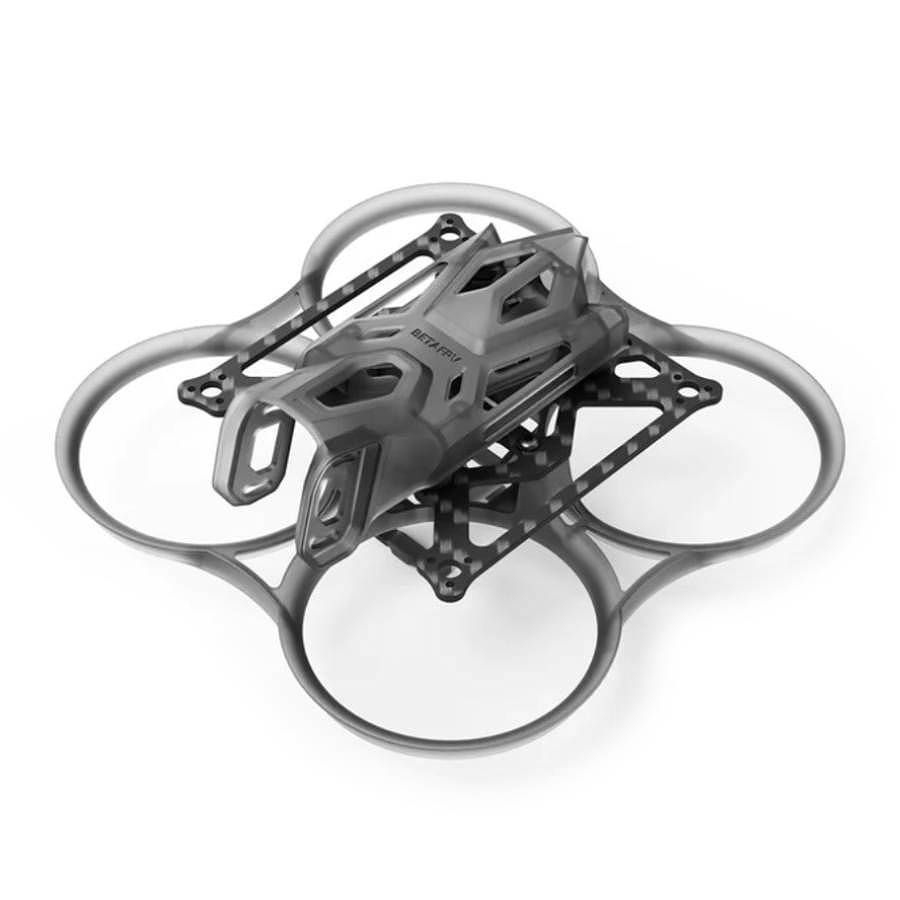

- BetaFPV Pavo Pico II Whoop Frame in Transparent Grey (01090033_2)

Included:
- 1x BetaFPV Pavo Pico II Whoop Frame for DJI O4 Air
- Mounting Accessories
