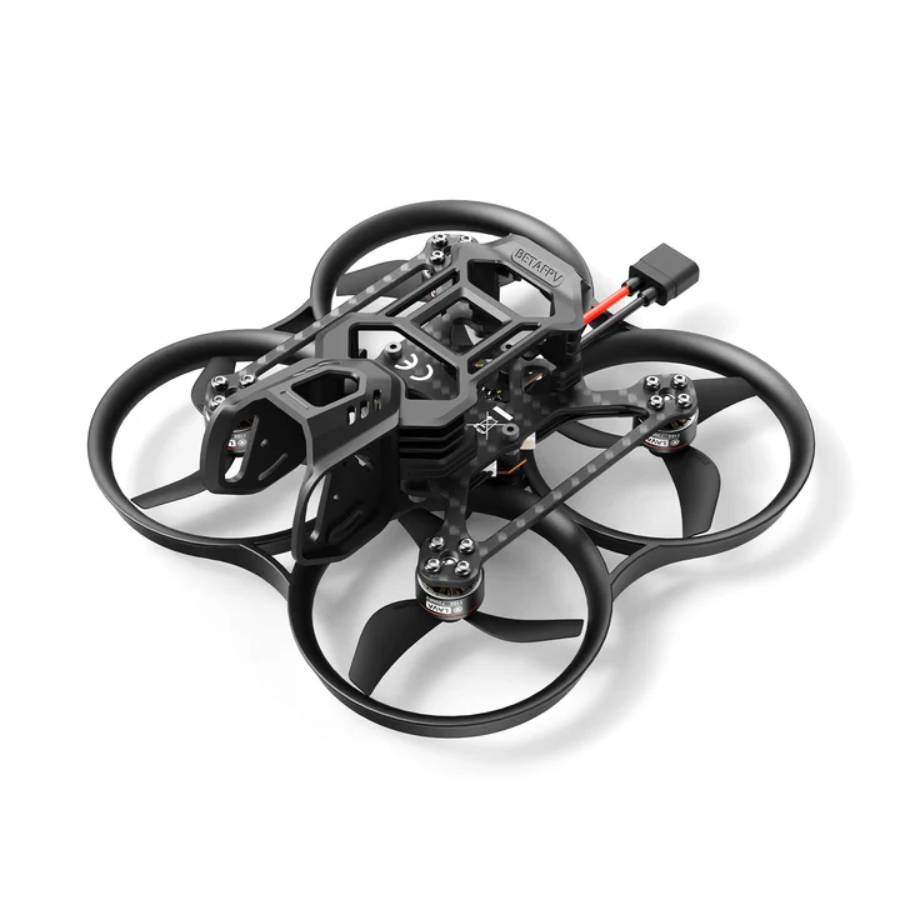

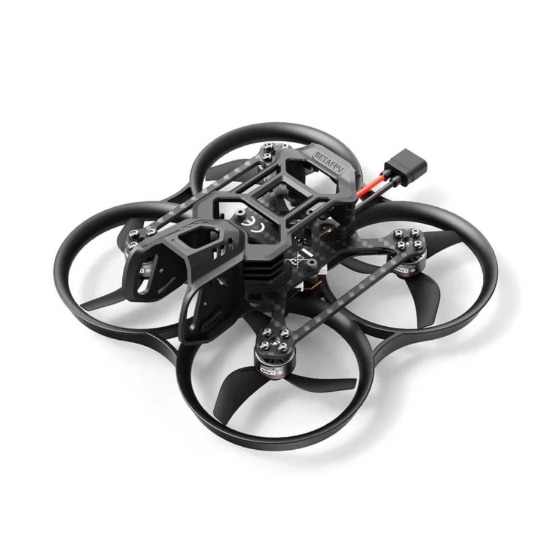

BetaFPV Pavo20 Pro Brushless Whoop for DJI O4 Pro
BetaFPV Pavo20 Pro Brushless 2.2" Cinewhoop is available with and without a DJI O4 Pro fitted.
Overview:

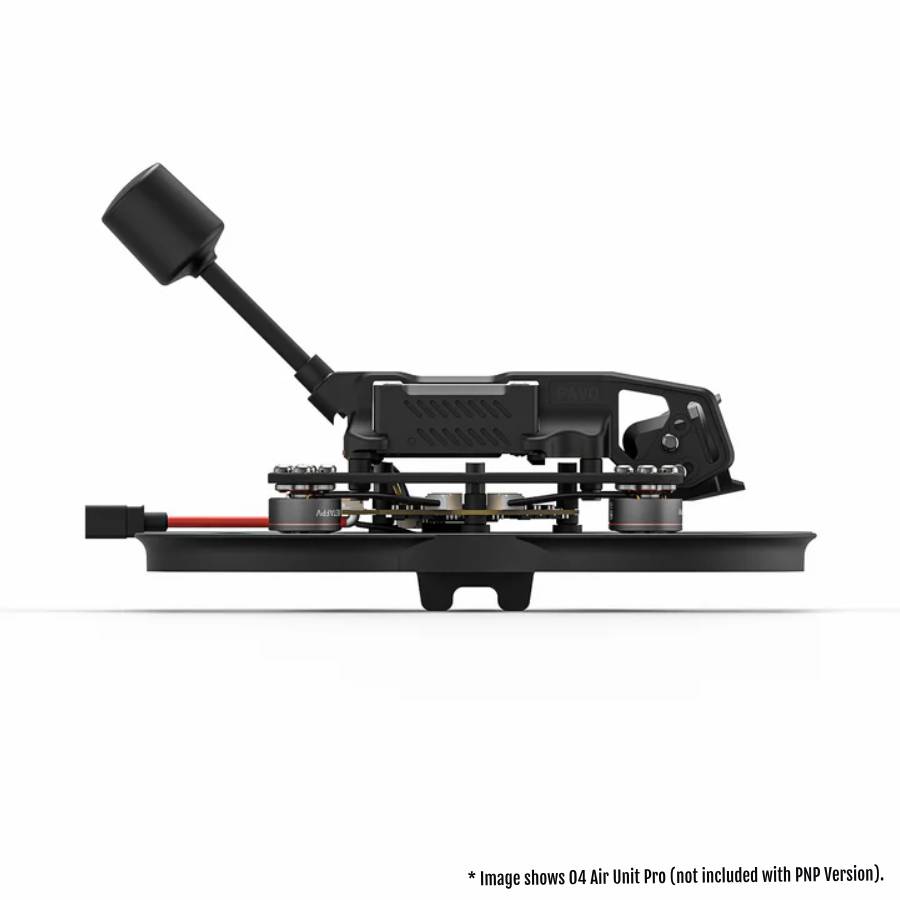

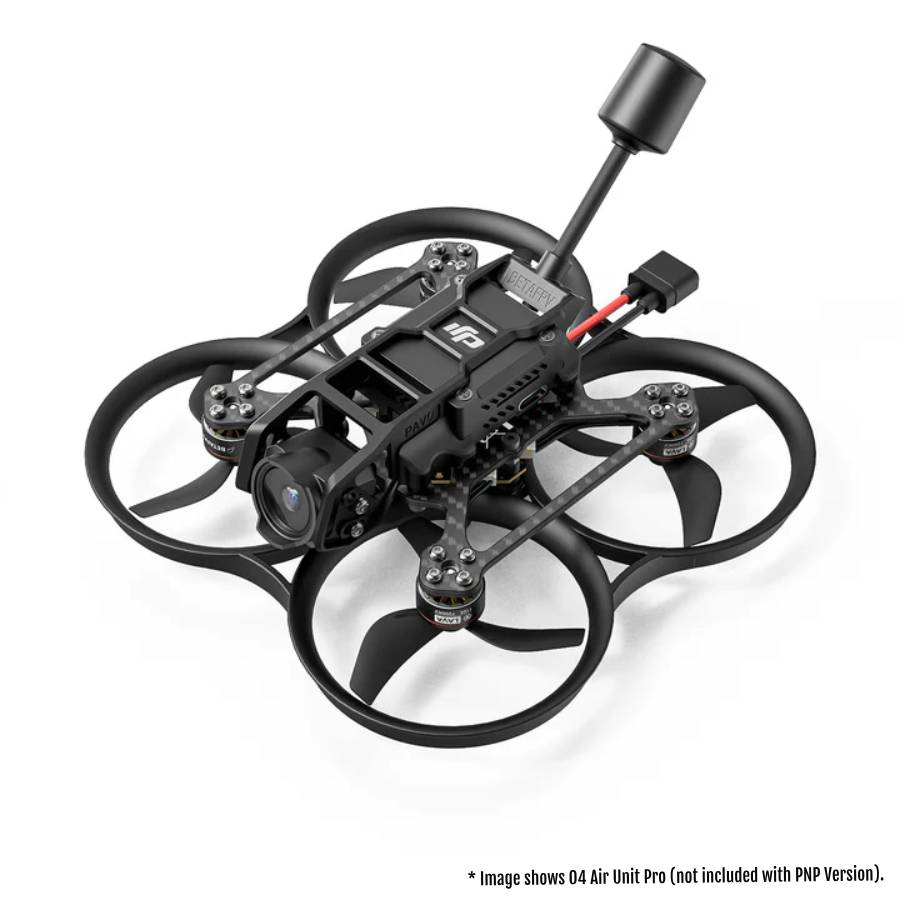

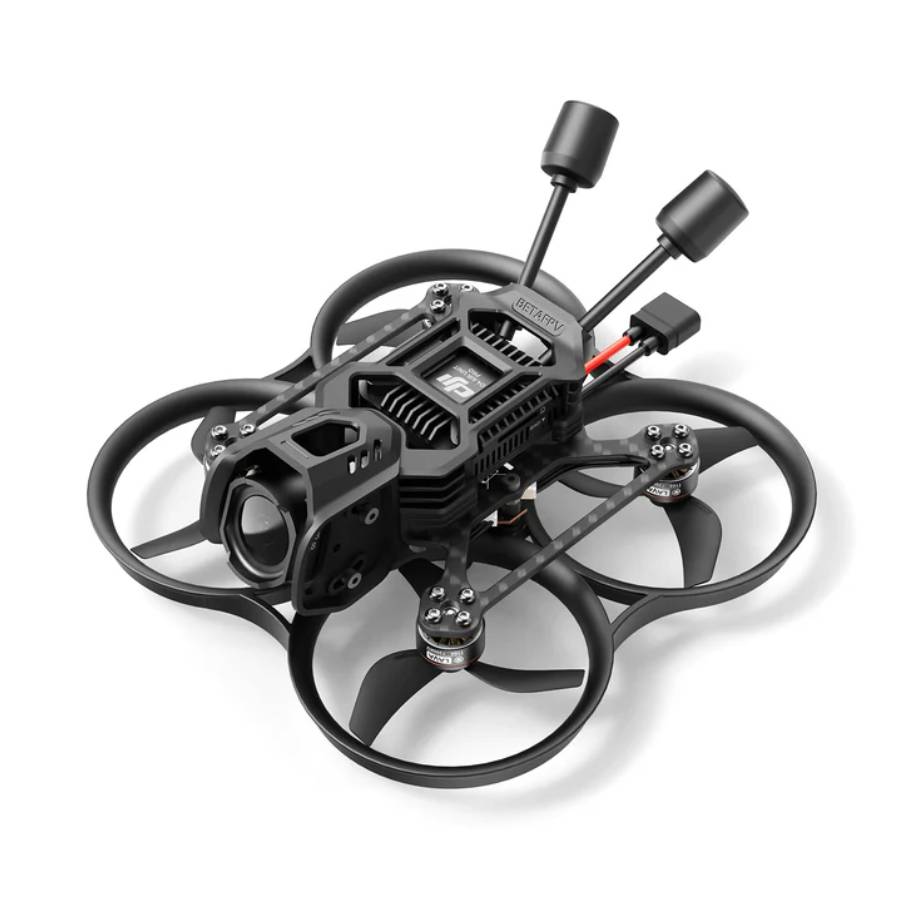

The Pavo20 Pro is a compact 2.2 inch cinewhoop designed for seamless HD FPV video capture with a lightweight yet robust build. The frame supports the DJI O4 Pro Air Unit, for pilots aiming to combine both cinematic footage with agile flight. Whilst also benefiting from LAVA 1104 7200KV motors and Gemfan 2218 tri-blade props to deliver an 8-11% thrust boost compared to its predecessor.
Its modular HD VTX bracket system enables quick swapping between camera systems without altering the frame. The manufacturer gives an estimated flight time of up to 6 minutes 40 seconds using a 3S 550mAh battery, enabling this quad to strike a balance between endurance and performance for both indoor and outdoor cinematic flying.
Features:
- Supports modular HD VTX bracket for easy swapping between cameras
- Integrated injection-moulded HD VTX mount with embedded copper nuts for stable assembly and vibration reduction
- Frame designed to boost thrust via aerodynamic shaping and optimised air ducts

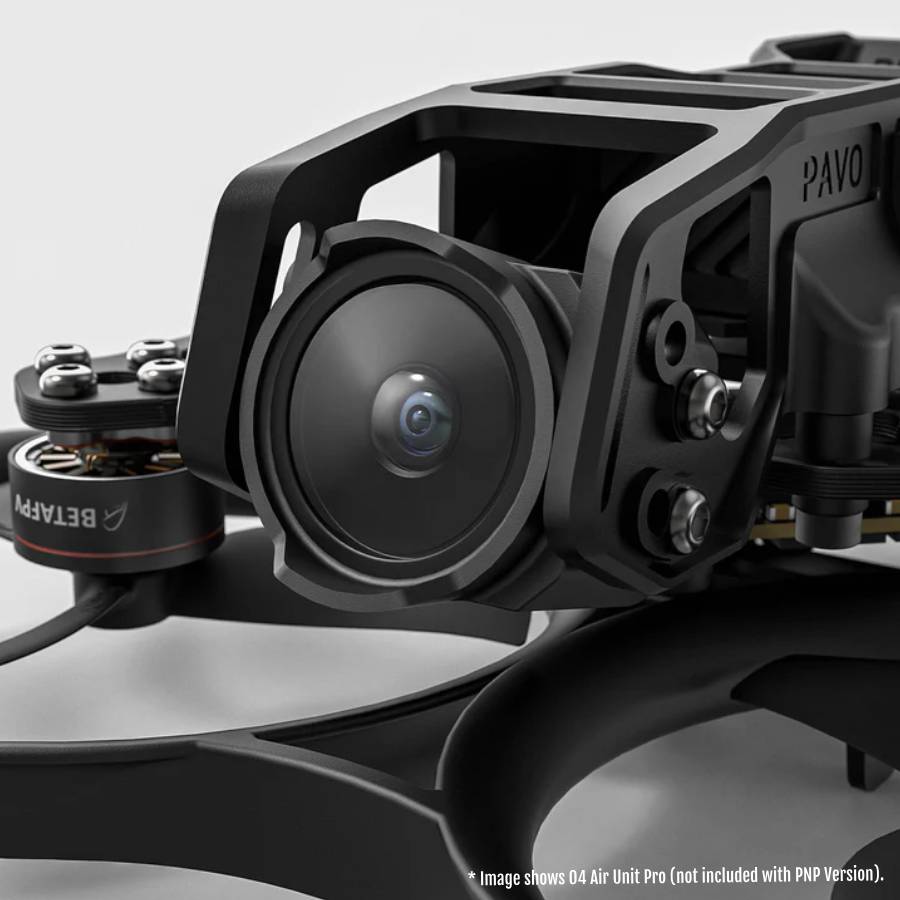

- Vertical ND filter installation for camera protection without disturbing airflow
- Onboard ELRS support with selectable versions for receiver integration
- Rubber damper HD bracket isolates camera from frame vibration to improve image stability
Specification:
- Model: BetaFPV Pavo20 Pro Brushless Quad
- Wheelbase: 93.7mm
- Frame weight: ~66.3g

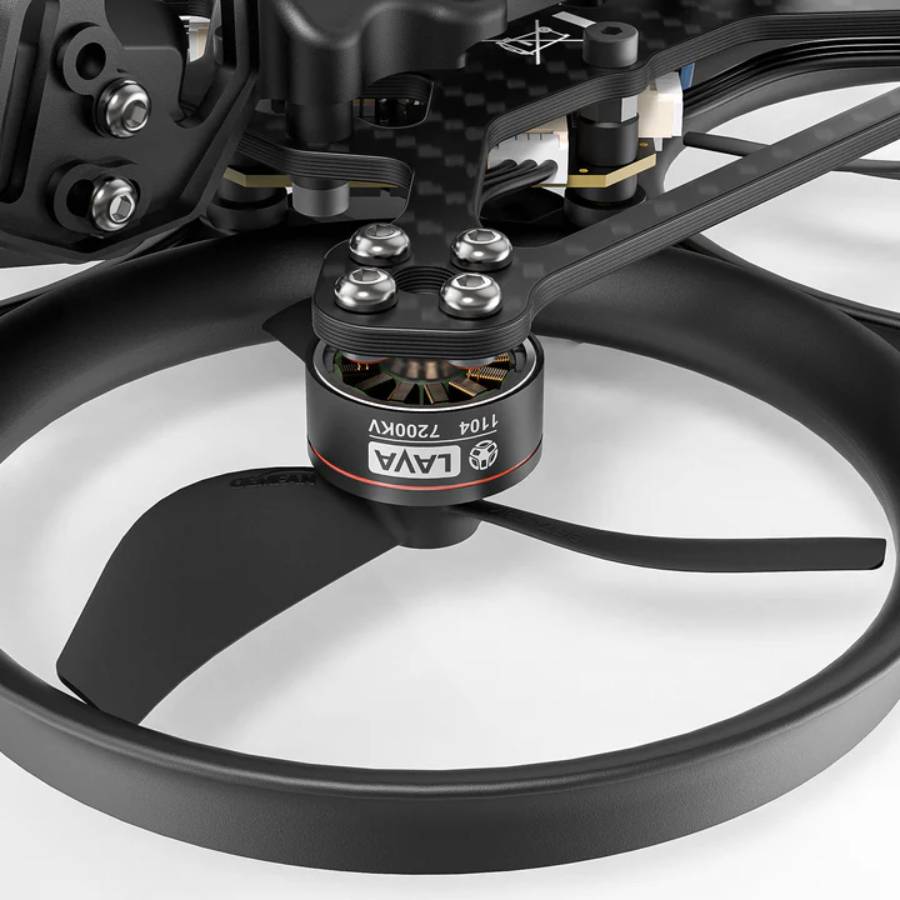

- Motor: LAVA 1104 7200KV brushless
- Props: Gemfan 2218 3-blade (1.5mm shaft)
- C/ESC: F4 2-3S 20A AIO FC V1
- Camera filter mount: Vertical
- Battery connector: XT30
- Battery slot width: 20mm
- Propellers: Gemfan 2218 3-Blade (1.5mm Shaft)
- Flight time: 6mins 40secs (with LAVA 3S 550 mAh battery)
- Recommended batteries: 3S 450mAh, 550mAh, 650mAh
Included:
- 1x BetaFPV Pavo20 Pro Brushless Drone
- Accessories
