Overview:

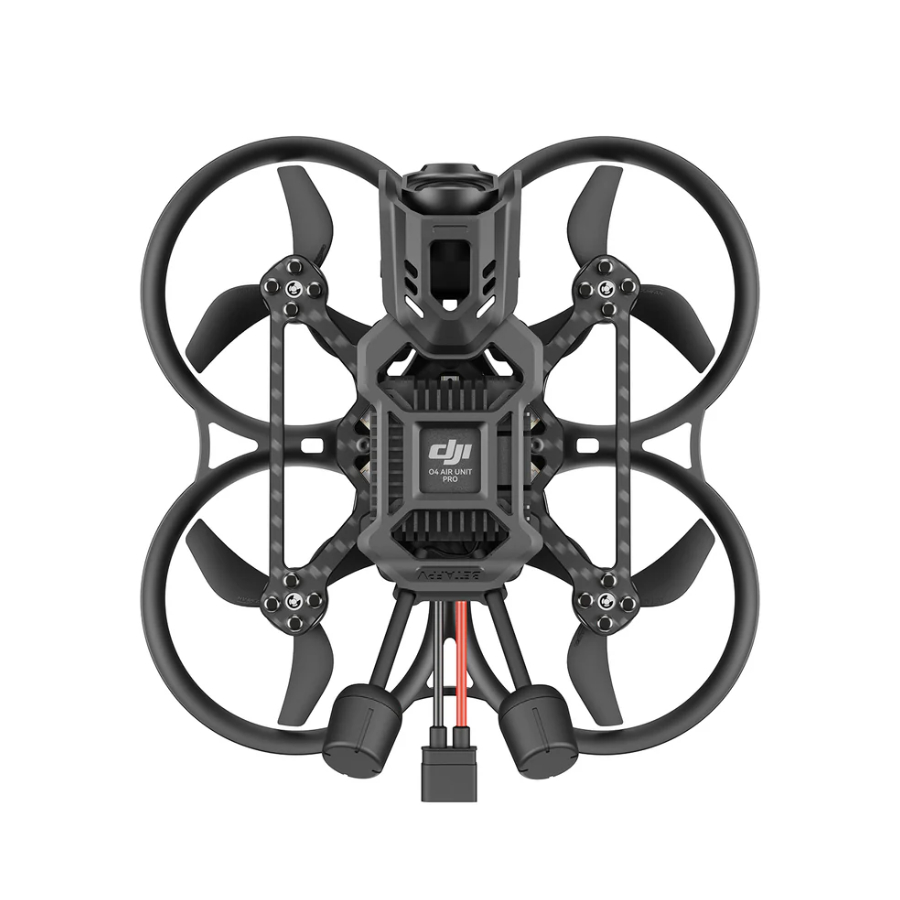

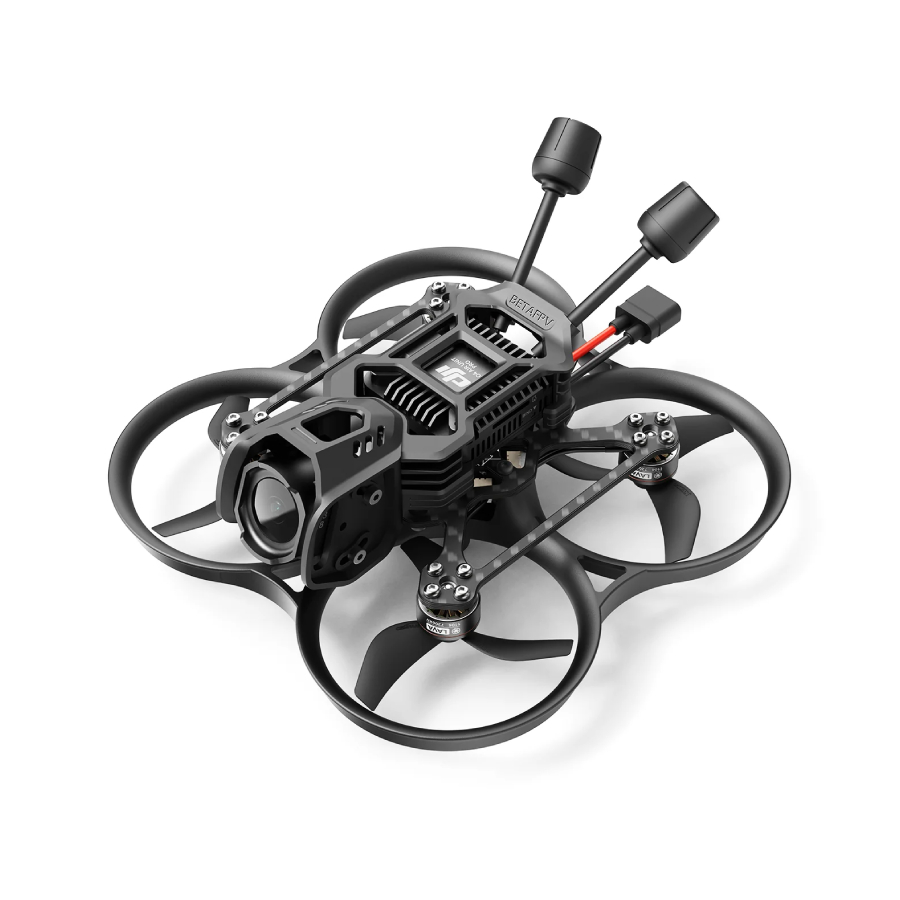

The BetaFPV Pavo20 Pro II is a lightweight 2.2-inch brushless cinewhoop designed for pilots looking for a compact platform capable of both freestyle and cinematic FPV flying. Its redesigned Pavo20 Pro II frame uses a supported structure with guided mounting points and a four-screw assembly system, making the frame straightforward to reassemble while providing a rigid platform for the electronics.
The Pavo20 Pro II is available in 3S and 4S configurations, with each version using a different motor and flight controller combination. The 3S version pairs LAVA 1104 7200KV motors with an F4 2-3S 20A AIO flight controller, while the new 4S version uses lower-KV LAVA 1104 5500KV motors and upgrades to the Cube 2-4S 30A 3-in-1 flight controller. The different propulsion systems are specifically matched to their respective battery voltages.
Both versions use the same 93.9mm wheelbase, GF D2.2 three-blade propellers, XT30 battery connection and Pavo20 Pro II frame. The 3S version is the lighter and more agile option, with the 7200KV motors optimised for 3S operation. The 4S version provides greater voltage headroom and potential for longer flight times, using the 5500KV motors and higher-rated 30A flight controller. With a 680mAh battery (not included), BetaFPV states flight times of up to approximately 9 minutes on 3S and 10.5 minutes on 4S, making the 4S version particularly attractive for pilots prioritising endurance.

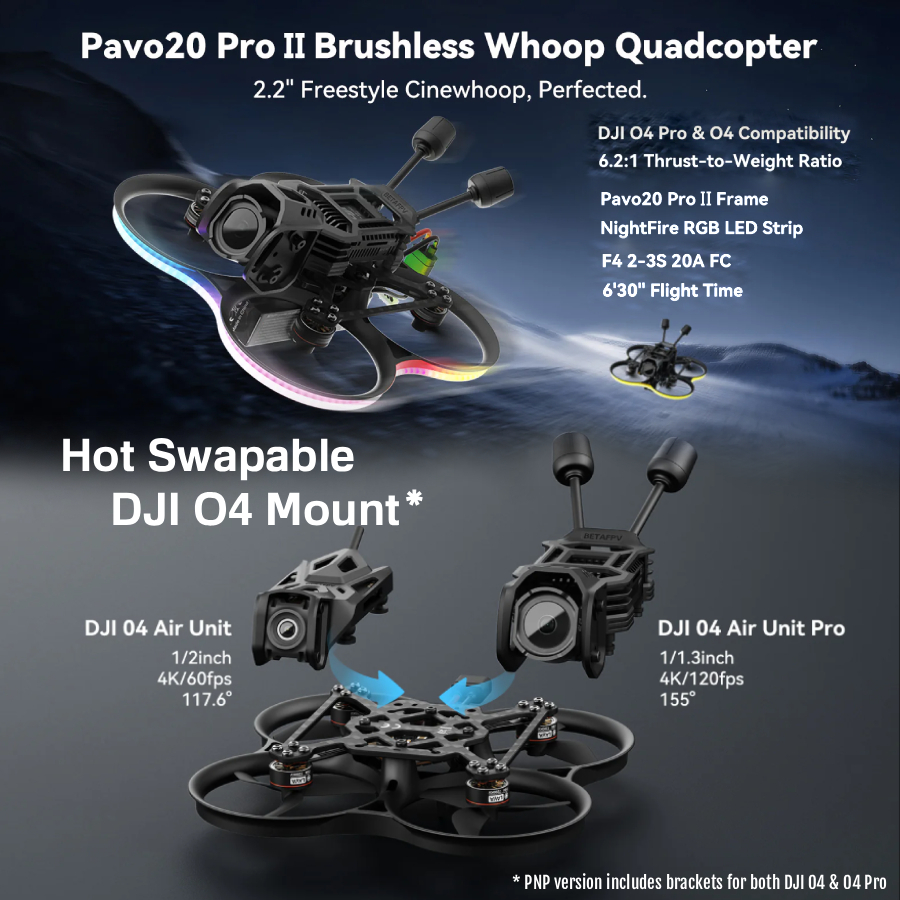

PNP versions come with canopies to fit both the DJI O4 Air Unit and O4 Air Unit Pro, either needs to be bought separately and fitted to complete the quad. 12× and 18× GPS modules can also be mounted to the top of the frame (sold separately).
Bring your whoop to life with a stunning spectrum of colours and dynamic display modes, using the integrated NightFire Multi-colour LED light Strip. Easily switch between 10 preset lighting effects and 7 colours by function setting on your transmitter, to create an eye-catching display and added visibility whilst flying against overcast skies.
If you're looking for a capable cinewhoop that can perform both as a freestyle flyer or a cinematic cruiser with dynamic lighting and the ability to carry an HD-quality camera, the Pavo Pro II is the answer.
The Pavo20 Pro II is compatible with LAVA batteries, which feature a groundbreaking, advanced Z-folding cell structure. These batteries deliver higher energy density, less internal resistance and significantly improved discharge performance compared to standard LiPo packs. Click on the battery names to go to their pages LAVA II 3S and LAVA II 4S. To charge multiple XT30 batteries at once, check out the SkyRC T100, and don't forget two XT60 to XT30 adaptors! See Related Products at the foot of this page for more compatible products to choose from.
Features:
- DJI 4K video feed, compatible with DJI Goggles N3 and DJI Goggles 3 (O4 Pro fitted version only)
- ELRS versions are compatible with transmitters such as the Radiomaster Pocket ELRS, TX15, GX15 and TX16S

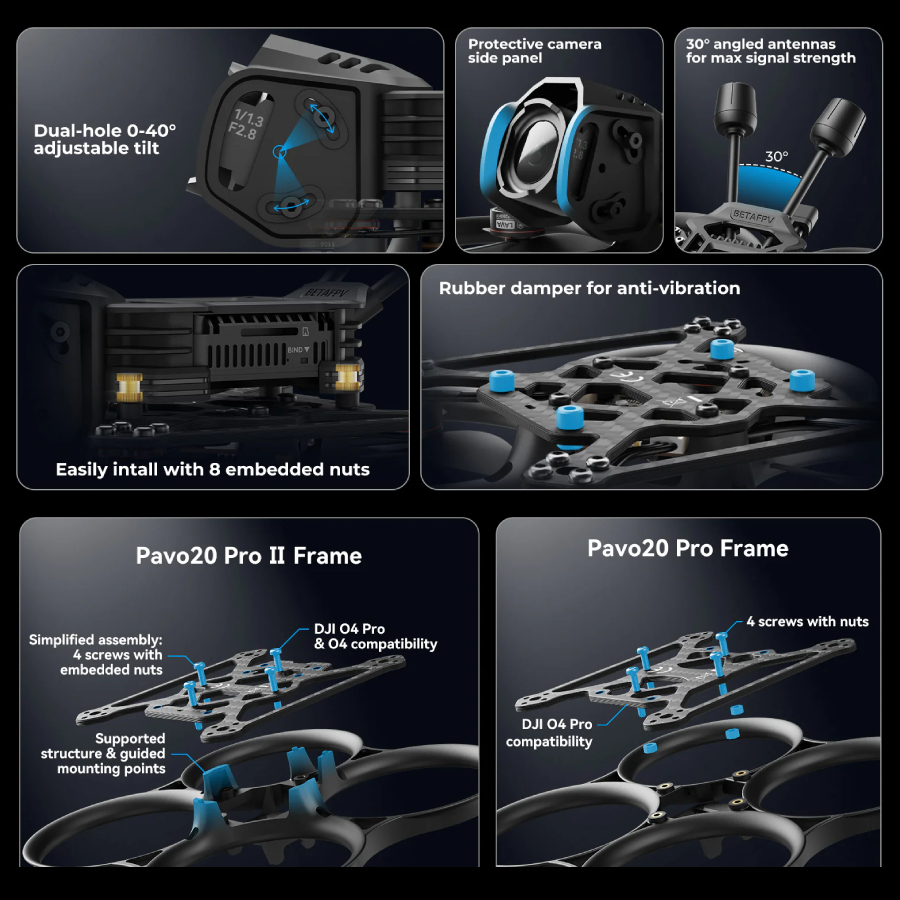

- Redesigned Pavo20 Pro II frame uses guided mounting points and a four-screw assembly system for simplicity and quick repairs.
- PNP Version is compatible with both DJI O4 Air Unit and DJI O4 Air Unit Pro.

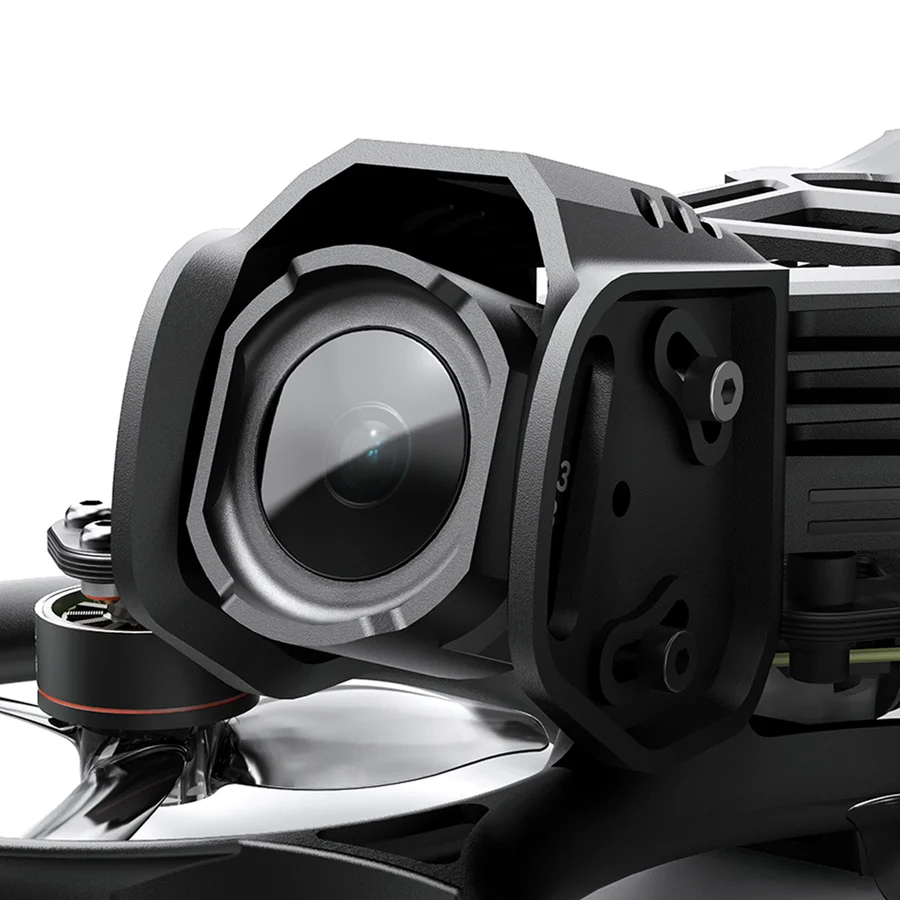

- Dedicated O4 Air Unit Pro mounting bracket provides vibration isolation.
- Integrated NightFire RGB LED strip improves the look, visibility and the ability to easily see the orientation of the quad.
- Vertical filter mounting supports ND filters for the DJI O4 Pro camera.
Specification (common to both 3S and 4S):
- Model: BetaFPV Pavo20 Pro II
- Wheelbase: 93.9mm
- Frame: Pavo20 Pro II Brushless Whoop Frame
- Propellers: GF D2.2 3-blade
- Battery connector: XT30

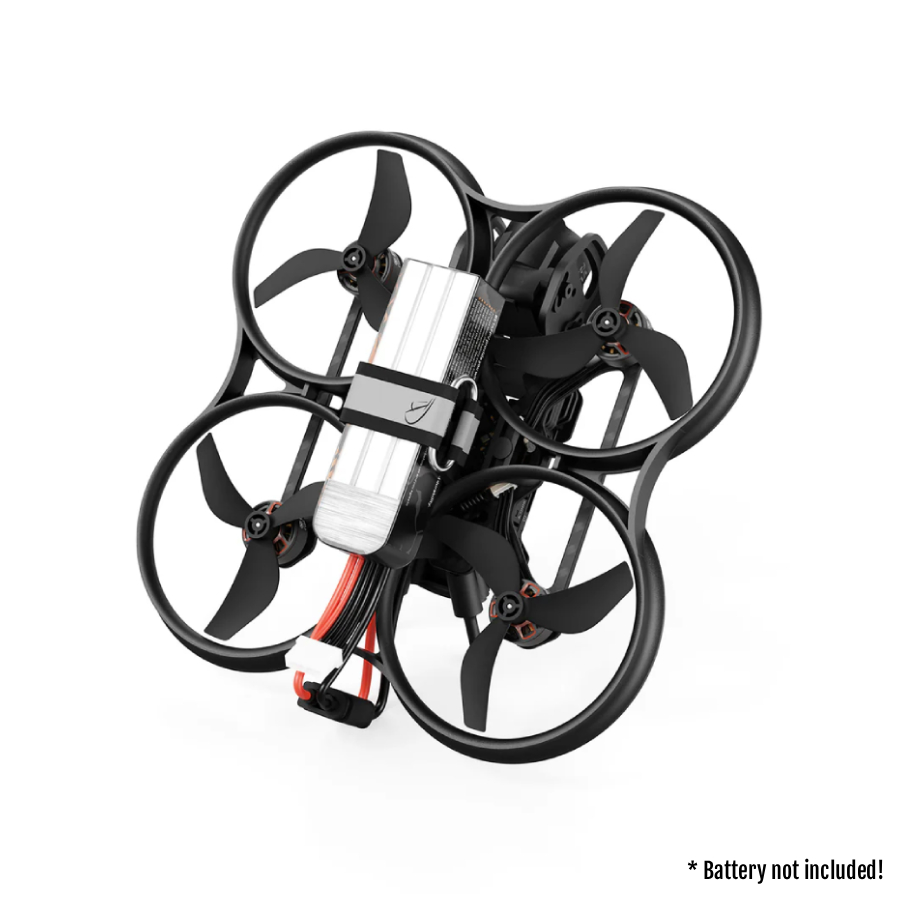

- Battery slot: 29mm wide x unlimited height
- VTX compatibility: DJI O4 Air Unit, DJI O4 Air Unit Pro (not included with all versions)
- Receiver options: Serial ExpressLRS 2.4GHz or DJI SBUS (version dependent)
- Lighting: NightFire RGB LED Strip
- GPS compatibility: 12× and 18× GPS modules (not included)
3S Version:
- Flight controller: F4 2-3S 20A AIO FC
- Motors: LAVA 1104 7200KV
- Recommended batteries (not included): LAVA II 3S 580mAh/680mAh available here.
- Alternative batteries (not included): LAVA 3S 450mAh 75C or 550mAh 75C available here. (GNB options are at the foot of this page)
- Weight with DJI O4 Pro: 107.7g

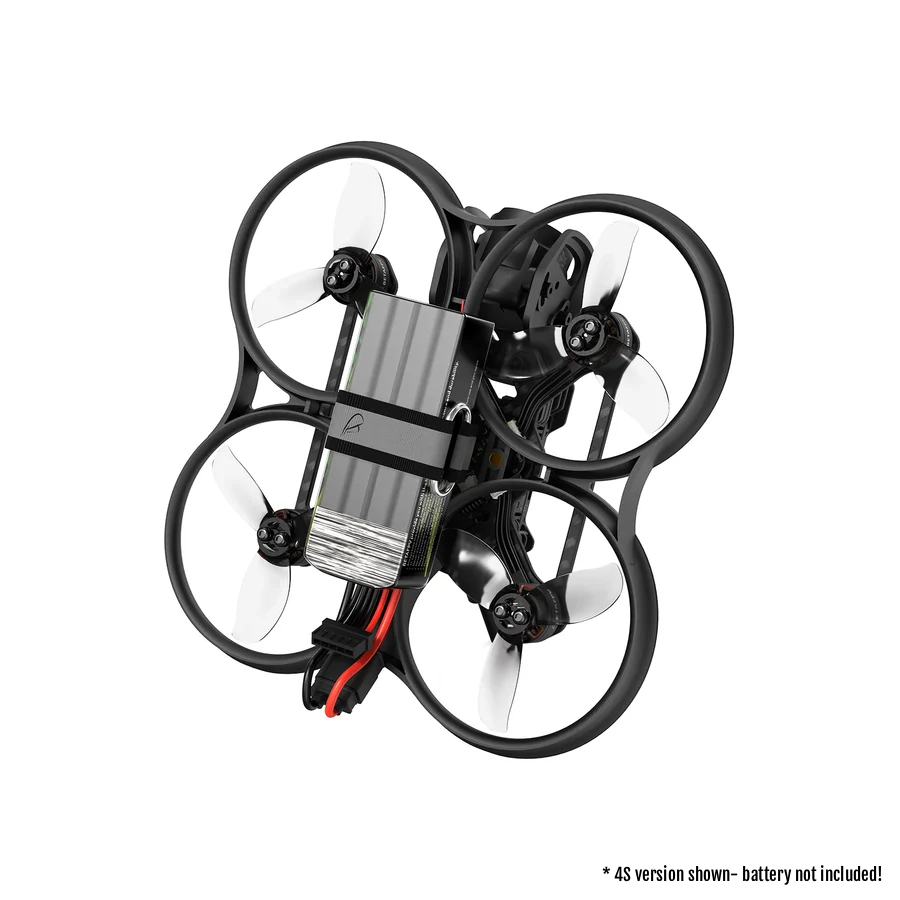

4S Version:

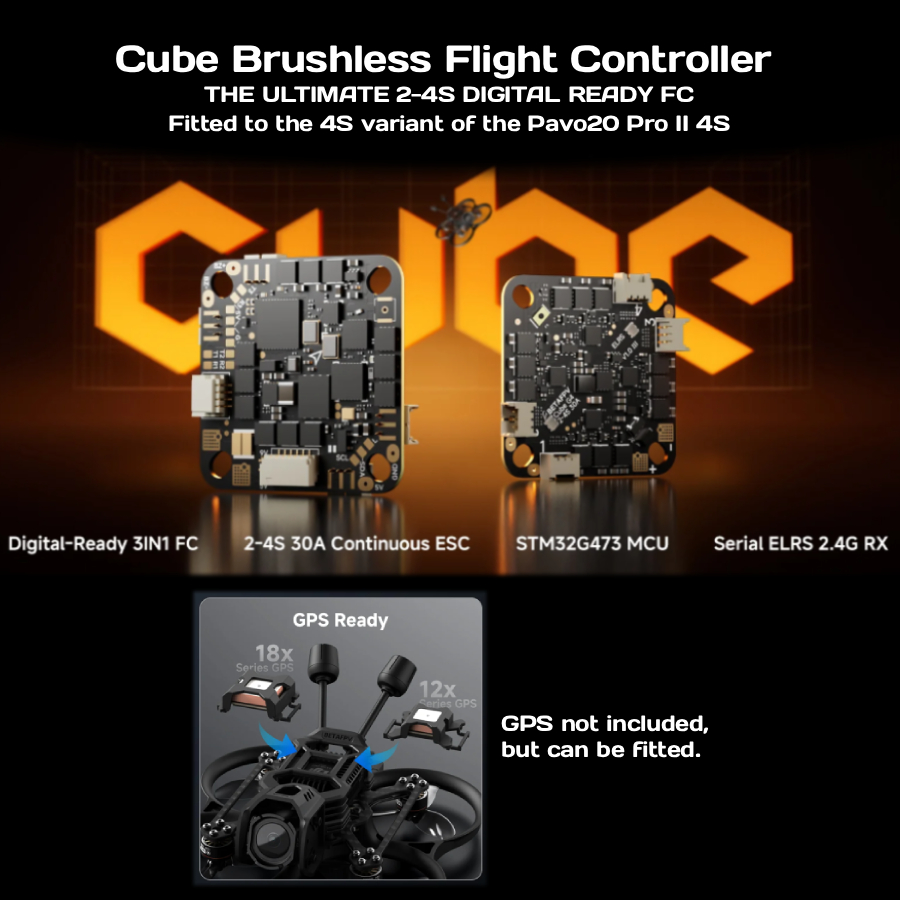

- Flight controller: Cube 2-4S 30A 3-in-1 FC
- Flight controller MCU: STM32G473
- ESC rating: 30A continuous
- Motors: LAVA 1104 5500KV
- Recommended batteries (not included): LAVA II 4S 580mAh/680mAh available here
- Alternative batteries (not included): LAVA 4S 550mAh 75C available here. (GNB options are at the foot of this page)
- Weight with DJI O4 Pro: 116.2g
3S vs 4S version:
- 3S: LAVA 1104 7200KV motors and F4 2-3S 20A AIO FC. BetaFPV claims flight times up to 9 minutes with LAVA II 680mAh battery.
- 4S: LAVA 1104 5500KV motors and Cube 2-4S 30A 3-in-1 FC. BetaFPV claim potential flight times of up to 10.5 minutes with LAVA II 680mAh battery.
Available versions (see below for purchase options):

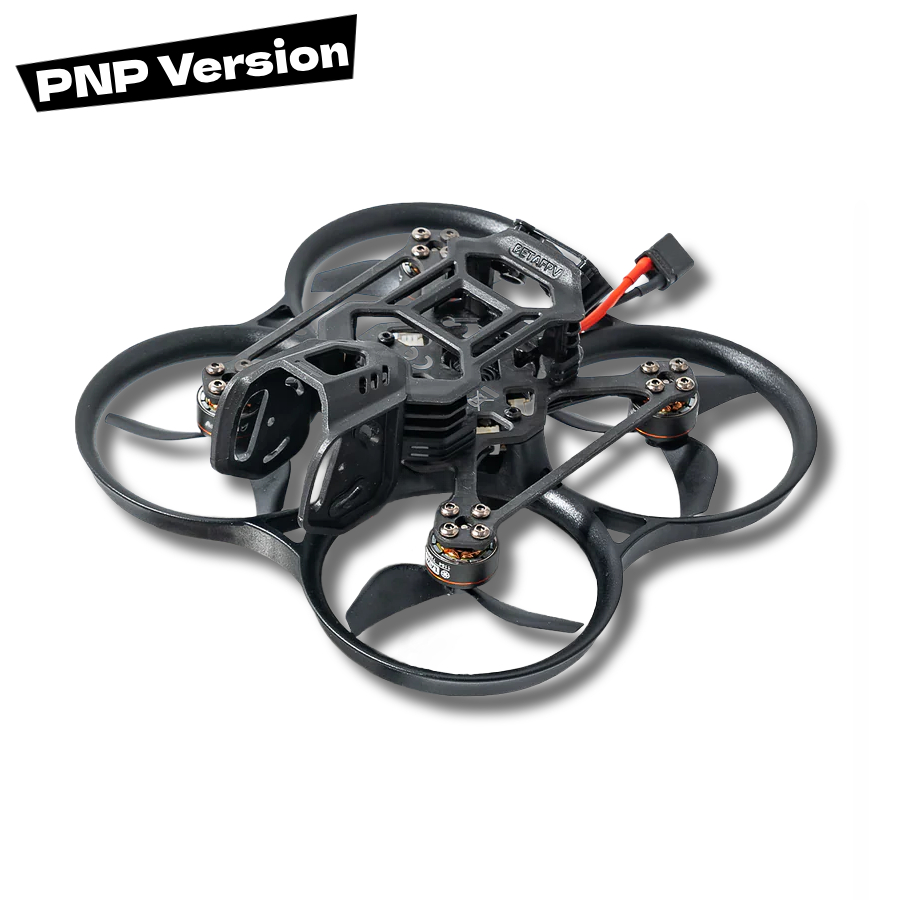

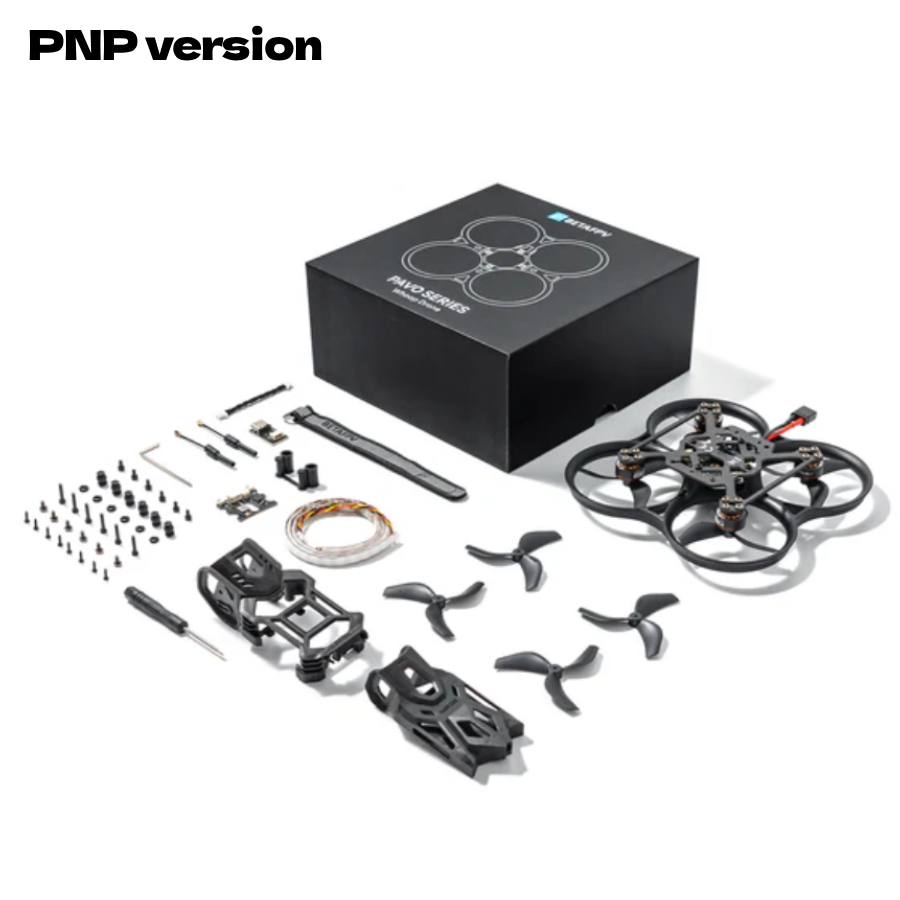

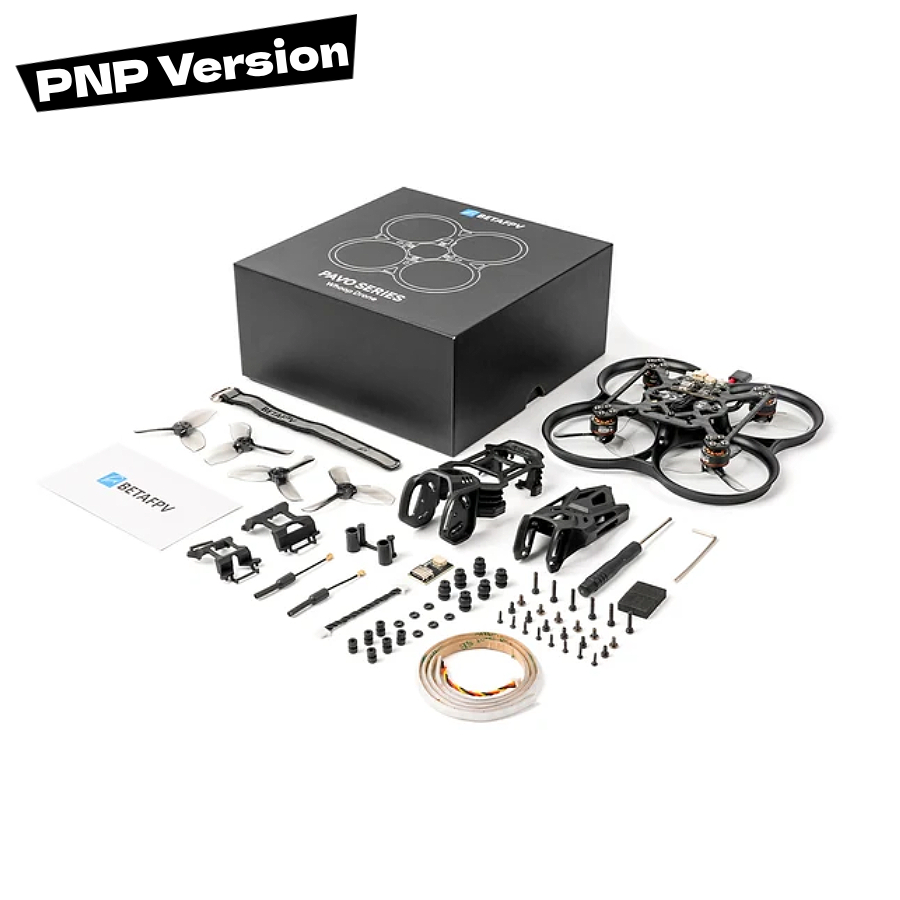

- BetaFPV Pavo20 Pro II 3S Cinewhoop PNP (Requires a DJI O4 Air Unit/ O4 Air Unit Pro to complete)

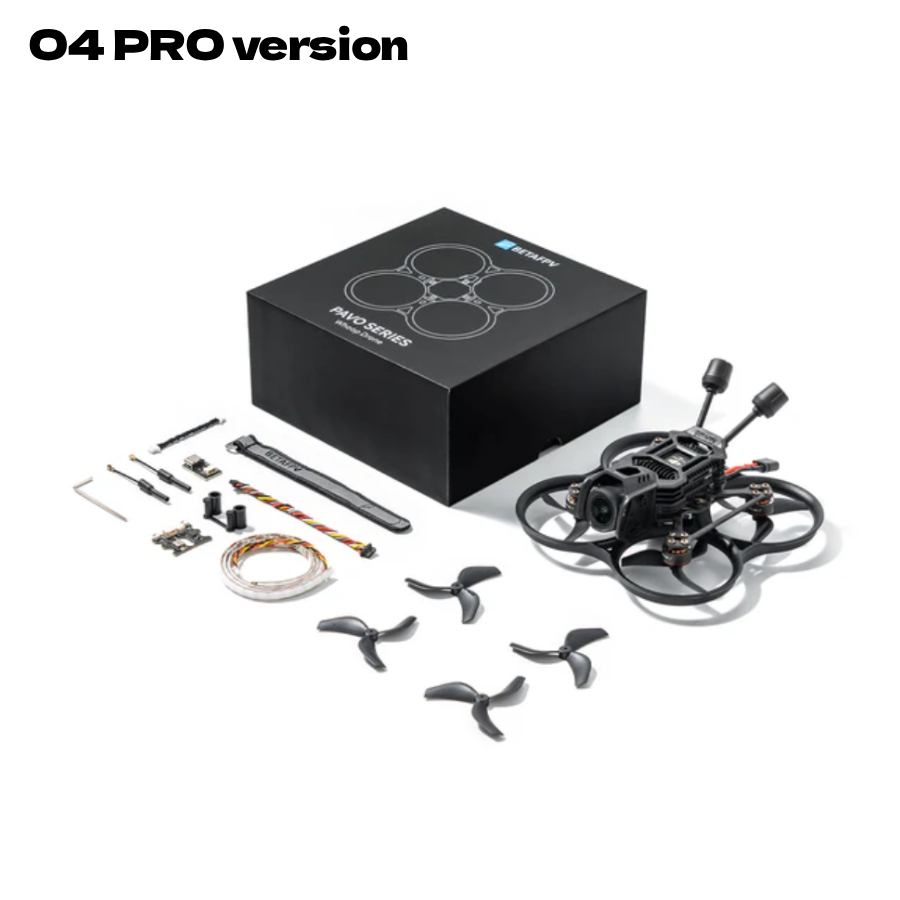

- BetaFPV Pavo20 Pro II 3S Cinewhoop O4 Pro (Comes complete with a DJI O4 Air Unit Pro)
- BetaFPV Pavo20 Pro II 4S Cinewhoop PNP (Requires a DJI O4 Air Unit/ O4 Air Unit Pro to complete)
- BetaFPV Pavo20 Pro II 4S Cinewhoop O4 Pro (Comes complete with a DJI O4 Air Unit Pro)
Included:
- 1x Pavo20 Pro II Brushless Whoop Quadcopter
- Accessories (dependent on version chosen)
