*** PLEASE NOTE: These goggles are NOT analogue, they are only compatible with P1 fitted products and will NOT work with Air65/Air75 whoops. ***
Overview:

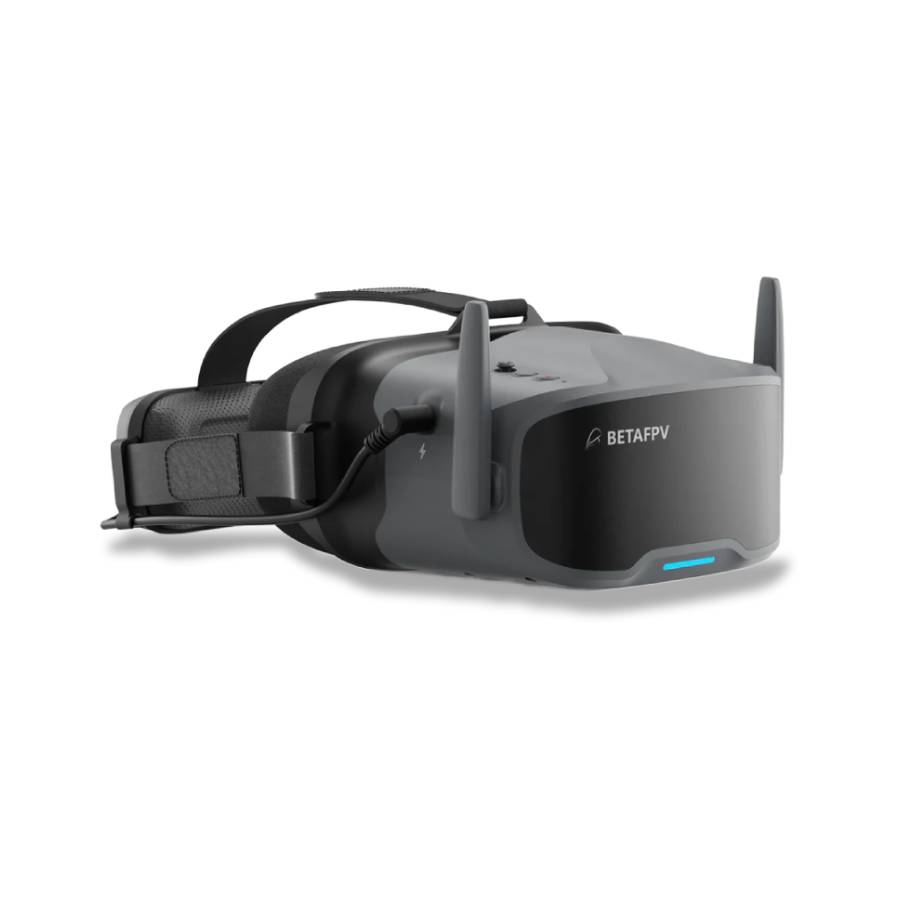

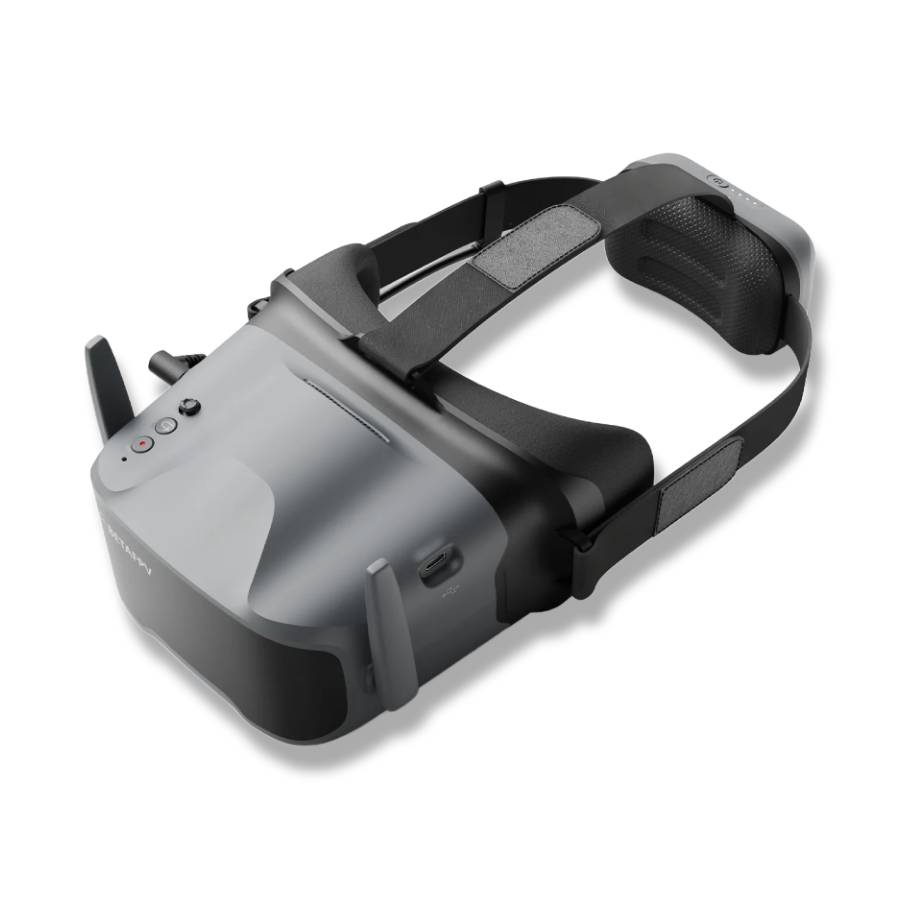

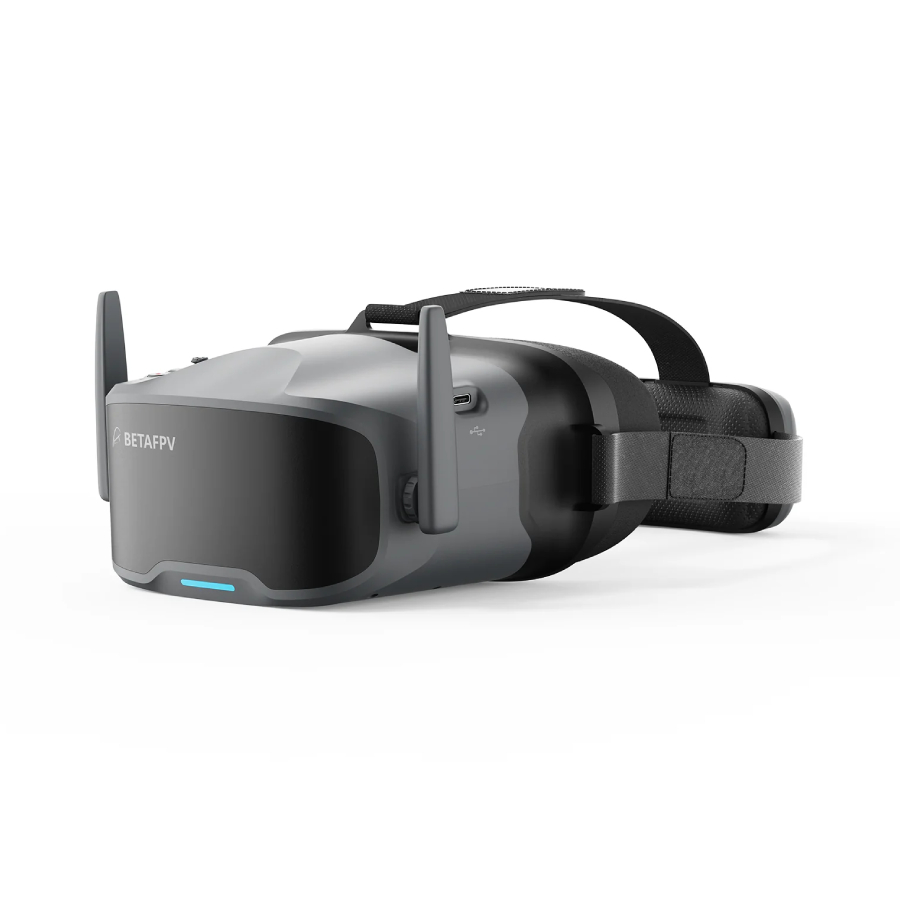

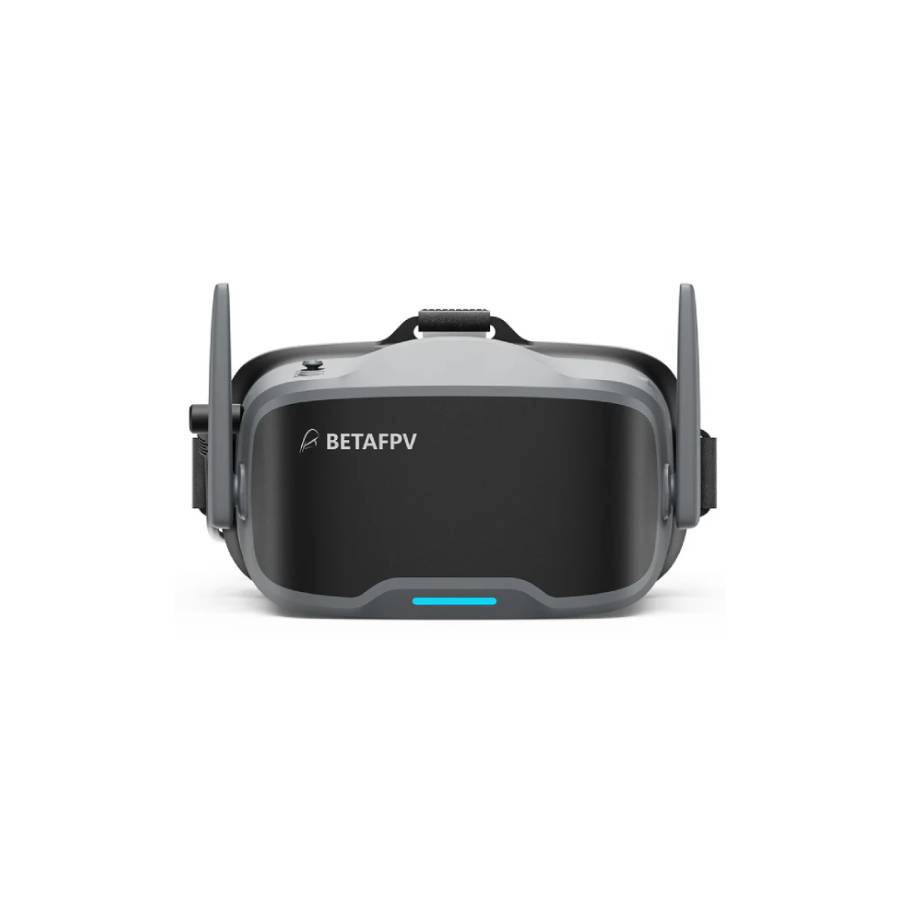

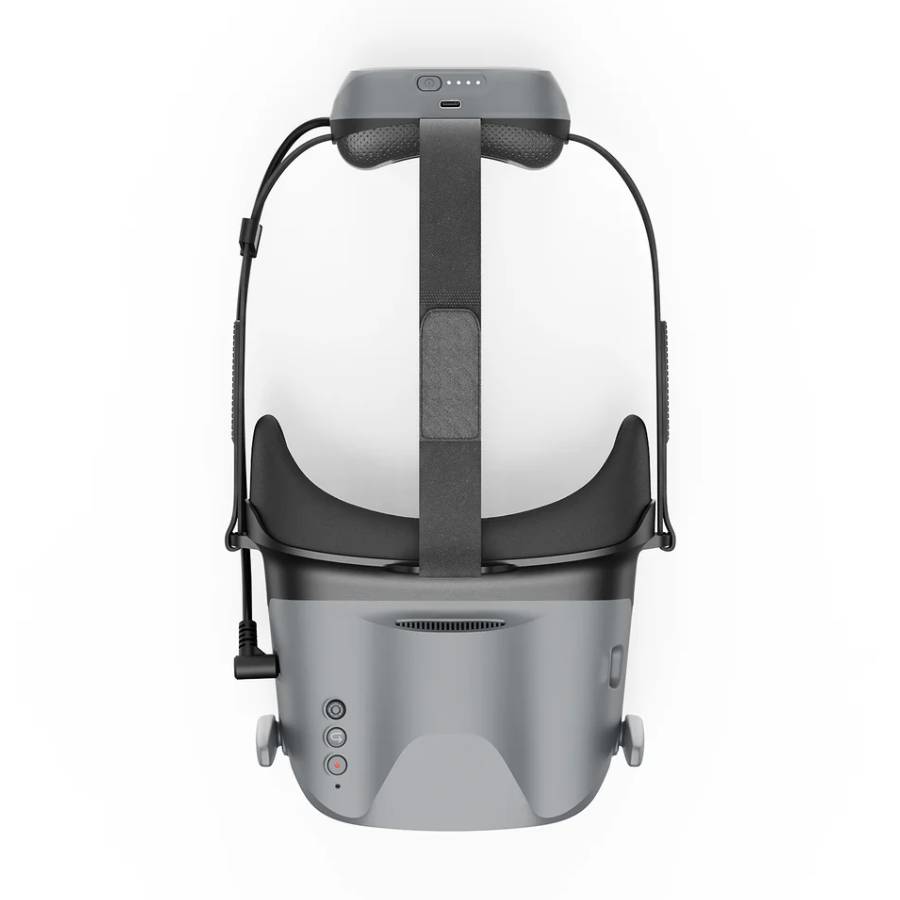

The BetaFPV VR04 HD FPV Goggles deliver an immersive digital FPV experience in a comfortable box goggle design. Fully compatible with the BetaFPV P1 Air Unit, they feature a crisp 1920×1080 LCD display, built-in HD DVR and a glasses-friendly fit, making them an excellent choice for both new and experienced pilots looking for an affordable entry into digital FPV.
Both the VR04 HD and the new VR04 HD Pro share the same high-definition display, digital transmission system and recording capabilities. Each offers one-touch 1080P video recording directly to a microSD card, dual antennas for reliable reception and the ability to run from either the supplied battery pack or an external 2-6S LiPo battery for extended flying sessions.
The VR04 HD Pro builds on the original design with several worthwhile upgrades. It includes larger capacity 3800mAh batteries for longer operating time, replaceable antennas for greater flexibility and a USB Type-C port with DisplayPort (DP) output, allowing live video to be viewed on an external monitor or compatible display. If you're looking for the best value, the VR04 HD remains an excellent choice, while the VR04 HD Pro is ideal for pilots wanting longer runtime and expanded connectivity.
For the compatible BetaFPV P1 Air Unit HD VTX, see Related Products at the bottom of this page.
Features:
VR04 HD:

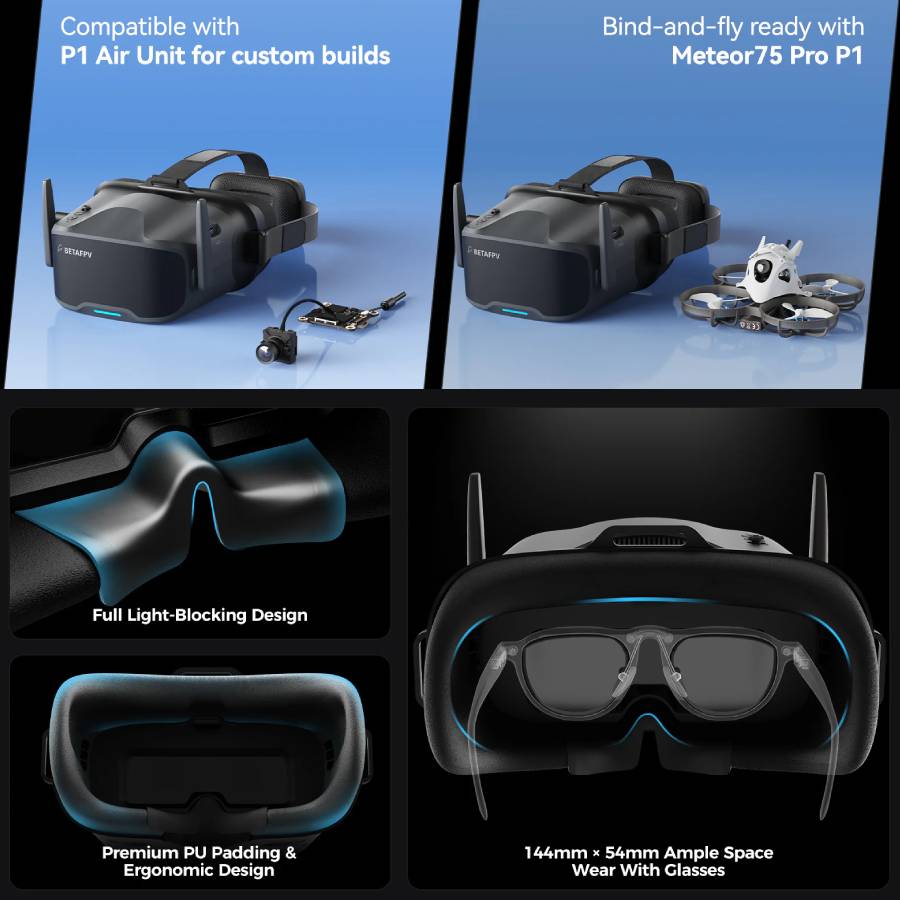

- Compatible with the P1 Air Unit digital FPV system, allowing integration with both bind-and-fly whoops and custom FPV builds.
- Large 4.5-inch Full HD LCD display.

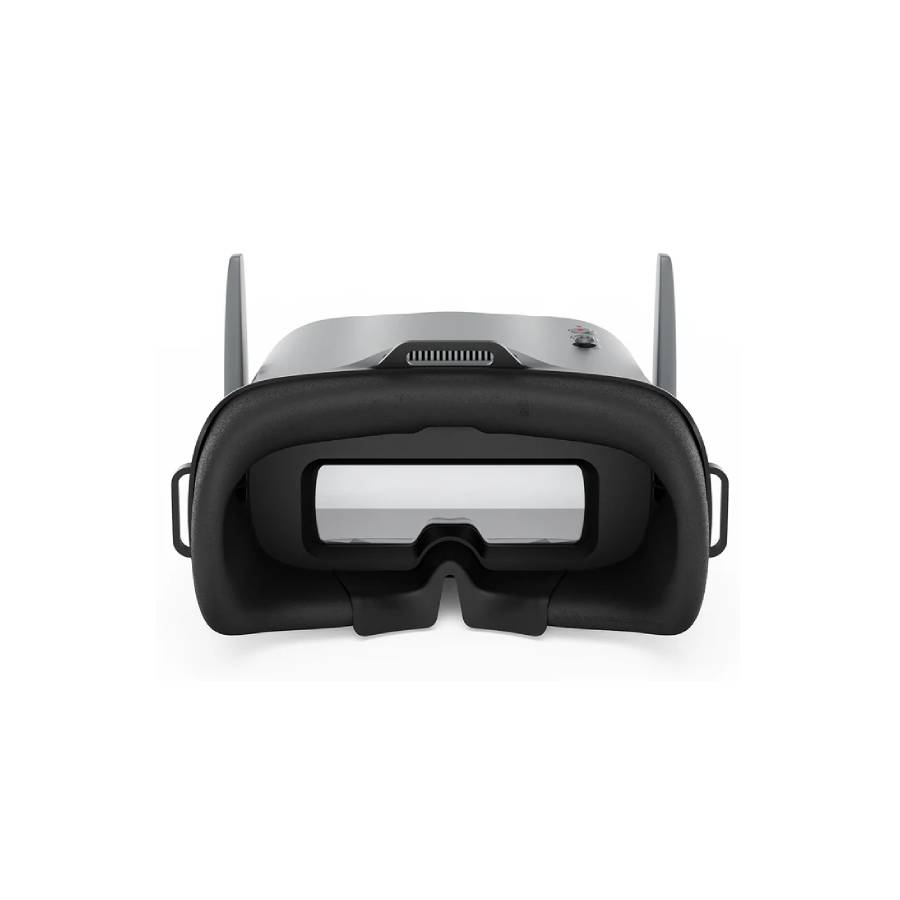

- Comfortable glasses-friendly design.
- Soft face padding and silicone nose section help reduce external light.
- Built-in cooling fan.
- Dual integrated antennas.
- One-button 1080P HD DVR recording.
- Supports microSD cards up to 1TB.
- Can be powered by the supplied battery pack or an external 2-6S LiPo battery.
VR04 HD Pro:
Includes all the features of the VR04 HD, plus:
- Higher capacity 3800mAh battery pack for extended operating time.
- Replaceable dual antennas.
- USB Type-C output with DisplayPort (DP) support for live video output to compatible external displays for increased flexibility for spectators and external recording setups.
Specifications:
Common Spec:
- Display type: LCD
- Screen size: 4.5"
- Screen resolution: 1920x1080
- Recording resolution: 1080P @60fps
- Video bitrate: Up to 25Mbps
- Compatible system: BetaFPV P1 Air Unit
- Transmission range: >400m
- Card type: MicroSD (Not supplied)
- Maximum MicroSD card capacity: 1TB
- Cooling fan: Automatic
- Optional external power input: 2-6S LiPo supported
- Dimensions: 168.8x182.1x98.5mm
- Weight (excluding batteries): 400g
VR04 HD:

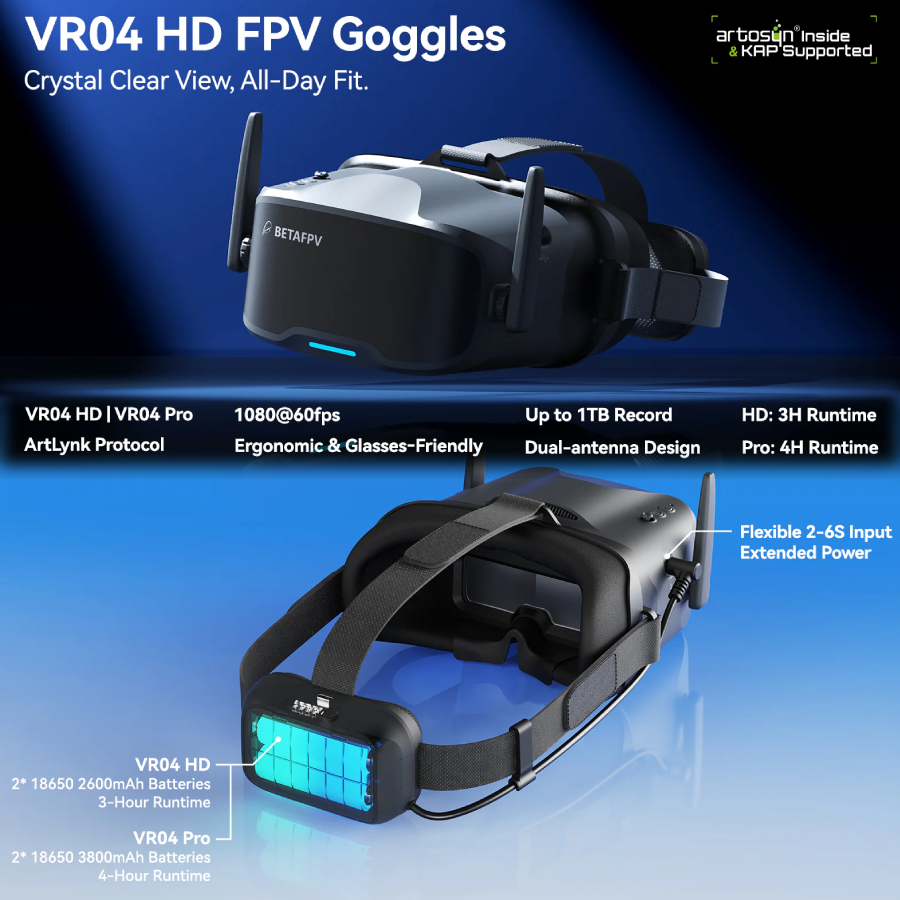

- Battery type: 2x 18650 2600mAh
- Typical operating time: Approximately 3 hours
- Antennas: Fixed dual antennas
- USB Type-C function: microSD card access
VR04 HD Pro:
- Battery type: 2x 18650 3800mAh
- Typical operating time: Approximately 4 hours
- Antennas: Replaceable dual antennas
- USB Type-C function: microSD card access and DisplayPort (DP) live video output
Included:
- 1x BetaFPV VR04 HD FPV Goggles with battery pack
- 1x Manual
