Overview:

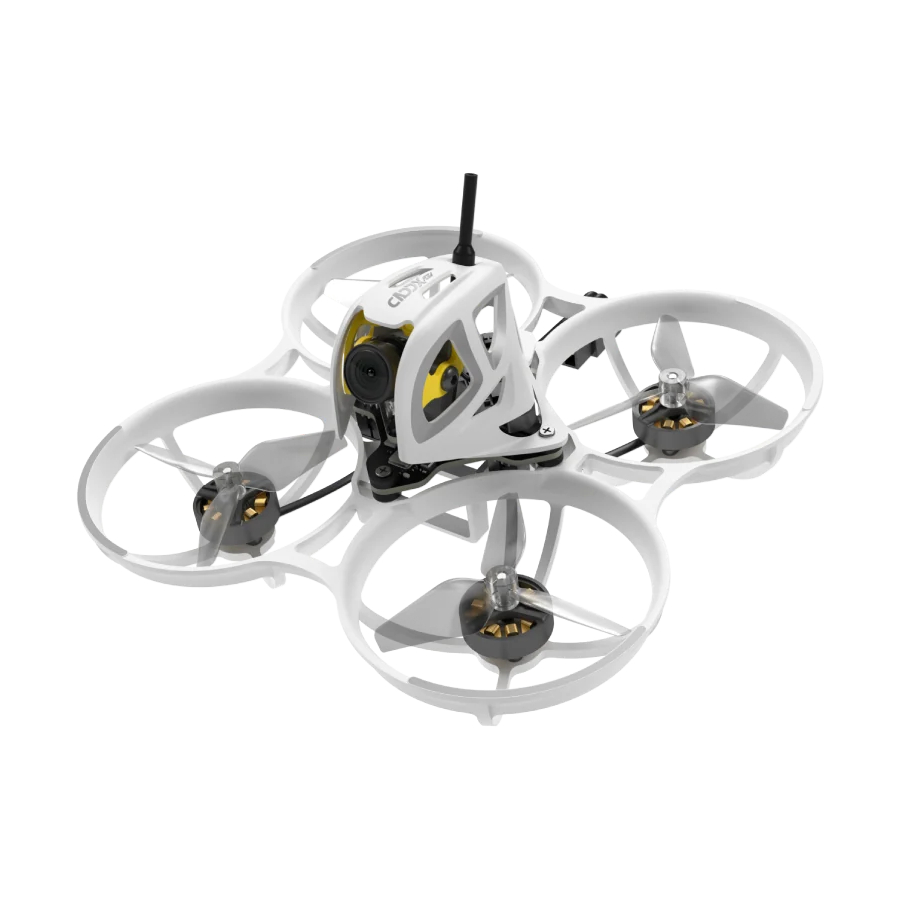

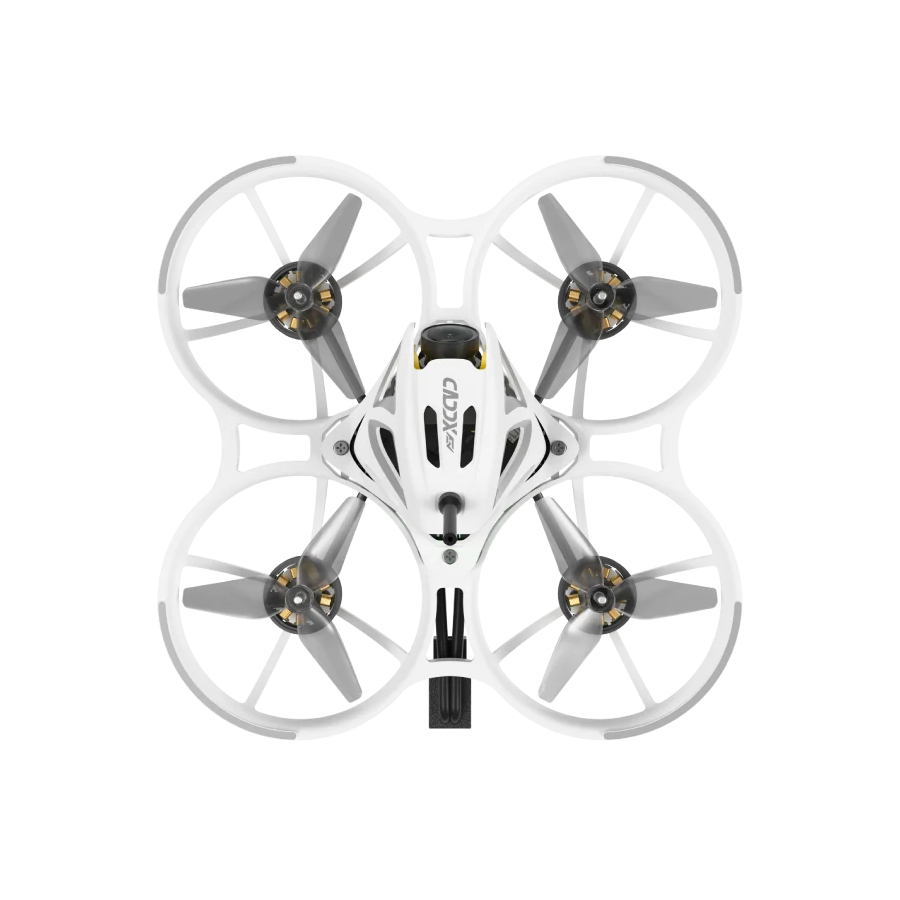

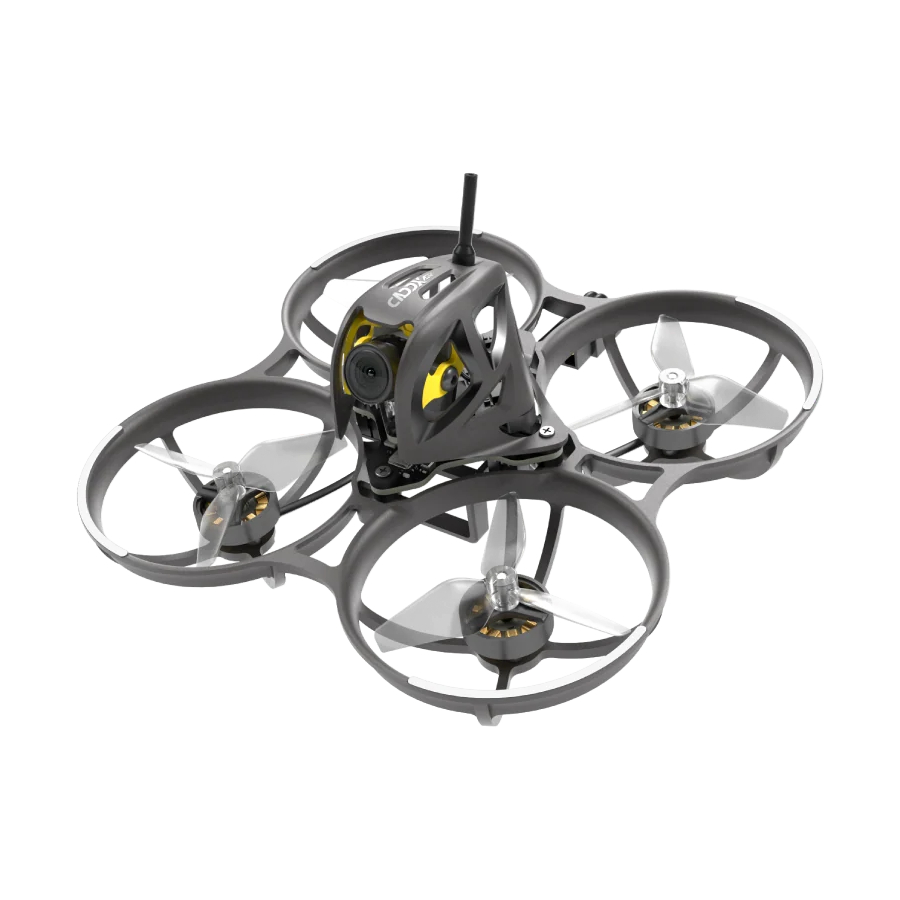

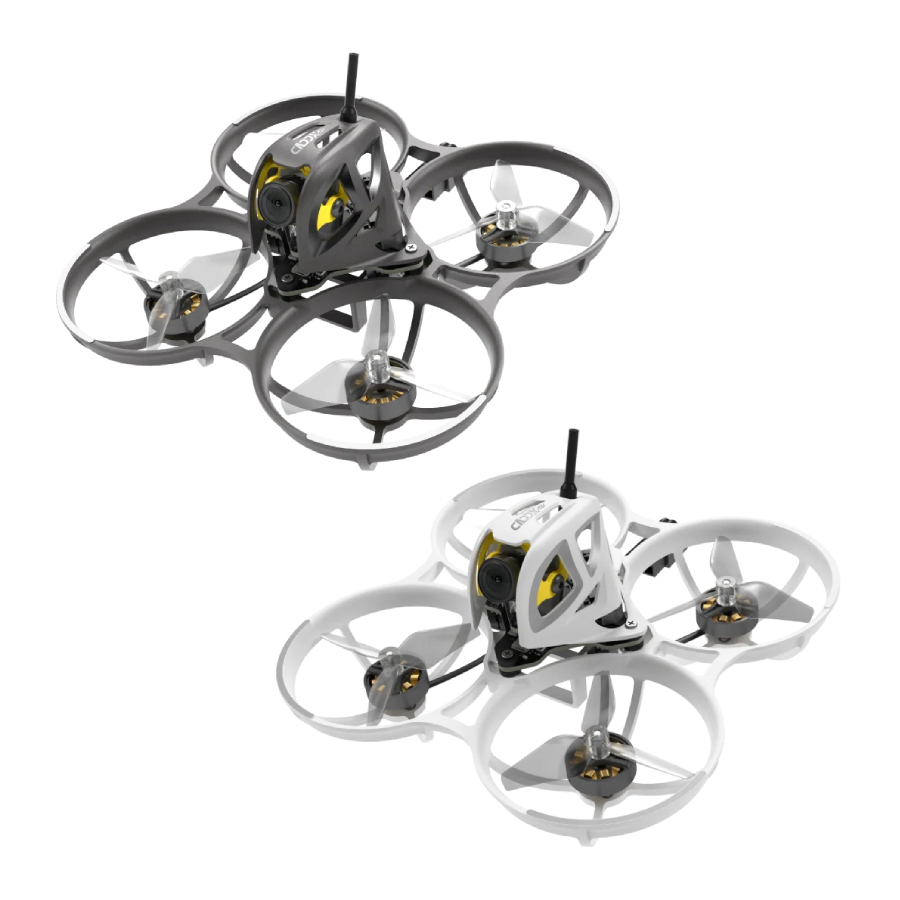

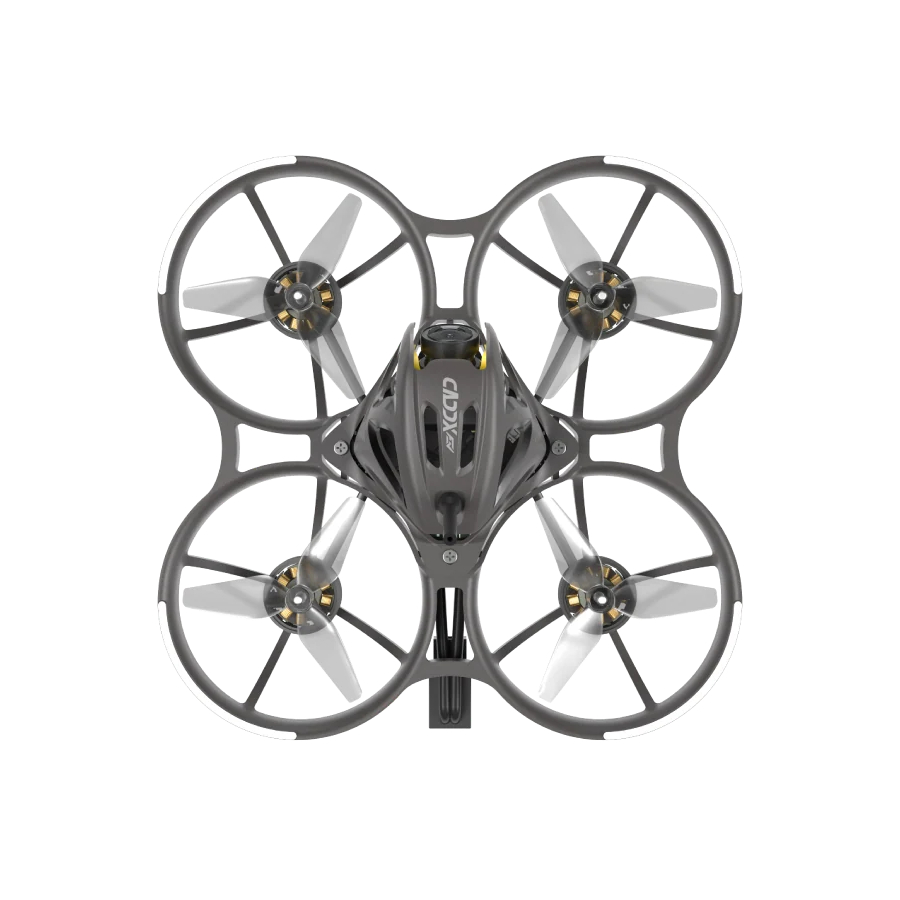

The Caddx Curve Micro 16 is a lightweight 1S digital HD FPV whoop designed for indoor flying, close-range freestyle and exploring tight spaces. Available in white or black, it combines a compact, propeller-guarded frame with brushless power and the Walksnail Ascent Lite+ digital video system, delivering high-definition FPV footage in a small, agile package.
The Ascent Lite+ system supports video at up to 1080p120fps, with a wide 147° field of view and approximately 35ms latency. A built-in microphone transmits motor and ambient sounds alongside the live video feed, adding another layer of immersion. The integrated AXON 1S AIO V2.0 flight controller and 1102 24000KV brushless motors provide responsive handling, while the onboard 2.4GHz ExpressLRS receiver offers compatibility with ELRS transmitters. The modular whoop design allows for easy upgrades or replacements when required.
Powered by a single-cell LiPo or LiHV battery, the Curve Micro 16 uses a standard A30 battery connector, which will also accommodate batteries fitted with BT2.0 connectors. 580mAh and 680mAh packs (not included) are recommended for the best flight longevity and performance. Caddx suggests a typical flight time of around 5-7 minutes, depending on the chosen battery and flying style. The included six-channel USB-C charger makes it easy to charge up to 6 batteries simultaneously, so you can have extended flying sessions.
The Curve Micro 16 HD is a speedy, agile whoop that provides HD-quality footage at a competitive price.
Features:
- Immersive digital FPV: The Ascent Lite+ video system delivers detailed HD footage with low latency for responsive flying.
- Real-time audio transmission: An integrated microphone captures motor and ambient sounds for compatible receiving equipment.
- Agile brushless performance: The compact powertrain provides responsive throttle control for tight turns, quick climbs and freestyle manoeuvres.
- Protected props: The whoop-style frame incorporates propeller guards for flying in confined spaces.
- Built-in receiver supports compatible 2.4GHz ELRS transmitters.
- Upgradeable video system: Supports compatible Walksnail Ascent Lite, Ascent Lite+ and Avatar 1S video transmitter modules, as well as suitable third-party options.
- Firmware updates: The USB-C connection supports firmware updates using CADDX PC Tool.
- Multi-battery charging: The included six-channel charger can charge multiple compatible 1S batteries.
Specification:
- Model: Caddx Curve Micro 16
- Frame type: Micro HD FPV whoop
- Weight: 48g
- Wheelbase: 75mm
- Video transmitter: Walksnail Ascent Lite+
- Video frequency: 5.730–5.815GHz
- Maximum video transmission power: 500mW
- Video resolutions and frame rates: 1080p at 60/100/120fps; 720p at 60/100/120fps
- Camera sensor: 1/2.8-inch
- Field of view: 147°
- Typical video latency: Approximately 35ms
- Flight controller: AXON 1S AIO V2.0
- Flight controller processor: STM32G473
- Gyroscope: ICM42688 / BMI270 (depending on manufacturer batch)
- ESC rating: 12A continuous, 18A peak
- Motors: 1102, 24000KV
- Propellers: HQ 40mm, 1.6x1x3
- Receiver: 2.4GHz ExpressLRS
- Compatible Battery type: 1S LiPo/LiHV
- Battery connector: A30 (will also accomodate BT2.0 batteries)
- Recommended battery (not included): 580/680mAh
- Manufacturer Typical flight time: Approximately 5–7 minutes

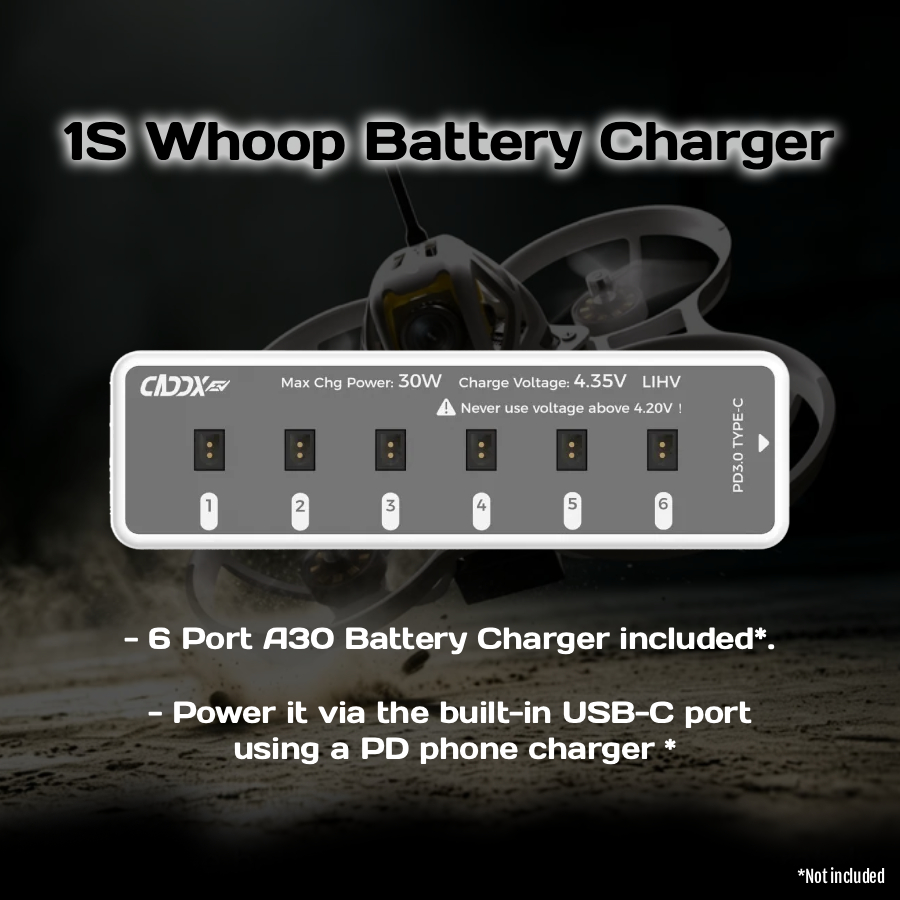

Included Caddx 6 Channel Charger:
- Power input: 5-12V USB-C
- Maximum input power: 30W
- Maximum charge current: 1A per channel

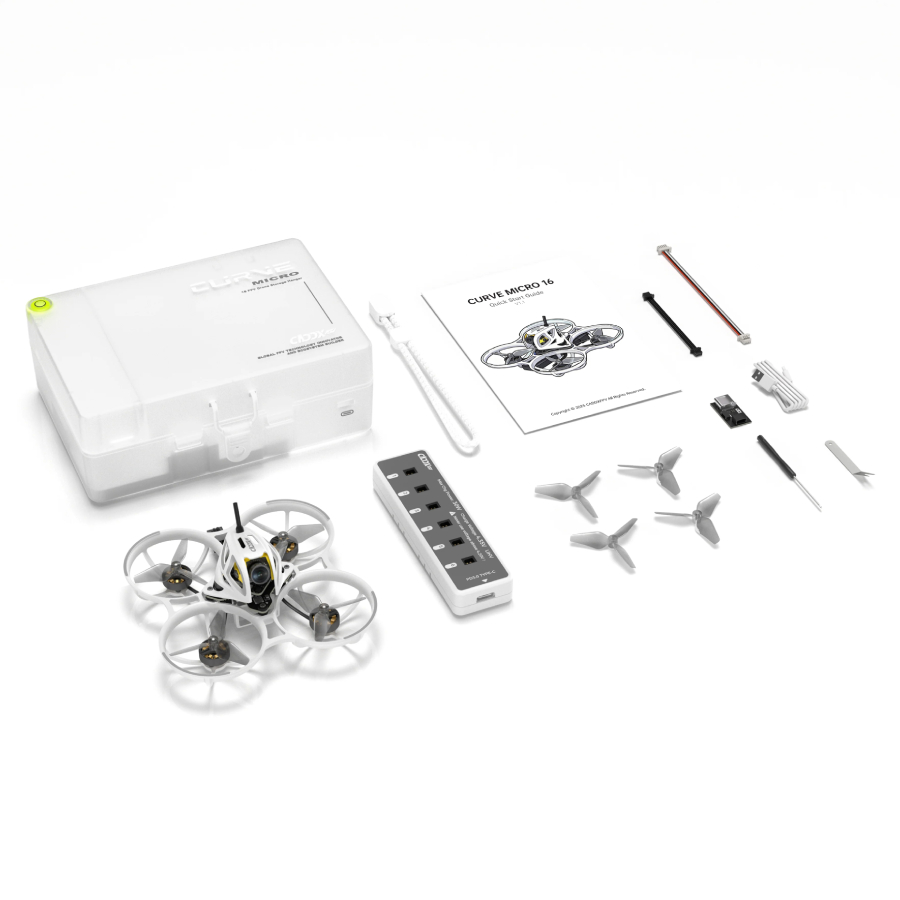

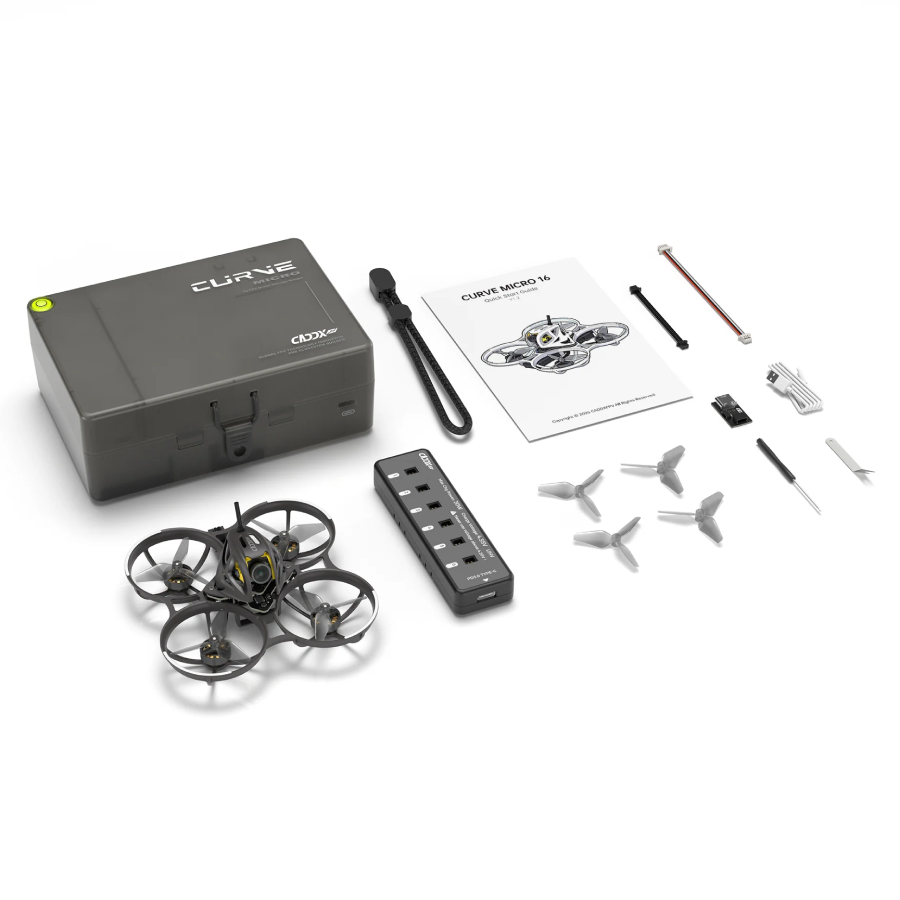

Included:
- 1x Caddx Curve Micro 16
- 1x Caddx 6 Channel Charger
- Accessories
