Overview:

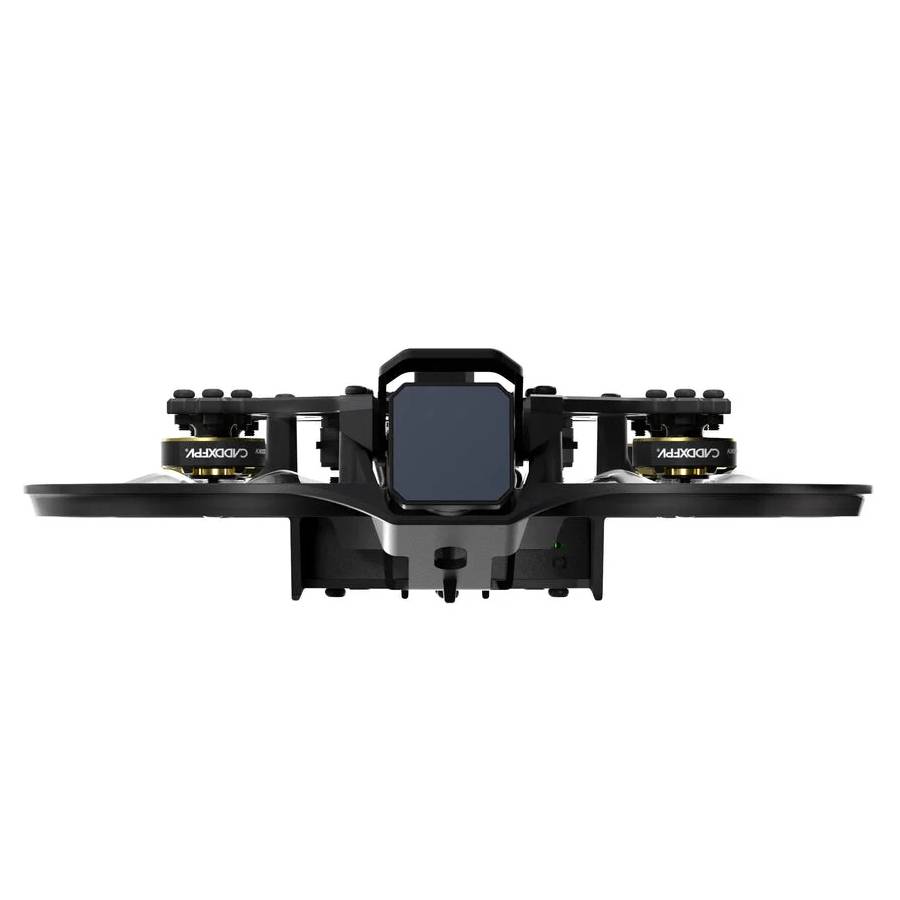

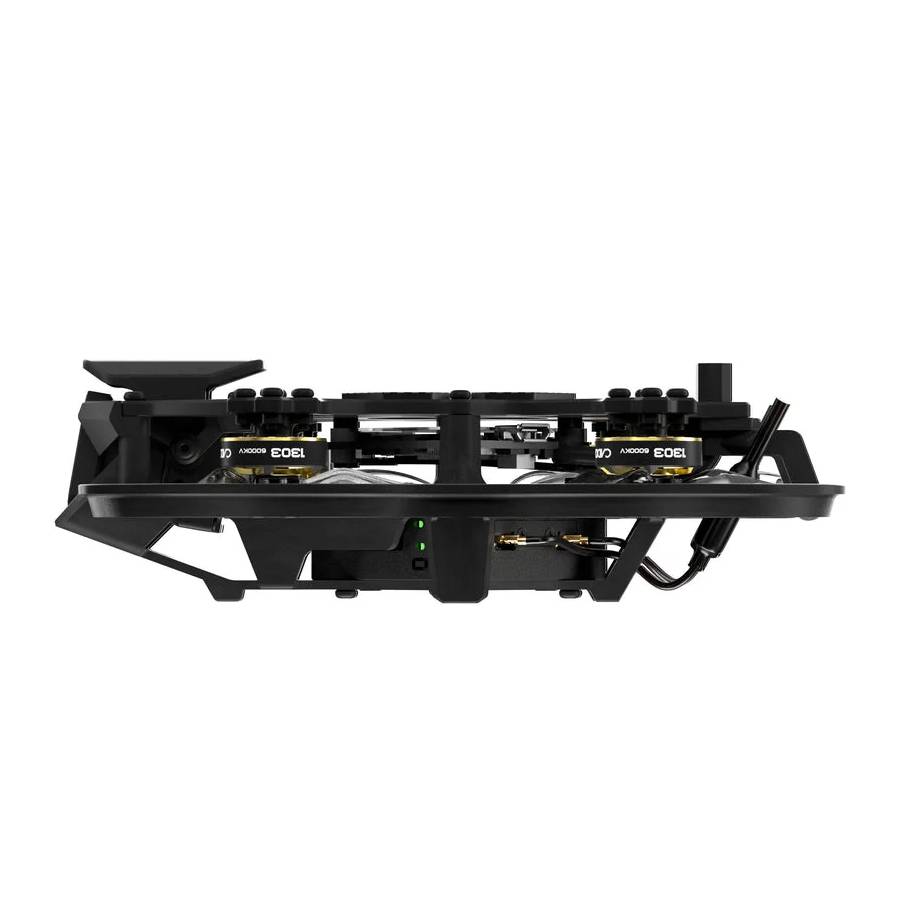

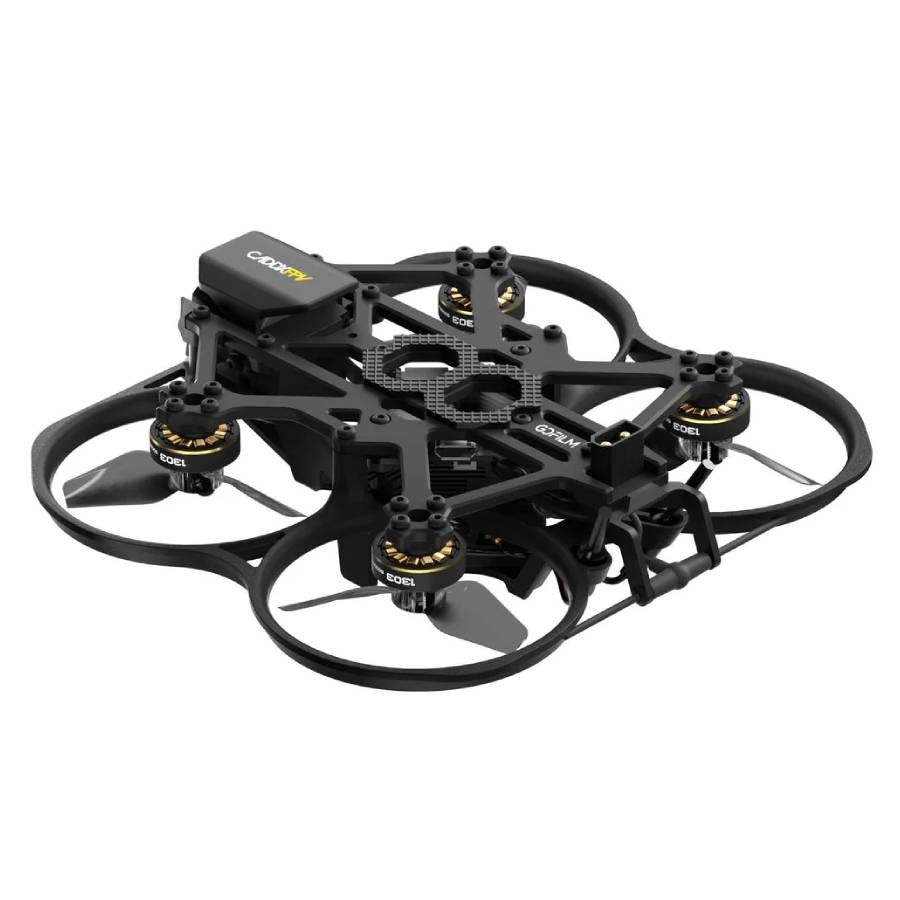

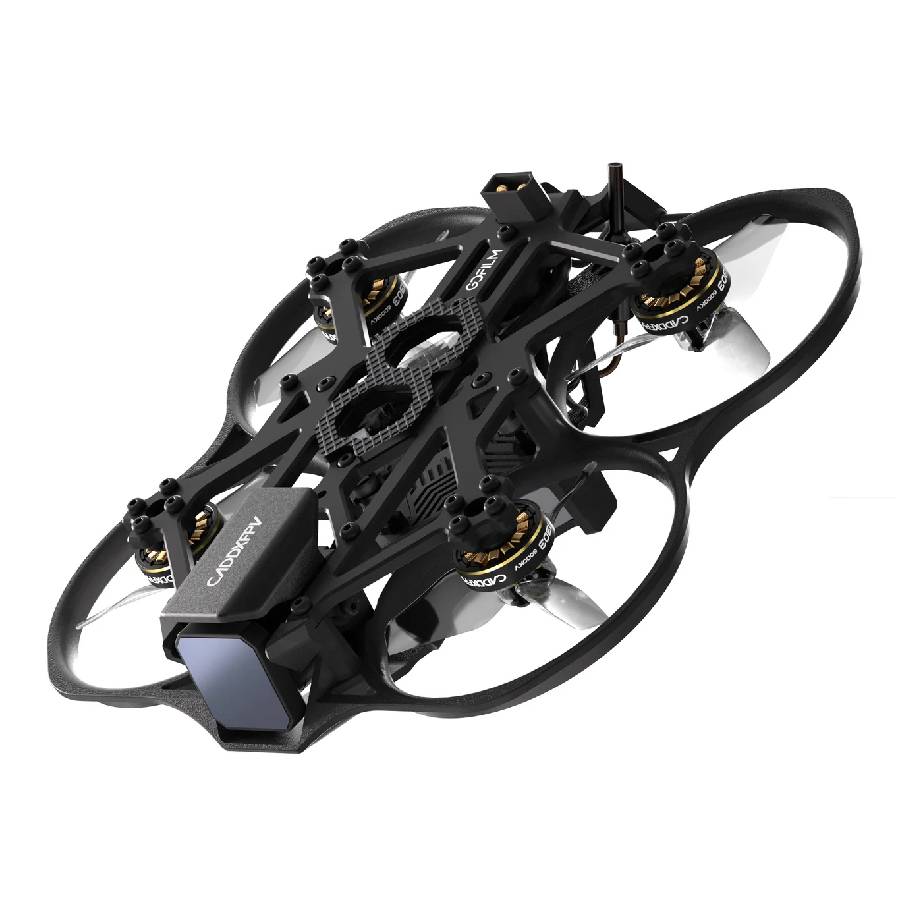

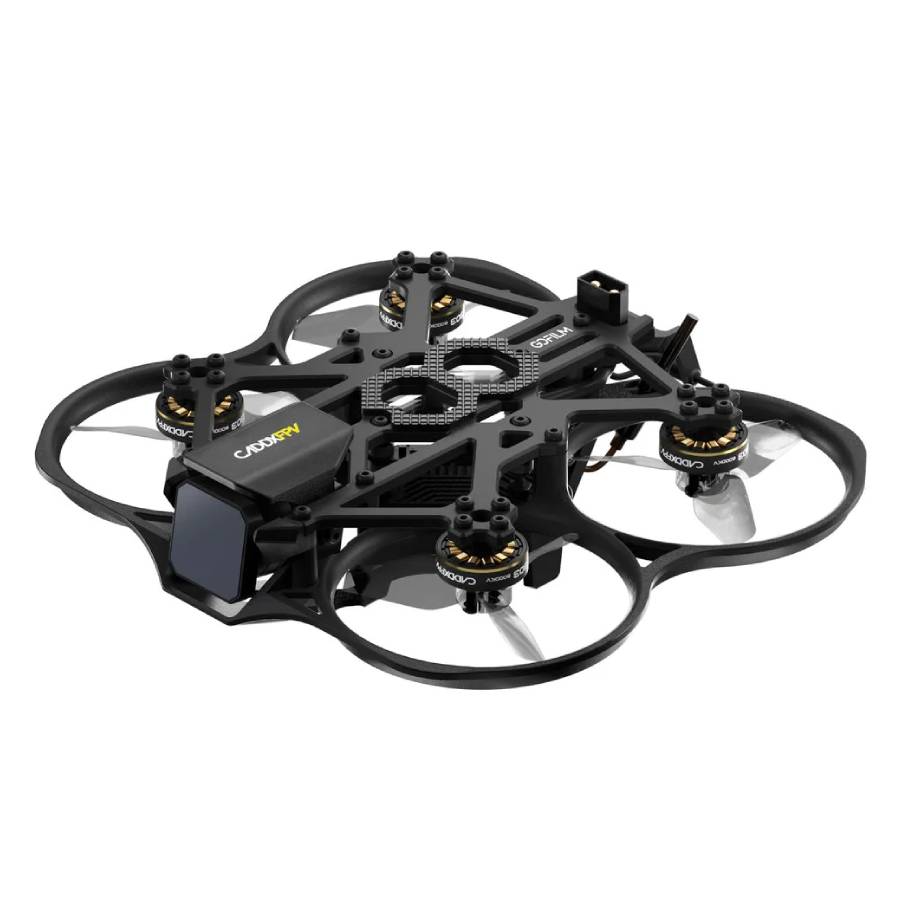

The GoFilm 20 is CaddxFPV’s first ready-to-fly 4K digital cinewhoop drone, designed for capturing cinematic aerial footage with high agility and low latency. At just 115 g and with a compact 94 mm wheelbase, it strikes an excellent balance between portability and performance.
It features built-in electronic image stabilisation (EIS), and Gyroflow compatibility - all integrated on an AIO flight controller with ExpressLRS for reliable, responsive control.
Capture the night as vividly as the day...
Equipped with the groundbreaking Walksnail Moonlight VTX system, the Gofilm 20 delivers outstanding image stability and clarity, even in low-light conditions. Its support for 4K/60fps video ensures that every frame is not just seen but felt, pushing the boundaries of high-definition FPV experiences.
Features:
- Lightweight and compact cinewhoop
- Under 250g (including battery) for compliance with sub-250g regulations
- Vibration-damped camera mount helps reduce vibration artefacts in recorded footage
- Digital video system with low-latency FPV and onboard 4K@60 fps recording
- Built-in electronic image stabilisation with Gyroflow log output
- Factory-integrated Walksnail system and ExpressLRS receiver for true plug-and-fly convenience
- Ideal for close-proximity and cinematic FPV flying
Specifications:
- Model: CaddxFPV GoFilm 20
- Wheelbase: 94mm
- Weight: Approx. ~115g
- Dimensions: 133 × 123 × 39mm
- Motors: 1303 6000KV brushless motors
- Propellers: HQProp T2×2×3 tri‑blade
- Flight Controller: CaddxF4_AIO (STM32F405 MCU, ICM42688 gyro, BMP280 barometer, 8 MB blackbox, 20 A 4‑in‑1 ESC)
- Receiver: ExpressLRS 2.4 GHz (UART integrated)
- VTX/Camera: Walksnail Moonlight Kit:
Resolution: 4K@60fps onboard recording
Field of View: 160°
Supports EIS and Gyroflow
External microSD slot (max 256 GB U3)
- Power Input: 2S–4S LiPo (XT30 connector)
- Recommended Battery: 4S 650 mAh (approx. 5.5 minutes flight time)
- Frame Weight: Approx. 30.5g
- Mounting Patterns: FC: 25.5×25.5mm, VTX: 20×20mm or 25×25mm

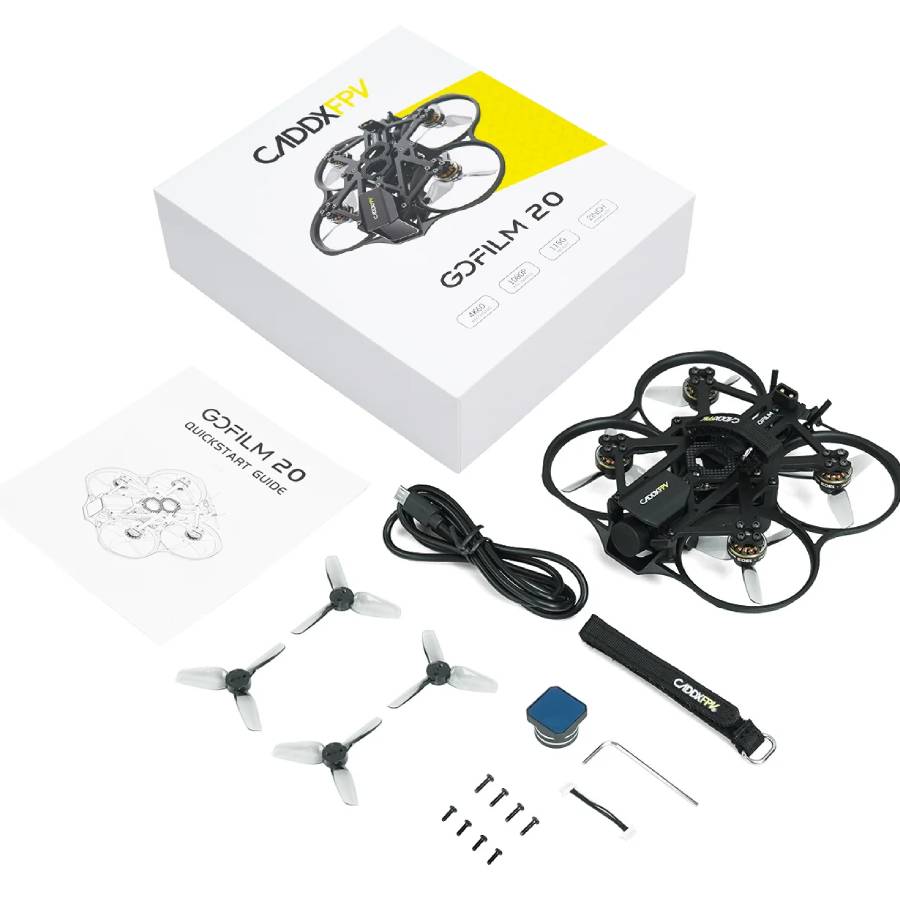

Included:
- 1x CaddxFPV GoFilm 20
- Accessories
