Overview:
The DeepSpace Raven5 is a lightweight 5-inch FPV racing frame designed for pilots building a compact, responsive quad for competitive racing and fast-paced flight. Its 190mm wheelbase and compact central structure provide a streamlined platform for a dedicated racing build.
Constructed from T700 carbon fibre, the Raven5 features 5mm-thick arms and an interlocking arm design intended to minimise movement at the frame joints. The layout also allows the flight controller stack to be positioned forwards or backwards during assembly, helping builders optimise the internal arrangement.
The frame accommodates standard 20×20mm flight controller and ESC stacks, with a dedicated receiver channel and antenna mounting position to keep the installation organised. 2207 motors using a 16x16mm mounting pattern are recommended.
Features:
- Racing-focused design: Compact frame layout suited to competitive 5-inch FPV racing.
- Interlocking arms: Designed to minimise movement between the arms and central frame structure.

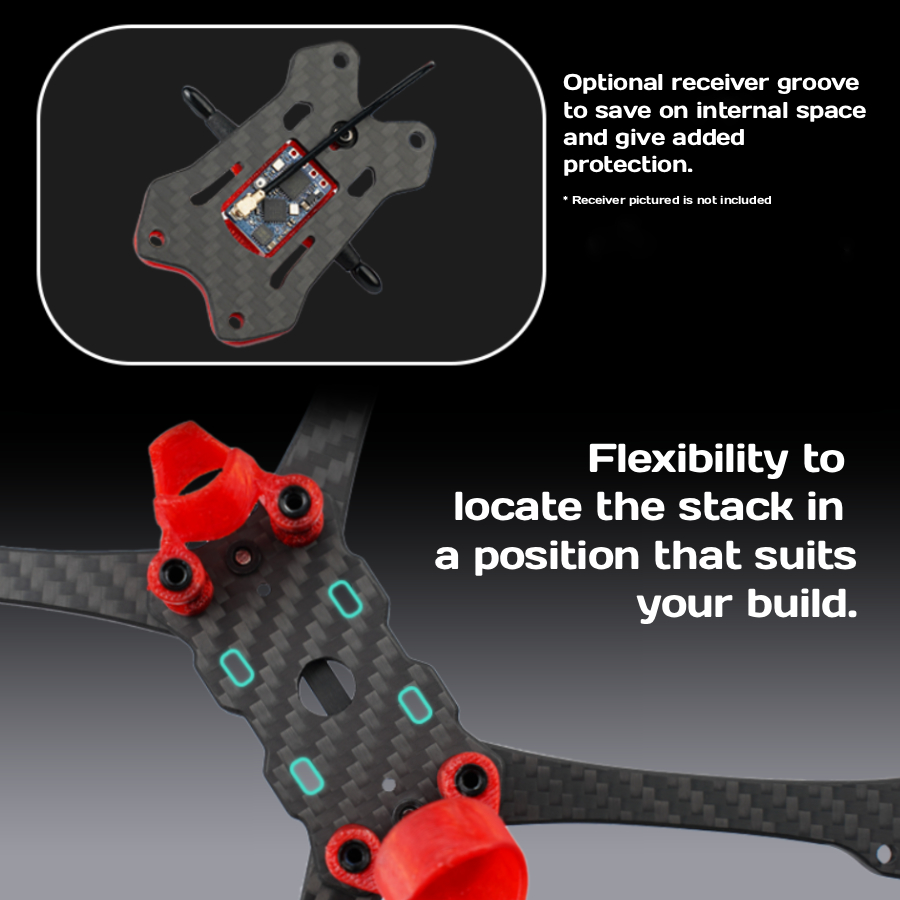

- Adjustable stack positioning: Allows the electronics stack to be moved forwards or backwards to suit the build.
- Dedicated receiver channel: Provides a designated space for receiver installation without occupying the main electronics area.

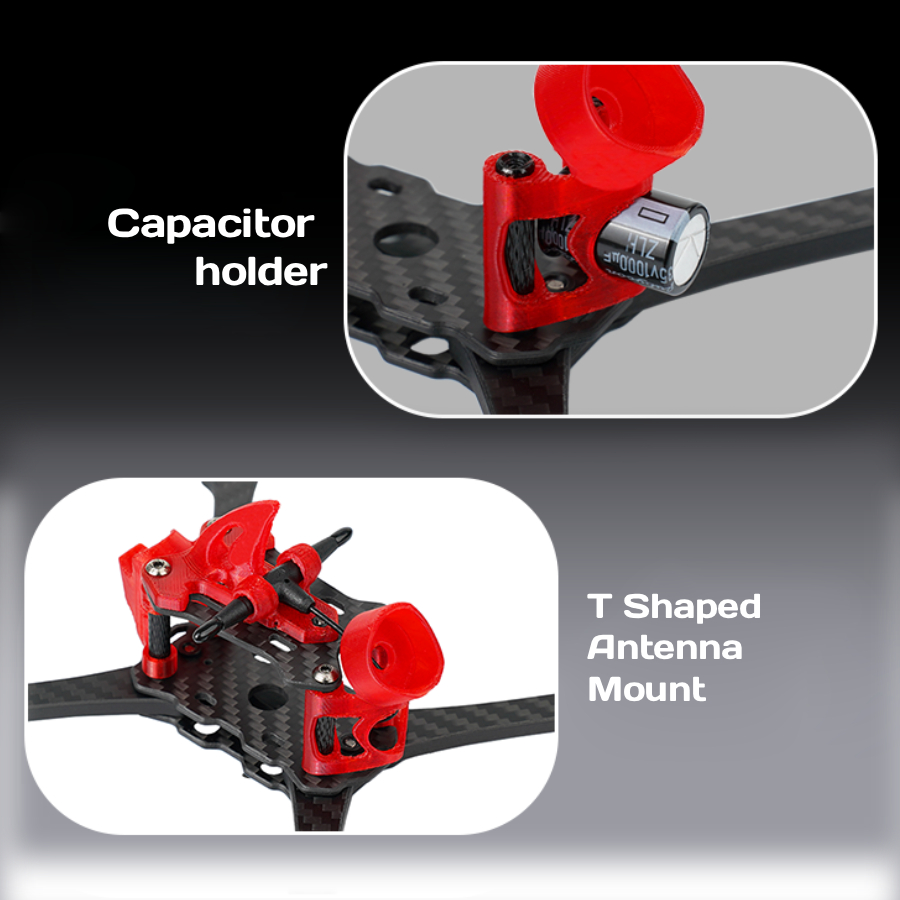

- Integrated capacitor mounting: Secures the capacitor within the frame, supporting components rated up to 35V and 1000µF.
- Dedicated antenna mount: T-shaped mounting position simplifies antenna installation and replacement.
- Replaceable arms: Individual arms can be replaced without changing the complete frame.
- Camera support: Includes a TPU camera pad to help cushion the camera installation.
- Battery retention: Supplied with a non-slip battery pad and strap.
Specification:
- Model: DeepSpace Raven5 Racing
- Frame type: 5" FPV racing frame
- Wheelbase: 190mm
- Frame material: T700 carbon fibre
- Arm thickness: 5mm
- Top plate thickness: 2mm
- Middle plate thickness: 2mm
- Bottom plate thickness: 2mm
- Weight: 56.6g, excluding TPU parts
- Maximum propeller size: 5.1inch
- Motor mounting pattern: 16×16mm, M3
- Flight controller/ESC and VTX mounting: 20×20mm, M3
- Camera width: 14mm
Included:
- 1x DeepSpace Raven5 Racing FPV Frame Kit
