Overview:

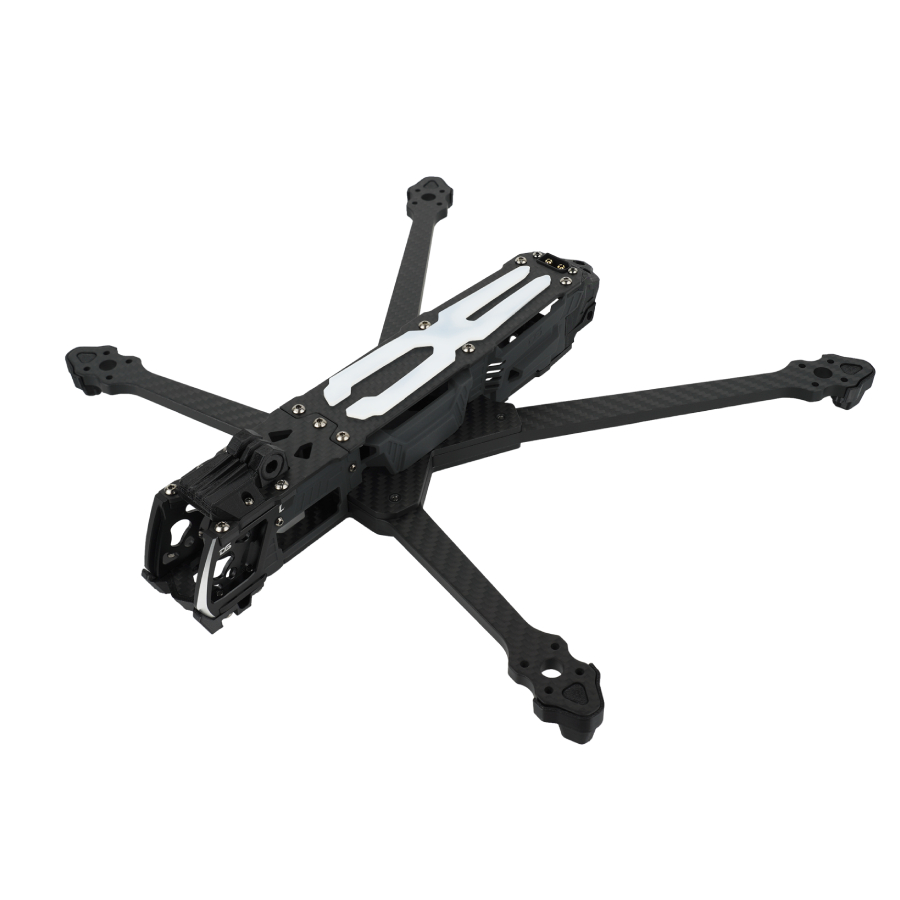

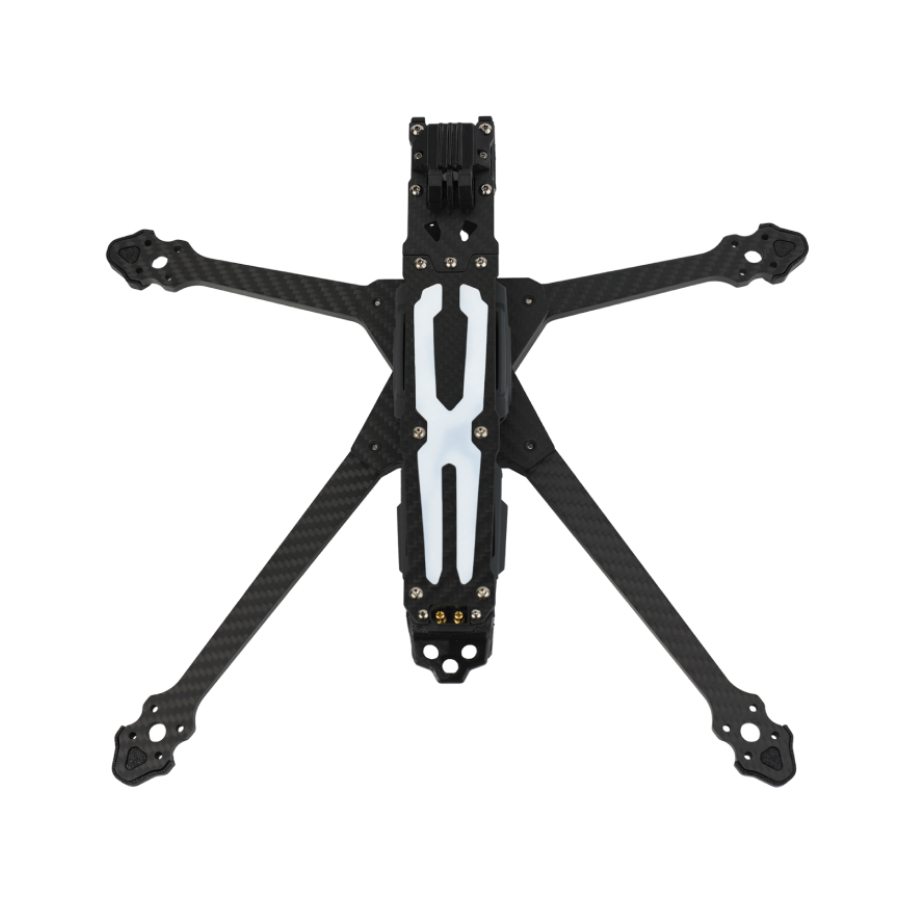

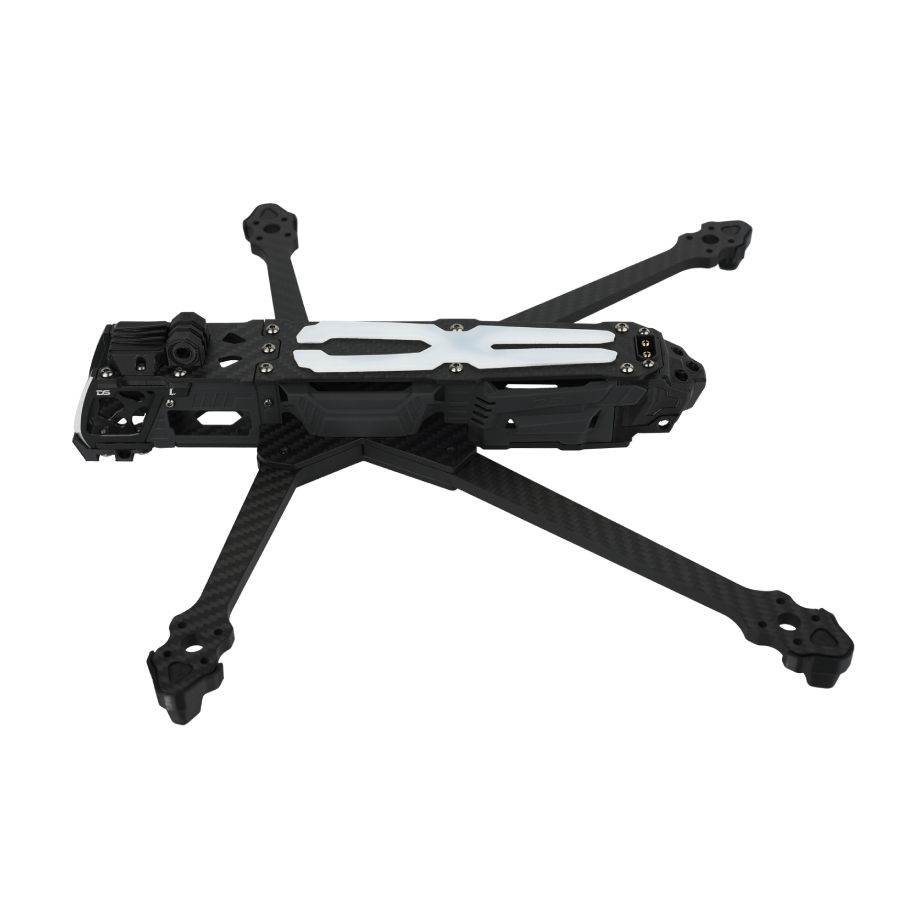

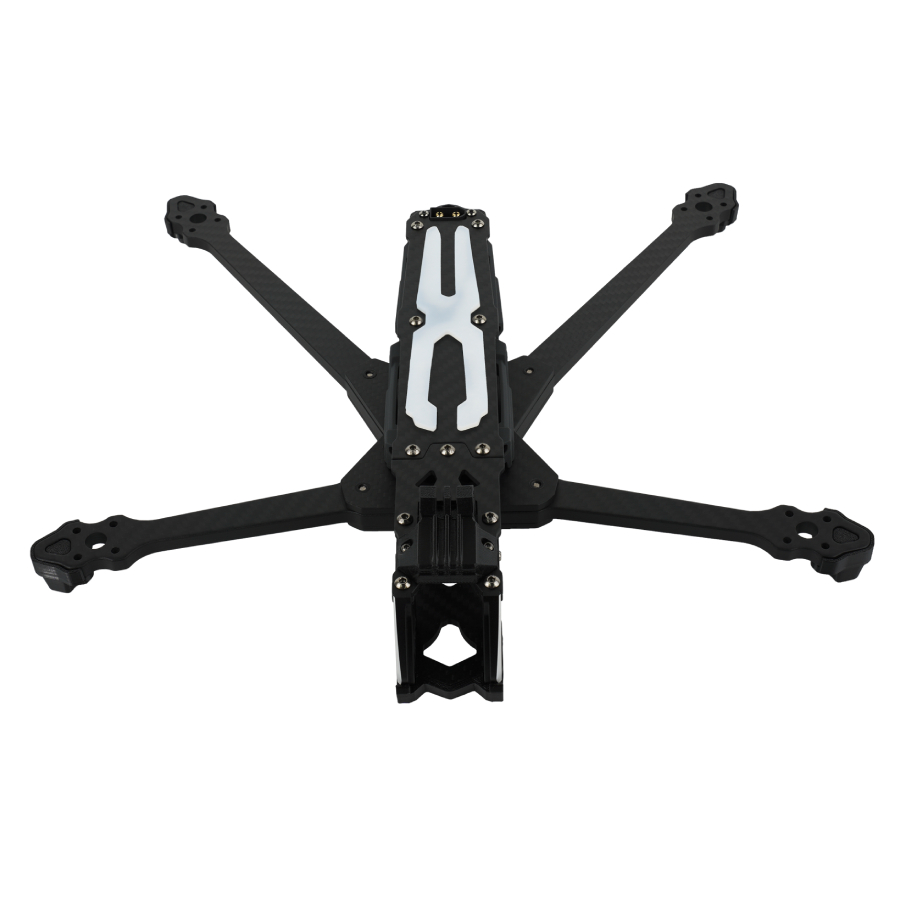

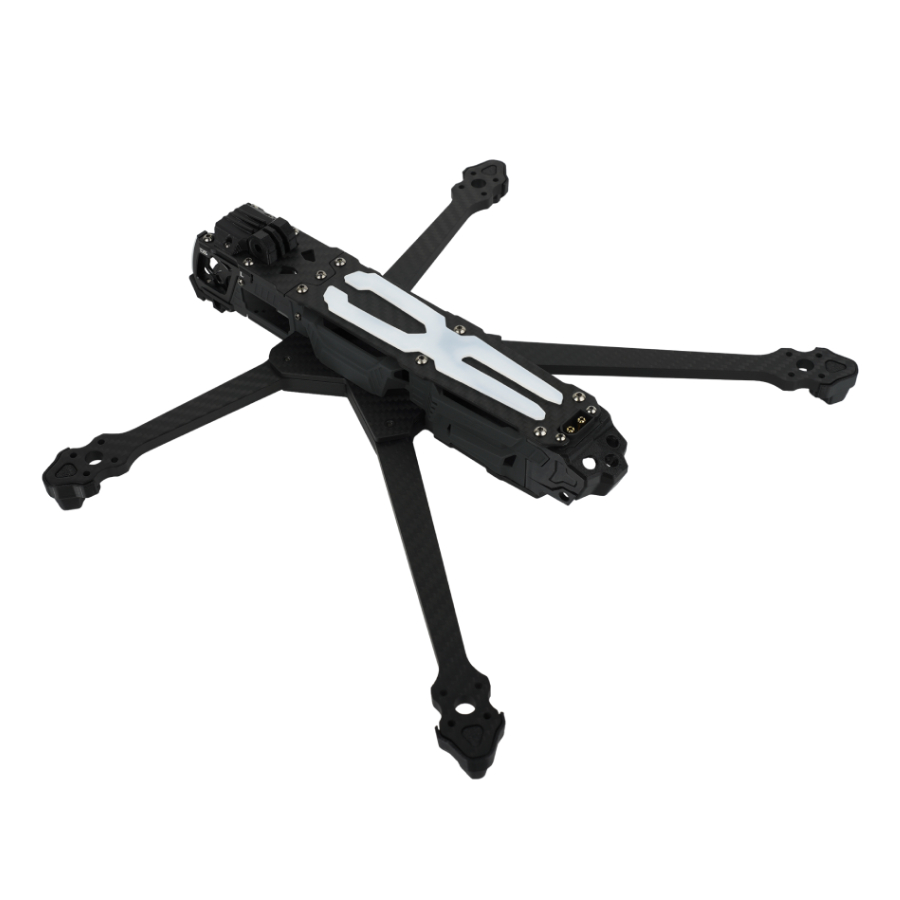

The DeepSpace ROC 7 is a 7-inch Dead Cat FPV frame designed for long-range cruising and capturing cinematic flights. Its offset front-motor geometry keeps the propellers out of the camera's field of view, making it a practical choice for pilots prioritising unobstructed aerial footage from a camera such as a DJI O4 Pro.
Constructed from T700 carbon fibre, the ROC 7 features 6mm-thick arms and a spacious central frame layout for larger batteries and onboard electronics. The front-mounted GPS and video transmitter layout helps distance them from the rear of the frame, while CNC-machined aluminium camera plates provide a dedicated mounting structure for your chosen camera.
The frame supports both 20×20mm and 30.5×30.5mm stacks, making it suitable for both analogue and digital FPV systems, including the DJI O4 Pro Air Unit. Its extended battery space accommodates larger packs suited to endurance flights.
If you are looking for a frame designed as a long-range cruiser and built to carry a DJI O4 Pro, this frame is the frame you've been looking for!
Features:
- Dead Cat geometry: Positions the front motors away from the camera's main field of view to help keep propellers out of footage.

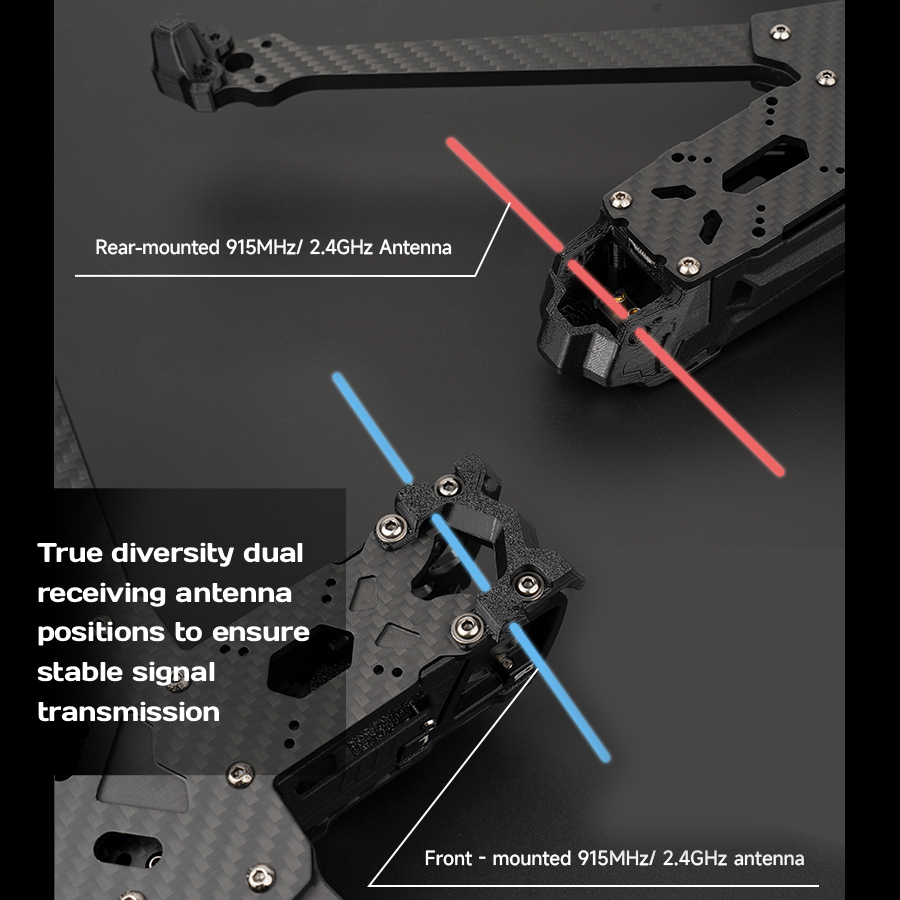

- Long-range layout: Provides room for GPS, video-transmission hardware and larger-capacity batteries.

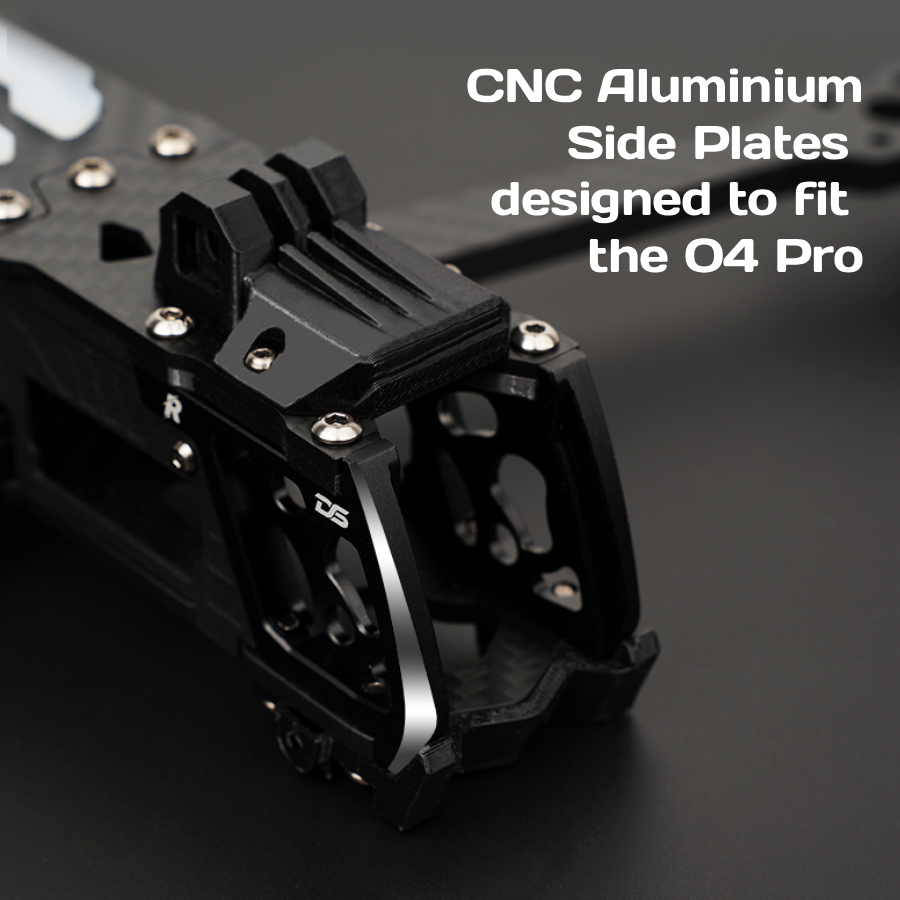

- CNC-machined aluminium camera plates: Provide a dedicated mounting structure for the FPV camera.

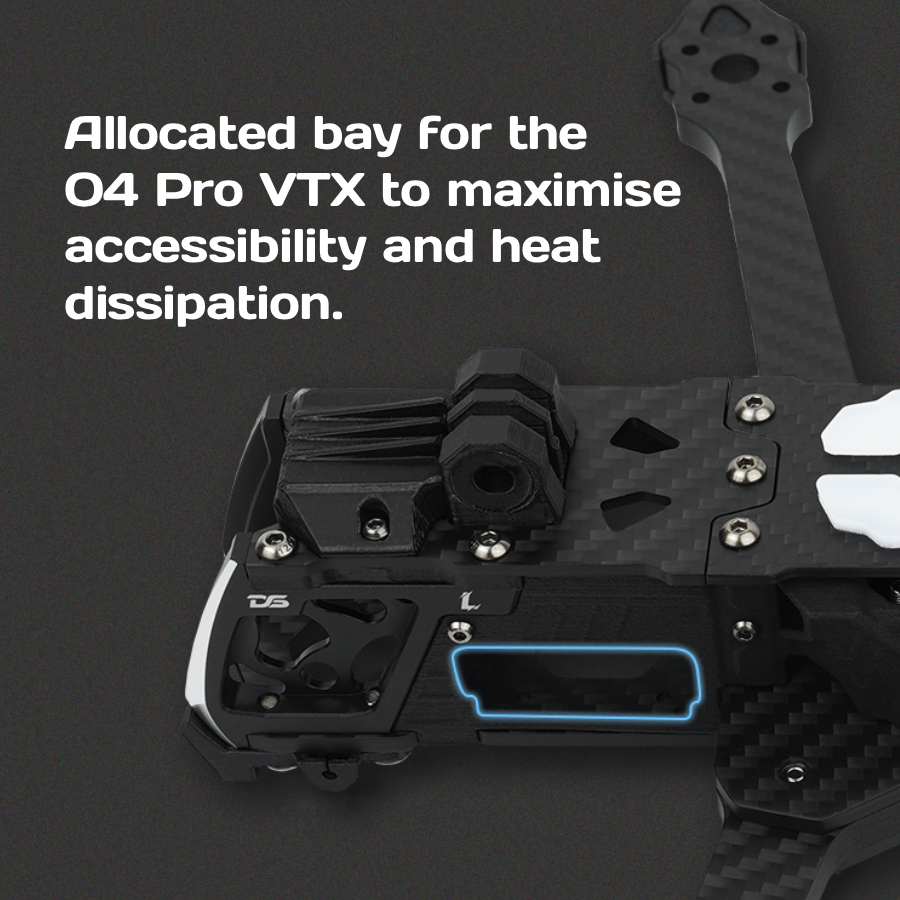

- Front-mounted video transmitter position: Separates the VTX installation from other components within the frame.

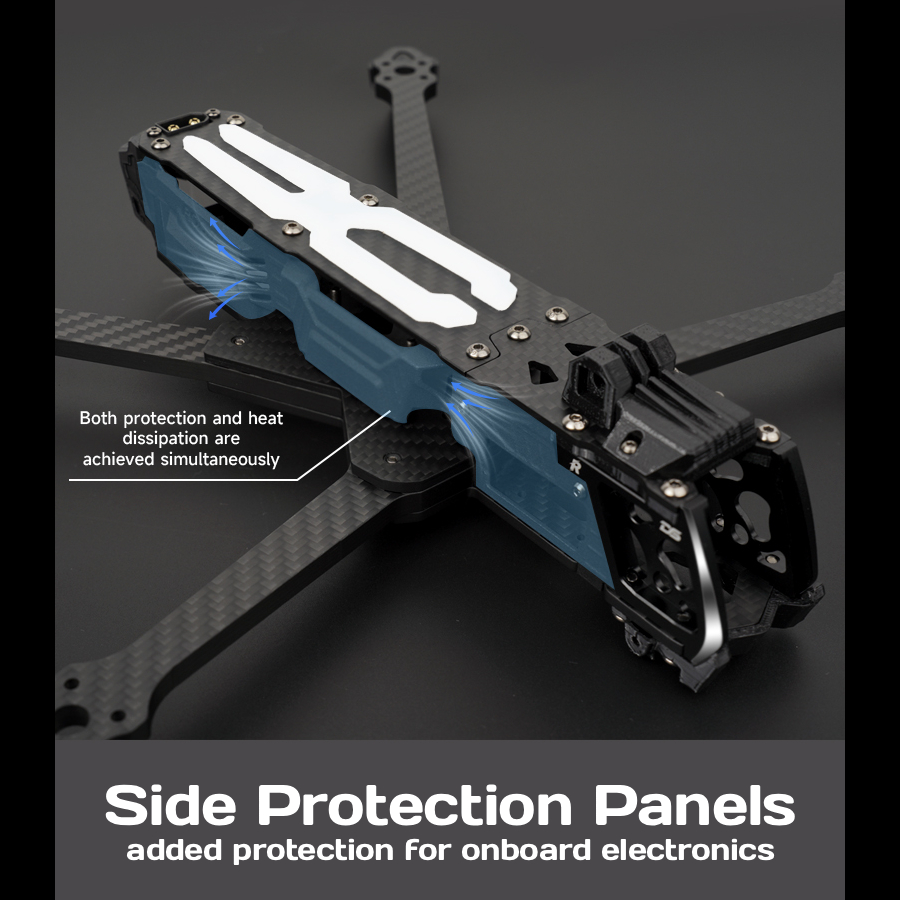

- Through-type side panels: Help support the central frame structure and organise the internal layout.
- Flexible electronics installation: Supports common stack formats, giving builders flexibility when selecting flight-control hardware.
- Digital and analogue FPV compatibility: Suitable for a range of video systems, including DJI O4 Pro.
- Replaceable frame components: The kit-based construction allows damaged or worn frame parts to be replaced individually where spares are available.
Specification:
- Model: DeepSpace ROC 7
- Frame type: 7" Dead Cat FPV
- Material: T700 carbon fibre
- Wheelbase: 322mm
- Weight: Approximately 300g
- Maximum propeller size: 7.5inch
- Arm thickness: 6mm
- Top plate thickness: 2mm
- Middle plate thickness: 3mm
- Bottom plate thickness: 3mm
- Motor mounting pattern: 19×19mm, M3
- Flight controller/ESC mounting: 20×20mm and 30.5×30.5mm, M3
- Camera mounting width: 19mm or 20mm, M2

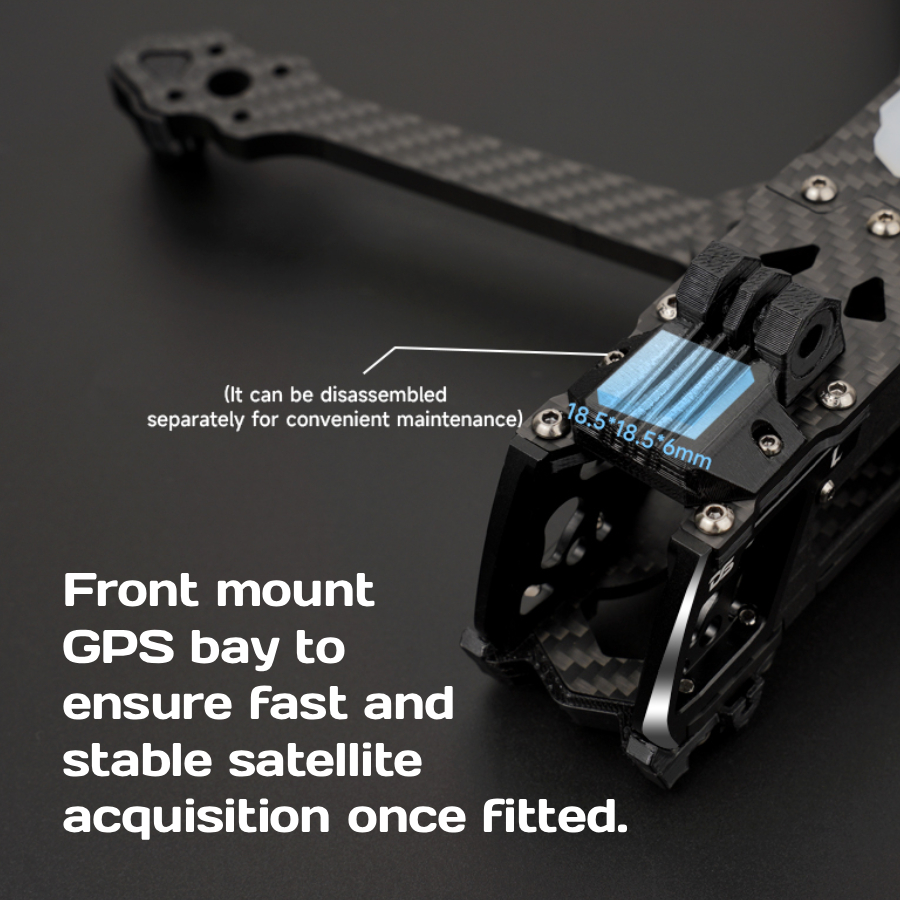

- GPS mounting: Suitable for 18.5×18.5mm modules

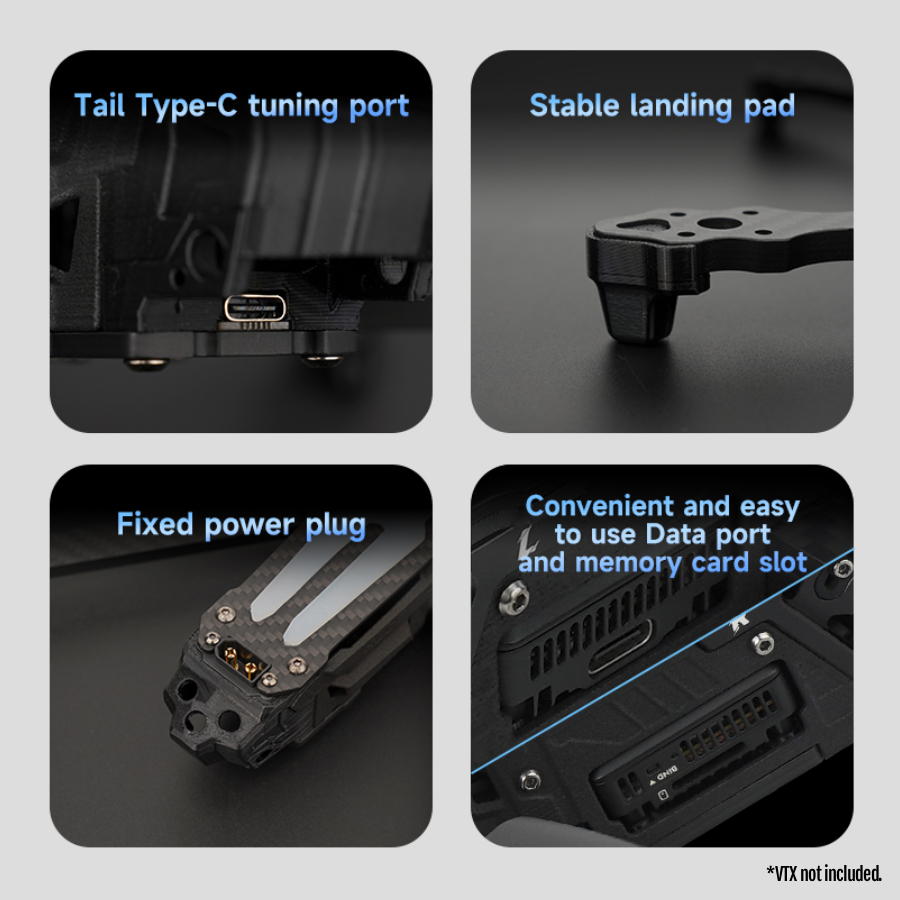

- Battery connector: XT60
- Maximum battery dimensions: 160×60mm- Recommended motors: 2807 1350KV
- Recommended battery options: 6S 3300mAh LiPo or 6S 8000mAh Li-ion
Included:
- 1x DeepSpace ROC 7 Dead Cat FPV Frame
