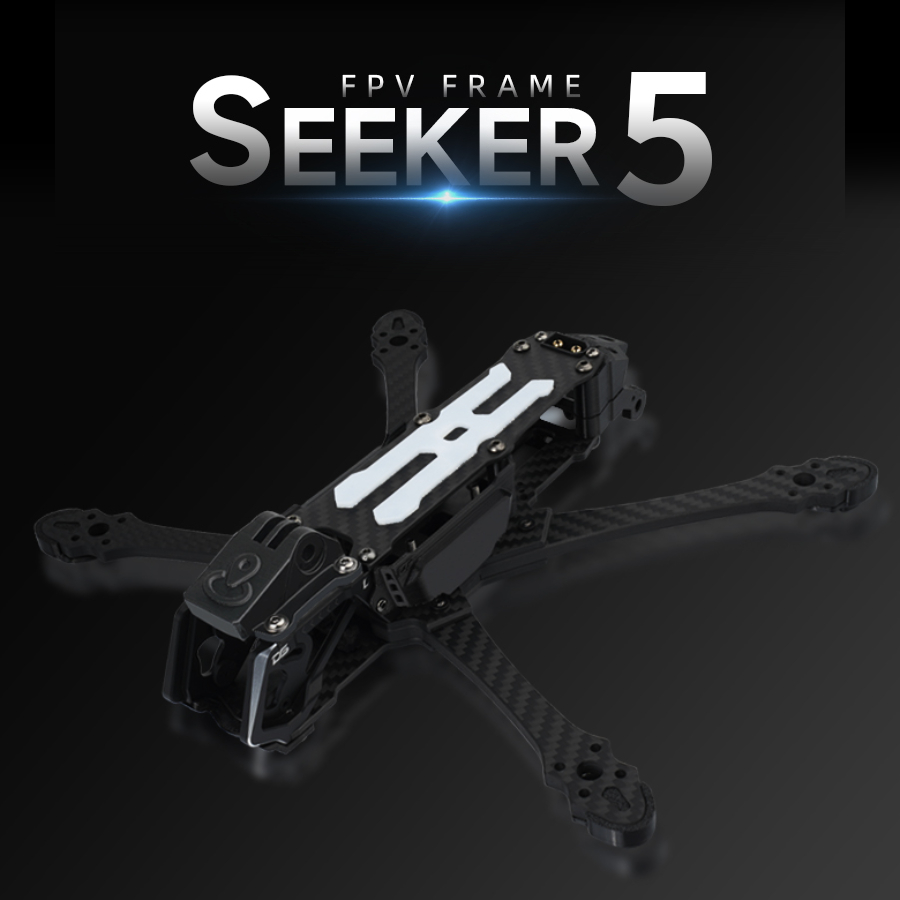

DeepSpace Seeker 5 DC Frame

Overview:

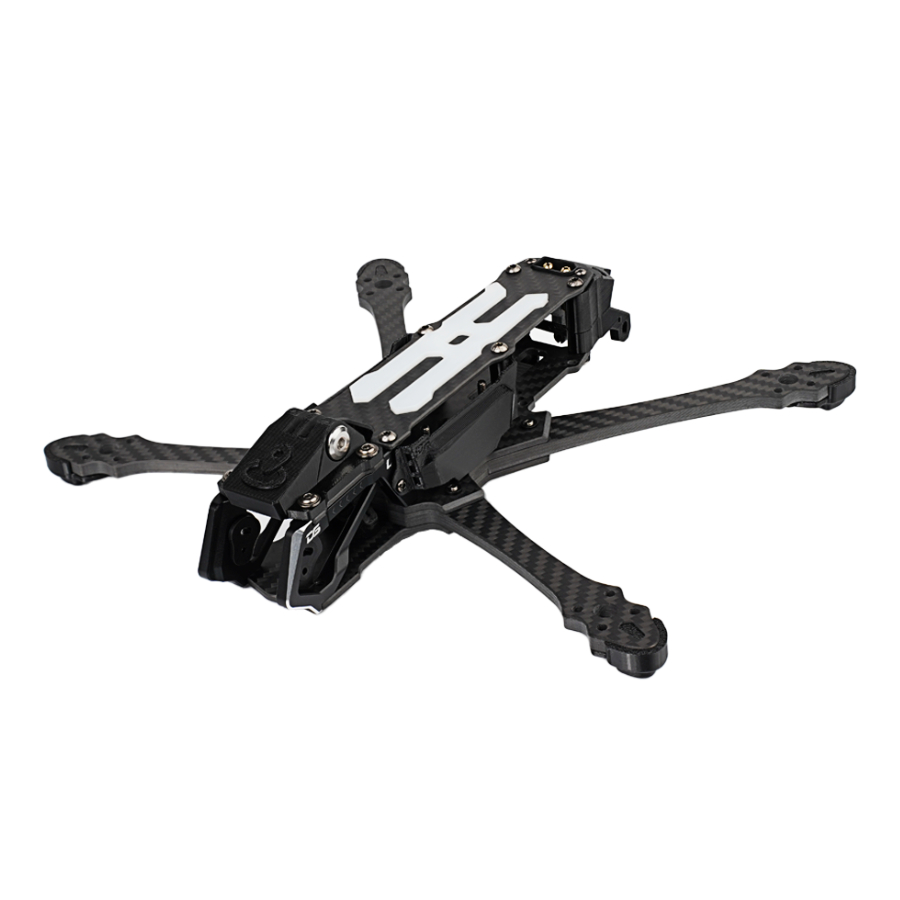

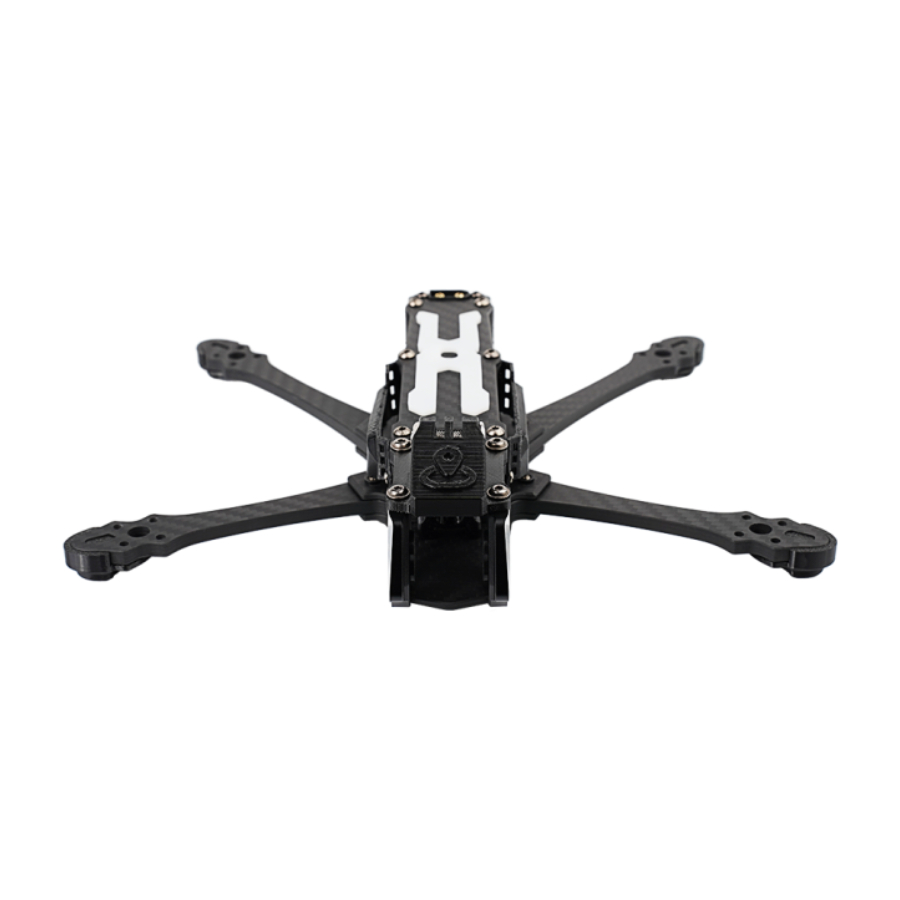

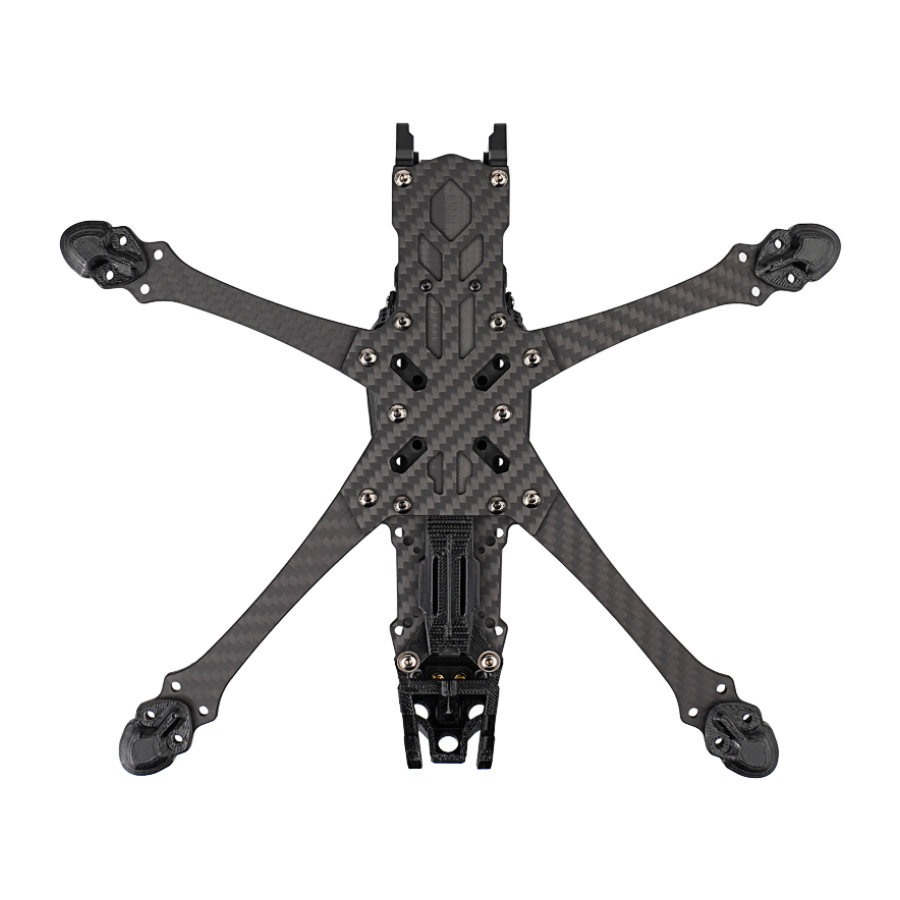

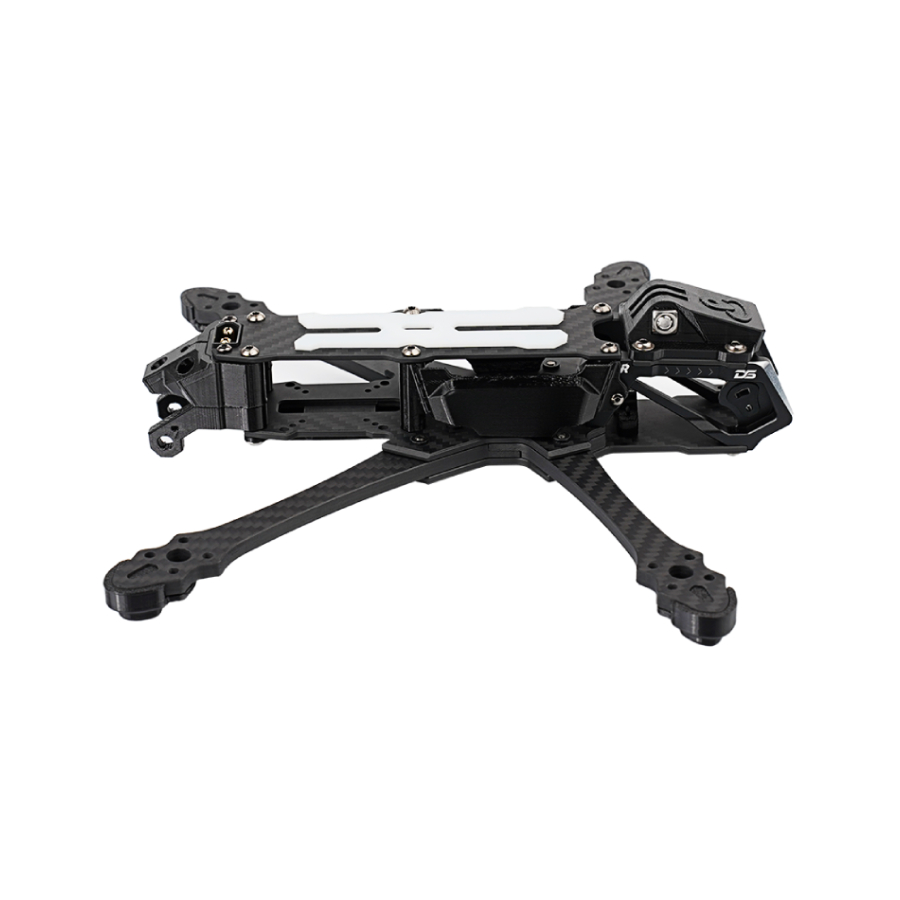

The DeepSpace Seeker 5 DC is a 5-inch FPV frame designed for cinematic flying and builds where keeping propellers out of the camera view is a priority. Its Dead Cat geometry positions the front motors further out of the camera's field of view, making it well suited to clean FPV aerial footage.

Constructed from T700 carbon fibre, the frame combines 5mm-thick arms with CNC-machined aluminium camera side plates. Silicone damping pads help isolate camera vibrations, while the front-mounted GPS (not included) position and rear-mounted XT60 battery connector provide a practical and clean layout.

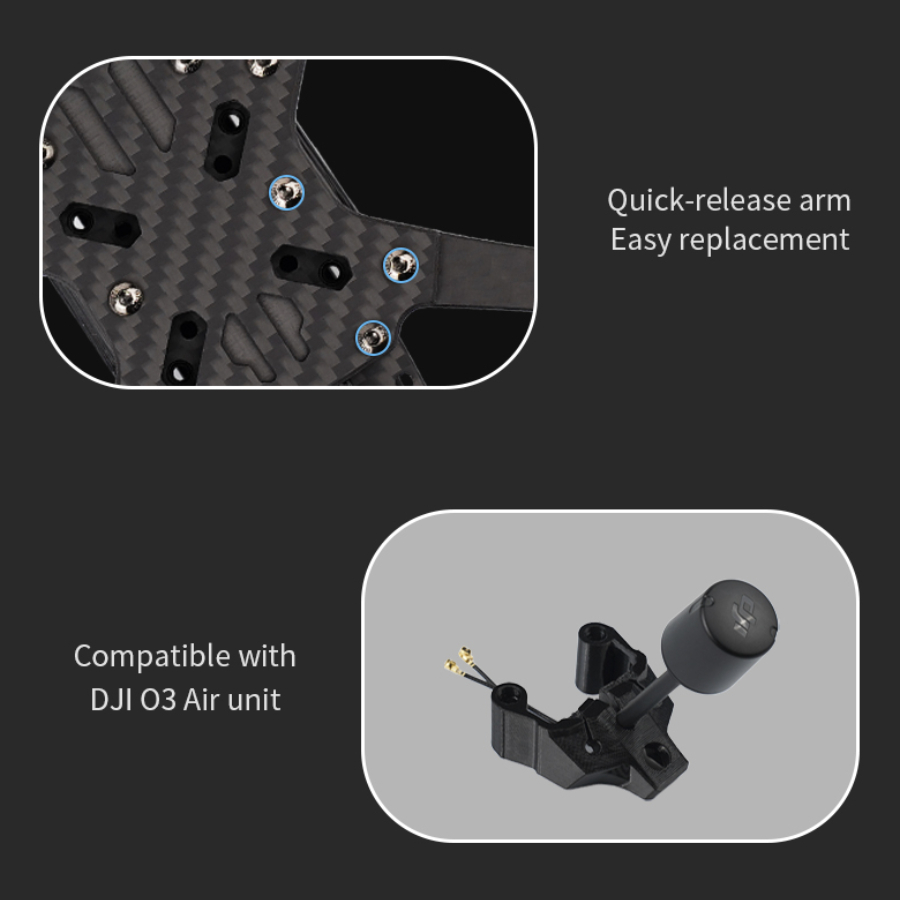

The Seeker 5 DC supports a range of analogue and digital FPV systems, including DJI O4 Pro and O3 Air Units. Multiple mounting patterns accommodate common flight controller stacks and video transmitters, giving you flexibility when selecting your electronics.

Features:

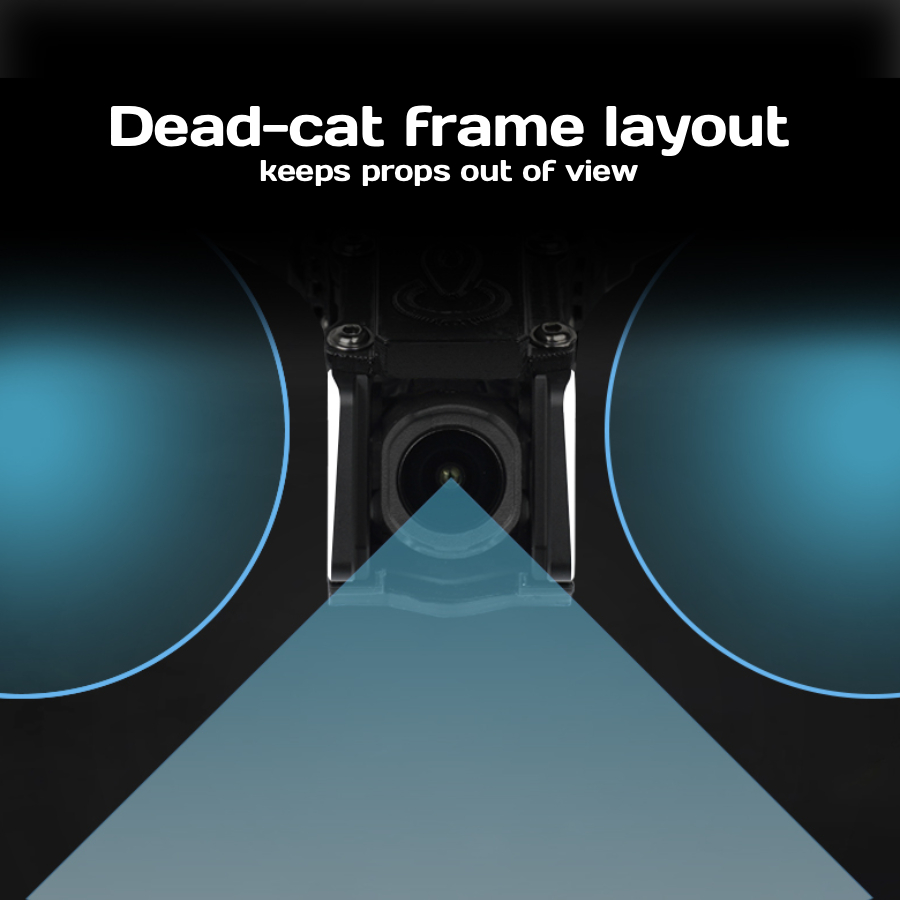

- Dead Cat geometry helps keep propellers out of the camera's field of view.

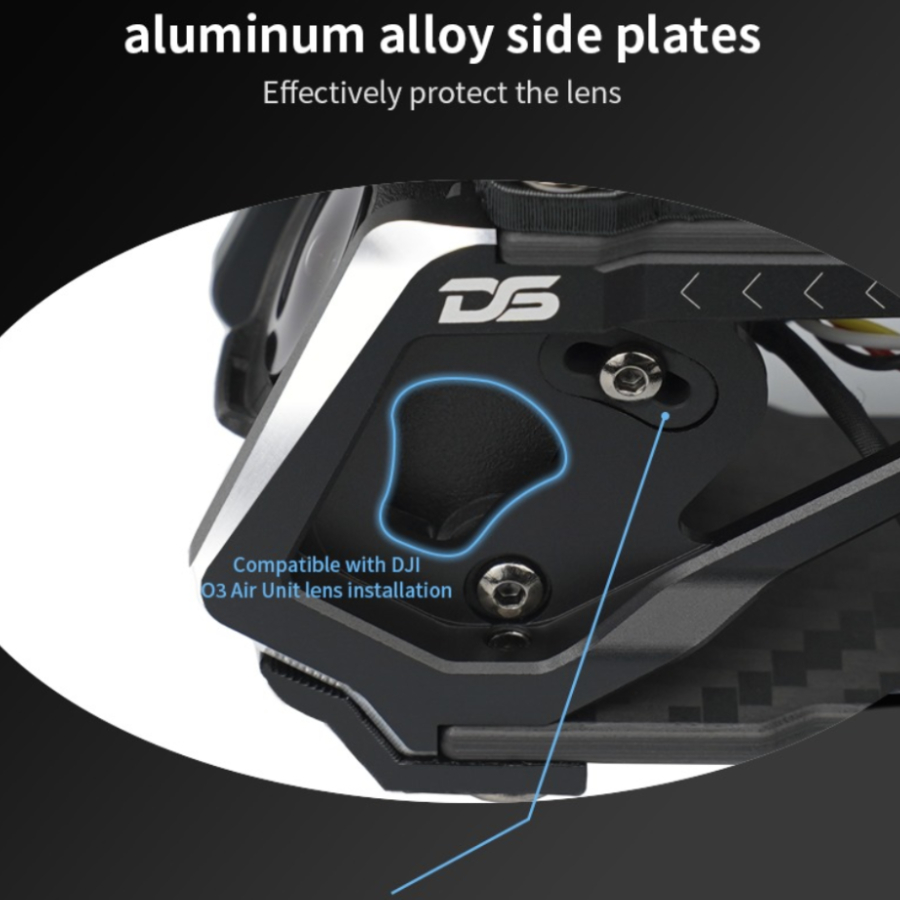

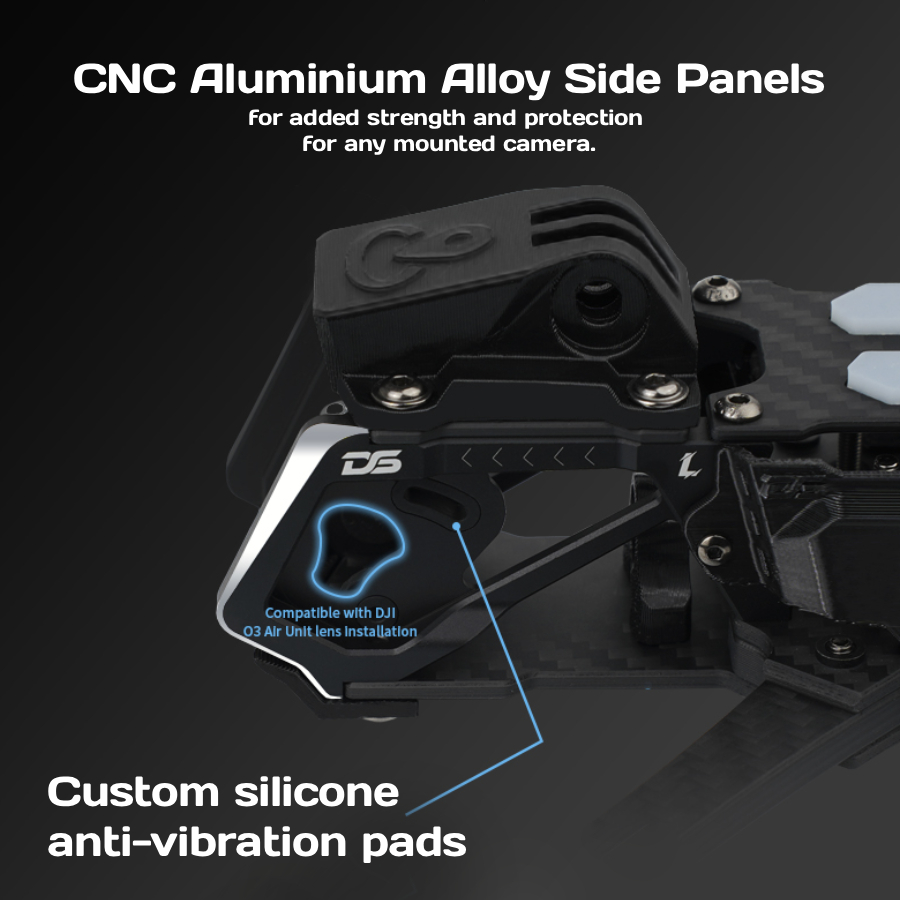

- CNC-machined aluminium camera side plates provide a rigid camera mounting structure and added protection.
- Silicone camera damping helps reduce high-frequency vibration reaching the camera.

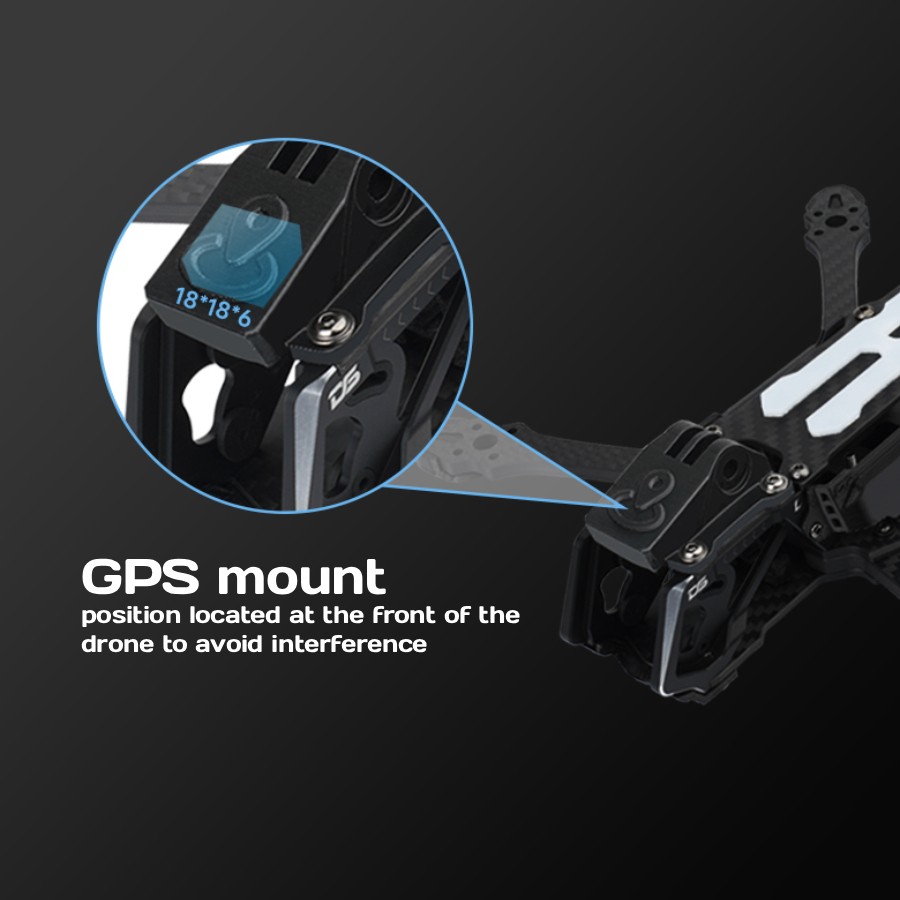

- Front-mounted GPS position keeps the GPS (not included) installation separate from the VTX area.

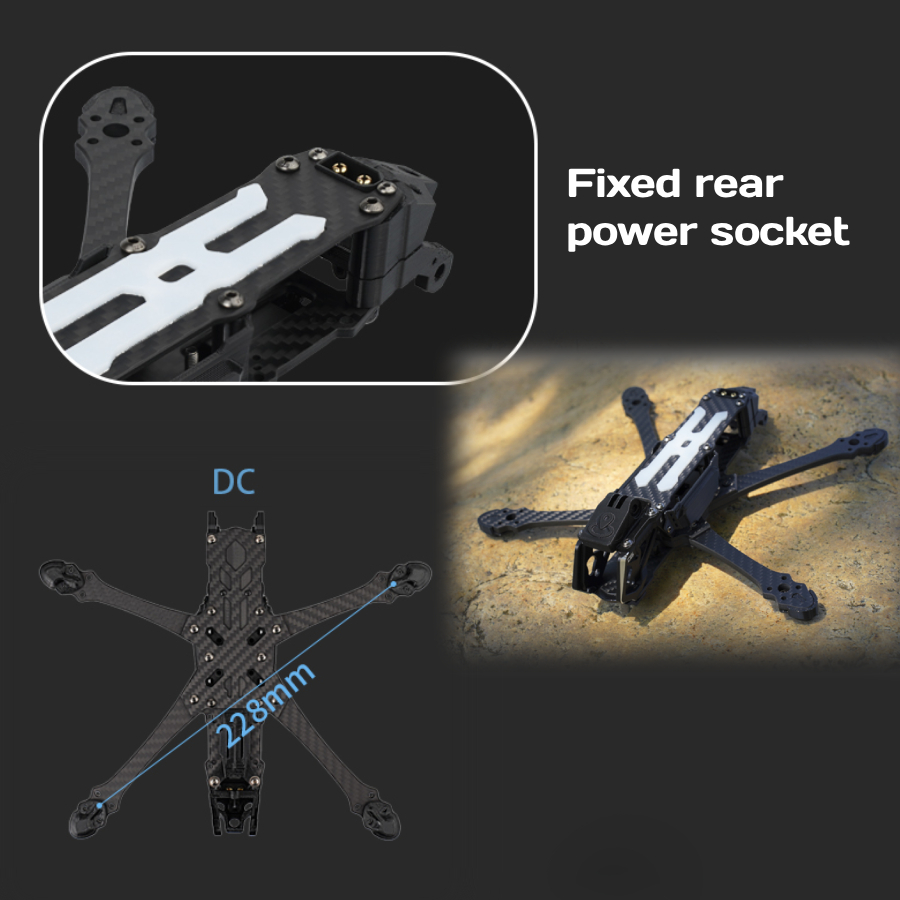

- Fixed rear XT60 connector mount provides a tidy battery connection point.

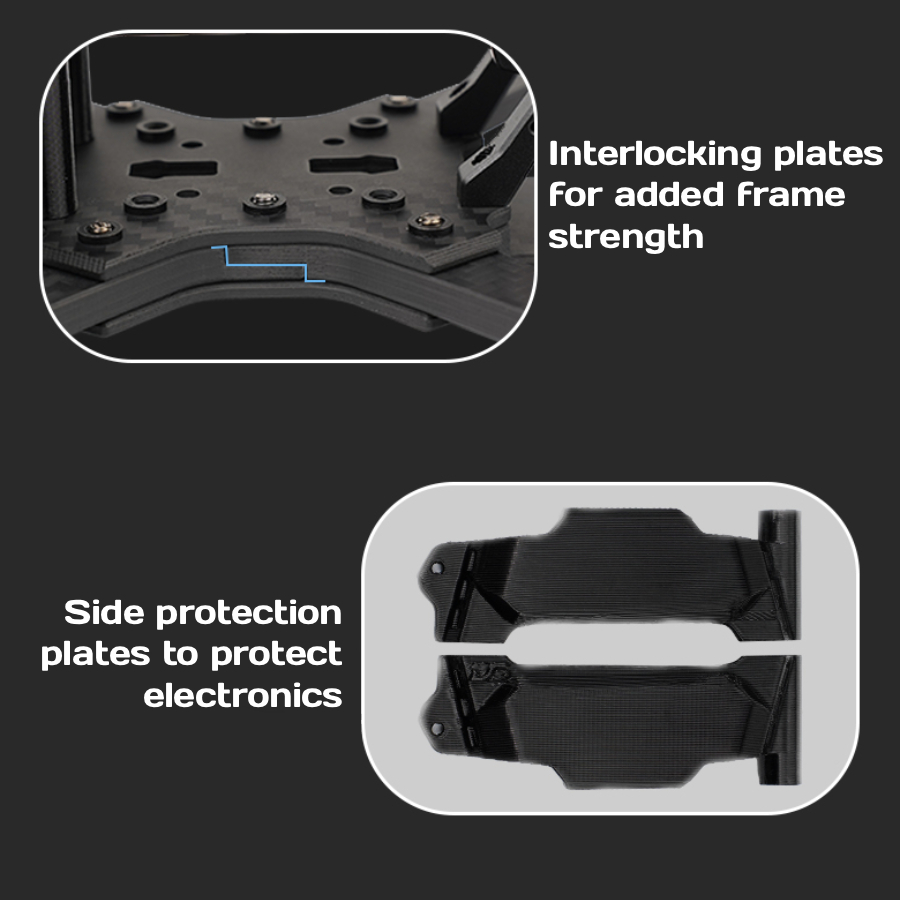

- Stack covers help shield internal electronics from dust and debris.
- Compatible with analogue and digital FPV builds, including DJI O4 Pro and O3 Air Units.
- Modular frame construction allows individual frame components to be replaced when required.

Specification:
- Model: DeepSpace Seeker 5 DC Frame
- Frame type: 5-inch Dead Cat FPV frame
- Material: T700 carbon fibre
- Wheelbase: 228mm
- Maximum propeller size: 5.1"
- Arm thickness: 5mm
- Top plate thickness: 2mm
- Middle plate thickness: 2.5mm
- Bottom plate thickness: 2.5mm
- Motor mounting: 16×16mm, M3
- Flight controller stack mounting: 20×20mm and 30.5×30.5mm
- Camera width compatibility: 14-20mm
- VTX mounting: 20×20mm (M2), 25.5×25.5mm (M2) and 30.5×30.5mm (M3)
- Battery connector mount: Rear-mounted XT60
- GPS mounting space (GPS Module not included): 18×18×6mm

Included:
- 1x DeepSpace Seeker 5 DC Frame
