Overview:

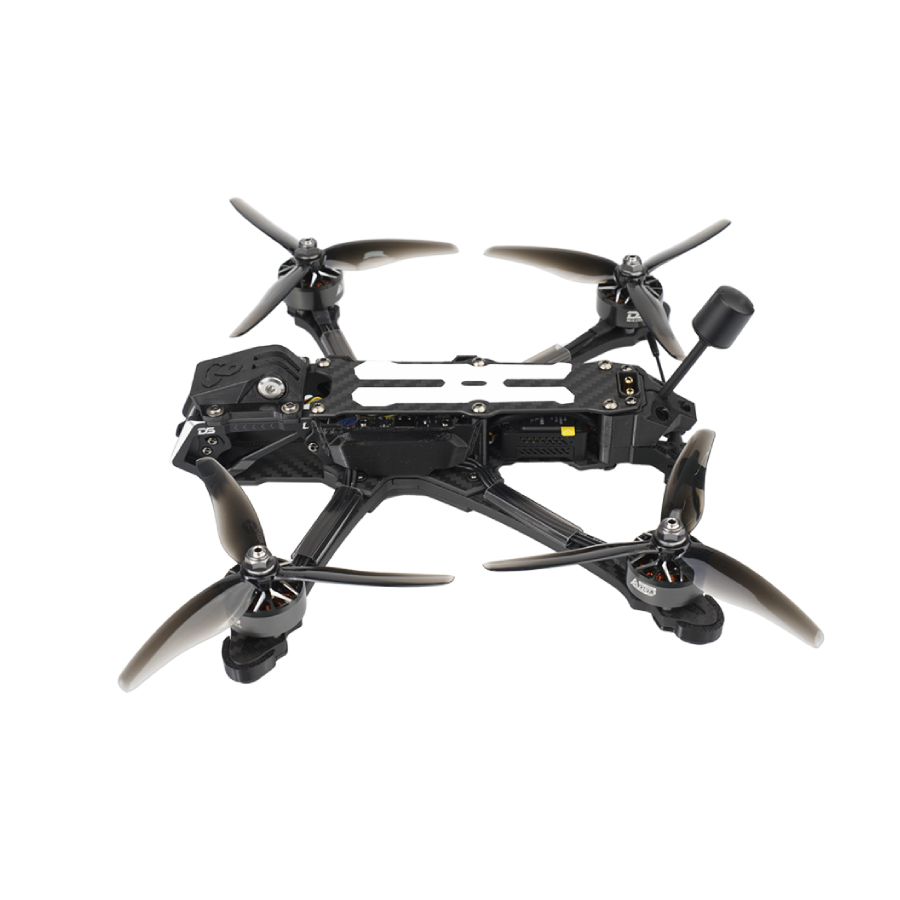

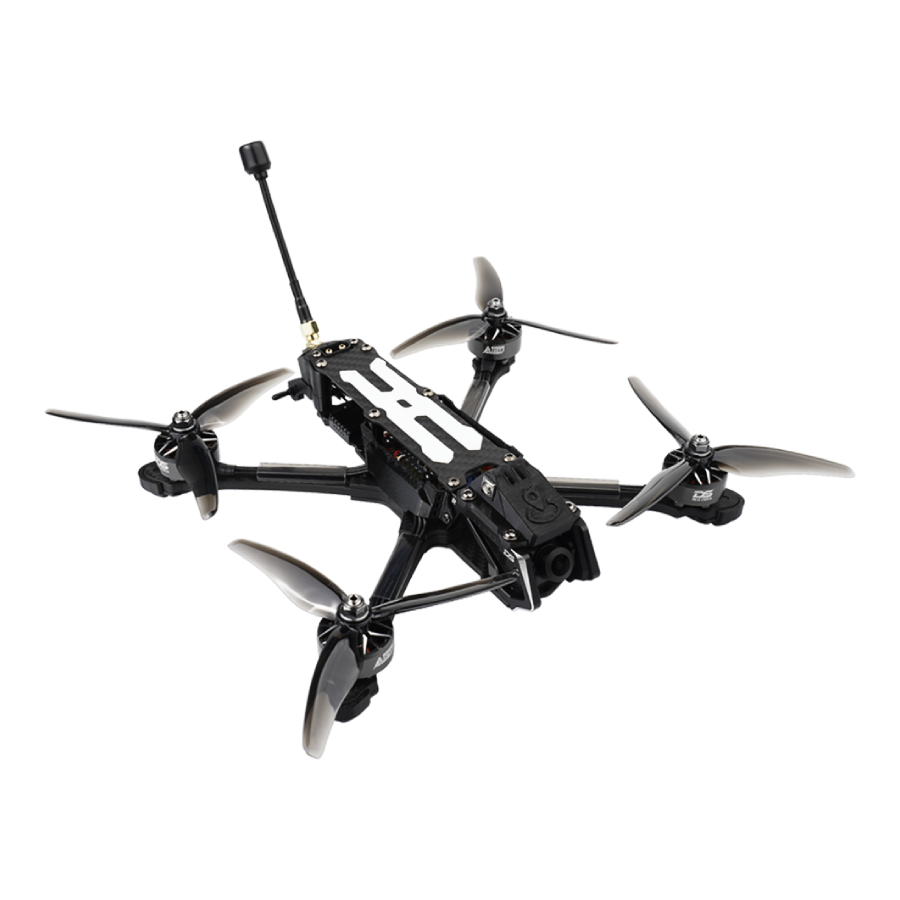

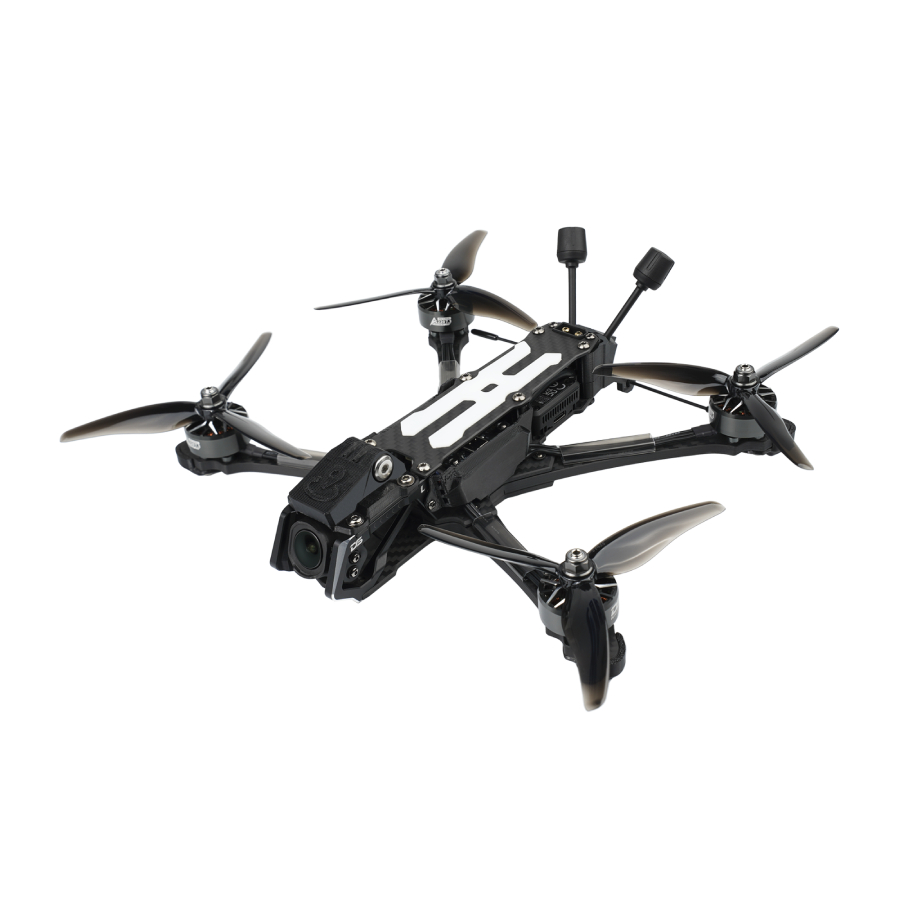

The DeepSpace Seeker 5 XL is a 5-inch freestyle FPV drone built around the Seeker5 XL True-X frame, F722 flight controller and BL32 60A ESC. It uses DS Aether 2207.3 1960KV motors and Gemfan 51433 propellers, providing a high-performance 6S power system suited to freestyle flying.

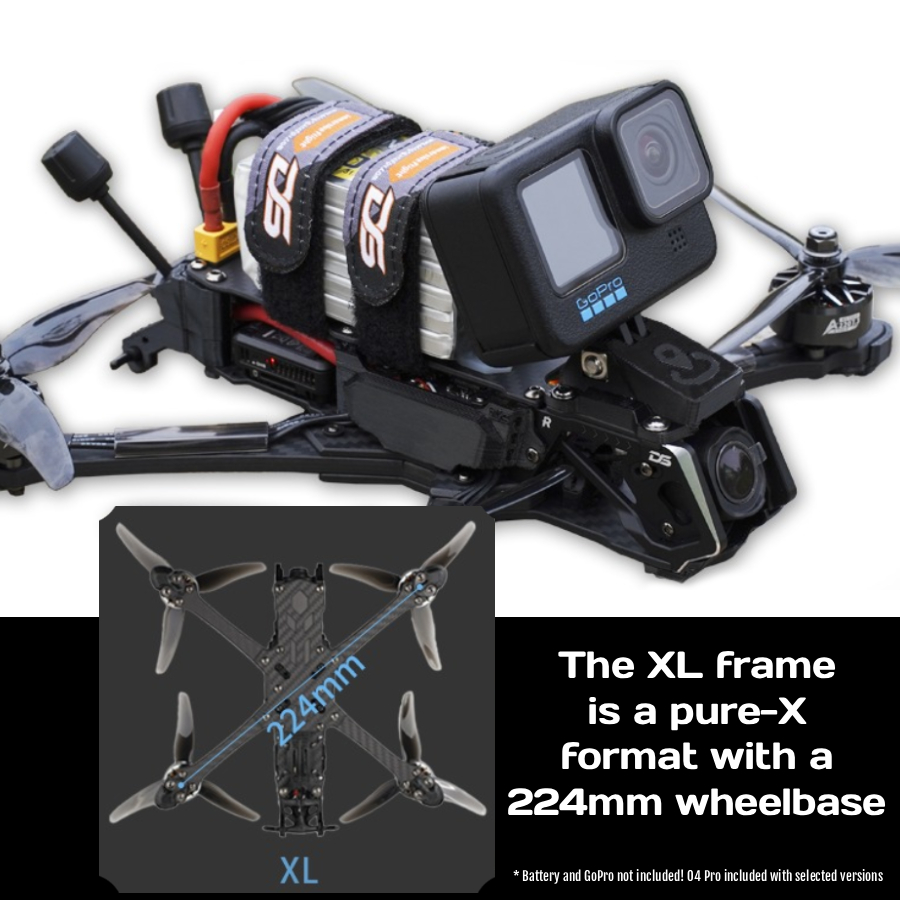

The XL frame has a 224mm wheelbase and 5mm-thick arms, with a spacious internal layout for electronics. CNC aluminium side plates and custom silicone camera mounting pads are incorporated into the design, to securely mount your chosen camera and reduce vibration.

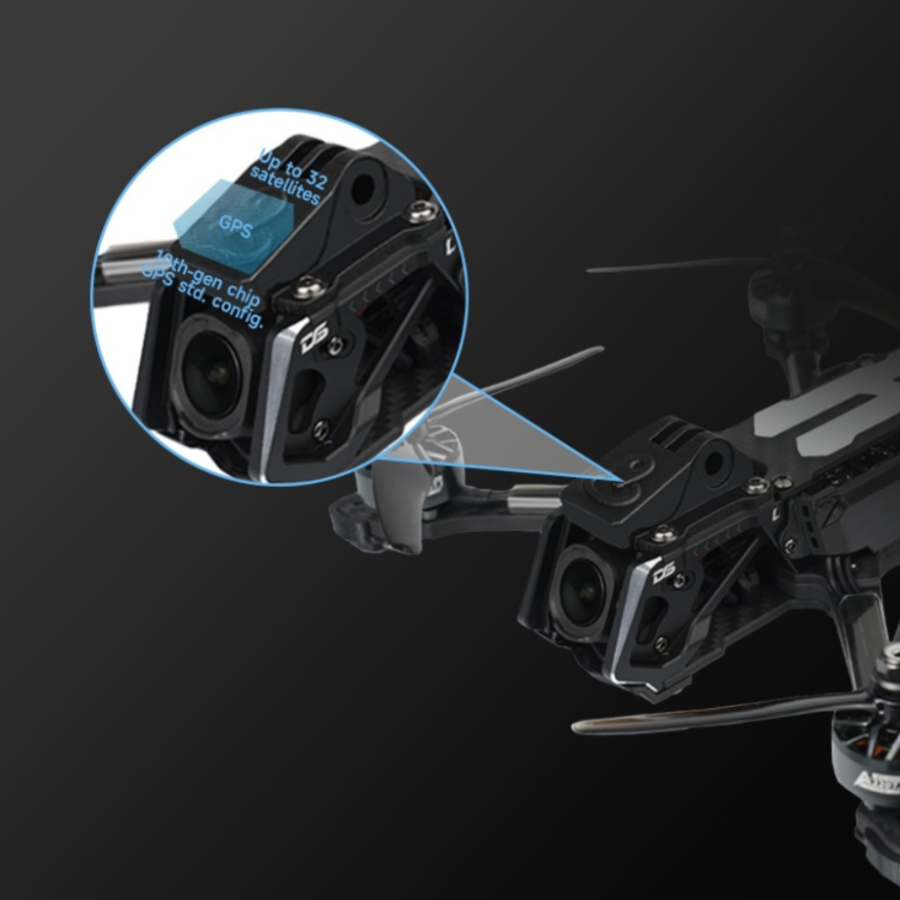

All models include a 10th-generation GPS module which is mounted at the front of the drone, away from the VTX and ESC. The integrated GPS not only provides positioning information, but also useful flight data such as speed and distance.
Three versions are available to suit your preferred FPV system. The XL O4 Pro PNP is equipped with the DJI O4 Air Unit Pro but leaves the radio receiver for you to install. The XL Analogue PNP has just the analogue 5.8GHz video system fitted and no receiver. The XL WTFPV is supplied with an ELRS receiver but no camera or VTX, allowing you to install your own video system while retaining the complete flight-control and propulsion package.
All three versions use the same underlying 6S platform, including the F722/BL32 60A stack, Aether 2207.3 1960KV motors, GPS and XT60 battery mount connection. The main differences are therefore the video equipment and receiver configuration, making the choice straightforward according to the goggles and transmitter you already use.
Features:
- High-performance 5" 6S freestyle FPV platform.
- XL True-X frame geometry provides balanced handling for freestyle flying.
- F722 flight controller with BL32 60A ESC stack.
- Front-mounted 10th-generation GPS keeps the GPS antenna away from the main electronics.
- Externally mounted receiver position provides easier access for maintenance.

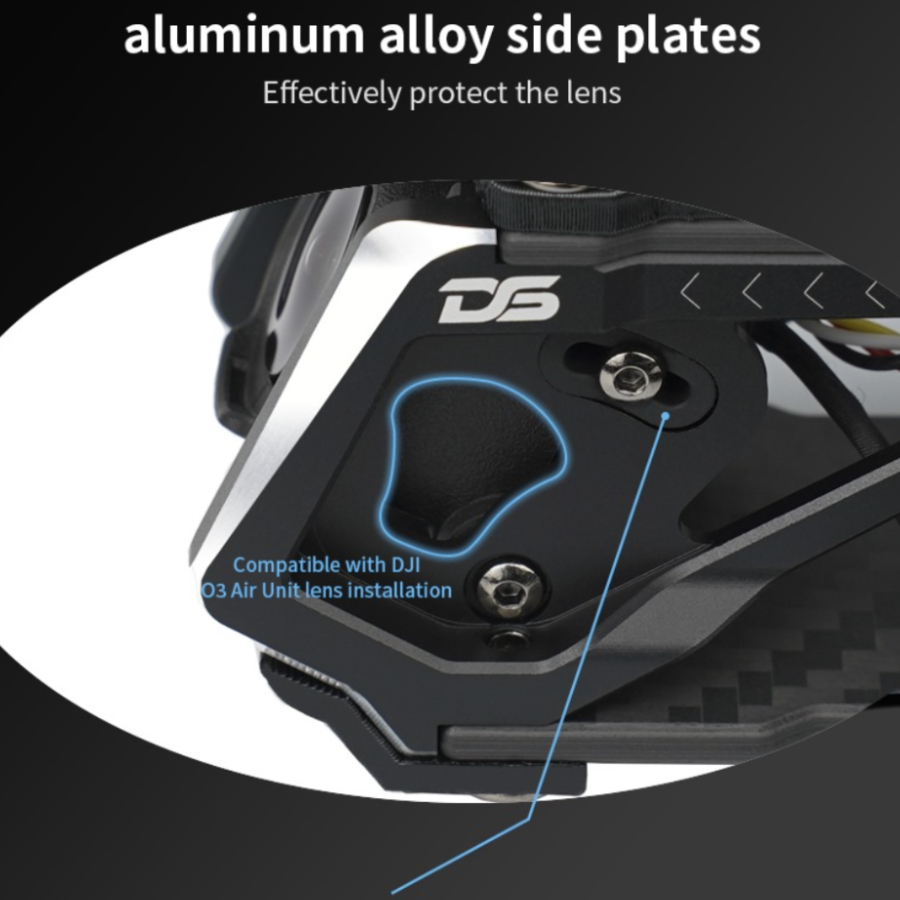

- CNC aluminium side plates add rigidity to the electronics enclosure.
- Silicone camera mounting pads provide vibration isolation for the camera.

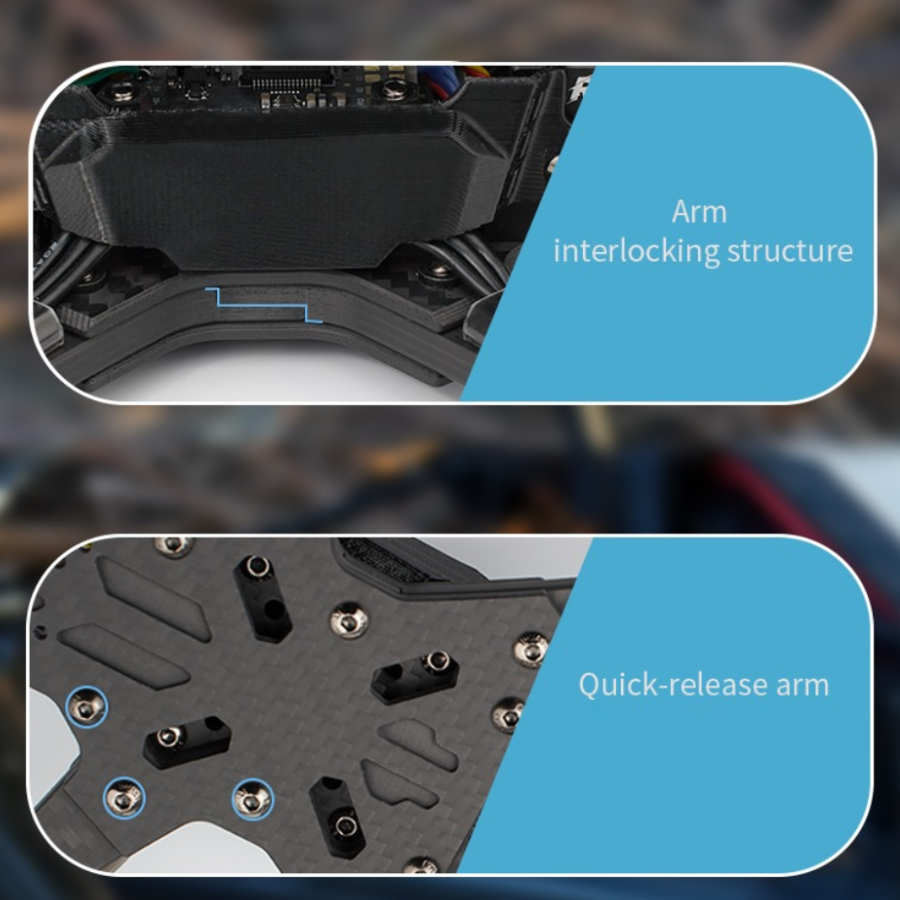

- Modular frame design allows convenient access to the arms and electronics.

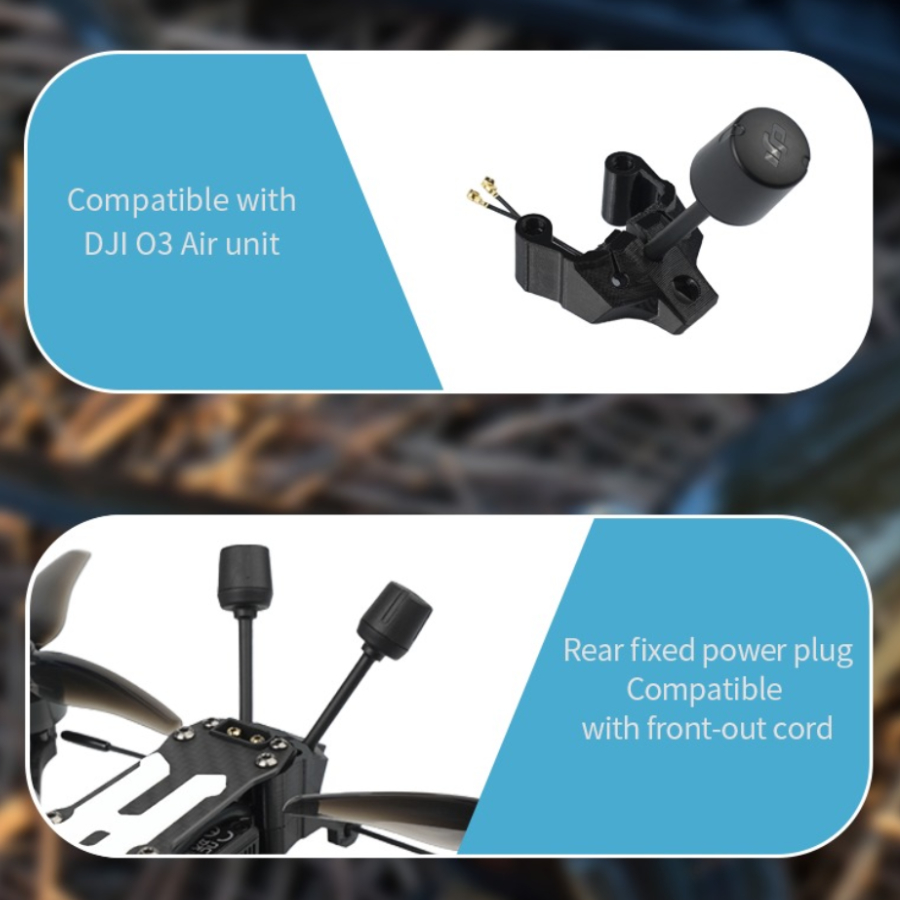

- Compatible with DJI O4 Pro, analogue FPV and other video-systems
- Front mount supports installation of compatible cameras such as GoPro and DJI Osmo Action.
Specification:
- Model: DeepSpace Seeker 5 XL
- Drone type: 5" freestyle FPV
- Frame configuration: XL 'True-X'
- Wheelbase: 224mm
- Maximum propeller size: 5.1 inch
- Flight controller: F722
- Flight controller MCU: STM32F722
- Gyroscope: Dual ICM42688
- ESC: BL32 60A 4-in-1

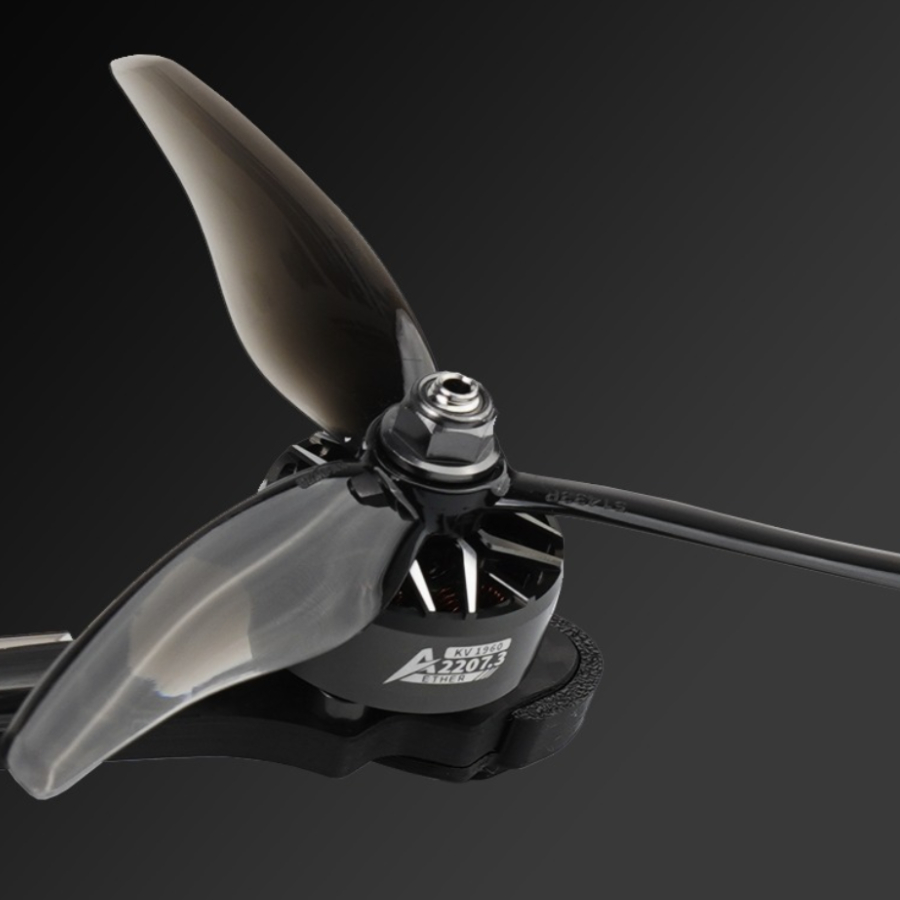

- Motors: DS Aether 2207.3 1960KV
- Propellers: Gemfan 51433
- GPS: 10th-generation GPS, front-mounted (fitted as atandard across entire range)
- Top plate thickness: 2mm
- Middle plate thickness: 2.5mm
- Bottom plate thickness: 2.5mm
- Arm thickness: 5mm
- Recommended battery: 6S 1300-1550mAh
- Battery connector: XT60
- Weight: ~437g (including TPU parts)
Options available:
XL O4 Pro PNP:
- DJI O4 Air Unit Pro digital FPV system is fitted.
- PNP: No receiver is fitted.
XL Analogue PNP:
- 5.8GHz analogue FPV system.
- Ratel 2 analogue FPV camera, 1.6W VTX.
- PNP: No receiver fitted.
XL WTFPV ELRS:
- No camera/VTX: Designed for pilots who want to install their own FPV system.
- ELRS 2.4GHz receiver fitted.
Included:
- 1x DeepSpace Seeker 5 XL FPV drone
- Accessories
