Overview:

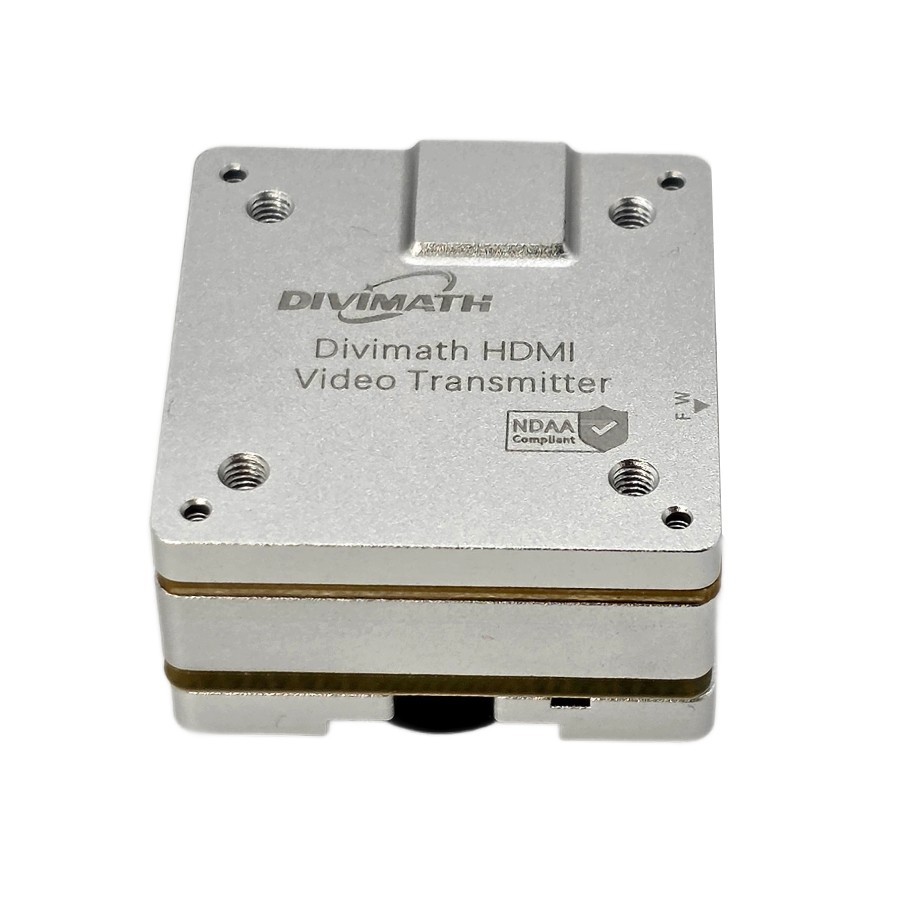

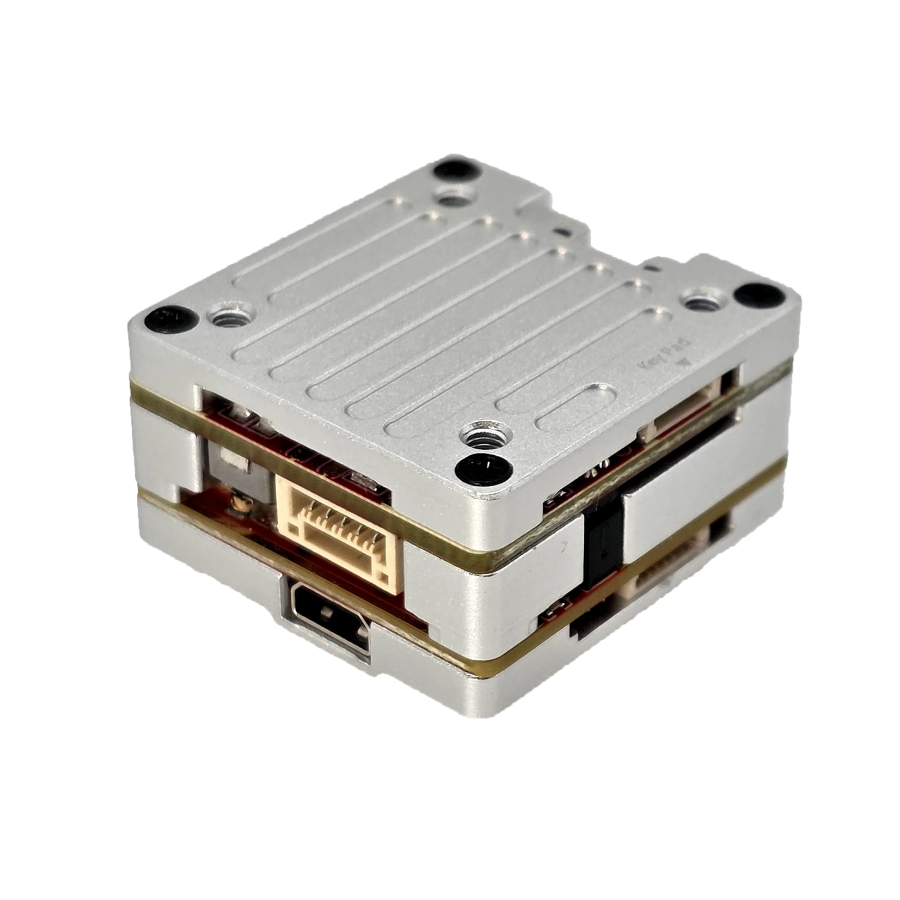

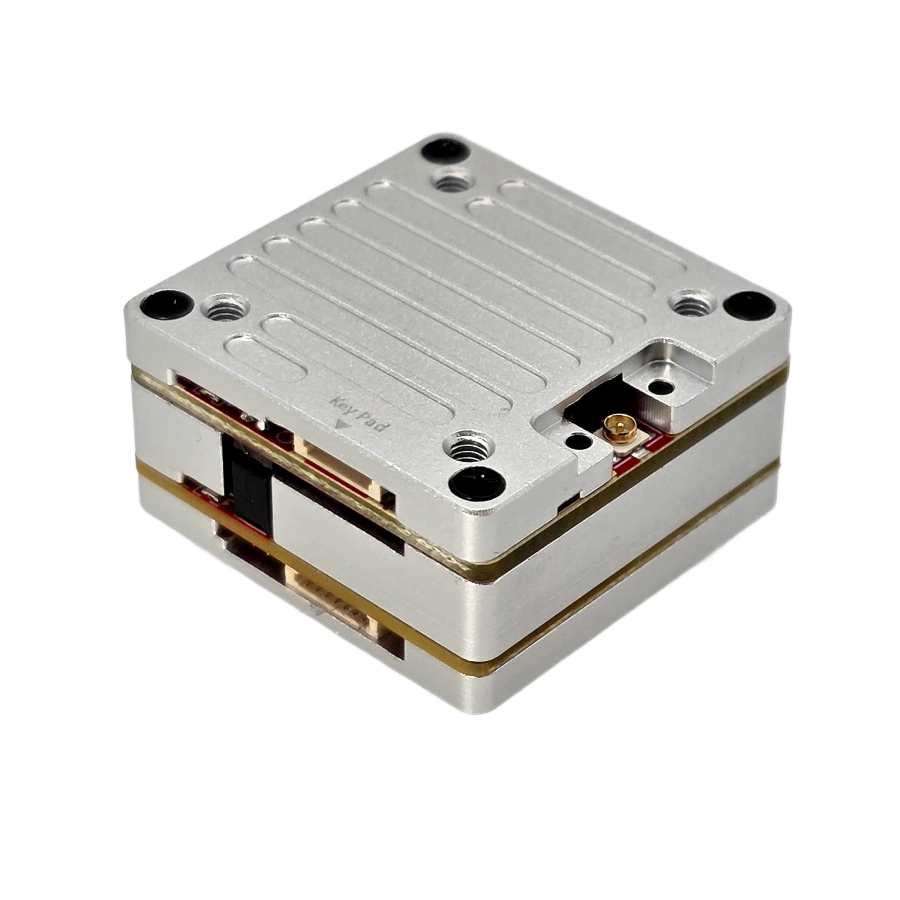

The Divimath HDMI VTX is a compact 5.8GHz digital video transmitter designed to wirelessly send video from HDMI-equipped cameras, computers, Raspberry Pi's, or any HDMI-equipped device. Its Micro-HDMI input makes it particularly useful for custom FPV, computer vision and other applications where the video source is generated or processed outside a conventional FPV camera.
With approximately 1ms of added latency, the HDMI VTX is designed for responsive real-time video transmission. It supports 720p/60, 1080p/30 and 1080p/24 video modes, while adjustable RF output provides up to 1W of transmission power.
The HDMI VTX uses the Divimath digital video system and is compatible with Divimath and compatible HDZero digital receivers. Its compact 20×20mm mounting pattern makes it suitable for integration into a wide range of FPV aircraft.
Note: This VTX is not compatible with MIPI cameras like Divimath HD90 camera.
Features:
- HDMI Input – Connect directly to cameras, computers, or embedded systems.
- Supported Resolutions / Frame Rates: 720p @ 60 fps, 1080p @ 30 fps, 1080p @ 24 fps (cinema mode)
- 1 ms Added Latency – True real-time video for FPV, training, and monitoring.
- Adjustable Power Output: 25mW – 1000mW
- 5.8 GHz ISM Band – Compatible with HDZero / Divimath digital receivers.
- Compact, Lightweight Design – Ideal for integration in field systems or mobile setups.
- Micro-HDMI Input - Connect any HDMI device with supported resolution/frame rate - just use a micro-HDMI cable to connect.
- Optional Accessory Kit: Cooling fan + USB-C PD trigger board for 12 V power input.
- FPV Relay Mode: Rebroadcast a received video feed with only 1 ms of extra delay.
- Wireless PC Streaming: Play PC games, simulators, or presentations in another room with virtually no lag.
- Camera-to-Monitor Link: Transmit from DSLR, cinema, or security cameras for untethered production monitoring.
- Custom Vision Systems: Pair with Raspberry Pi 2 W or embedded boards for AI vision, object tracking, or experimental imaging.
Specification:
- Model: Divimath HDMI VTX
- Video input: Micro-HDMI
- Video modes: 720p60, 1080p30, 1080p24
- RF frequency range: 5.3-5.9GHz
- RF output power: 25mW, 200mW, 500mW, 1000mW
- Power input: 7-25V
- Power consumption: 6-15W
- Antenna connector: U.FL
- Mounting pattern: 20×20mm, M2
- Dimensions: 29×30×16.3mm
- Weight: Approximately 26.9g
- Compliance: NDAA
- Country of origin: Thailand
Included:
- 1x Divimath HDMI VTX
- Accessories
