Overview:

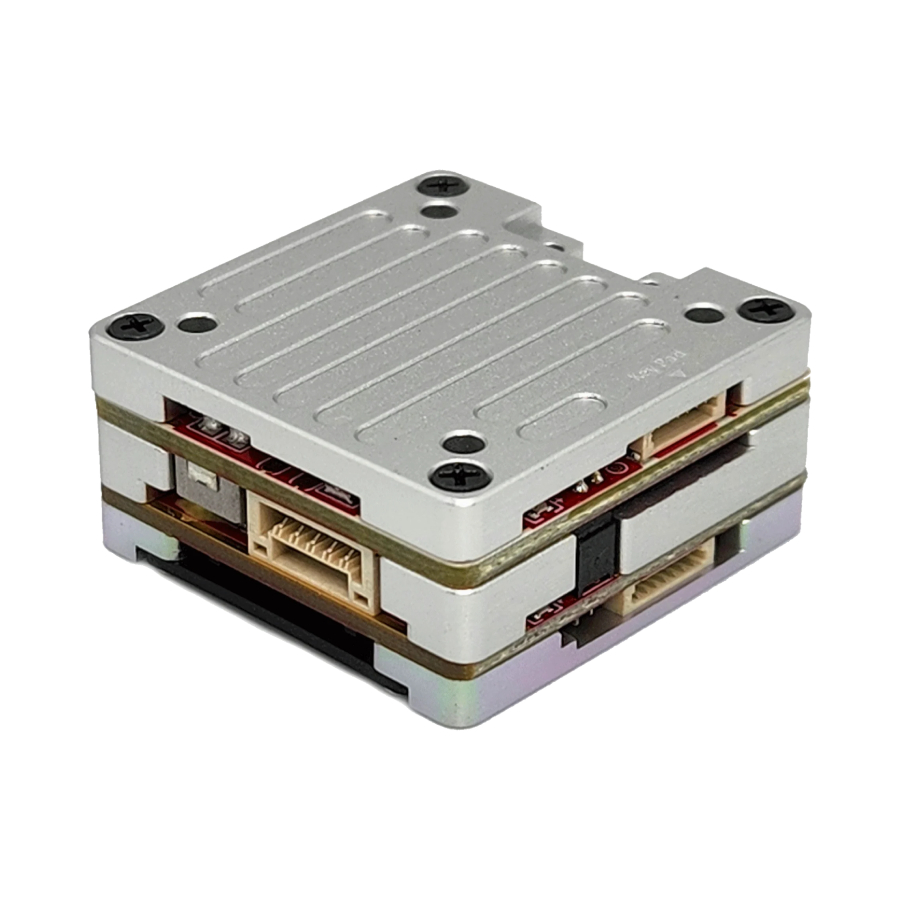

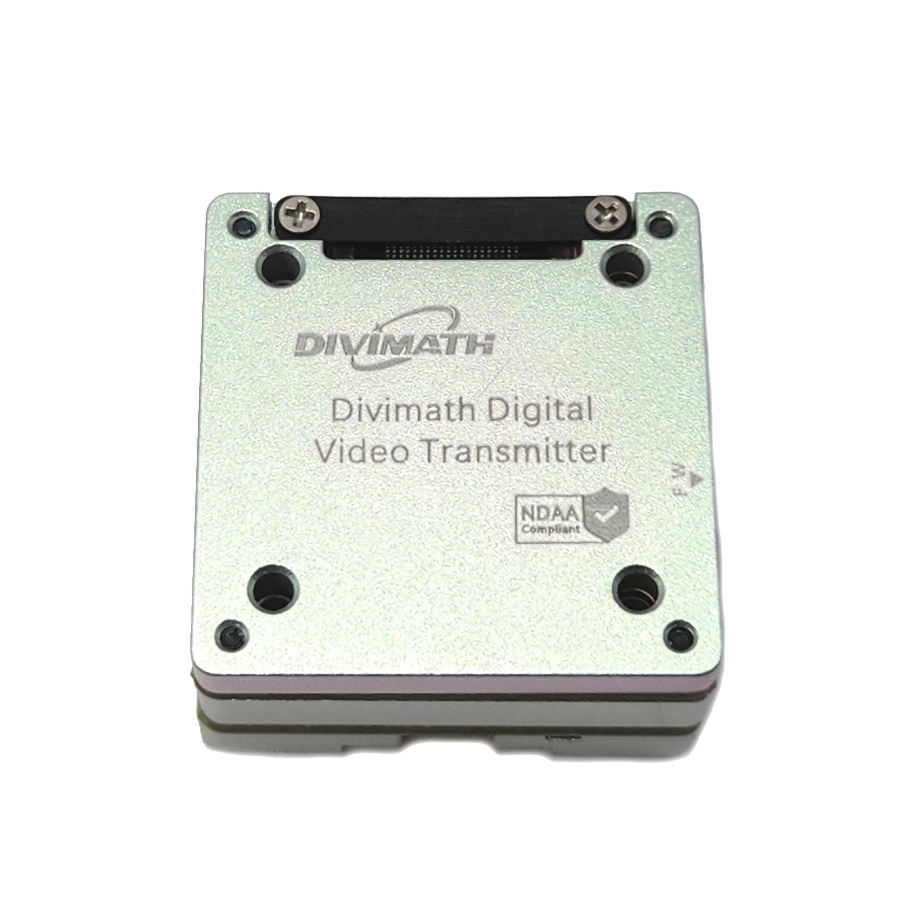

The Divimath Long Range VTX is a high-power 5.8GHz digital video transmitter designed for FPV aircraft requiring reliable video transmission and low latency. Its CNC-machined aluminium enclosure provides RF shielding and protects the connections, making it suitable for demanding builds where secure installation and signal integrity matter.
Offering selectable RF output levels up to 1W on the R1 channel, the VTX supports multiple digital video modes, including 720p/60, 1080p/30, 540p/60 and 540p/90. When paired with compatible Divimath cameras and goggles, it delivers fixed ultra-low-latency digital video. The NDAA-compliant design also supports encrypted video transmission when used with compatible Divimath equipment.
A supplied wiring harness provides power and UART connections, while retention bars secure the MIPI camera cable and U.FL antenna connection. With a 20x20mm mounting pattern, the Long Range VTX is suited to 3-10inch FPV builds where long-range video performance and a robust installation are priorities.
Features:
- CNC-machined aluminium enclosure: Provides RF shielding and protects the VTX connections.
- Adjustable RF output: Selectable power levels allow output to be matched to the flight environment and applicable regulations.
- Low-latency digital video: Designed for responsive FPV flight when paired with compatible Divimath cameras and goggles.
- Encrypted video support: Supports encrypted digital transmission within the compatible Divimath NDAA system.
- Secure cable retention: Retention bars and screws help secure the MIPI camera cable and U.FL antenna connection.
- Wiring harness included: Provides power and UART connections for integration with a compatible flight controller.
- Compact mounting footprint: Designed for installation in compatible FPV frames.
Specification:
- Model: Divimath Long Range VTX
- Video system: Digital FPV
- Frequency range: 5.3-5.9GHz, including Low Band
- RF output power: 25mW, 200mW, 500mW and up to 1W on R1; maximum output varies by channel
- Supported video modes: 1080p30, 720p60, 540p60 and 540p90
- Video input: MIPI
- Input voltage: 7-25V
- Power consumption: Approximately 6-15W
- Mounting pattern: 20 × 20mm, M2
- Dimensions: 29 × 30 × 14mm
- Weight: 22.3g
- Antenna connector: U.FL
- Antenna included: No
- Compliance: NDAA compliant
- Country of origin: Thailand
Included:
- 1x Divimath Long Range VTX
- Accessories
