Divimath Mini Flight Controller

Overview:
The Divimath Mini Flight Controller is a compact, high-performance flight controller designed primarily for digital FPV builds. Powered by an STM32H743 processor running at 480MHz and equipped with an ICM42688 gyroscope, it provides the processing capability and motion sensing required for responsive flight control in demanding freestyle, racing and professional applications.

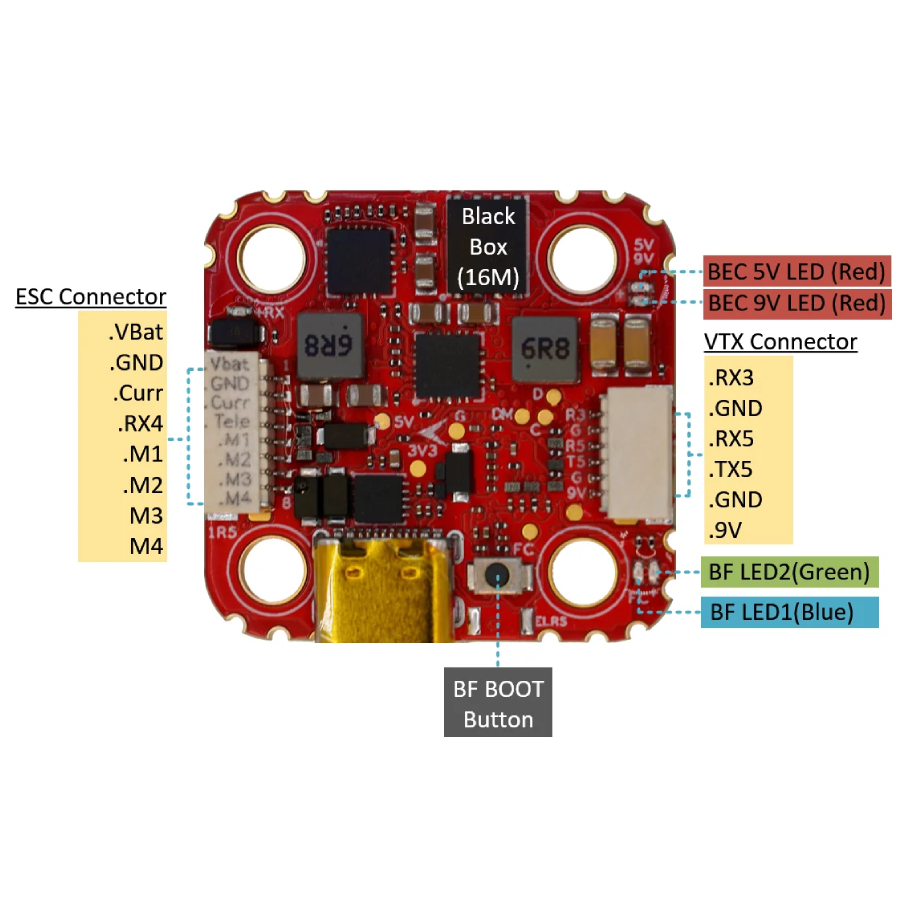

Designed to simplify digital FPV installations, the board features dedicated connections for compatible ESCs and digital video transmitters, including HDZero systems. Its solderless 8-pin ESC connection reduces wiring work, while the switchable 9V BEC can power compatible digital video systems. The controller also provides 16MB of black box memory for flight logging and configurable LED connections for lighting installations.

The compact 20x20mm mounting pattern makes it suitable for smaller FPV frames and low-profile stacks. Manufactured in Thailand and designed to meet US NDAA requirements, it is also an option for builds where supply-chain compliance is important.

Features:
- Simplified ESC installation: A dedicated 8-pin connector and supplied cable reduce the need for individual soldered signal connections.
- Digital VTX integration: Dedicated connections support compatible digital video systems, including HDZero.
- Configurable LED connections: Supports serial or parallel LED strip wiring.
- Flight data logging: Onboard flash memory stores black box data for tuning and troubleshooting.
- Manufactured in Thailand for applications requiring NDAA compliance.

Specification:
- Model: Divimath Mini Flight Controller
- Processor: STM32H743, 480MHz
- Gyroscope: ICM42688
- Flight controller firmware: Betaflight
- Input voltage: 3-8S LiPo
- BEC outputs: 5V/4A, 9V/3A, 4.5V/0.5A
- Black box memory: 16MB flash
- UART connections: TX2/RX2, TX7/RX7, TX8/RX8
- ESC telemetry input: RX4
- VTX MSP UART: TX5/RX5
- I2C pads: Yes
- Buzzer pads: Yes
- USB connector: Type-C
- Analogue OSD: Not onboard; external module optional
- Mounting pattern: 20x20mm, M4 mounting
- Board dimensions: 29x30.5mm
- Country of manufacture: Thailand

Included:
- 1x Divimath Mini Flight Controller
- Accessories
