Overview:
Divimath Monitor is a compact, high-brightness field monitor designed to improve situational awareness and make FPV video easy to monitor and share. Whether you are monitoring nearby aircraft, spotting during races, searching for active analogue video signals, or sharing a live FPV feed with a teammate or observer, Divimath Monitor delivers fast, reliable video with minimal setup.
Select between Digital Wide, Digital Narrow, and Analogue operating modes for faster signal acquisition and more control over RF monitoring. Auto Scan quickly searches for a valid signal, while Loop Scan continuously monitors analogue channels and automatically resumes scanning if the detected signal is lost.
In addition to typical analogue video bands like R, A, B, E and F, Divimath monitor offers analogue bands M, H, Y, and T, providing channel coverage from 4.9 GHz to 6.0 GHz. Weak, unstable, and no-signal analogue inputs display static instead of a blank screen, making it easier to identify nearby transmissions and troubleshoot marginal video links.
For encrypted Divimath digital links, simply enter the matching password on the monitor to securely decode and display the video feed.

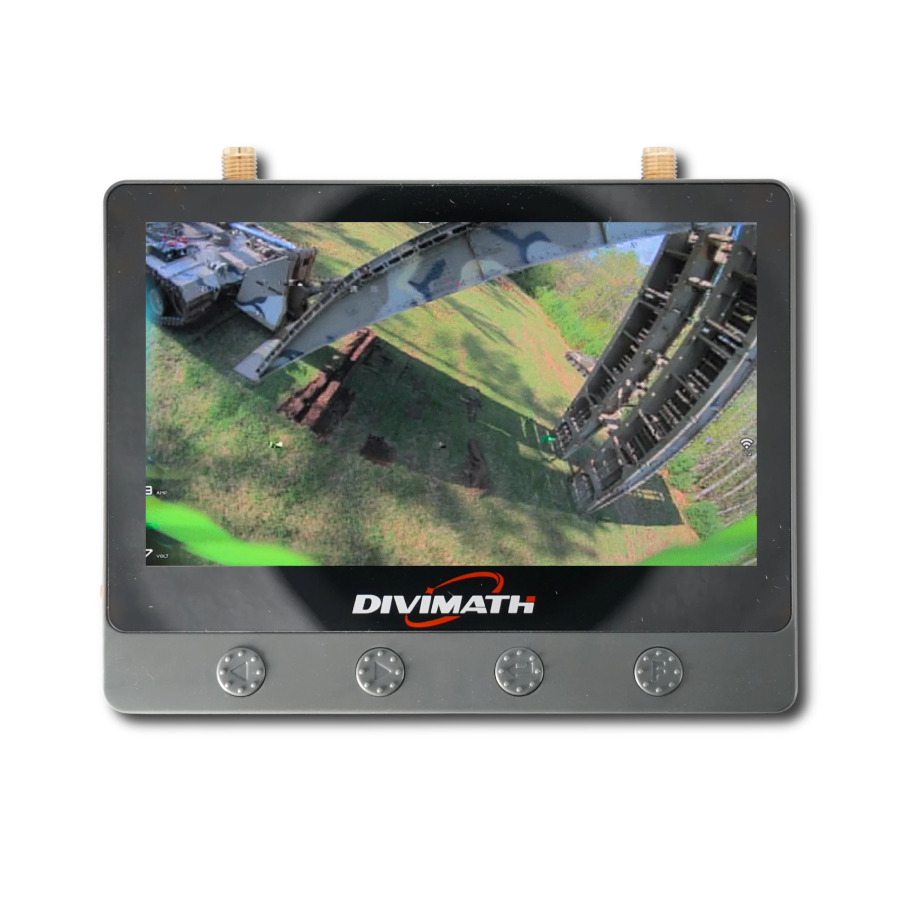

The 4.3", 800-nit anti-glare display provides excellent outdoor visibility. Select between 4:3 and 16:9 aspect ratios to properly display different video sources. For night operations, the monitor includes a black standby screen and a red-tint display mode designed to help preserve the operator's natural night vision.
The HDMI output makes it easy to share both Divimath digital and analogue video on an external display for coordination, training, demonstrations, or spectator viewing.
Features:
- Selectable Digital Wide, Digital Narrow and Analogue operating modes.
- Auto Scan for automatically locating valid digital or analogue video signals.
- Loop Scan for continuous monitoring of analogue channels.
- Supports encrypted Divimath digital video with password-based decoding.
- Expanded analogue band support covering A, B, E, F, R, M, H, Y and T.
- Displays static from weak, unstable or missing analogue signals instead of a blank screen.
- Deinterlaces and upscales analogue video using adaptive comb filtering.
- Selectable 4:3 and 16:9 display formats.
- Red-tint display mode designed to help preserve natural night vision.
- Black standby screen for low-light operation.
- Shared antennas for Divimath digital and analogue reception.

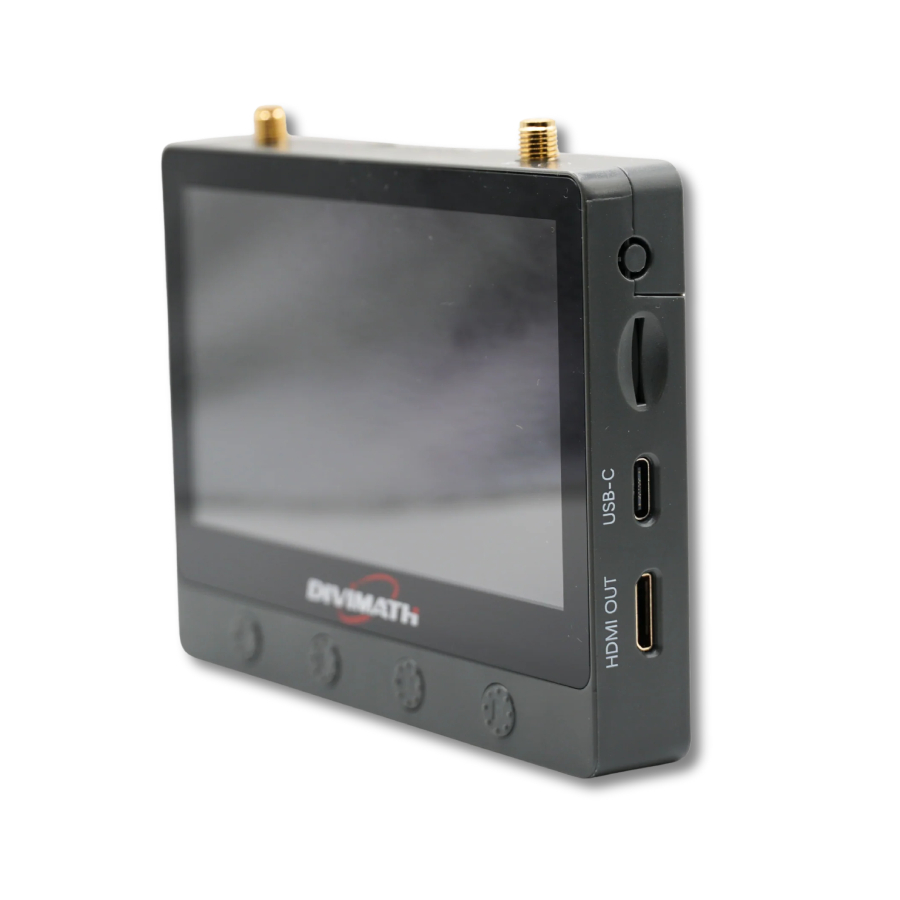

- HDMI output for sharing the received video feed.
- CVBS analogue video input with audio line output.
- USB Type-C connection for parameter adjustment and firmware updates.

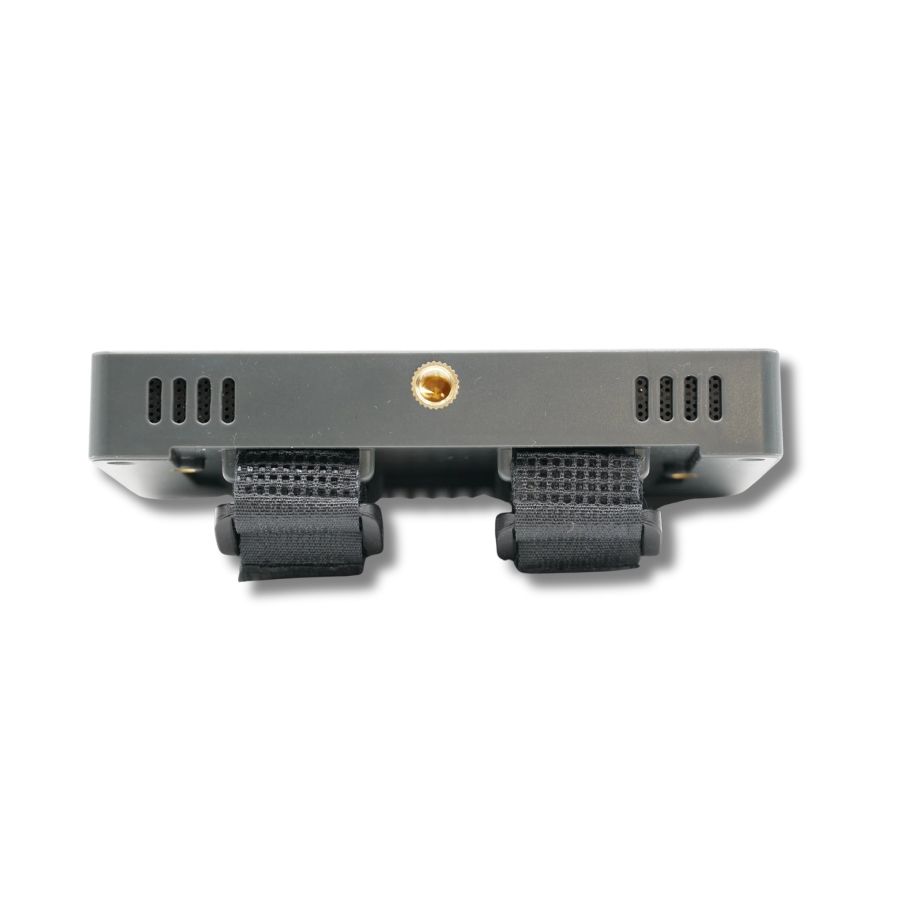

- 1/4-20 tripod mounting thread.
- Reverse-polarity protection and a recoverable fuse on the power input.
- NDAA compliant.
Specification:
- Display: 4.3" 720p LCD
- Brightness: 800nits
- Analogue frequency coverage: Approximately 4.9-6.0GHz
- Power input: 6-25V DC

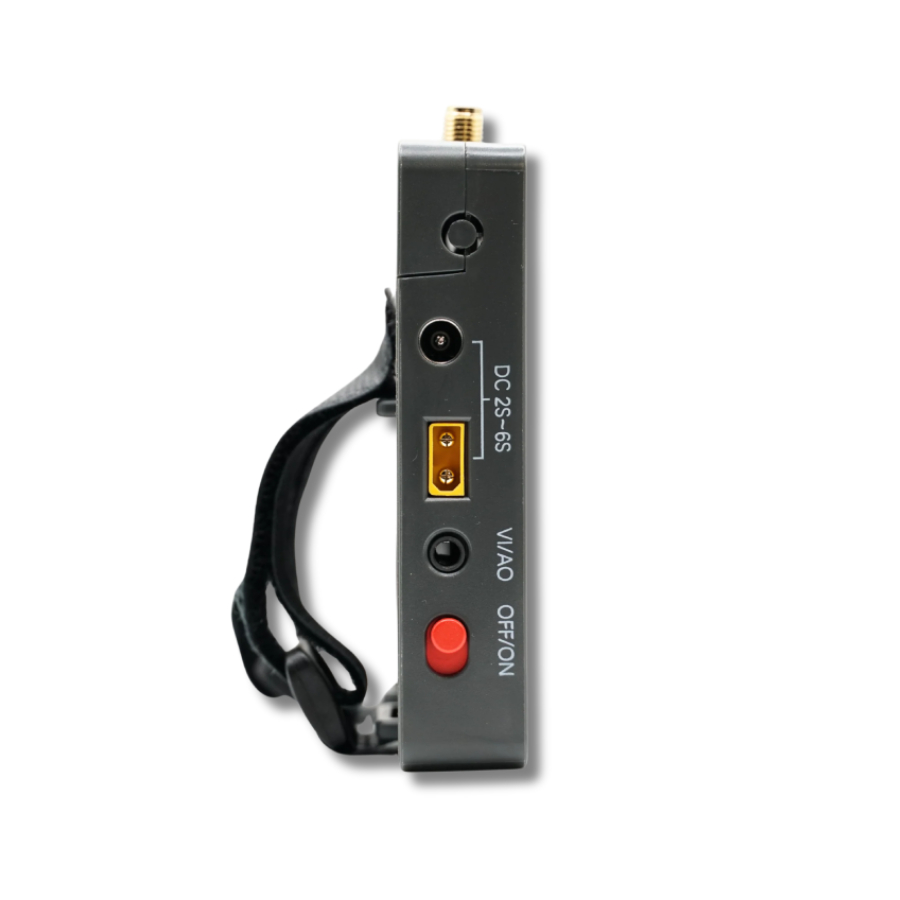

- Power connectors: XT30 and 5.5×2.1mm DC
- Power consumption: Approximately 9W
- Dimensions: 114×88×18mm
- Weight: 155g
- Mounting: 1/4-20 threaded insert
- Country of origin: Thailand
Included:
- 1x Divimath Digital/Analogue 4.3" FPV Monitor
