Overview:

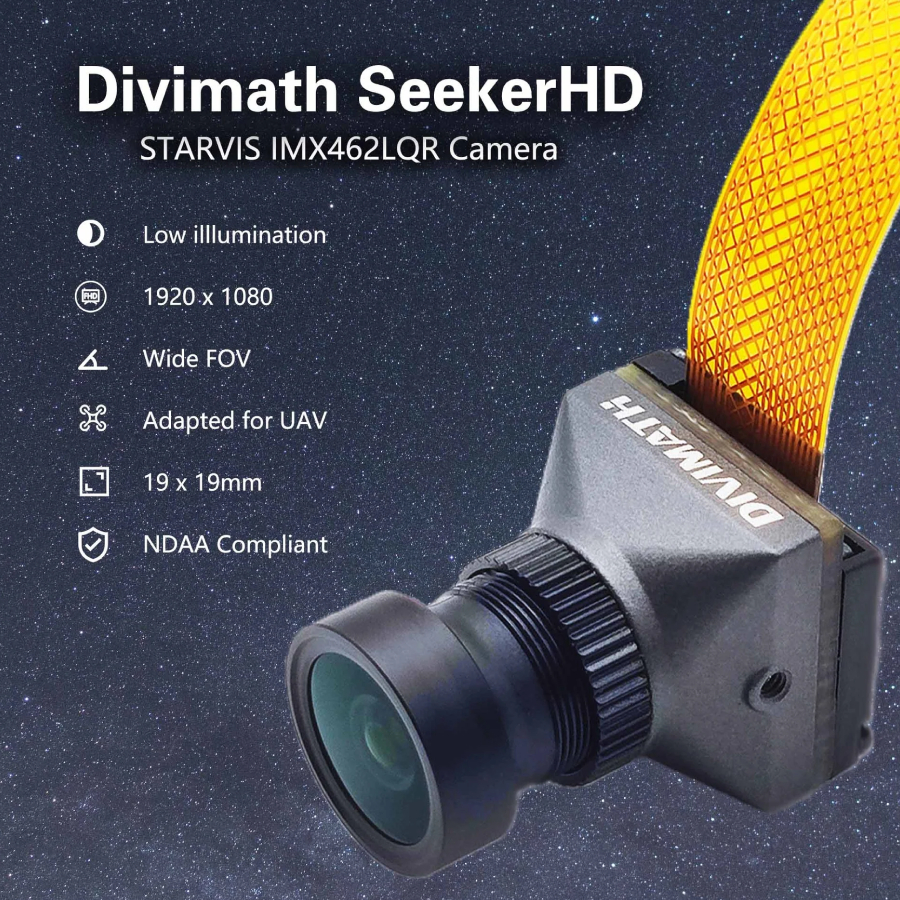

The Divimath SeekerHD is a compact Raspberry Pi camera designed for computer vision, autonomous systems, visual guidance and low-light applications. It uses a Sony IMX462 image sensor and can capture 1080p video at up to 60fps.
The camera connects to a compatible Raspberry Pi through its 22-pin camera interface, allowing the video to be processed onboard before being recorded, analysed, displayed or transmitted. Divimath's Raspberry Pi Helper simplifies setup by configuring camera support and video output automatically.

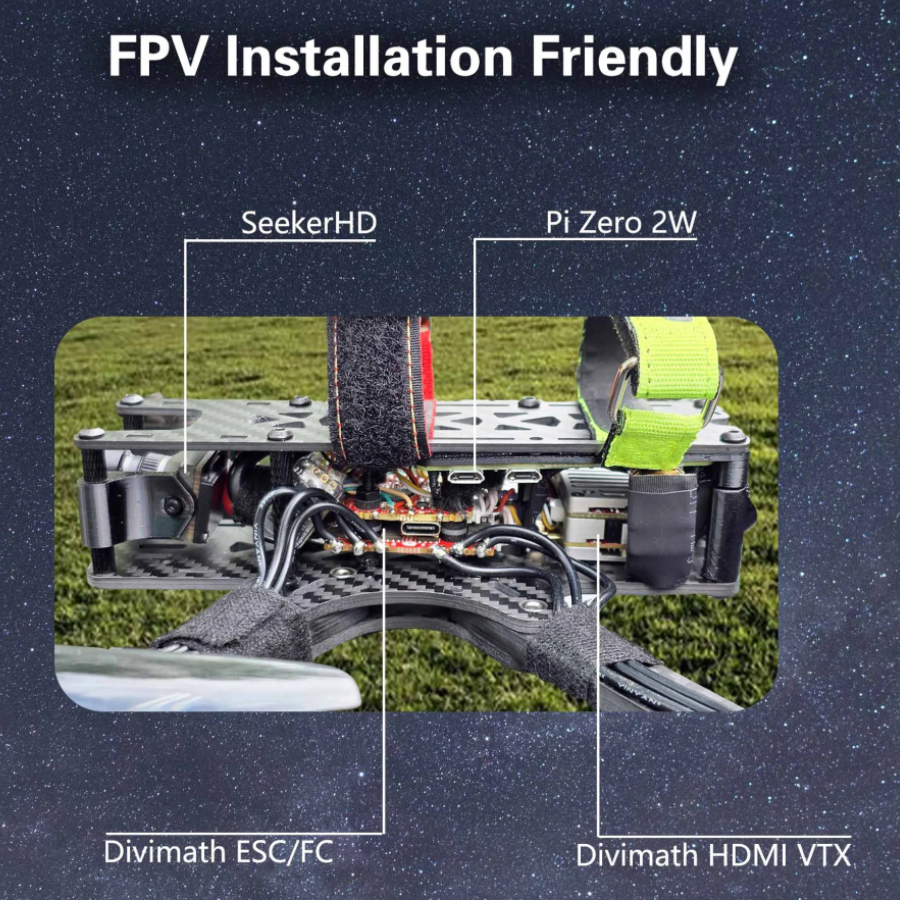

With its small form factor and wide-angle M12 lens, the SeekerHD is well suited to FPV aircraft, drones, robotics, remote vehicles and other embedded projects where onboard image processing is required. The Raspberry Pi can be used for applications such as autonomous flight, navigation, object tracking, image stabilisation and software-controlled image processing, making this camera the perfect match for image transmission.

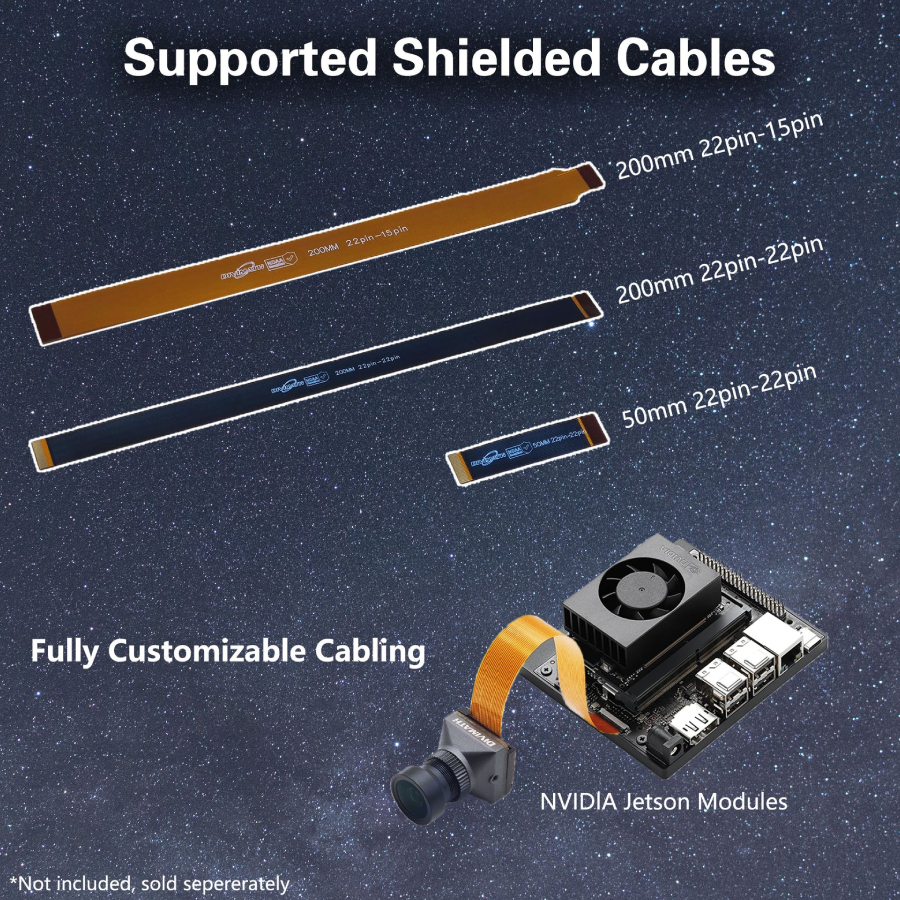

A compatible camera cable is required and is sold separately. The SeekerHD does not connect directly to a Divimath MIPI VTX or Analogue VTX. For wireless FPV transmission, the camera must first be connected to a compatible single-board computer.

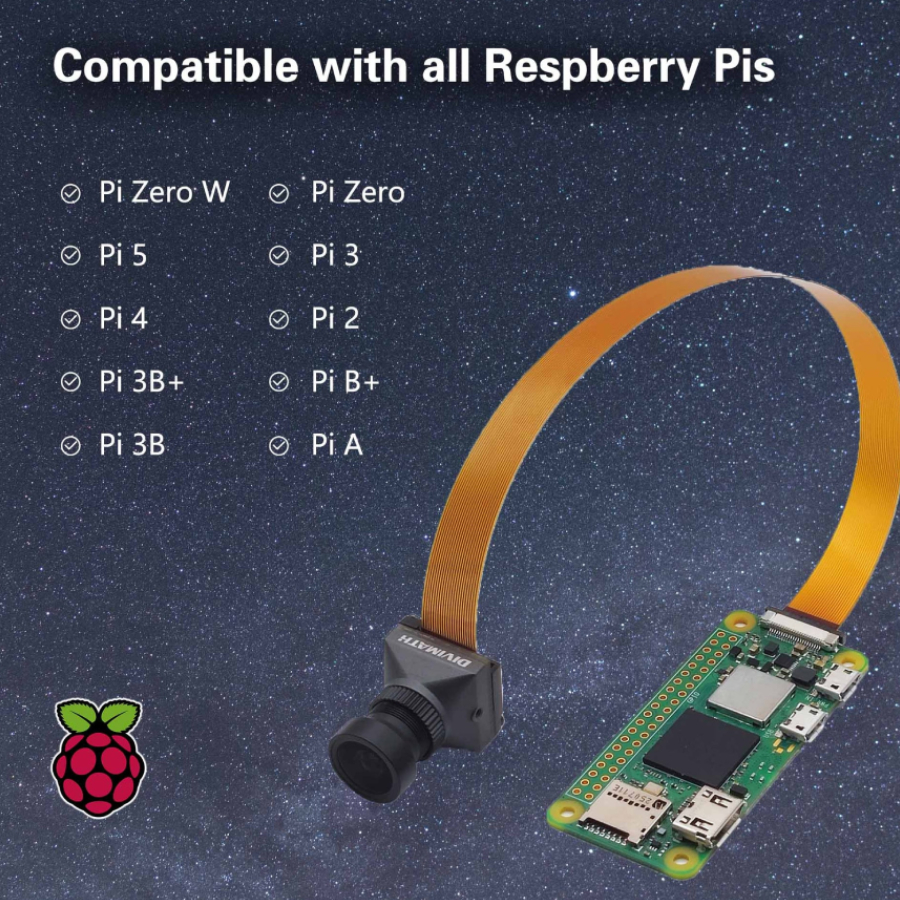

For wireless video transmission, connect SeekerHD to a compatible computer such as: Raspberry Pi Zero 2 W, Pi 3, Pi 4, Pi 5.
Features:
- Sony IMX462 sensor provides strong low-light performance.
- Designed for Raspberry Pi-based computer vision and autonomous systems.
- Supports onboard image processing through Raspberry Pi software.
- Suitable for visual navigation and autonomous flight applications.
- Supports object detection and tracking.
- Software can be used for functions such as image stabilisation, digital zoom and image enhancement.
- Divimath Raspberry Pi Helper simplifies initial camera configuration.
- M12 lens mount allows the camera lens to be replaced or adapted for different applications.
- Compact board design for integration into drones, robotics and embedded systems.
- NDAA compliant.
Specification:
- Image sensor: Sony IMX462
- Maximum resolution: 1920×1080
- Maximum frame rate: 60fps at 1080p

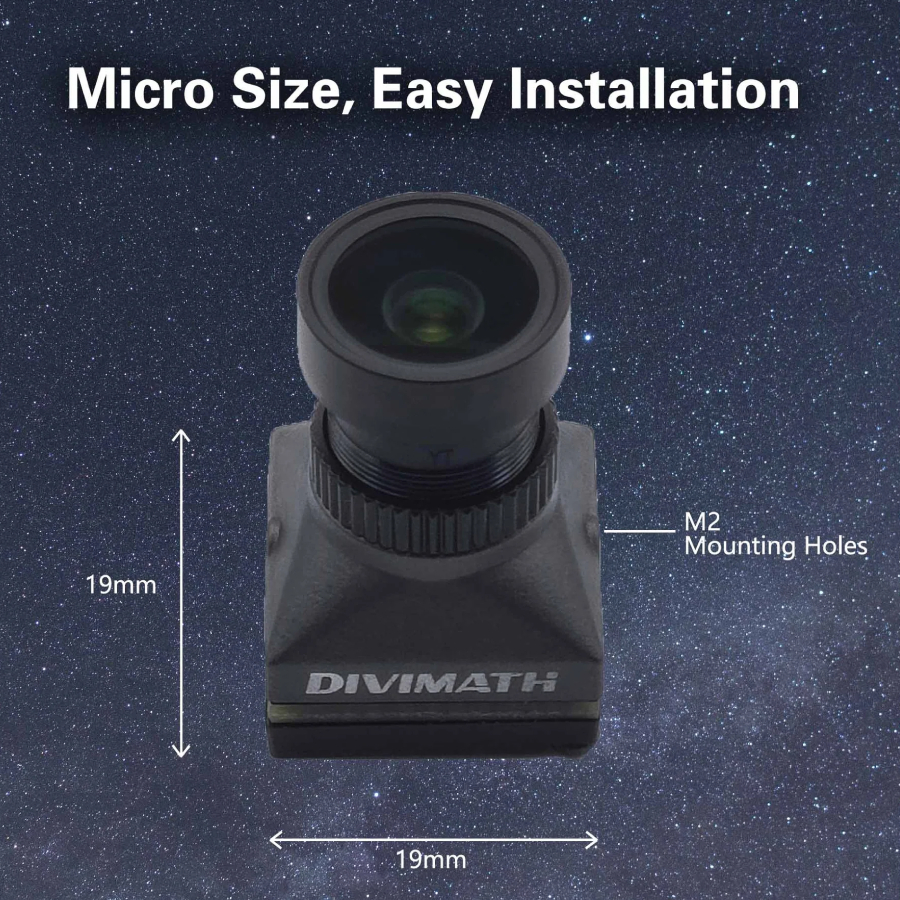

- Camera dimensions: 19×19mm
- Lens mount: M12

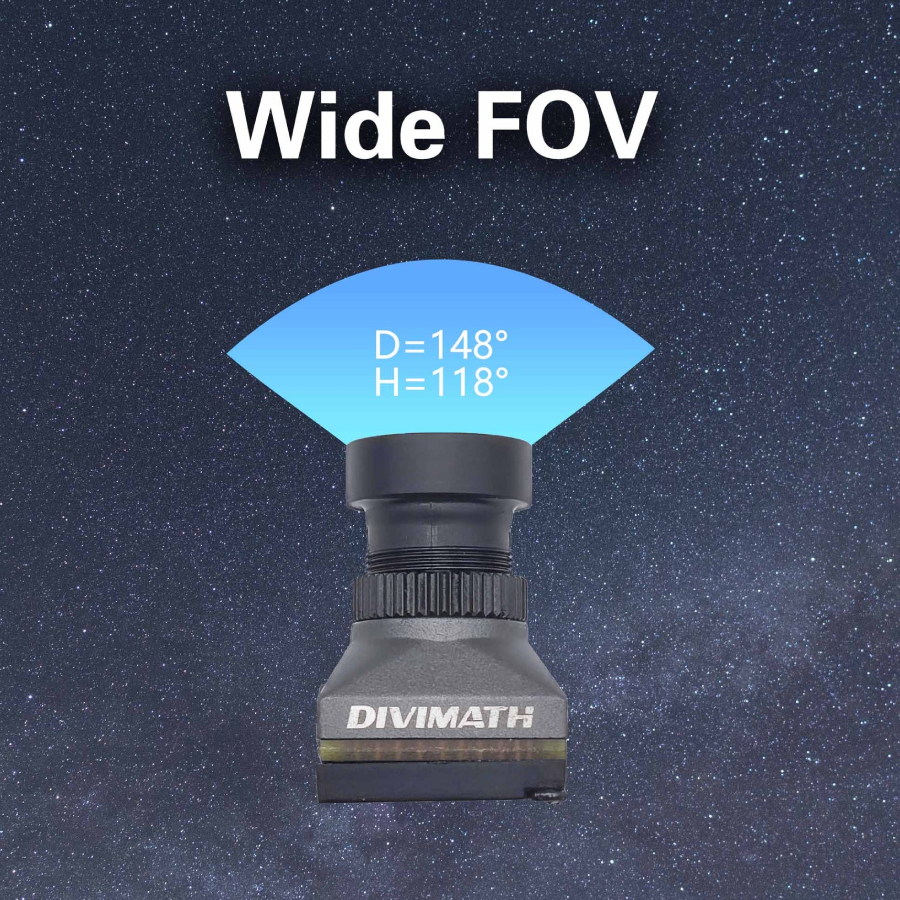

- Field of view: 148° diagonal
- Camera connector: 22-pin
- Host compatibility: Raspberry Pi and compatible single-board computers
- Driver requirement: No additional camera drivers required on supported Raspberry Pi platforms
- Direct MIPI VTX compatibility: No
- Direct analogue VTX compatibility: No
- Camera cable: Not included, sold separately
- Country of origin: Thailand
Included:
- 1x Divimath SeekerHD 1080p60 Raspberry Pi Camera (no ribbon cables supplied)
