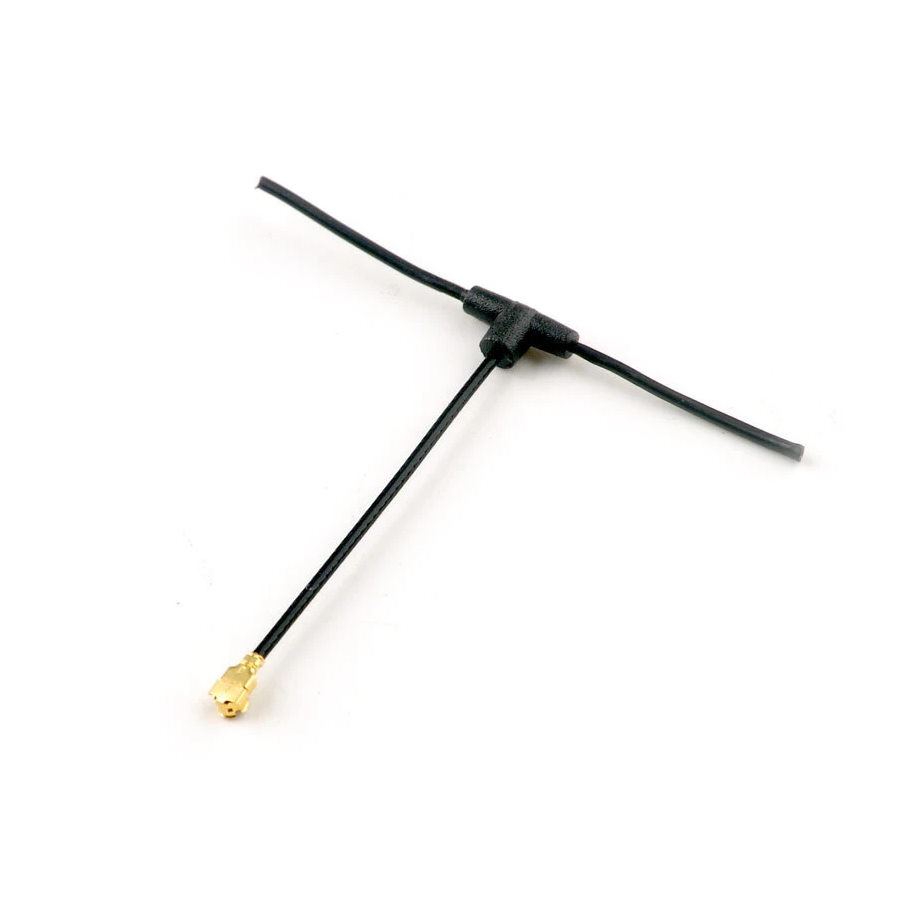

ELRS 2.4GHz Antenna (40mm)

ELRS 2.4GHz Antenna - 40mm in length.
Availability: In stock
£1.50

The ELRS 2.4GHz antenna, 40mm length with U.FL connector for the EP1 receiver.

Specifcations:

- Item Name: T-type RC Antenna
- Weight: 40mm-0.41g
- Length: 40
- Frequency: 2400.0 MHz
- Efficiency: -0.89 dBi
- Gain: 2.23 dBi
- Efficiency: 81.46 %
- Directivity: 5.12 dB
- Peak Gain Position: 180.00 Theta
- Peak Gain Position: 330.00 Phi
- Efficiency ThetaPol: 20.90 %
- Efficiency PhiPol: 60.56 %
- Upper Hem. Efficiency: 39.93 %
- Lower Hem. Efficiency: 41.54 %
- Connector: IPEX/IPX/U.FL
- Antenna width 52mm

Includes:

1 x ELRS 2.4GHz Antenna (40mm)
