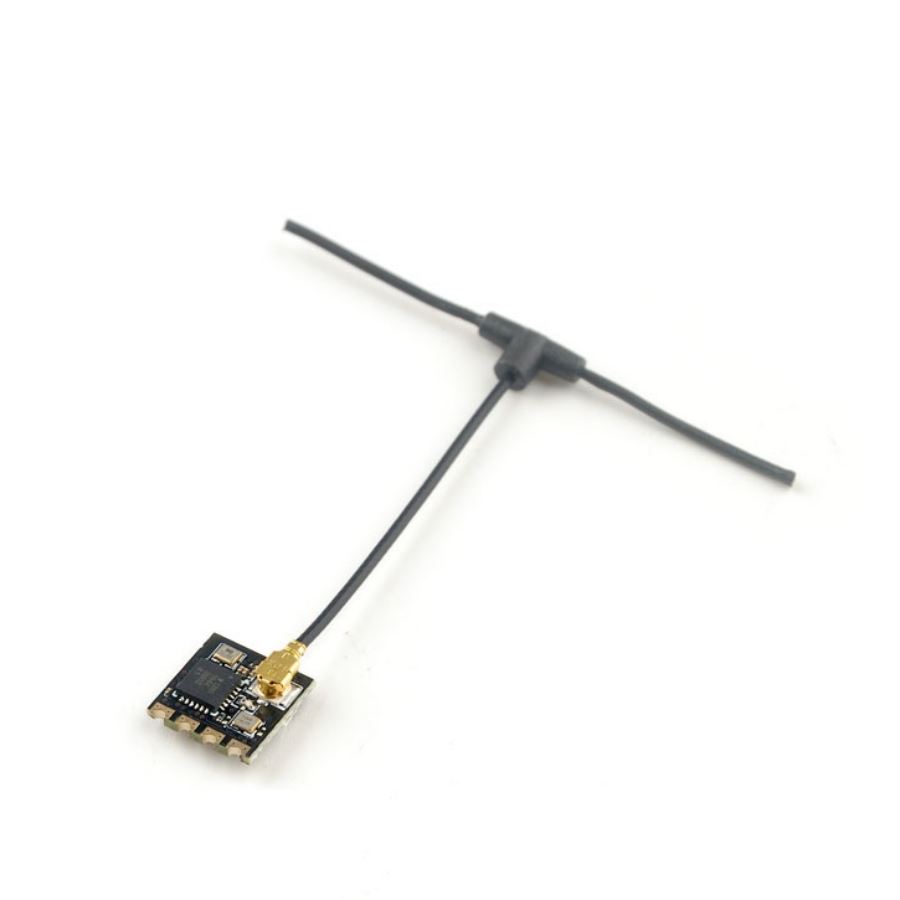

Happymodel EP1 2.4GHz ELRS Receiver

The ELRS EP1 receiver is an ultra compact, tiny 2.4Ghz receiver with an external 2.4GHz antenna.
Manufacturer: Happymodel
Availability: In stock
£9.95 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

The ELRS EP1 receiver is an ultra compact, tiny 2.4Ghz receiver using the ELRS firmware.The EP1 Model includes an external antenna.


ExpressLRS is an open source, long range RC link for RC applications. It is based on the fantastic semtech SX1280 hardware combined with an ESP8285 and ESP32.

Specifcations:

- Item Name: EP1 Nano Receiver
- Regulatory Domain: ISM2400
- MCU: ESP8285(aux,as espbackpack)
- RF chip: SX1280IMLTRT
- Antenna: External
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Power supply voltage: 5V
- Weight: 0.42g
- Dimension: 10mm x 10mm x 3mm

Includes:

1 x ELRS EP1 RX
