Happymodel ES900RX 868MHz ELRS Receiver

Overview:

The Happymodel ES900RX receiver is an ultra compact, tiny 868MHz ELRS receiver using the ELRS firmware.

ExpressLRS is an open source, long range RC link for RC applications.

** THIS IS AN 868MHZ ELRS RECEIVER, NOT COMPATIBLE WITH 2.4GHZ ELRS HARDWARE. IF YOU DON'T UNDERSTAND THIS THEN THIS IS NOT THE RECEIVER YOU WANT **

Specifcations:

- MCU:ESP8285
- VCC input: 5v
- Operation current: ~100Ma
- Rx To FC protocol: CRSF
- RF Frequency optional: 915mhz or 868mhz(EU)
- Dimension: 12mm*12mm*3mm
- Weight: 0.60 gram (exclude antenna)
- Antenna connector:  IPEX1
- Telemetry output Power: <17dBm
- RC7 Firmware for ES900RX download:

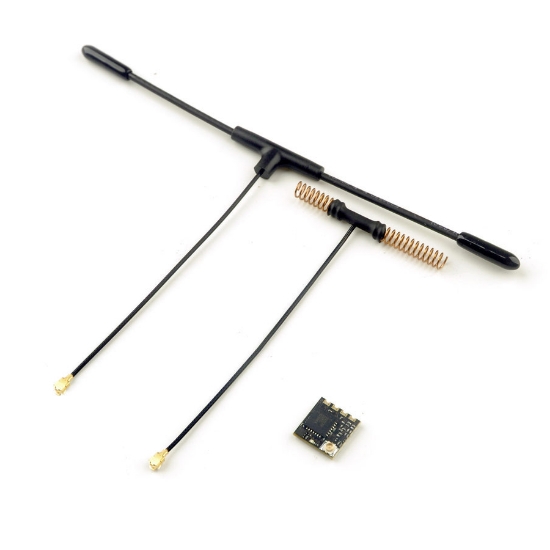

Includes:

- ELRS ES900RX 868MHz ELRS Receiver
- 868MHz Antenna
