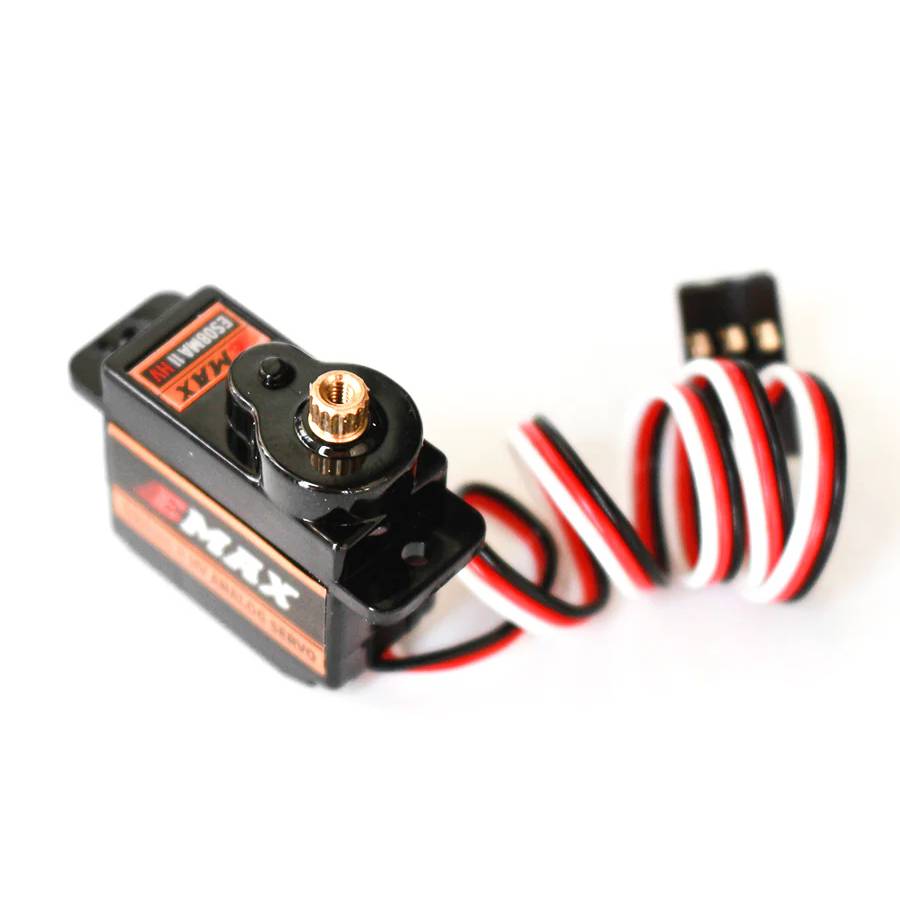

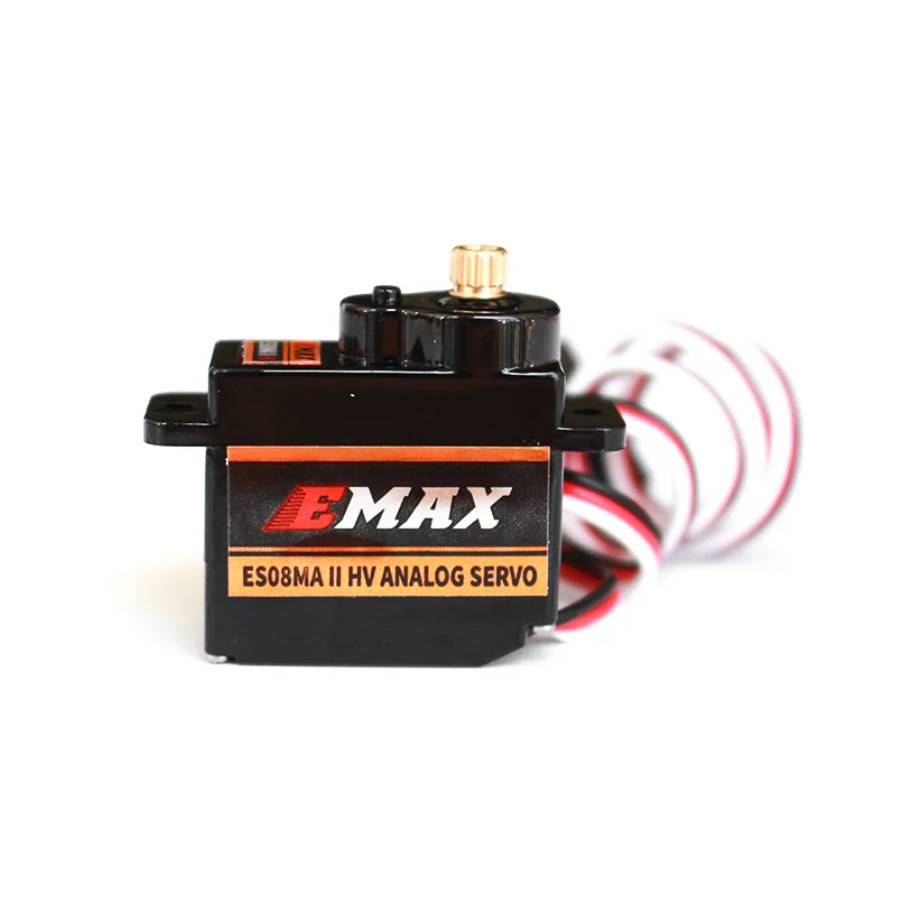

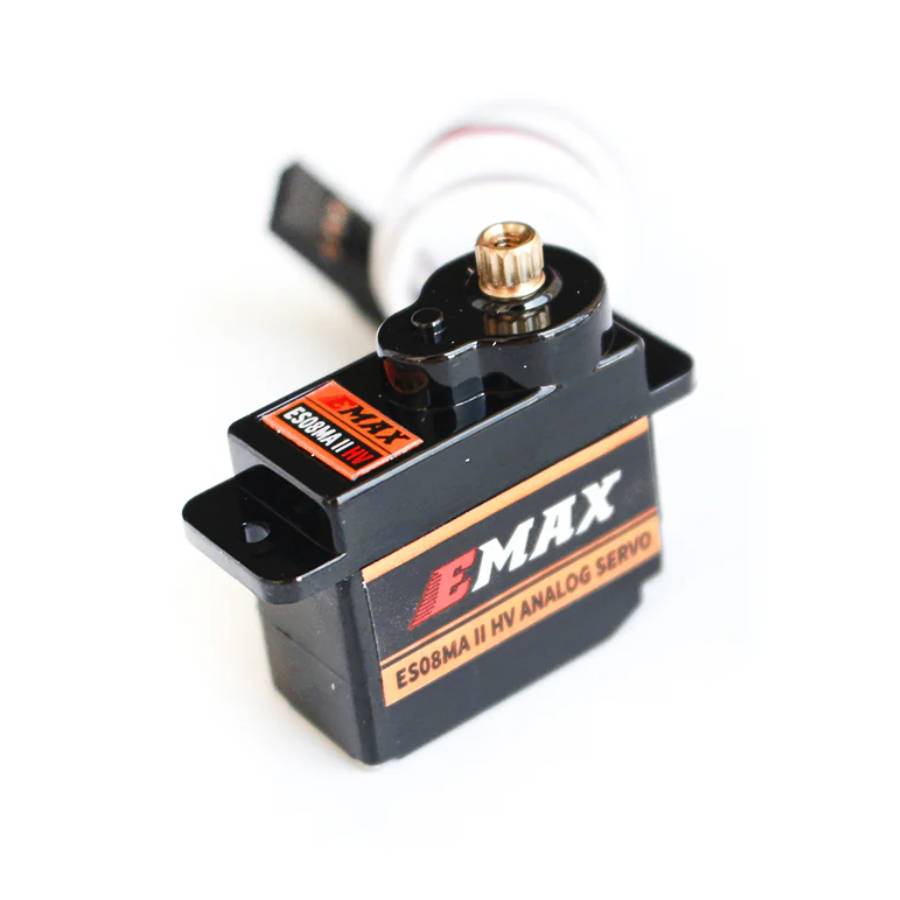

Emax ES08MA II HV Metal Gear Analogue Servo

Overview:
The Emax ES08MA II HV is a compact, high-voltage analogue servo designed for reliable control across a wide range of RC aircraft and lightweight surface models. Its metal-gear train provides durability under repeated load, while the high-voltage capability provides a wider scope of use. The coreless motor delivers smooth and responsive movement, giving pilots a consistent control feel during flight or on the ground. With its balanced combination of speed, torque and longevity, the ES08MA II HV is a practical upgrade for anyone seeking dependable performance from a lightweight servo.

Features:
- Metal-gear train throughout, offering greater durability and longevity than plastic-gear servos.
- High-voltage design supports a wide input range, allowing operation from standard 4.8V up to high-voltage supplies (commonly used in 1S LiPo/LiHV setups), improving torque and responsiveness.
- Lightweight and compact (12g, 23x11.5x24mm) — ideal for small-scale and weight-sensitive builds such as whoops, micro-planes or lightweight RC cars.
- Smooth analogue control output, suitable for standard PWM setups and compatible with most receivers and flight controllers.
- Low-wattage design (approx. 200mA at no load) helps minimise power draw, beneficial in battery-limited builds or lightweight drones.
- Metal-gear drivetrain designed for increased strength and service life
- Coreless motor offering smooth and precise response
- Universal 3-pin servo connector for wide compatibility
- Ideal for small fixed-wing aircraft and lightweight RC models

Specification:
- Weight: 12.8g
- Motor type: Coreless
- Gear material: Metal
- Plug type: Standard 3-pin
- Dimensions: 23x12x29mm
- Operating Speed (at no load): 0.17sec/60°(@6V), 0.12sec/60°(@8.4V)
- Running Current (at no load): 150mA Max(@6V), 200mA Max(@8.4V)
- Maximum Current: 0.4A Max(@6V), 0.5A Max(@8.4V)
- Idle Current: 6.5mA (@6V), 6.5mA(@8.4V)
- Connector Wire Length: 250mm(w/o Connector)
- Output Gear Spline: 15T
- Bearing: No
- Extreme Angle: 360°
- Control System: PWM
- Operating Travel: 95° ±10°

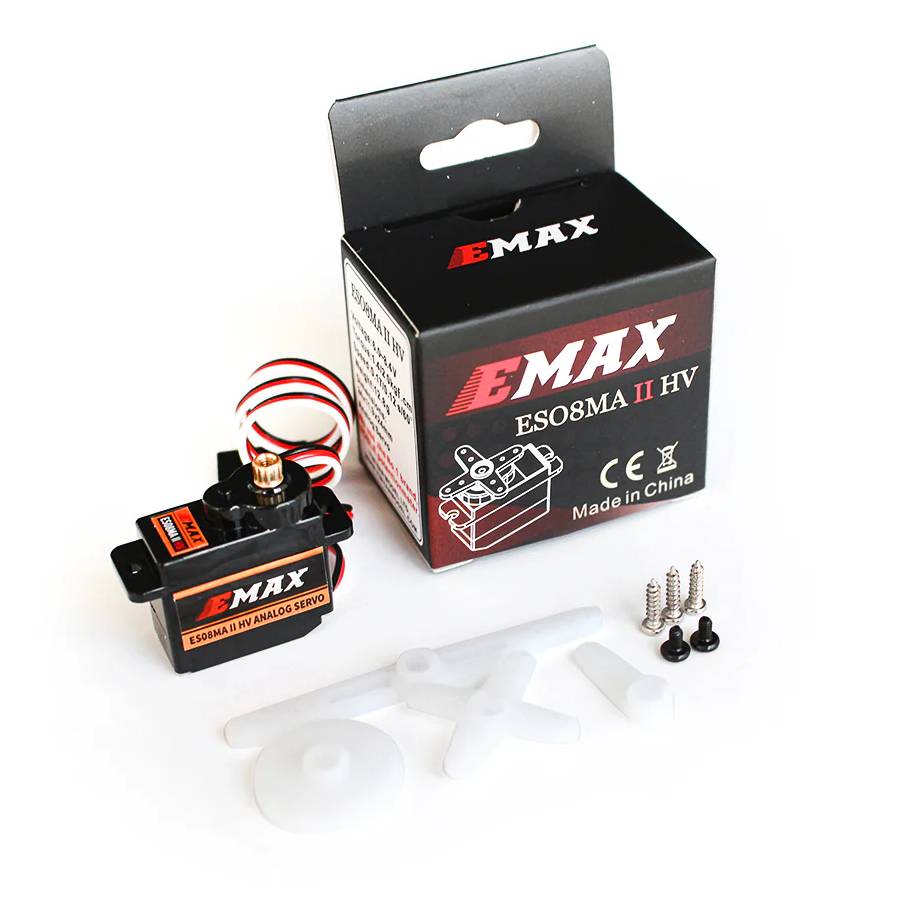

Included:
- 1x Emax ES08MA II HV Metal Gear Analog Servo
- Arm accessories
