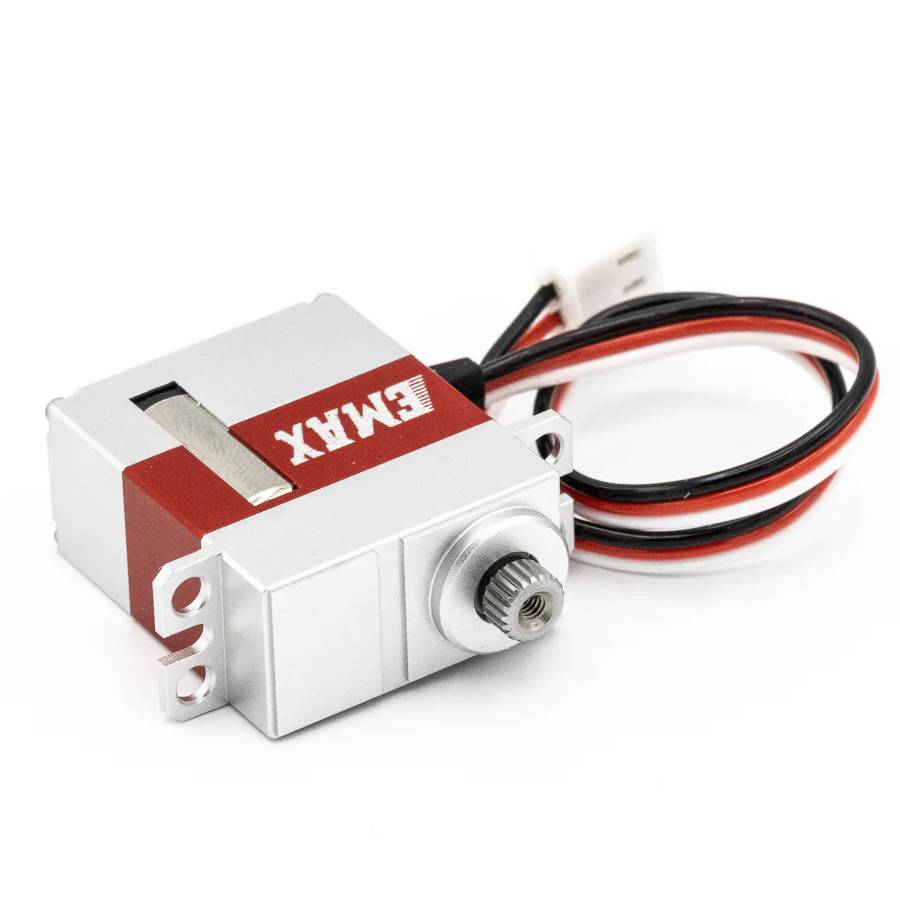

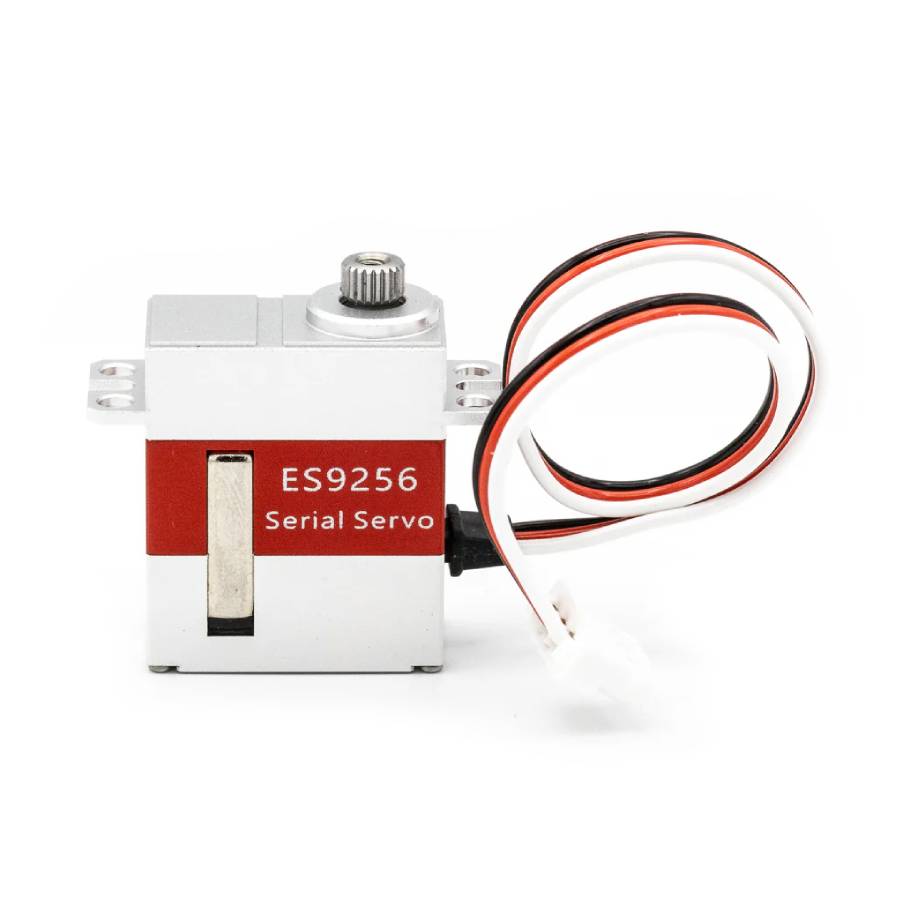

Emax ES9256 HV Digital Metal Geared Serial Servo

Overview:
The ES9256 HV by Emax is a high-performance digital servo built for RC helicopters, drones and fixed-wing models where precision, speed and torque matter. Its coreless motor, hardened metal gear train and high-voltage support make it well suited for demanding control tasks such as swashplate or tail rotor on 450-class helicopters, or robust control surfaces on fixed-wing craft. Compact and lightweight, it balances power with versatility - a solid choice if you’re upgrading or replacing a standard servo and want reliable, repeatable performance.

Features:
- High-voltage digital design supports stable operation on 6.0-8.4V supply, giving strong torque and responsiveness.
- Coreless motor and advanced drive electronics deliver fast response and precise positioning on each command input.
- Full metal gear train for durability and long lifespan even under repeated load - ideal for aggressive flight or heavy control surfaces.
- Dual bearing-supported output shaft and hardened aluminium gears reduce wear, ensuring smooth operation over time.
- Futaba/JR compatible plug and standard dimensions make installation straightforward in most heli or airplane servo bays.
- Compact size and relatively low weight make it suitable even for moderately space-constrained builds.

Specification:
- Model: Emax ES9256 HV Digital Serial Servo Metal Gear
- Operating speed: (no load): 0.09 sec/60°(6V), 0.08 sec/60°(7.4V), 0.07 sec/60°(8.4V)
- Running current: (no load): 260mA Max(6V), 320mA Max(7.4V), 380mA Max(8.4V)
- Stall torque: 4.2kg cm Max(6V), 5.2kg cm Max(7.4V), 5.8kg cm Max(8.4V)
- Maximum current: 1.6A Max(6V), 1.9A Max(7.4V), 2.1A Max(8.4V)
- Idle current: 18.6mA
- Weight: 20g
- Connector wire length: 160mm
- Output spline: 23T
- Bearing: 2BB
- Gear type: Metal gear
- Rotational range: 360°
- Control system: Serial port (TTL)
- Rotating direction: Counter-clockwise

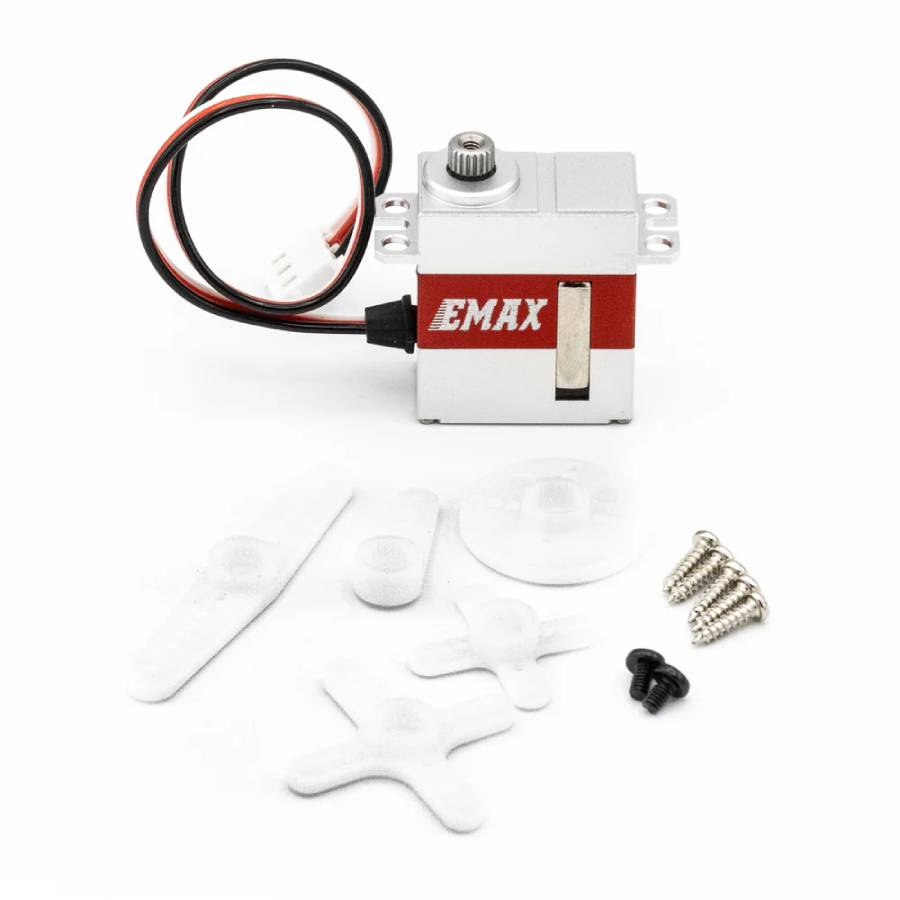

Included:
- 1x Emax ES 9256 HV Digital Serial Servo Metal Gear
- Screws & Servo Arms
