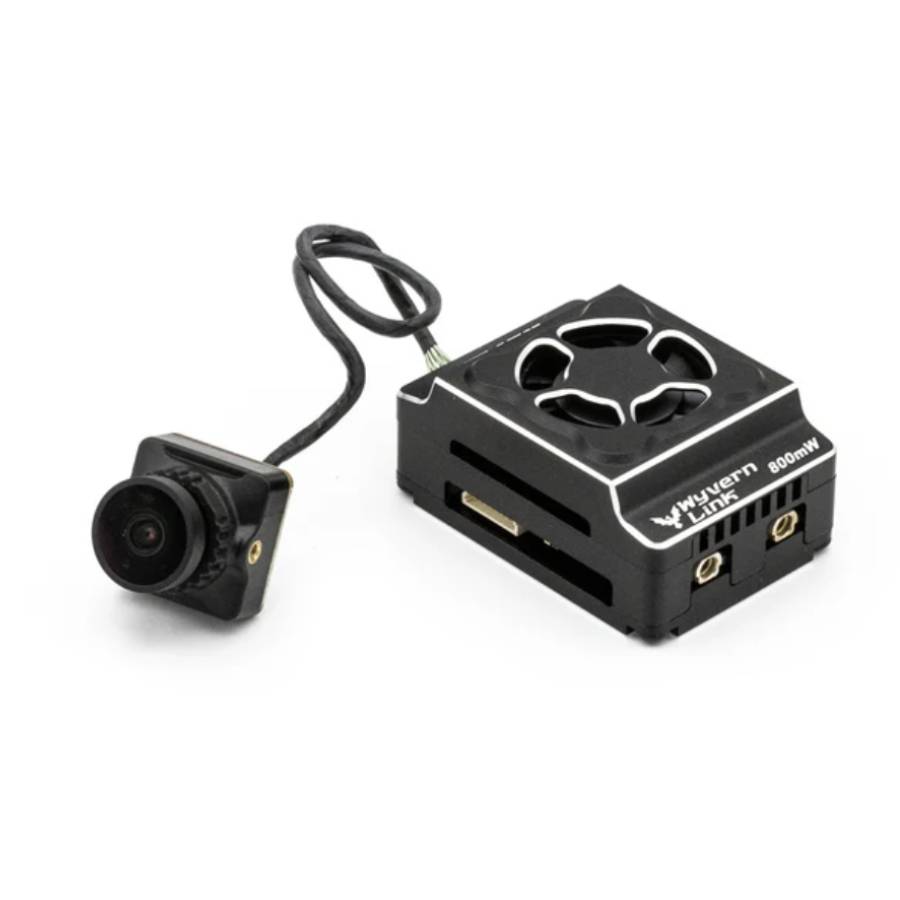

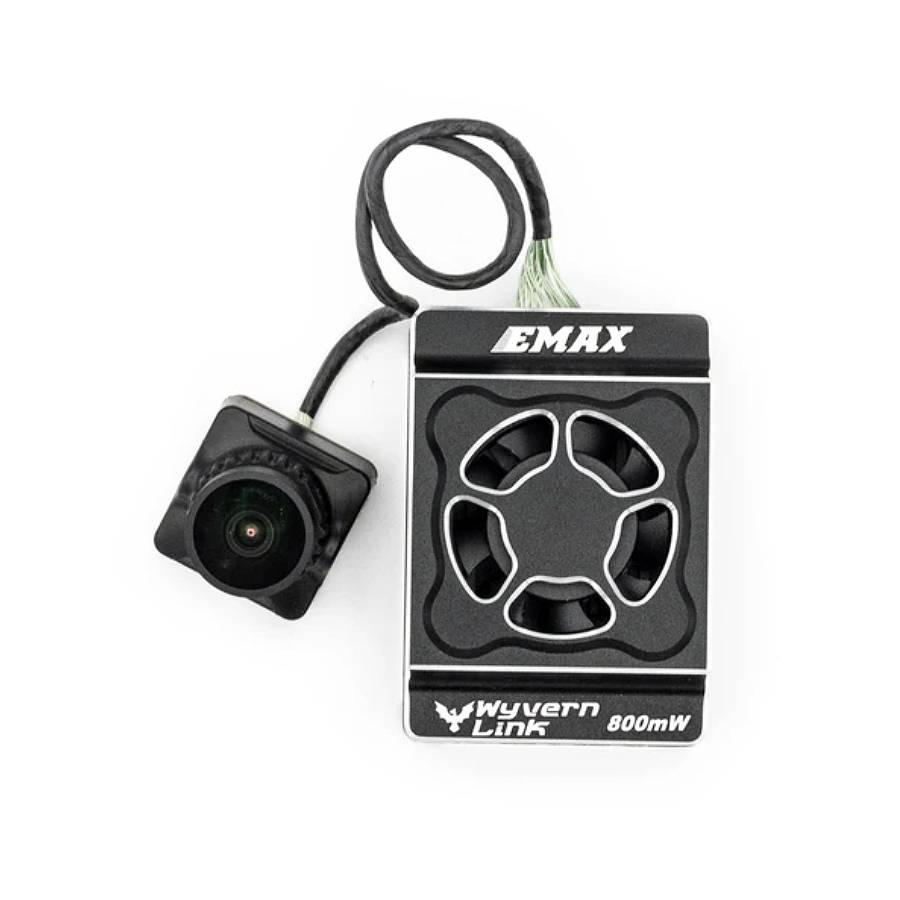

Emax OpenIPC Wyvern Link Alpha 800mw VTX

Overview:
The Wyvern Link Alpha brings true long-range HD FPV capability to any 5-inch+ drone build. Housed in a CNC-machined aluminium shell for rugged durability and heat control, this 800mW VTX combines open-source flexibility with serious transmission power. Whether you’re filming long-range aerials or pushing the limits of freestyle, its OpenIPC firmware, adjustable output and high-definition video make it a versatile choice for advanced pilots looking for a reliable, future-proof video link.

Features:
- Up to 800mW output power for strong, stable video transmission and extended range.

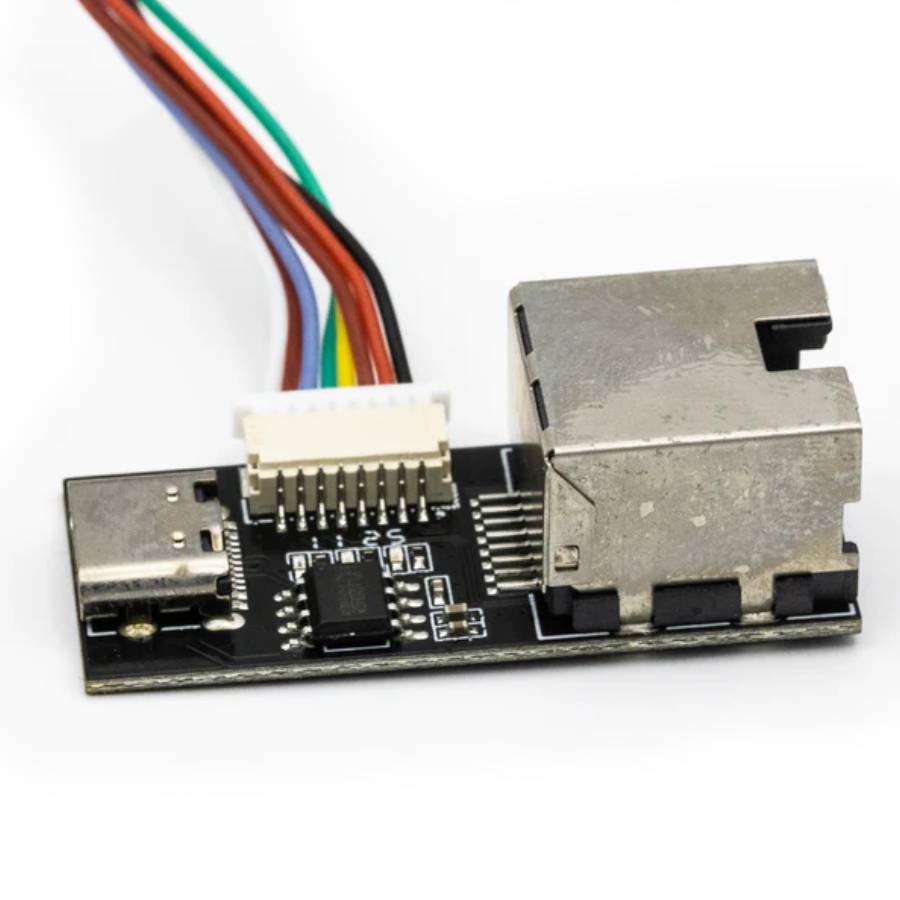

- OpenIPC firmware: fully customisable video platform allowing configuration of resolution, frame rate and transmission settings via USB-C or Ethernet.
- Supports HD video via built-in camera with Sony IMX415 sensor — up to 1080p at 90fps or 720p at 120fps for smooth, low-latency footage.
- Durable aluminium housing with active cooling to keep temperatures down under load, reducing thermal throttling during long or demanding flights.
- Flexible input voltage (2S–6S) for easy integration into a variety of drone power setups
- Compact mounting pattern (20×20mm/25.5×25.5mm) to suit standard flight-controller stacks and keep build neat.

Specification:
- Model: Emax OpenIPC Wyvern Link Alpha 800mw VTX (0110003188)
- Output power: 25/200/500/800mW selectable
- Frequency band: 5.8GHz (standard FPV analogue band)

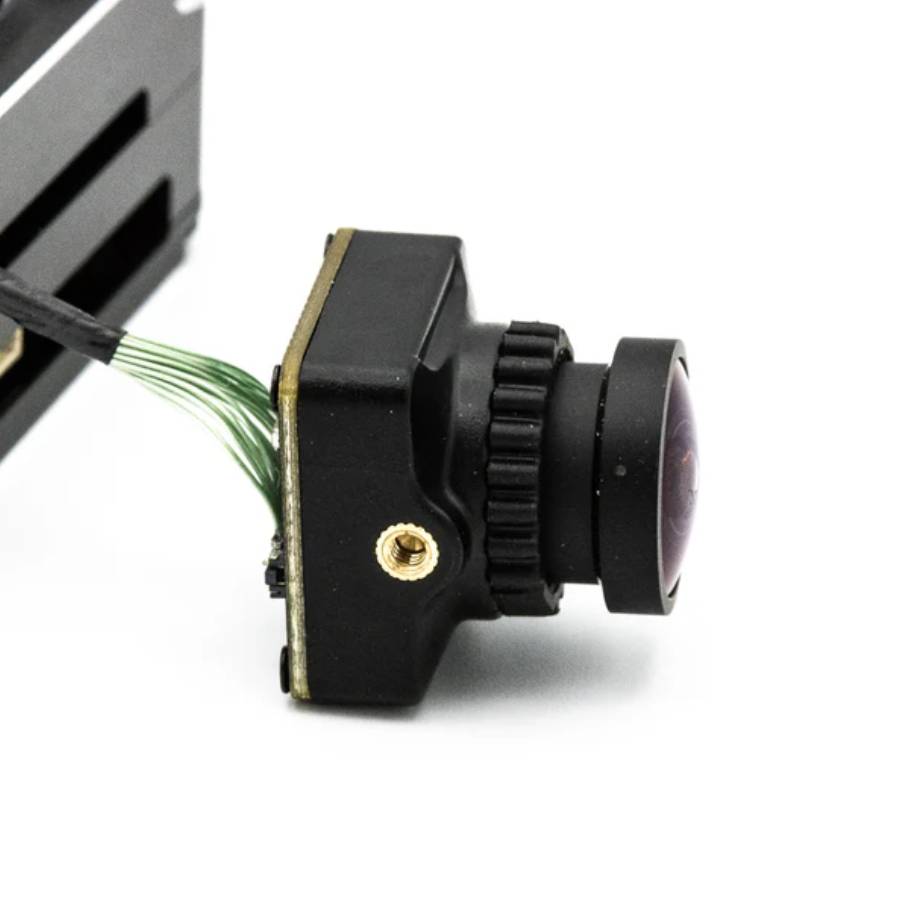

- Camera sensor: Sony IMX415
- Video modes: up to 1080p at 90fps; 720p at 120fps
- Input voltage: 2-6S LiPo (7–26V)
- Weight: approx 48.2g (camera + VTX, excluding antenna cable)
- Mounting pattern: 20x20mm or 25.5x25.5mm stack-compatible
- Housing: CNC aluminium shell with active cooling fan

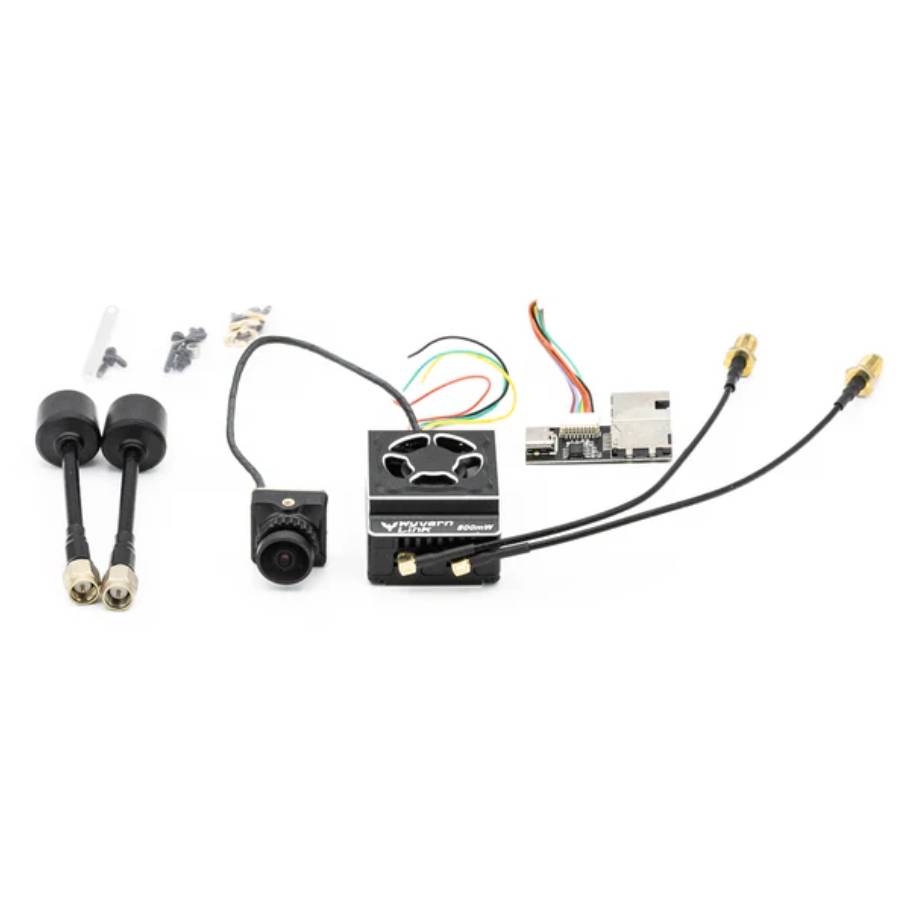

Included:
- 1x Emax OpenIPC Wyvern Link Alpha 800mw VTX
- Accessories
