Emax Wyvern Link OpenIPC Goggle VRX

Overview:
The Emax Wyvern Link is a compact digital VRX module that brings OpenIPC HD video to a wide range of FPV goggles through a simple HDMI connection in your existing FPV goggles. It’s built around the open-source OpenIPC protocol, offering HDMI output and built-in DVR for recording flights - making it well suited for pilots who want to move beyond analogue and enjoy HD video reception.

The Wyvern Link with OpenIPC is optimised for FPV use, providing maximum video specs of 1080p at 90fps or 720p at 120fps. These settings deliver smooth, high-definition video for both short- and long-range flights. With multiple resolution and frame rate options, users can balance image clarity and latency for the best flying experience in various conditions.

It’s designed for pilots who want a lightweight, add-on receiver that’s easy to mount, straightforward to power and capable of delivering clear, low-latency FPV footage without committing to a full new goggle system.

Features:
- OpenIPC-compatible digital receiver for low-latency HD video over 5.8GHz.

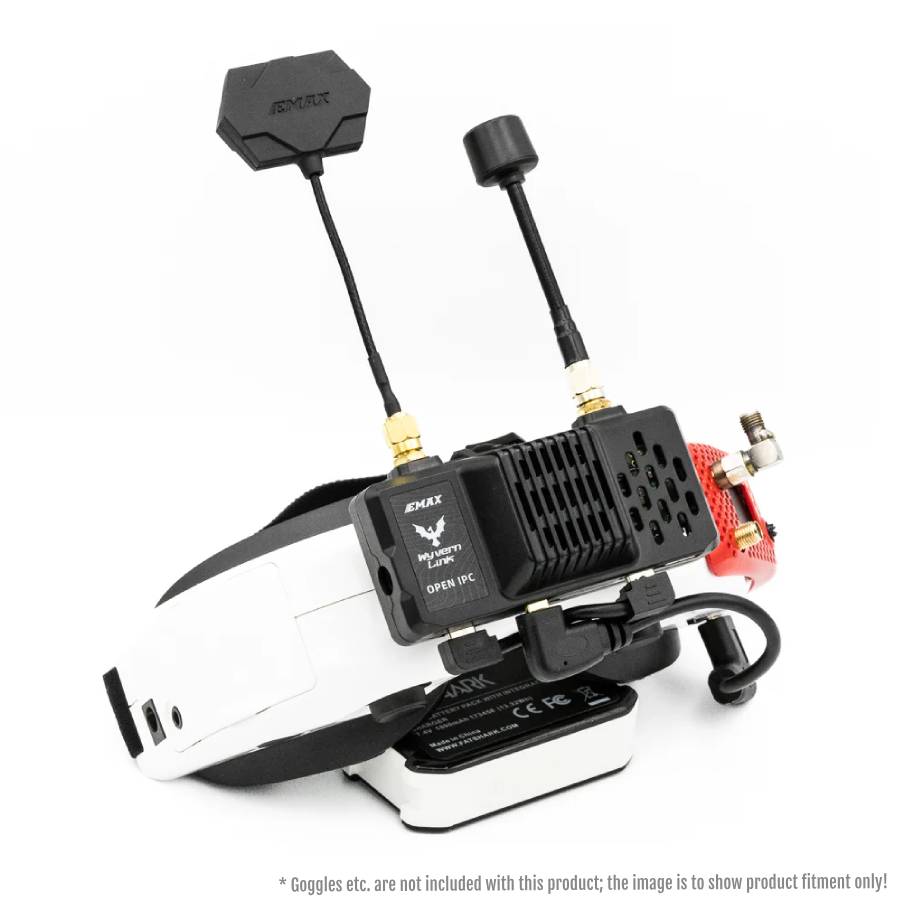

- Compact module that mounts directly to most goggles (FatShark, SkyZone etc) using the supplied bracket.
- HDMI output for connection to any goggles or display with HDMI input.
- Integrated DVR with micro-SD storage for onboard video recording.
- 2S–6S input range for flexible powering via standard LiPo packs.
- Supplied with matched LHCP omni and patch antennas for optimal signal coverage.
- Simple USB-C data connectivity and easy firmware updating.

Specification:
- Model: Emax Wyvern Link OpenIPC Goggle VRX
- Firmware/protocol: OpenIPC digital FPV
- Video output: HDMI (micro-HDMI to mini-HDMI included)
- Power input: DC/LiPo 2S–6S battery support
- Included antennas: LHCP omni + patch via SMA connector
- Physical dimensions: 88×55.5×40.5mm
- Weight: 101.2g (complete kit), 87.7g (with antenna), 71.6g (without antenna)
- Mounting: Bracket hole spacing 21×21mm - compatible with FatShark and SkyZone-style goggles.

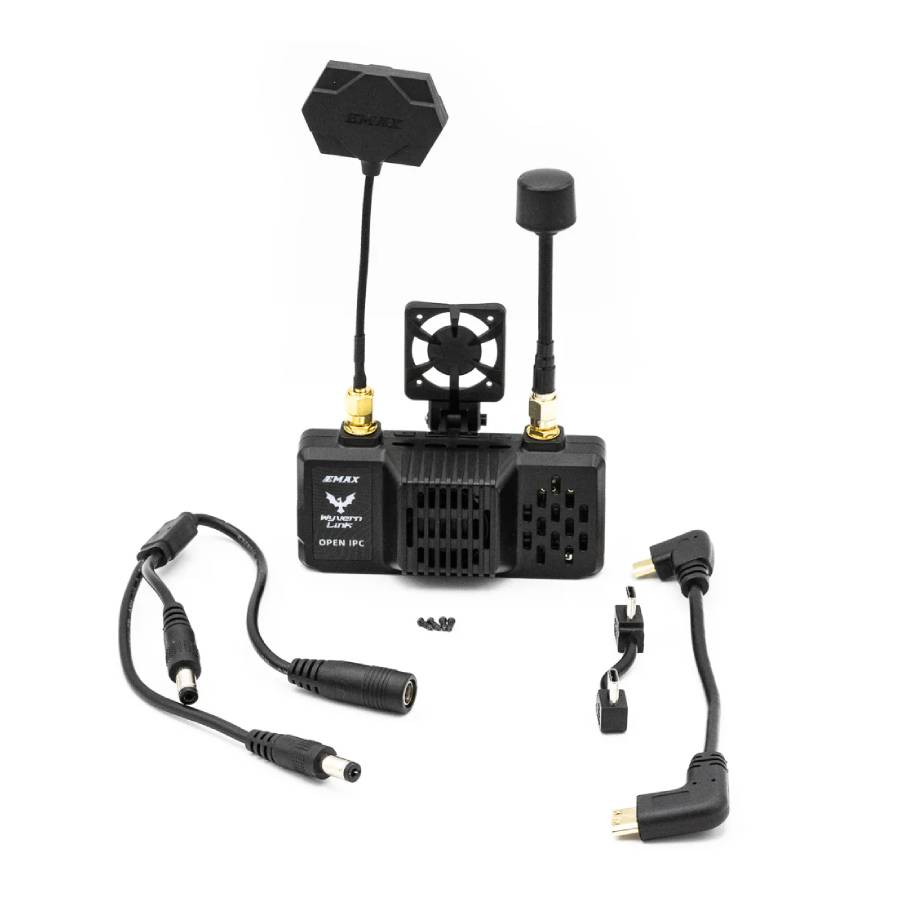

Included:
- 1x Emax Wyvern Link OpenIPC Goggle VRX
- 1x Micro-HDMI to mini-HDMI cable
- 1x Dual Type-C data cable
- 1x DC power cable
- 2x Antennas
- Mounting screws & accessories
