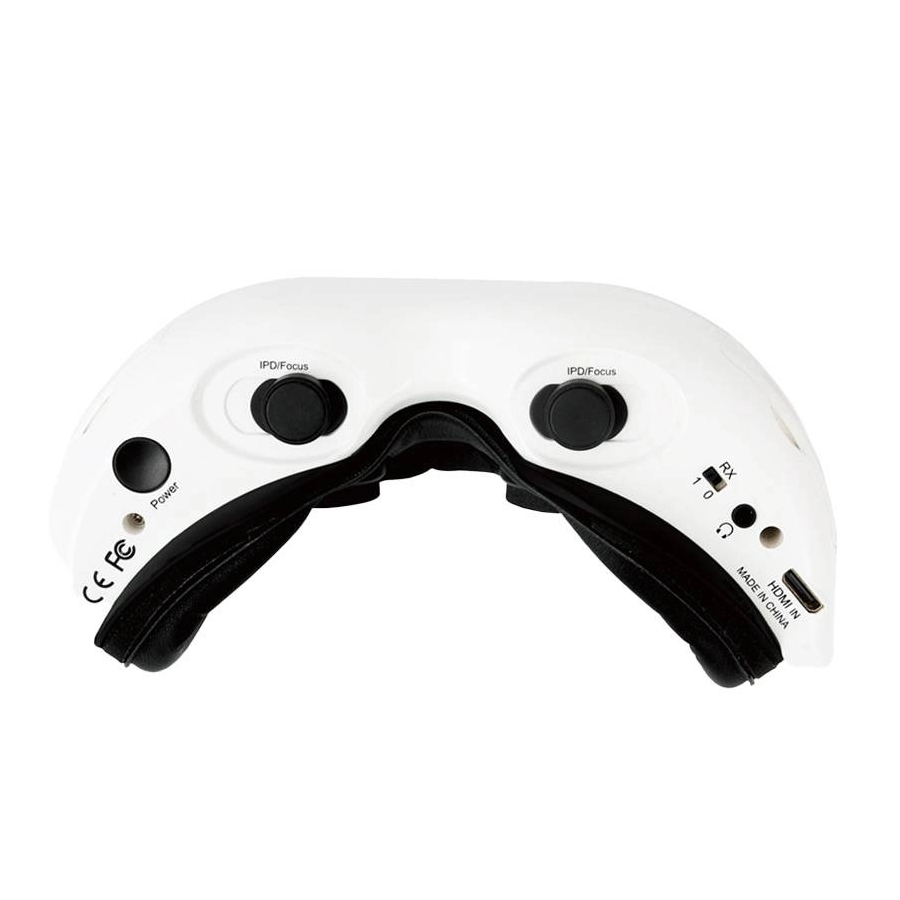

Fat Shark HDO+ OLED FPV Goggles (RETURN)

*** FAULTY CUSTOMER RETURN: LEFT HAND SIDE SCREEN BRIGHTER THAN RIGHT HAND SIDE. SOLD FOR SPARES/PARTS. NO RETURNS ***

Overview:
The Fat Shark Dominator HDO+ boasts a larger field of view and a higher resolution OLED panel, providing stunning visual clarity. Additionally, it features a fully updated optical engine that allows for precise focus and interpupillary distance (IPD) adjustments.

These goggles are suitable for analogue FPV and require an Analogue FPV Module - for example Rapidfire to function, unless using the analogue video in port.

** Battery NOT included. Only an XT60 to barrel connector is included in the package **

Features:
- Brightness/Contrast Control
- Coarse Focus Adjustment
- Head Strap and Face Fit
- AV Connector Pin-Out
- Low-Battery Warning
- RX Power Switch
- DVR Operation
- Channel Select
- Playback

User control specifications:
- Display Control (Brightness & Contrast)
- Power Button / Fan Control
- Channel Selection
- Volume Control
- Mode Selection
- DVR Control

Interface specifications:
- 3.5mm 3p earphone port
- 3.5mm AV in/out port
- Power input port
- RF Module Bay
- MicroSD
- Stereo audio

Electrical specifications:
- Analog DVR: MicroSD support to 32 GB, Upgradeable via SD card
- Record Rate: 6 Mbps (MJPG compression, 30 fps, AVI)
- Power Supply: 7 – 25V input voltage (2S – 6S Supply)
- File playback: Native recording, no codec support

Mechanical specifications:
- Headset: Ergonomic molded headset with adjustable headband
- Dimensions: 169.2 x 80 x 45.5mm
- Weight: 235.8g

Optic specifications:
- IPD (interpupillary distance): 57 to 70 mm (adjustable)
- FOV (Field of View): 50 degrees diagonal
- Focus: +2 to -6 diopters (adjustable)

Display specifications:
- OLED Displays: Two seeya 0.49”
- Digital video in Mode: 16:9
- Auto-Selecting: NTSC/PAL
- Resolution: 1920 x 1080
- AV Mode: 16:9
- AV Mode: 4:3

Included:

- Fat Shark HDO+ OLED FPV Goggles ** RETURN **
- Accessories
