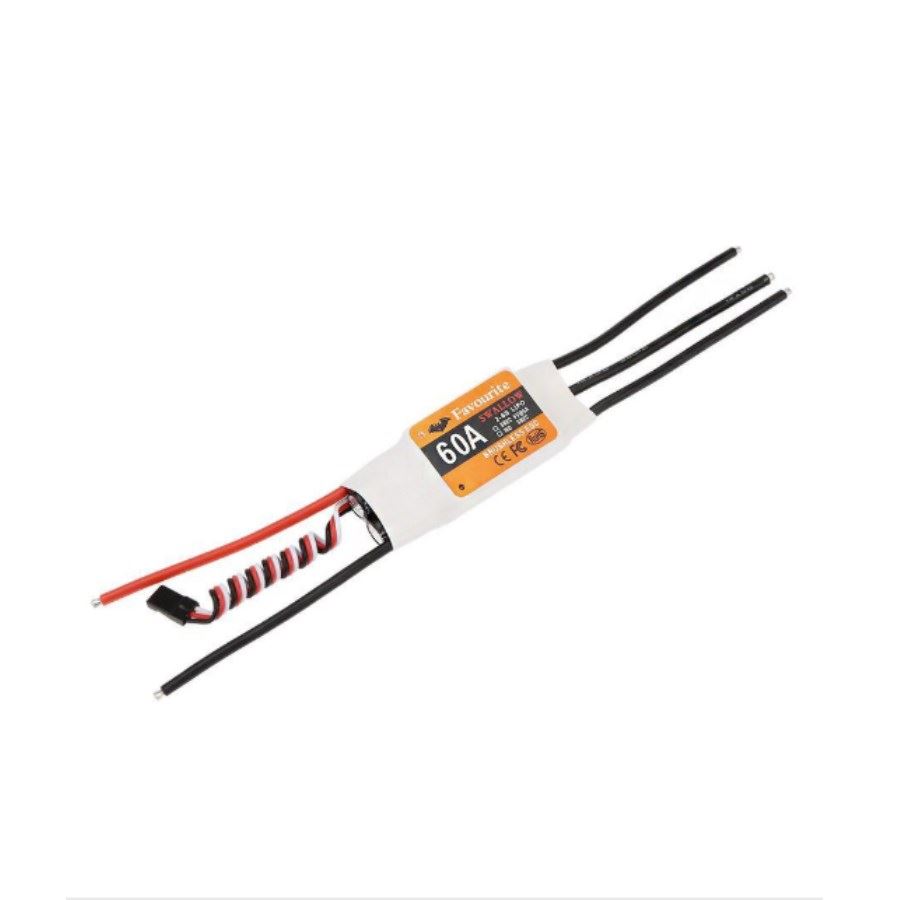

Favourite Swallow 60A ESC with 5V 5A BEC (2-6S)

Favourite Swallow Series aircraft ESC’s pack a wide array of adjustments and tunability into a heavy duty 60A speed controller and high voltage 2-6S support.
Availability: In stock
£28.10 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

Favourite Swallow Series aircraft ESC’s pack a wide array of adjustments and tunability into a heavy duty 60A speed controller and high voltage 2-6S support. Swallow Series ESC’s are manufactured using high-quality components and integrated heat-sinks to increase efficiency, lower operating temperatures and increase run times. They are ideal for use with RC planes & flying wings because they include a large 5A BEC to power servos.

Features:
- Multiple motor timing choices, compatible with most brushless motors in the market.
- Microprocessor uses separate voltage regulator IC, with good anti interference capability.
- Self detection and warning function: When the throttle signal is inadequate, the motor will not start and emit "Beep-beep".
- Multiple protection features: over-heat protection and throttle signal loss protection,low voltage cut-off protection.
- Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

Specifications:

- Favourite/FVT Swallow
- Constant Current: 60A
- Burst Current (10s): 80A
- Operating Voltage: 2-6S LiPo
- BEC Output: 5V/5A
- Dimension: 84x29x22mm
- Weight: 70g
- Programmable: Yes (Via TX or programming card - sold seperately)

Adjustable Parameters
- Brake (on/off)
- Battery type (NiMH/LiPo)
- Cut-off type  (Reduce Power/Cut Off Power)
- Cut-off voltage threshold (Low/Medium/High)
- Motor timing (Low/Medium/High)
- Startup Acceleration (Very Soft/Soft Acceleration/Start Acceleration)
- Flying Mode (Fixed Wing/Helicopter)
- Motor direction (Forward/Reverse)

Includes:

- 1x Favourite Swallow Series 60A ESC (2-6S) with 5V 5A BEC
- Instruction Sheet
