Overview:
The FrSky TW Mini Receiver is an ultra-compact receiver designed for models where space and weight are limited, such as lightweight FPV aircraft and small fixed-wing builds. Built around FrSky’s TWIN (TW) dual-band 2.4GHz communication system, it provides a resilient control link by operating simultaneously on two RF signals, improving reliability and link stability compared with conventional single-band receivers.
Despite its very small footprint, the TW Mini supports FrSky’s modern telemetry ecosystem and flexible connection protocols. The receiver provides SBUS output for flight controllers or servo decoders, while FBUS, S.Port and F.Port telemetry support allow bidirectional communication with compatible systems. When configured for FBUS within the ETHOS environment, control signals and telemetry can be carried through a single wire, simplifying installation and reducing wiring complexity in compact builds.
The receiver also includes features such as OTA firmware updates and onboard black-box logging, providing convenient firmware management and the ability to record operational data for diagnostics.
Features:
- TWIN protocol with simultaneous dual 2.4GHz communication for improved link resilience
- Compact and lightweight design suited to small drones and aircraft
- SBUS output supporting both 16-channel and 24-channel modes
- Telemetry support via FBUS, S.Port and F.Port protocols
- Single-wire FBUS operation for combined control and telemetry
- Black-box logging capability for diagnostic data recording
- Over-the-air (OTA) firmware update support
- Designed for use with FrSky TWIN series radios and RF modules in TW mode
- Long-range control capability depending on RF power configuration
Specification:
- Frequency band: Dual 2.4GHz

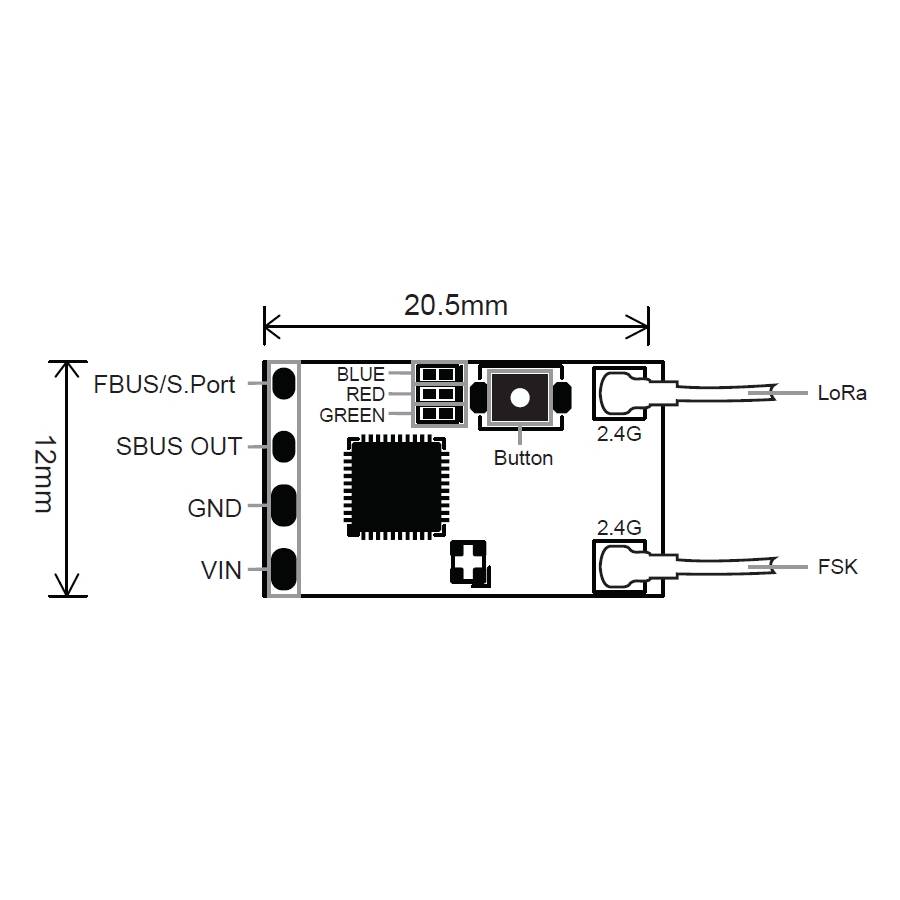

- Dimensions: 20.5x12mm
- Weight: 2.2g
- Operating voltage: 3.5–10V
- Minimum recommended operating voltage: >2.8V
- Operating current: ≤50mA@5V
- Antenna connector: IPEX1

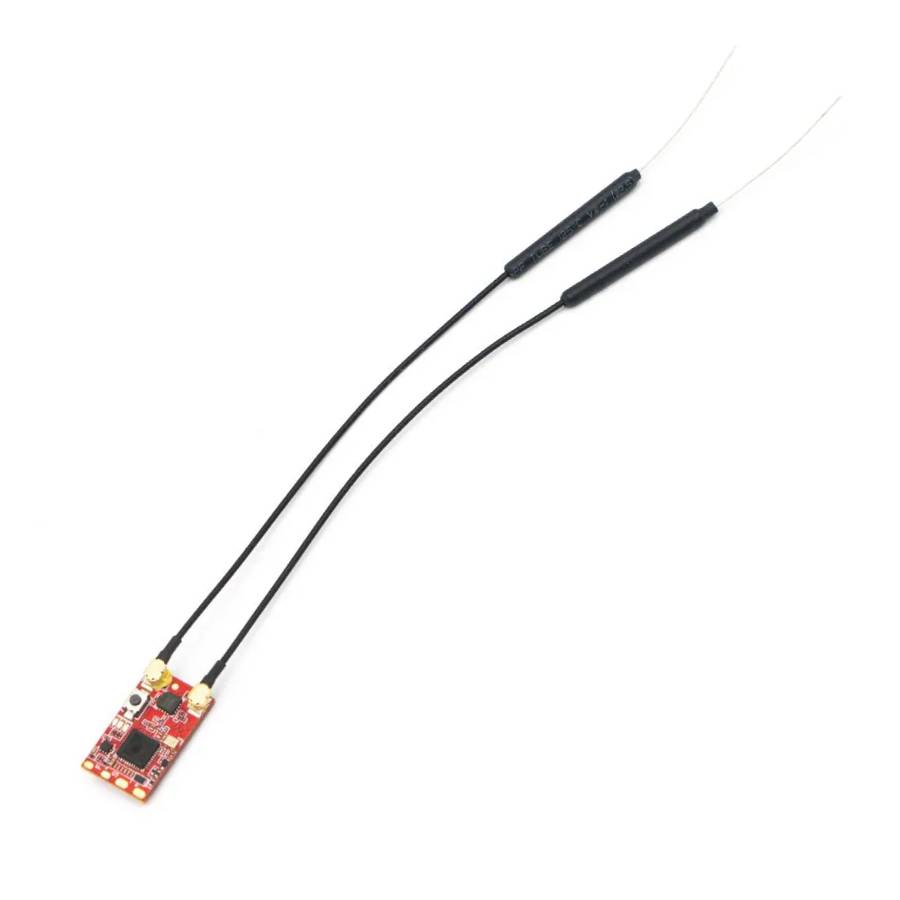

- Antenna configuration: Dual external antennas
- Compatibility: FrSky TWIN series transmitters and RF modules operating in TW mode
Included:
- 1x FrSky TW Mini
- Accessories
