Overview:

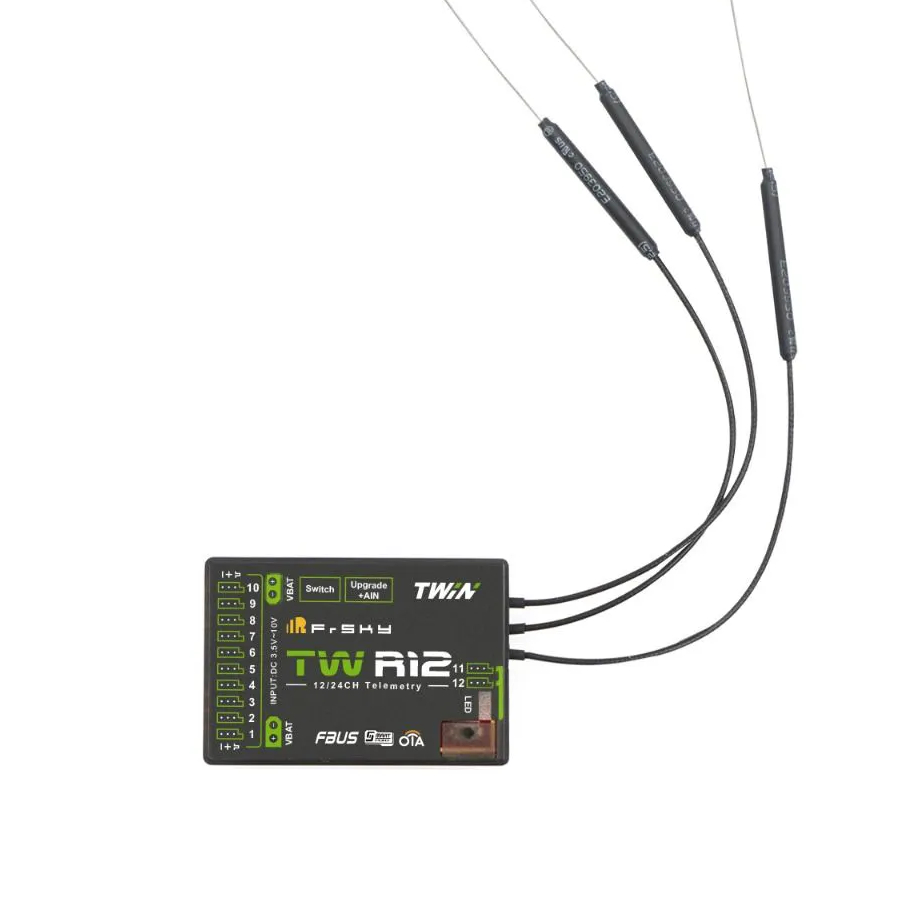

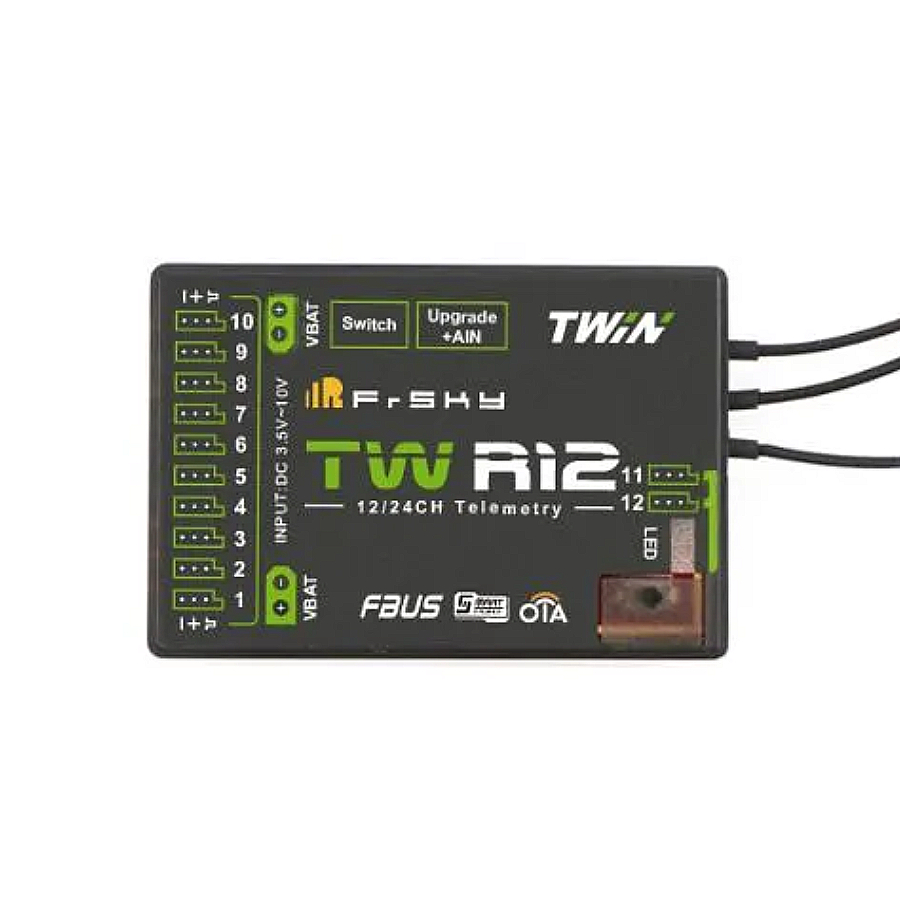

The FrSky Twin TW R12 is a high-performance 12-channel receiver designed for fixed-wing aircraft that require a dependable long-range control link and flexible connectivity. Using FrSky's Twin (TW) protocol, the receiver operates simultaneously on dual 2.4GHz frequency bands to improve signal resilience, making it an excellent choice for scale, aerobatic and FPV aircraft where reliability is paramount.
The TW R12 provides twelve configurable channel ports with support for PWM, SBUS, FBUS and S.Port, allowing it to integrate with conventional receiver-based models as well as advanced flight controllers. FBUS support combines control and telemetry over a single connection, reducing wiring complexity while maintaining full functionality. A built-in black box function allows basic flight data recording, while OTA firmware updates make it easy to keep the receiver up to date without additional cables.
The receiver also features dual XT30 power inputs, enabling a safe and robust power supply for larger aircraft with multiple servos. An integrated power switch function, compatibility with optional external switch modules and SBUS input for signal redundancy further enhance reliability, making the TW R12 well suited to demanding fixed-wing applications where secure control and flexible installation are essential.
Features:
- Simultaneous dual 2.4GHz TW protocol operation for enhanced signal reliability.
- 12 configurable channel ports.
- CP1 supports PWM, SBUS Out, FBUS, S.Port and SBUS In.
- CP2-CP12 support PWM, SBUS Out, FBUS and S.Port.
- FBUS support combines control and telemetry over a single connection.
- SBUS Out supports both 16-channel and 24-channel output modes.
- SBUS In supports signal redundancy.
- Built-in black box function for basic flight data recording.
- Built-in power switch function compatible with optional external switches.
- Over-the-Air (OTA) firmware updates.
- Triple external antennas for improved signal reception.
- Long-range control capability when used with compatible FrSky Twin transmitters and RF modules.
Specification:
- Model: FrSky Twin TW R12 Receiver
- Protocol: FrSky Twin (TW)
- Frequency: Dual 2.4GHz
- PWM channels: 12
- Compatibility: FrSky Twin series transmitters and TW-compatible RF modules
- Operating voltage: 3.5-10V
- Recommended power source: 2S LiPo
- Operating current: ≤130mA
- Continuous current (device power): ≤20A
- Peak current (device power): ≤40A
- External voltage measurement range (AIN): 0-35V
- Battery voltage divider ratio: 1:10
- Power connectors: Dual XT30
- Antennas: Triple external 2.4GHz antennas

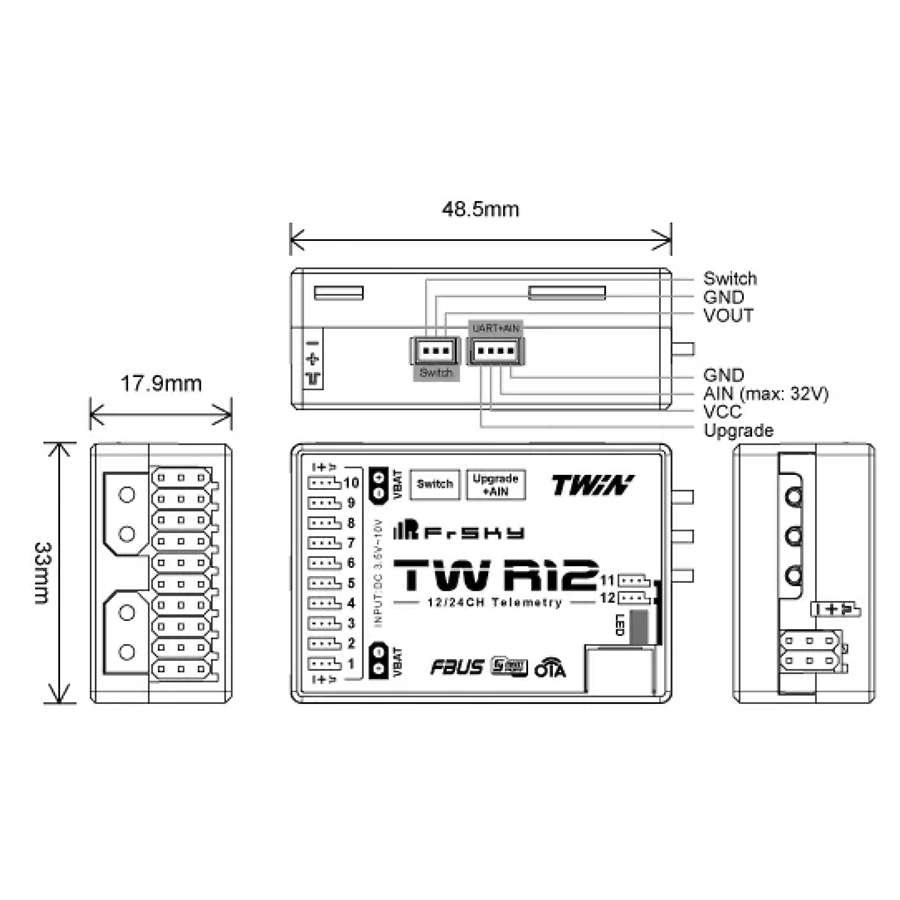

- Dimensions: 48.5×33×17.9mm
- Weight: 22.5g
Included:
- 1x FrSky Twin TW R12
- Connection cables
